Rotary Table Water Well Drilling Rigs
Large rotary table rigs — the heavy-duty choice for deep water wells. Compare published depth, hole diameter and engine power model by model.
Applications

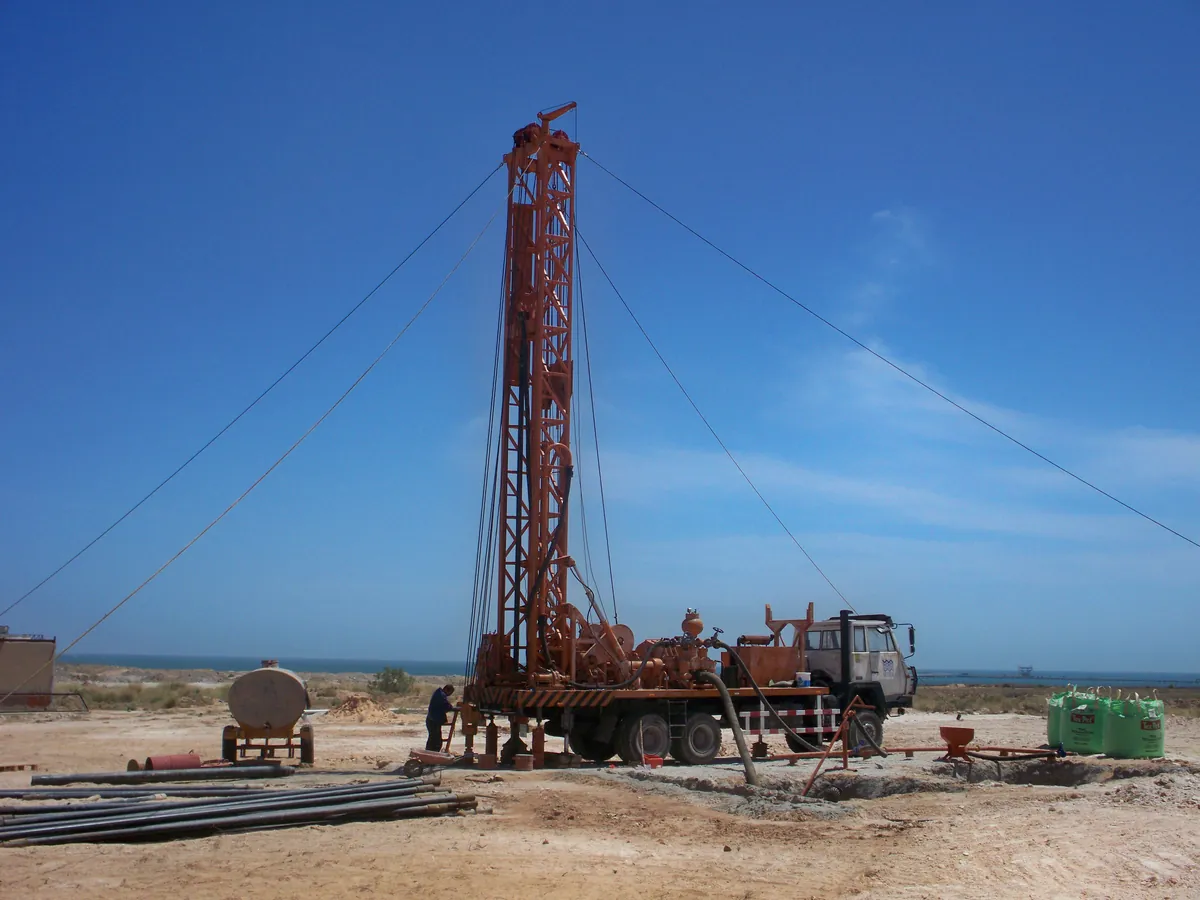

- Deep water wells
- Large-diameter boreholes
- Heavy drilling projects
Key features
- ✓Rotary table drive — high torque for heavy drill strings
- ✓Deepest depth class in the truck-mounted range
- ✓Matched mud pumps and mast systems
- ✓Truck-mounted mobility for site changes
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the ROTARY-TABLE Series range before opening a model page.
RequirementModels to reviewPublished selection basis
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
Rotary table rigs (TZT/CZC series) are truck-mounted drilling units built for deep, large-diameter water wells, and each model's published depth, hole diameter and engine power are listed in the specification table. The rotary table drive delivers high torque for heavy strings, matched with mud pumps and mast systems rated for continuous deep-hole production. For projects that need the deepest holes, the rotary table series is the heavy-duty option. At publication, the series covers 9 models — key specifications are listed below.
| Model | Machine | Hole diameter (mm) | Drilling depth (m) | Engine power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| CZC-1200 → | CZC-1200 Rotary Table Water Well Drilling Rig | 50–2000 mm | 1200–1500 m | 256 kW | 32000 kg |
| CZC-1500 → | CZC-1500 Rotary Table Water Well Drilling Rig (Truck) | 90–1800 mm | 1500 m | 353 kW | 33500 kg |
| CZC-450 → | CZC-450 Rotary Table Water Well Drilling Rig | 505 mm | 450 m | 132 kW | 29000 kg |
| CZC-600 → | CZC-600 Rotary Table Water Well Drilling Rig | 50–2000 mm | 600 m | 144 kW | 28000 kg |
| CZC-800 → | CZC-800 Truck-Mounted Rotary Table Drilling Rig | 90–2000 mm | 800 m | 265 kW | 32000 kg |
| TZT-1000 → | TZT-1000 Truck-Mounted Rotary Table Drilling Rig | 90–1800 mm | 1000 m | 320 kW | 23500 kg |
| TZT-1200 → | TZT-1200 Rotary Table Water Well Drilling Rig | 90–1800 mm | 1200 m | 353 kW | 24000 kg |
| TZT-450 → | TZT-450 Truck-Mounted Rotary Table Drilling Rig | 90–1800 mm | 450 m | 132 kW | 18500 kg |
| TZT-800 → | TZT-800 Rotary Table Water Well Drilling Rig (Trailer) | 90–1800 mm | 800 m | 320 kW | On request |
Complete specifications by model
CZC-1200 →
- Drilling capability — Drilling depth
- 1200–1500 m
- Drilling capability — Hole diameter
- 50–2000 mm
- Mast load capacity
- 60 t
- Mast height
- 15 m
- Hook load
- 60 t
- Hook reeving
- 10 t × 6 lines
- Rotary table torque
- 17000 N·m
- Rotary table speed
- 0–236 rpm
- Engine power
- 256 kW
- Truck chassis
- Sinotruk 6×4 or 8×4
- Mud pump
- 1500 L/min at 12 MPa
- Dimensions & weight — Overall dimensions
- 14500 × 2500 × 4300 mm
- Dimensions & weight — Operating weight
- 32000 kg
CZC-1500 →
- Drilling depth
- 1500 m
- Hole diameter
- 90–1800 mm
- Mast load capacity
- 80 t
- Mast height
- 15 m
- Main hoist single-rope pull
- 12 t
- Hook load
- 72 t
- Rotary table
- CT-1
- Rotary table torque
- 36850–3589 N·m
- Rotary table speed
- 27–208 rpm
- Engine
- Weichai
- Engine power
- 353 kW
- Mud pump
- BW1500
- Mud pump flow
- 1500 L/min
- Mud pump pressure
- 12 MPa
- Truck chassis
- Sinotruk 8×4
- Dimensions & weight — Overall dimensions
- 15000 × 2500 × 4500 mm
- Dimensions & weight — Operating weight
- 33500 kg
CZC-450 →
- Drilling depth
- 450 m
- Hole diameter
- 505 mm
- Mast load capacity
- 50 t
- Mast height
- 17 (telescopic) m
- Hook load
- 33 t
- Rotary table
- CT-1
- Rotary table speed
- 26–191 (7 forward, 1 reverse) rpm
- Engine power
- 132 kW
- Mud pump
- BW850/5
- Drill pipe length
- 6 m
- Chassis
- 6×4 truck or trailer
- Dimensions & weight — Overall dimensions
- 15000 × 2500 × 4500 mm
- Dimensions & weight — Operating weight
- 29000 kg
CZC-600 →
- Drilling capability — Drilling depth
- 600 m
- Drilling capability — Hole diameter
- 50–2000 mm
- Mast load capacity
- 50 t
- Mast height
- 12 or 15 m
- Hook load
- 48 t
- Hook reeving
- 8 t × 6 lines
- Rotary table torque
- 17000 N·m
- Rotary table speed
- 0–236 rpm
- Engine power
- 144 kW
- Truck chassis
- 6×4
- Mud pump
- 1100 L/min at 5 MPa
- Drill pipe length
- 6 m
- Dimensions & weight — Overall dimensions
- 11500 × 2500 × 4300 mm
- Dimensions & weight — Operating weight
- 28000 kg
CZC-800 →
- Drilling depth
- 800 m
- Hole diameter
- 90–2000 mm
- Mast load capacity
- 60 t
- Mast height
- 11 m
- Hook load
- 42 t
- Rotary table
- CT-1
- Rotary table torque
- 35256–5361 N·m
- Rotary table speed
- 27–208 (5 forward, 1 reverse) rpm
- Engine power
- 265 kW
- Mud pump flow
- 1200 L/min
- Mud pump pressure
- 8 MPa
- Truck chassis
- SinoTruck 6×4
- Dimensions & weight — Overall dimensions
- 12000 × 2500 × 4500 mm
- Dimensions & weight — Operating weight
- 32000 kg
TZT-1000 →
- Drilling depth
- 1000 m
- Hole diameter
- 90–1800 mm
- Mast load capacity
- 80 t
- Mast height
- 15 m
- Main hoist single-rope pull
- 9 t
- Hook load
- 54 t
- Rotary table
- CT-1
- Rotary table torque
- 32500–3500 N·m
- Rotary table speed
- 27–208 rpm
- Gearbox
- 7DS-100
- Engine
- Weichai
- Engine power
- 320 kW
- Mud pump
- BW1200/10
- Mud pump flow
- 1200 L/min
- Mud pump pressure
- 10 MPa
- Alternator
- STC-30KW, 30 kW
- Chassis
- SinoTruck or Dongfeng 6×4 truck, or trailer
- Dimensions & weight — Overall dimensions
- 15000 × 2500 × 4500 mm
- Dimensions & weight — Operating weight
- 23500 kg
TZT-1200 →
- Drilling depth
- 1200 m
- Hole diameter
- 90–1800 mm
- Mast load capacity
- 80 t
- Mast height
- 15 m
- Main hoist single-rope pull
- 12 t
- Hook load
- 72 t
- Rotary table
- CT-1
- Rotary table torque
- 32500–3500 N·m
- Rotary table speed
- 27–208 rpm
- Gearbox
- 7DS-100
- Engine
- Weichai
- Engine power
- 353 kW
- Mud pump
- BW1500/12
- Mud pump flow
- 1500 L/min
- Mud pump pressure
- 12 MPa
- Alternator
- STC-30KW, 30 kW
- Chassis
- Two-axle trailer
- Dimensions & weight — Overall dimensions
- 15000 × 2500 × 4500 mm
- Dimensions & weight — Operating weight
- 24000 kg

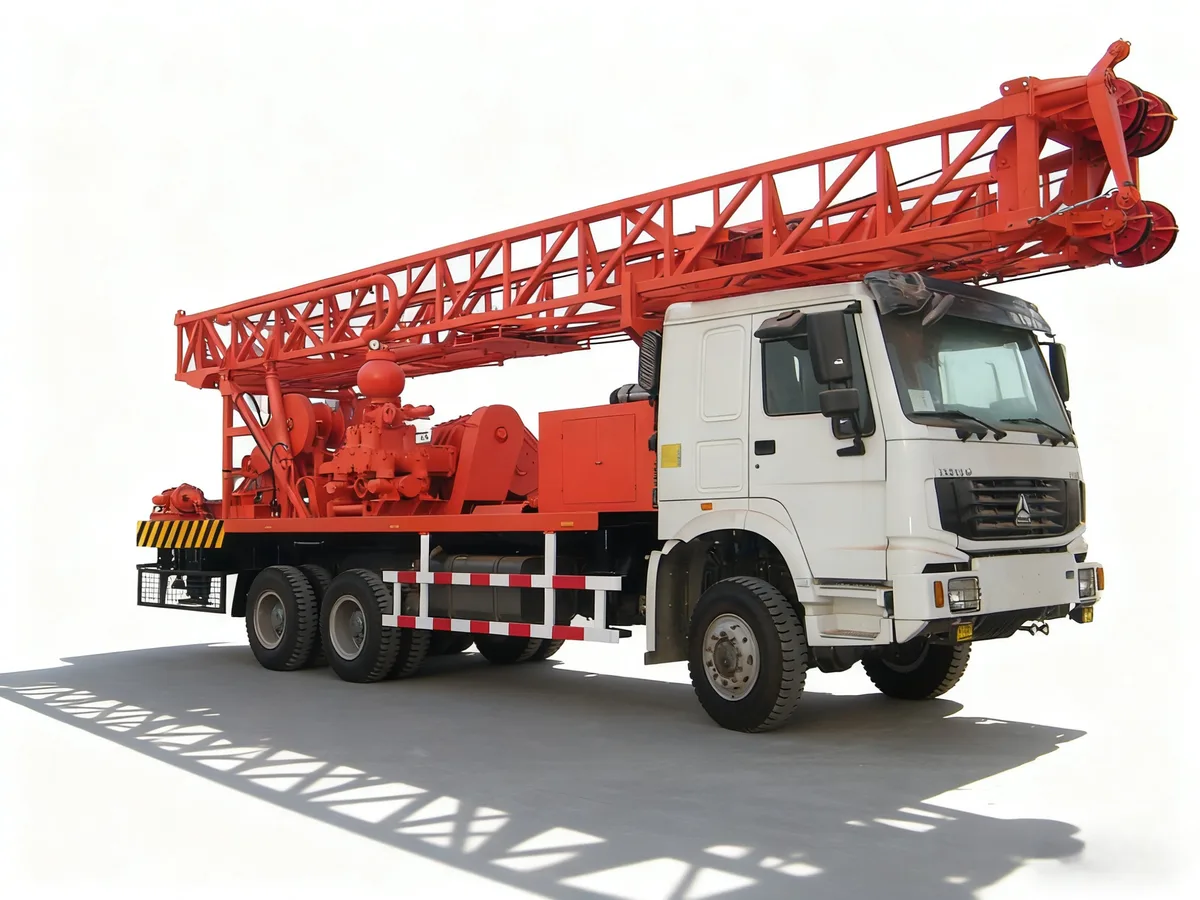

TZT-450 →
- Drilling depth
- 450 m
- Hole diameter
- 90–1800 mm
- Mast load capacity
- 40 t
- Mast height
- 12 m
- Main hoist single-rope pull
- 5 t
- Hook load
- 20 t
- Rotary table
- CT-1
- Rotary table torque
- 32500–3500 N·m
- Rotary table speed
- 27–208 rpm
- Gearbox
- 7DS100
- Engine
- Weichai
- Engine power
- 132 kW
- Mud pump
- BW600/30
- Mud pump flow
- 720 L/min
- Mud pump pressure
- 3 MPa
- Chassis
- 6×6 truck
- Dimensions & weight — Overall dimensions
- 12000 × 2500 × 4150 mm
- Dimensions & weight — Operating weight
- 18500 kg
TZT-800 →
- Configurations
- Trailer / Truck; multi-value rows below are listed in this order
- Drilling depth
- 800 m
- Hole diameter
- 90–1800 mm
- Mast load capacity
- 60 t
- Mast height
- 12 m
- Main hoist single-rope pull
- 8 t
- Hook load
- 48 t
- Rotary table
- CT-1
- Rotary table torque
- 32500–3500 N·m
- Rotary table speed
- 27–208 rpm
- Gearbox
- 7DS-100
- Engine
- Weichai
- Engine power
- 320 kW
- Mud pump
- BW1200/10
- Mud pump flow
- 1200 L/min
- Mud pump pressure
- 10 MPa
- Alternator
- STC-30KW, 30 kW
- Chassis
- Two-axle trailer, or SinoTruck/Dongfeng 6×4 truck
- Dimensions & weight — Overall dimensions
- 12500 × 2500 × 4500 (trailer) / 14000 × 2500 × 4500 (truck) mm
- Dimensions & weight — Operating weight
- 18500 (trailer) / 21600 (truck) kg
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Mud pump package
- Mast options
- Rod handling
Frequently asked questions
How do I choose between CZC-1200 and CZC-1500?
Compare the two rows in the model table above — focus on hole diameter, drilling depth and power against your project conditions. Our team can confirm the match for your site.
What applications is this series suited to?
Deep water wells, Large-diameter boreholes, Heavy drilling projects.
Can the equipment be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
