Truck-Mounted Drilling Rigs/Rotary Table Water Well Drilling Rigs

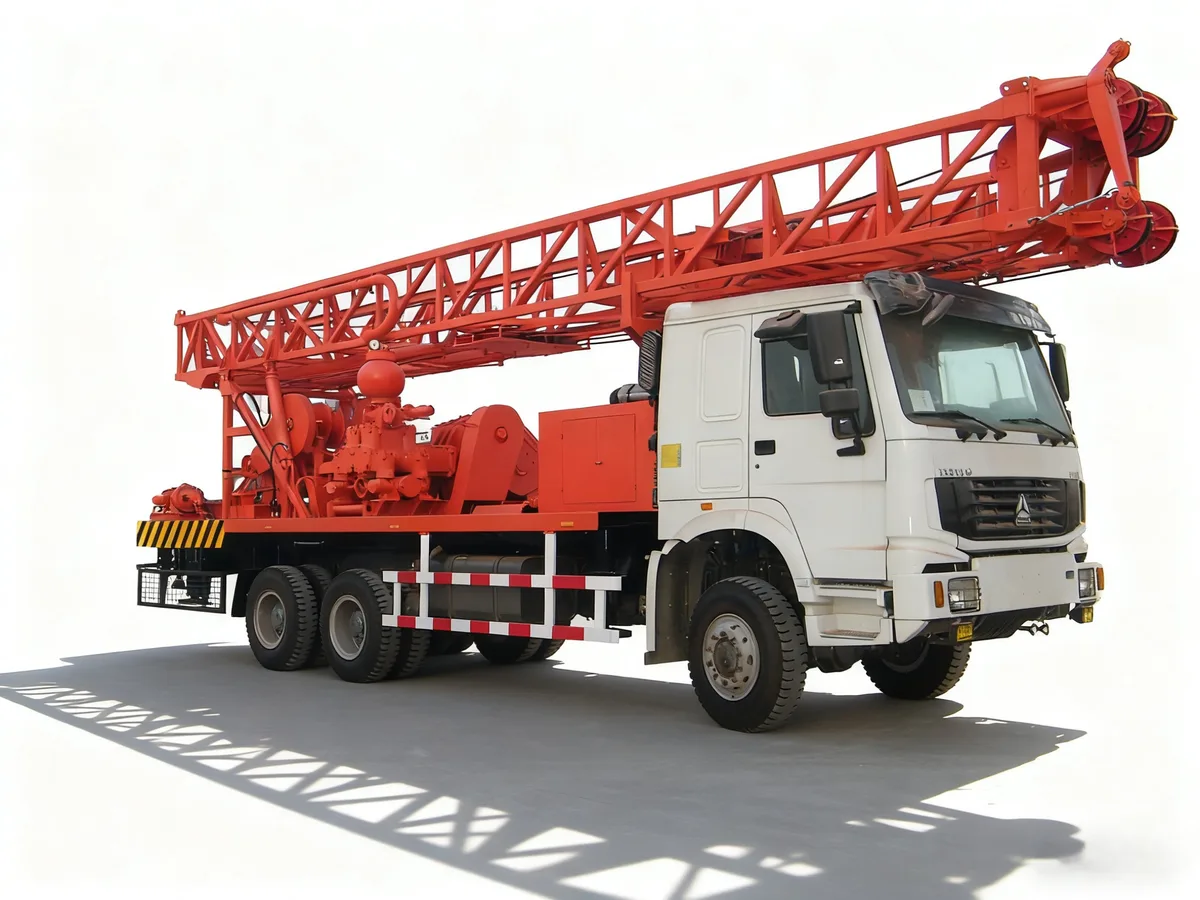

TZT-800
The TZT-800 is a rotary table water well drilling rig available in trailer or truck configuration, with a drilling depth of 800 m and a hole diameter of 90–1800 mm, a 60 t mast load at 12 m mast height, an 8 t single-rope main hoist with 48 t hook load, a CT-1 rotary table with 32500–3500 N·m torque at 27–208 rpm, a Weichai 320 kW diesel engine, a BW1200/10 mud pump (1200 L/min at 10 MPa), a 7DS-100 gearbox and a STC-30KW alternator. In the trailer configuration the operating weight is 18500 kg and the dimensions are 12500 × 2500 × 4500 mm; in the truck configuration they are 21600 kg and 14000 × 2500 × 4500 mm.
Configurations
Trailer / Truck; multi-value rows below are listed in this order
Drilling depth
800 m
Hole diameter
90–1800 mm
Mast load capacity
60 t
Overview
The TZT-800 is a rotary table water well drilling rig available in trailer or truck configuration, with a drilling depth of 800 m and a hole diameter of 90–1800 mm, a 60 t mast load at 12 m mast height, an 8 t single-rope main hoist with 48 t hook load, a CT-1 rotary table with 32500–3500 N·m torque at 27–208 rpm, a Weichai 320 kW diesel engine, a BW1200/10 mud pump (1200 L/min at 10 MPa), a 7DS-100 gearbox and a STC-30KW alternator. In the trailer configuration the operating weight is 18500 kg and the dimensions are 12500 × 2500 × 4500 mm; in the truck configuration they are 21600 kg and 14000 × 2500 × 4500 mm.
Key highlights
- ✓Trailer or truck configuration, with the operating weight and dimensions published for each.
- ✓60 t mast load at 12 m mast height with a 48 t hook load on an 8 t single-rope main hoist.
- ✓CT-1 rotary table with 32500–3500 N·m torque at 27–208 rpm.
- ✓Weichai 320 kW diesel engine with a BW1200/10 mud pump (1200 L/min at 10 MPa).
- ✓7DS-100 gearbox and STC-30KW alternator.
Applications: Deep water wells to 800 m. · Geothermal wells and geological exploration. · Projects where either a trailer or a truck chassis is required.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Configurations | Trailer / Truck; multi-value rows below are listed in this order |
| Drilling depth | 800 m |
| Hole diameter | 90–1800 mm |
| Mast load capacity | 60 t |
| Mast height | 12 m |
| Main hoist single-rope pull | 8 t |
| Hook load | 48 t |
| Rotary table | CT-1 |
| Rotary table torque | 32500–3500 N·m |
| Rotary table speed | 27–208 rpm |
| Gearbox | 7DS-100 |
| Engine | Weichai |
| Engine power | 320 kW |
| Mud pump | BW1200/10 |
| Mud pump flow | 1200 L/min |
| Mud pump pressure | 10 MPa |
| Alternator | STC-30KW, 30 kW |
| Chassis | Two-axle trailer, or SinoTruck/Dongfeng 6×4 truck |
Dimensions & weight
| Overall dimensions | 12500 × 2500 × 4500 (trailer) / 14000 × 2500 × 4500 (truck) mm |
| Operating weight | 18500 (trailer) / 21600 (truck) kg |
Applications
- Deep water wells
- Large-diameter boreholes
- Heavy drilling projects
Recommended packages
Air compressor match
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
DTH hammer & bits
Rotary table rigs use Kelly-bar drill strings, not DTH hammers. Add DTH tooling only for air-feed sections — our team confirms the conversion package.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the TZT-800?
Deep water wells, Large-diameter boreholes, Heavy drilling projects.
Which air compressor pairs with the TZT-800?
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
