LGCY Diesel Mobile Air Compressor Series
LGCY diesel mobile screw compressors in single-stage and two-stage configurations, for mining, water well and construction air supply.
Applications
- Water well drilling support
- Mining drilling
- Remote project sites
- Road construction
Key features
- ✓Single-stage and two-stage diesel configurations in one mobile product line
- ✓Widest pressure and air-delivery span in the mobile range
- ✓Diesel-powered mobile air supply
- ✓Confirm the destination-market emission requirement for the exact model before ordering
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the LGCY Series range before opening a model page.
RequirementModels to reviewPublished selection basis
Single-stage, general mobile air
LGCY-5/8XN / LGCY-12/10 / LGCY-27/10 / LGCY-32/10
Single-stage units; open each model for its published pressure and air delivery.
Two-stage, high-pressure water well & DTH duty
LGCY-17/18-18/15T / LGCY-19/21-21/18 / LGCY-21/21-23/18
Two-stage dual-condition units; published figures per model.
Two-stage main-line duty
LGCY-26/25 / LGCY-33/25 / LGCY-39/25
Two-stage single-condition units; published figures per model.
Deep well / geothermal high pressure
Highest-pressure class in the line; published figures per model.
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
Kaishan LGCY diesel mobile screw compressors cover both single-stage and two-stage configurations. The single-stage models serve general mobile drilling and construction air supply; the two-stage models address higher-pressure drilling duties. The line uses Yuchai/Cummins diesel engines and is suited to off-grid mining, road construction, oilfield exploration and water well work. Match pressure and air delivery to the rig and hammer before selecting a model. At publication, the LGCY range covers 19 single-stage models and 31 two-stage models. Compare the two tables below and match pressure and air delivery to your rig and hammer.
Single-stage compression models (19)
General mobile drilling and construction air supply.
| Model | Machine | Engine power (HP) | Weight (kg) | Air delivery / pressure (m³/min; MPa) |
|---|---|---|---|---|
| LGCY-5/8XN → | LGCY-5/8XN Diesel Screw Air Compressor | 50 HP | 740 kg | Air delivery: 5 m³/min; Pressure: 0.8 MPa |
| LGCY-5/8XN-G2 → | LGCY-5/8XN-G2 Diesel Screw Air Compressor | 56 HP | 740 kg | Air delivery: 5 m³/min; Pressure: 0.8 MPa |
| LGCY-6/7X → | LGCY-6/7X Diesel Screw Air Compressor | 75 HP | 1400 kg | Air delivery: 6 m³/min; Pressure: 0.7 MPa |
| LGCY-9/7 → | LGCY-9/7 Diesel Screw Air Compressor | 120 HP | 1550 kg | Air delivery: 9 m³/min; Pressure: 0.7 MPa |
| LGCY-12/10 → | LGCY-12/10 Diesel Mobile Screw Air Compressor | 160 HP | 1880 kg | Air delivery: 12 m³/min; Pressure: 1 MPa |
| LGCY-12/10K-G2 → | LGCY-12/10K-G2 Diesel Screw Air Compressor | 150 HP | 1800 kg | Air delivery: 12 m³/min; Pressure: 1 MPa |
| LGCY-12.5/14KL → | LGCY-12.5/14KL Diesel Screw Air Compressor | 180 HP | 2280 kg | Air delivery: 12.5 m³/min; Pressure: 1.4 MPa |
| LGCY-22/8K → | LGCY-22/8K Diesel Screw Air Compressor | 260 HP | 4000 kg | Air delivery: 22 m³/min; Pressure: 0.8 MPa |
| LGCY-27/10 → | LGCY-27/10 Diesel Mobile Screw Air Compressor | 340 HP | 4800 kg | Air delivery: 27 m³/min; Pressure: 1 MPa |
| LGCY-27/10K → | LGCY-27/10K Diesel Screw Air Compressor | 360 HP | 5000 kg | Air delivery: 27 m³/min; Pressure: 1 MPa |
| LGCY-32/10 → | LGCY-32/10 Diesel Mobile Screw Air Compressor | 400 HP | 5000 kg | Air delivery: 32 m³/min; Pressure: 1 MPa |
| LGCY-32/10K → | LGCY-32/10K Diesel Screw Air Compressor | 360 HP | 5000 kg | Air delivery: 32 m³/min; Pressure: 1 MPa |
| LGCG-65/5 → | LGCG-65/5 Diesel Screw Air Compressor | 560 HP | 8500 kg | Air delivery: 65 m³/min; Pressure: 0.5 MPa |
| LGCG-65/5K-G2 → | LGCG-65/5K-G2 Diesel Screw Air Compressor | 600 HP | 8200 kg | Air delivery: 65 m³/min; Pressure: 0.5 MPa |
| LGCG-65/5K → | LGCG-65/5K Diesel Screw Air Compressor | 600 HP | 8100 kg | Air delivery: 65 m³/min; Pressure: 0.5 MPa |
| SGCG-65/5WS → | SGCG-65/5WS Diesel Screw Air Compressor | 600 HP | 8854 kg | Air delivery: 65 m³/min; Pressure: 0.5 MPa |
| LGCG-45/8 → | LGCG-45/8 Diesel Screw Air Compressor | 400 HP | 5184 kg | Air delivery: 45 m³/min; Pressure: 0.8 MPa |
| LGCY-5/8NX-G4 → | 50 HP | 740 kg | Air delivery: 5 m³/min; Pressure: 0.8 MPa | |
| LGCY-5/8N-G4 → | 50 HP | 740 kg | Air delivery: 5 m³/min; Pressure: 0.8 MPa |
Complete specifications by model
LGCY-5/8XN →
- Model
- LGCY-5/8XN
- Tooling & air — Discharge pressure
- 0.8 MPa
- Tooling & air — Air delivery
- 5.0 m³/min
- Tooling & air — Supporting engine
- Xichai 50 HP
- Tooling & air — Discharge port
- G1 x 1, G½ x 1
- Dimensions & weight — Weight
- 740 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 1660 x 1020 x 1610 mm
LGCY-5/8XN-G2 →
- Model
- LGCY-5/8XN-G2
- Tooling & air — Discharge pressure
- 0.8 MPa
- Tooling & air — Air delivery
- 5.0 m³/min
- Tooling & air — Supporting engine
- Xichai 56 HP
- Tooling & air — Discharge port
- G1 x 1, G½ x 1
- Dimensions & weight — Weight
- 740 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 1660 x 1020 x 1610 mm

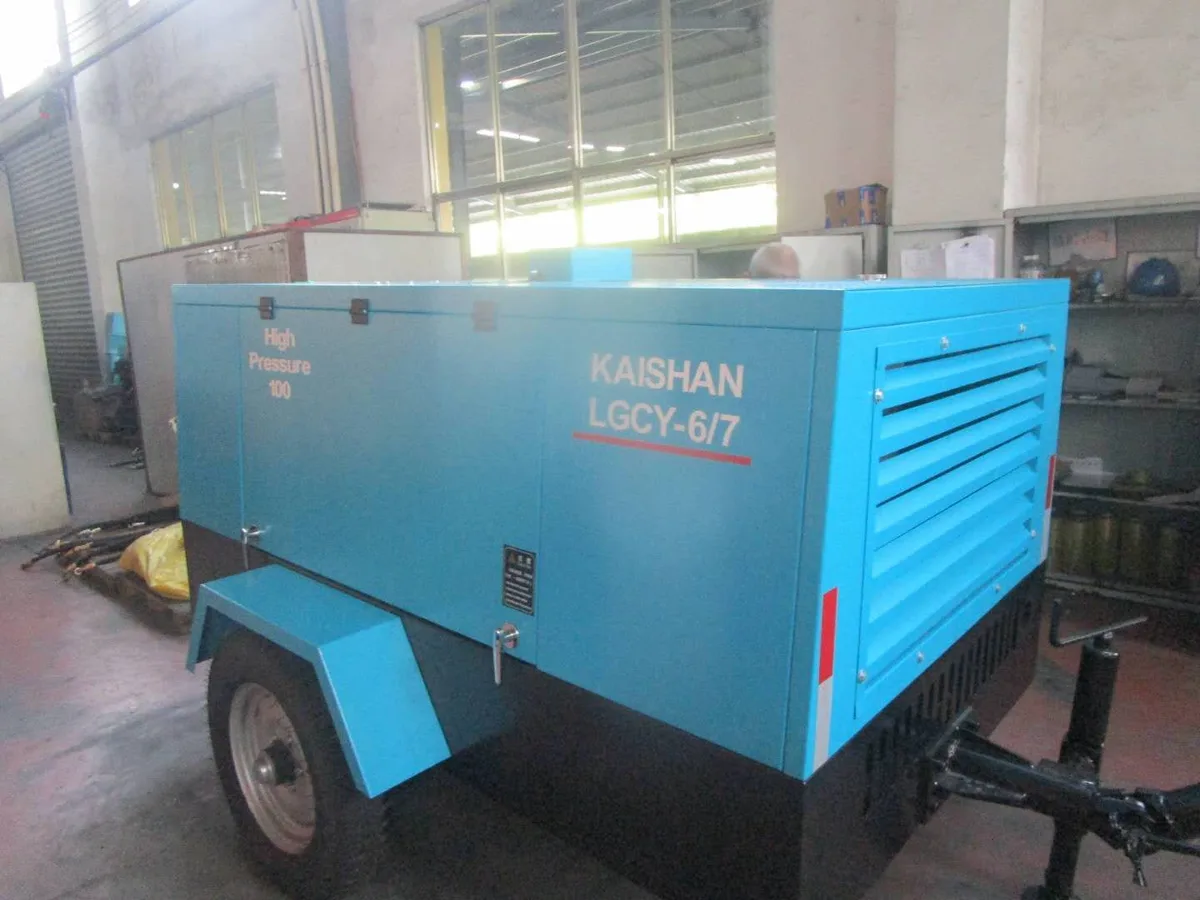

LGCY-6/7X →
- Model
- LGCY-6/7X
- Tooling & air — Discharge pressure
- 0.7 MPa
- Tooling & air — Air delivery
- 6.0 m³/min
- Tooling & air — Supporting engine
- Xichai 75 HP
- Tooling & air — Discharge port
- G1¼ x 1, G¾ x 1
- Dimensions & weight — Weight
- 1400 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3240 x 1760 x 1850 mm
LGCY-9/7 →
- Model
- LGCY-9/7
- Tooling & air — Discharge pressure
- 0.7 MPa
- Tooling & air — Air delivery
- 9.0 m³/min
- Tooling & air — Supporting engine
- Yuchai 120 HP
- Tooling & air — Discharge port
- G1¼ x 1, G¾ x 1
- Dimensions & weight — Weight
- 1550 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3240 x 1760 x 1785 mm
LGCY-12/10 →
- Model
- LGCY-12/10
- Tooling & air — Discharge pressure
- 1.0 MPa
- Tooling & air — Air delivery
- 12.0 m³/min
- Tooling & air — Supporting engine
- Yuchai 160 HP
- Tooling & air — Discharge port
- G1¼ x 1, G¾ x 1
- Dimensions & weight — Weight
- 1880 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3300 x 1880 x 2100 mm
LGCY-12/10K-G2 →
- Model
- LGCY-12/10K-G2
- Tooling & air — Discharge pressure
- 1.0 MPa
- Tooling & air — Air delivery
- 12.0 m³/min
- Tooling & air — Supporting engine
- Cummins 150 HP
- Tooling & air — Discharge port
- G1¼ x 1, G¾ x 1
- Dimensions & weight — Weight
- 1800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3500 x 1850 x 2100 mm
LGCY-12.5/14KL →
- Model
- LGCY-12.5/14KL
- Tooling & air — Discharge pressure
- 1.4 MPa
- Tooling & air — Air delivery
- 12.5 m³/min
- Tooling & air — Supporting engine
- Cummins 180 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 2280 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3500 x 1980 x 2200 mm
LGCY-22/8K →
- Model
- LGCY-22/8K
- Tooling & air — Discharge pressure
- 0.8 MPa
- Tooling & air — Air delivery
- 22.0 m³/min
- Tooling & air — Supporting engine
- Cummins 260 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3764 x 1800 x 2213 mm
LGCY-27/10 →
- Model
- LGCY-27/10
- Tooling & air — Discharge pressure
- 1.0 MPa
- Tooling & air — Air delivery
- 27.0 m³/min
- Tooling & air — Supporting engine
- Yuchai 340 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4300 x 1950 x 2900 mm
LGCY-27/10K →
- Model
- LGCY-27/10K
- Tooling & air — Discharge pressure
- 1.0 MPa
- Tooling & air — Air delivery
- 27.0 m³/min
- Tooling & air — Supporting engine
- Cummins 360 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 5000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4600 x 1950 x 2850 mm
LGCY-32/10 →
- Model
- LGCY-32/10
- Tooling & air — Discharge pressure
- 1.0 MPa
- Tooling & air — Air delivery
- 32.0 m³/min
- Tooling & air — Supporting engine
- Yuchai 400 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 5000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4600 x 1950 x 2850 mm
LGCY-32/10K →
- Model
- LGCY-32/10K
- Tooling & air — Discharge pressure
- 1.0 MPa
- Tooling & air — Air delivery
- 32.0 m³/min
- Tooling & air — Supporting engine
- Cummins 360 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 5000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4600 x 1950 x 2850 mm
LGCG-65/5 →
- Model
- LGCG-65/5
- Tooling & air — Discharge pressure
- 0.5 MPa
- Tooling & air — Air delivery
- 65.0 m³/min
- Tooling & air — Supporting engine
- Yuchai 560 HP
- Tooling & air — Discharge port
- DN125 flange
- Dimensions & weight — Weight
- 8500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4500 x 2350 x 2380 mm
LGCG-65/5K-G2 →
- Model
- LGCG-65/5K-G2
- Tooling & air — Discharge pressure
- 0.5 MPa
- Tooling & air — Air delivery
- 65.0 m³/min
- Tooling & air — Supporting engine
- Cummins 600 HP
- Tooling & air — Discharge port
- DN125 flange
- Dimensions & weight — Weight
- 8200 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4760 x 2360 x 2430 mm
LGCG-65/5K →
- Model
- LGCG-65/5K
- Tooling & air — Discharge pressure
- 0.5 MPa
- Tooling & air — Air delivery
- 65.0 m³/min
- Tooling & air — Supporting engine
- Cummins 600 HP
- Tooling & air — Discharge port
- DN125 flange
- Dimensions & weight — Weight
- 8100 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4800 x 2230 x 2455 mm
SGCG-65/5WS →
- Model
- SGCG-65/5WS
- Tooling & air — Discharge pressure
- 0.5 MPa
- Tooling & air — Air delivery
- 65.0 m³/min
- Tooling & air — Supporting engine
- Weichai 600 HP
- Tooling & air — Discharge port
- DN125 flange
- Dimensions & weight — Weight
- 8854 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4850 x 2200 x 2475 mm
LGCG-45/8 →
- Model
- LGCG-45/8
- Tooling & air — Discharge pressure
- 0.8 MPa
- Tooling & air — Air delivery
- 45.0 m³/min
- Tooling & air — Supporting engine
- Yuchai 400 HP
- Tooling & air — Discharge port
- G2 x 2, G¾ x 1
- Dimensions & weight — Weight
- 5184 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3800 x 2230 x 2070 mm
LGCY-5/8NX-G4 →
- Model
- LGCY-5/8NX-G4
- Tooling & air — Discharge pressure
- 0.8 MPa
- Tooling & air — Air delivery
- 5.0 m³/min
- Tooling & air — Supporting engine
- Xichai 50 HP
- Tooling & air — Discharge port
- G1 x 1, G½ x 1
- Dimensions & weight — Weight
- 740 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 1660 x 1020 x 1610 mm
LGCY-5/8N-G4 →
- Model
- LGCY-5/8N-G4
- Tooling & air — Discharge pressure
- 0.8 MPa
- Tooling & air — Air delivery
- 5.0 m³/min
- Tooling & air — Supporting engine
- Yuchai 50 HP
- Tooling & air — Discharge port
- G1 x 1, G½ x 1
- Dimensions & weight — Weight
- 740 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 1612 x 1020 x 1632 mm
Two-stage compression models (31)
Higher-pressure mobile air supply for demanding drilling duties.
| Model | Machine | Engine power (HP) | Weight (kg) | Air delivery / pressure (m³/min; MPa) |
|---|---|---|---|---|
| LGCY-11/18T-2W → | LGCY-11/18T-2W Two-Wheel Diesel Mobile Air Compressor | 160 HP | 2100 kg | Air delivery: 11 m³/min; Pressure: 1.8 MPa |
| LGCY-15/18-17/12T → | LGCY-15/18-17/12T Diesel Screw Air Compressor | 190 HP | 2200 kg | 15 m³/min at 1.8 MPa; 17 m³/min at 1.2 MPa |
| LGCY-17/18-18/15T → | LGCY-17/18-18/15T Diesel Screw Air Compressor | 220 HP | 2500 kg | 17 m³/min at 1.8 MPa; 18 m³/min at 1.5 MPa |
| LGCY-17/18-18/15TK → | LGCY-17/18-18/15TK Diesel Screw Air Compressor | 210 HP | 2375 kg | 17 m³/min at 1.8 MPa; 18 m³/min at 1.5 MPa |
| LGCY-19/21-21/18 → | LGCY-19/21-21/18 Diesel Screw Air Compressor | 260 HP | 3600 kg | 19 m³/min at 2.1 MPa; 21 m³/min at 1.8 MPa |
| LGCY-19/21-21/18K → | LGCY-19/21-21/18K Diesel Screw Air Compressor | 260 HP | 3600 kg | 19 m³/min at 2.1 MPa; 21 m³/min at 1.8 MPa |
| LGCY-21/21-23/18 → | LGCY-21/21-23/18 Diesel Screw Air Compressor | 310 HP | 3900 kg | 21 m³/min at 2.1 MPa; 23 m³/min at 1.8 MPa |
| LGCY-23/23-25/18 → | LGCY-23/23-25/18 Diesel Mobile Screw Air Compressor | 340 HP | 4850 kg | 23 m³/min at 2.3 MPa; 25 m³/min at 1.8 MPa |
| LGCY-23/23-25/18K → | LGCY-23/23-25/18K Diesel Screw Air Compressor | 360 HP | 4850 kg | 23 m³/min at 2.3 MPa; 25 m³/min at 1.8 MPa |
| LGCY-27/25-29/18 → | LGCY-27/25-29/18 Diesel Screw Air Compressor | 400 HP | 4500 kg | 27 m³/min at 2.5 MPa; 29 m³/min at 1.8 MPa |
| LGCY-25/23-27/18K → | LGCY-25/23-27/18K Diesel Screw Air Compressor | 360 HP | 4850 kg | 25 m³/min at 2.3 MPa; 27 m³/min at 1.8 MPa |
| LGCY-26/25 → | LGCY-26/25 Diesel Screw Air Compressor | 560 HP | 6800 kg | Air delivery: 26 m³/min; Pressure: 2.5 MPa |
| LGCY-26/25K → | LGCY-26/25K Diesel Screw Air Compressor | 550 HP | 6800 kg | Air delivery: 26 m³/min; Pressure: 2.5 MPa |
| LGCY-33/25 → | LGCY-33/25 Diesel Screw Air Compressor | 560 HP | 6800 kg | Air delivery: 33 m³/min; Pressure: 2.5 MPa |
| LGCY-33/25K → | LGCY-33/25K Diesel Screw Air Compressor | 550 HP | 6800 kg | Air delivery: 33 m³/min; Pressure: 2.5 MPa |
| LGCY-39/25 → | LGCY-39/25 Diesel Screw Air Compressor | 700 HP | 7110 kg | Air delivery: 39 m³/min; Pressure: 2.5 MPa |
| LGCY-39/25A → | LGCY-39/25A Diesel Screw Air Compressor | 700 HP | 8000 kg | Air delivery: 39 m³/min; Pressure: 2.5 MPa |
| LGCY-33/35 → | LGCY-33/35 Diesel Screw Air Compressor | 700 HP | 7110 kg | Air delivery: 33 m³/min; Pressure: 3.5 MPa |
| LGCY-33/35A → | LGCY-33/35A Diesel Screw Air Compressor | 650 HP | 8000 kg | Air delivery: 33 m³/min; Pressure: 3.5 MPa |
| LGCY-45/25-37/35V → | LGCY-45/25-37/35V Diesel Screw Air Compressor | 760 HP | 8478 kg | 37 m³/min at 2.5 MPa; 45 m³/min at 3.5 MPa |
| LGCY-30/8TK → | LGCY-30/8TK Diesel Screw Air Compressor | 260 HP | 3200 kg | Air delivery: 30 m³/min; Pressure: 0.8 MPa |
| LGCY-25/10TK → | LGCY-25/10TK Diesel Screw Air Compressor | 260 HP | 3200 kg | Air delivery: 25 m³/min; Pressure: 1 MPa |
| LGCY-21/13TK → | LGCY-21/13TK Diesel Screw Air Compressor | 260 HP | 3200 kg | Air delivery: 21 m³/min; Pressure: 1.3 MPa |
| LGCY-19/21-21/18X → | LGCY-19/21-21/18X Diesel Screw Air Compressor | 280 HP | 3750 kg | 19 m³/min at 2.1 MPa; 21 m³/min at 1.8 MPa |
| LGCY-45/25-37/35 → | LGCY-45/25-37/35 Diesel Mobile Screw Air Compressor | 775 HP | 8478 kg | 37 m³/min at 2.5 MPa; 45 m³/min at 3.5 MPa |
| LGCY-18/18P-G4 → | 220 HP | 2500 kg | Air delivery: 17–18 m³/min; Pressure: 1.5–1.8 MPa | |
| LGCY-18/18PK-G4 → | 210 HP | 2200 kg | Air delivery: 17–18 m³/min; Pressure: 1.5–1.8 MPa | |
| LGCY-21/21P-G4 → | 260 HP | 3600 kg | Air delivery: 19–21 m³/min; Pressure: 1.8–2.1 MPa | |
| LGCY-29/25P-G4 → | 400 HP | 4500 kg | Air delivery: 27–29 m³/min; Pressure: 1.8–2.5 MPa | |
| LGCY-15/21-G4 → | 220 HP | 3500 kg | Air delivery: 15 m³/min; Pressure: 2.1 MPa | |
| LGCY-35/25P-G4 → | 400 HP | 4420 kg | Air delivery: 31–35 m³/min; Pressure: 1.8–2.5 MPa |
Complete specifications by model
LGCY-11/18T-2W →
- Model
- LGCY-11/18T (two-wheel)
- Tooling & air — Discharge pressure
- 1.8 MPa
- Tooling & air — Air delivery
- 11 m³/min
- Tooling & air — Supporting engine
- Yuchai 160 HP (four-cylinder)
- Tooling & air — Discharge port
- G1½ x 1, G¾ x 1
- Dimensions & weight — Weight
- 2100 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3500 x 2000 x 1930 mm
LGCY-15/18-17/12T →
- Model
- LGCY-15/18-17/12T
- Tooling & air — Discharge pressure
- 1.8-1.2 MPa
- Tooling & air — Air delivery
- 15-17 m³/min
- Tooling & air — Supporting engine
- Yuchai 190 HP (six-cylinder)
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 2200 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3000 x 1520 x 2300 mm
LGCY-17/18-18/15T →
- Model
- LGCY-17/18-18/15T
- Tooling & air — Discharge pressure
- 1.8-1.5 MPa
- Tooling & air — Air delivery
- 17-18 m³/min
- Tooling & air — Supporting engine
- Yuchai 220 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 2500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3000 x 1520 x 2300 mm
LGCY-17/18-18/15TK →
- Model
- LGCY-17/18-18/15TK
- Tooling & air — Discharge pressure
- 1.8-1.5 MPa
- Tooling & air — Air delivery
- 17-18 m³/min
- Tooling & air — Supporting engine
- Cummins 210 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 2375 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3000 x 1520 x 2300 mm
LGCY-19/21-21/18 →
- Model
- LGCY-19/21-21/18
- Tooling & air — Discharge pressure
- 2.1-1.8 MPa
- Tooling & air — Air delivery
- 19-21 m³/min
- Tooling & air — Supporting engine
- Yuchai 260 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 3600 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3300 x 1700 x 2350 mm
LGCY-19/21-21/18K →
- Model
- LGCY-19/21-21/18K
- Tooling & air — Discharge pressure
- 2.1-1.8 MPa
- Tooling & air — Air delivery
- 19-21 m³/min
- Tooling & air — Supporting engine
- Cummins 260 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 3600 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3300 x 1700 x 2350 mm
LGCY-21/21-23/18 →
- Model
- LGCY-21/21-23/18
- Tooling & air — Discharge pressure
- 2.1-1.8 MPa
- Tooling & air — Air delivery
- 21-23 m³/min
- Tooling & air — Supporting engine
- Yuchai 310 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 3900 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3300 x 1800 x 2300 mm
LGCY-23/23-25/18 →
- Model
- LGCY-23/23-25/18
- Tooling & air — Discharge pressure
- 2.3-1.8 MPa
- Tooling & air — Air delivery
- 23-25 m³/min
- Tooling & air — Supporting engine
- Yuchai 340 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4850 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4150 x 1950 x 2850 mm
LGCY-23/23-25/18K →
- Model
- LGCY-23/23-25/18K
- Tooling & air — Discharge pressure
- 2.3-1.8 MPa
- Tooling & air — Air delivery
- 23-25 m³/min
- Tooling & air — Supporting engine
- Cummins 360 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4850 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4150 x 1950 x 2850 mm
LGCY-27/25-29/18 →
- Model
- LGCY-27/25-29/18
- Tooling & air — Discharge pressure
- 2.5-1.8 MPa
- Tooling & air — Air delivery
- 27-29 m³/min
- Tooling & air — Supporting engine
- Yuchai 400 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4000 x 1950 x 2650 mm
LGCY-25/23-27/18K →
- Model
- LGCY-25/23-27/18K
- Tooling & air — Discharge pressure
- 2.3-1.8 MPa
- Tooling & air — Air delivery
- 25-27 m³/min
- Tooling & air — Supporting engine
- Cummins 360 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4850 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4150 x 1950 x 2850 mm
LGCY-26/25 →
- Model
- LGCY-26/25
- Tooling & air — Discharge pressure
- 2.5 MPa
- Tooling & air — Air delivery
- 26 m³/min
- Tooling & air — Supporting engine
- Yuchai 560 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 6800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4700 x 2160 x 2650 mm
LGCY-26/25K →
- Model
- LGCY-26/25K
- Tooling & air — Discharge pressure
- 2.5 MPa
- Tooling & air — Air delivery
- 26 m³/min
- Tooling & air — Supporting engine
- Cummins 550 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 6800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4700 x 2160 x 2650 mm
LGCY-33/25 →
- Model
- LGCY-33/25
- Tooling & air — Discharge pressure
- 2.5 MPa
- Tooling & air — Air delivery
- 33 m³/min
- Tooling & air — Supporting engine
- Yuchai 560 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 6800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4700 x 2160 x 2650 mm
LGCY-33/25K →
- Model
- LGCY-33/25K
- Tooling & air — Discharge pressure
- 2.5 MPa
- Tooling & air — Air delivery
- 33 m³/min
- Tooling & air — Supporting engine
- Cummins 550 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 6800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4700 x 2160 x 2650 mm
LGCY-39/25 →
- Model
- LGCY-39/25
- Tooling & air — Discharge pressure
- 2.5 MPa
- Tooling & air — Air delivery
- 39 m³/min
- Tooling & air — Supporting engine
- Chongqing Cummins 700 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 7110 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4850 x 2160 x 2970 mm
LGCY-39/25A →
- Model
- LGCY-39/25A
- Tooling & air — Discharge pressure
- 2.5 MPa
- Tooling & air — Air delivery
- 39 m³/min
- Tooling & air — Supporting engine
- Caterpillar 700 HP
- Tooling & air — Discharge port
- G2 x 2
- Dimensions & weight — Weight
- 8000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5000 x 2200 x 2850 mm
LGCY-33/35 →
- Model
- LGCY-33/35
- Tooling & air — Discharge pressure
- 3.5 MPa
- Tooling & air — Air delivery
- 33 m³/min
- Tooling & air — Supporting engine
- Chongqing Cummins 700 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 7110 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4850 x 2160 x 2970 mm
LGCY-33/35A →
- Model
- LGCY-33/35A
- Tooling & air — Discharge pressure
- 3.5 MPa
- Tooling & air — Air delivery
- 33 m³/min
- Tooling & air — Supporting engine
- Caterpillar C18 650 HP
- Tooling & air — Discharge port
- G2 x 2
- Dimensions & weight — Weight
- 8000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5000 x 2200 x 2850 mm
LGCY-45/25-37/35V →
- Model
- LGCY-45/25-37/35V
- Tooling & air — Discharge pressure
- 2.5-3.5 MPa
- Tooling & air — Air delivery
- 37-45 m³/min
- Tooling & air — Supporting engine
- Volvo 760 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 8478 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5060 x 2240 x 2795 mm
LGCY-30/8TK →
- Model
- LGCY-30/8TK
- Tooling & air — Discharge pressure
- 0.8 MPa
- Tooling & air — Air delivery
- 30 m³/min
- Tooling & air — Supporting engine
- Cummins 260 HP
- Tooling & air — Discharge port
- G2½ x 1, G¾ x 1
- Dimensions & weight — Weight
- 3200 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3600 x 1800 x 2480 mm
LGCY-25/10TK →
- Model
- LGCY-25/10TK
- Tooling & air — Discharge pressure
- 1 MPa
- Tooling & air — Air delivery
- 25 m³/min
- Tooling & air — Supporting engine
- Cummins 260 HP
- Tooling & air — Discharge port
- G2½ x 1, G¾ x 1
- Dimensions & weight — Weight
- 3200 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3600 x 1800 x 2480 mm
LGCY-21/13TK →
- Model
- LGCY-21/13TK
- Tooling & air — Discharge pressure
- 1.3 MPa
- Tooling & air — Air delivery
- 21 m³/min
- Tooling & air — Supporting engine
- Cummins 260 HP
- Tooling & air — Discharge port
- G2½ x 1, G¾ x 1
- Dimensions & weight — Weight
- 3200 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3600 x 1800 x 2480 mm
LGCY-19/21-21/18X →
- Model
- LGCY-19/21-21/18X
- Tooling & air — Discharge pressure
- 2.1-1.8 MPa
- Tooling & air — Air delivery
- 19-21 m³/min
- Tooling & air — Supporting engine
- Xichai 280 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 3750 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4900 x 2090 x 2670 mm
LGCY-45/25-37/35 →
- Model
- LGCY-45/25-37/35
- Tooling & air — Discharge pressure
- 2.5-3.5 MPa
- Tooling & air — Air delivery
- 37-45 m³/min
- Tooling & air — Supporting engine
- Yuchai 775 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 8478 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5060 x 2240 x 2795 mm
LGCY-18/18P-G4 →
- Model
- LGCY-18/18P-G4
- Tooling & air — Discharge pressure
- 1.5-1.8 MPa
- Tooling & air — Air delivery
- 17-18 m³/min
- Tooling & air — Supporting engine
- Yuchai 220 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 2500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3070 x 1520 x 2426 mm
LGCY-18/18PK-G4 →
- Model
- LGCY-18/18PK-G4
- Tooling & air — Discharge pressure
- 1.5-1.8 MPa
- Tooling & air — Air delivery
- 17-18 m³/min
- Tooling & air — Supporting engine
- Cummins 210 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 2200 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3070 x 1520 x 2462 mm
LGCY-21/21P-G4 →
- Model
- LGCY-21/21P-G4
- Tooling & air — Discharge pressure
- 1.8-2.1 MPa
- Tooling & air — Air delivery
- 19-21 m³/min
- Tooling & air — Supporting engine
- Yuchai 260 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 3600 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3351 x 1570 x 2555 mm
LGCY-29/25P-G4 →
- Model
- LGCY-29/25P-G4
- Tooling & air — Discharge pressure
- 1.8-2.5 MPa
- Tooling & air — Air delivery
- 27-29 m³/min
- Tooling & air — Supporting engine
- Yuchai 400 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3656 x 2000 x 2802 mm
LGCY-15/21-G4 →
- Model
- LGCY-15/21-G4
- Tooling & air — Discharge pressure
- 2.1 MPa
- Tooling & air — Air delivery
- 15 m³/min
- Tooling & air — Supporting engine
- Yuchai 220 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 3500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 4240 x 2220 x 2431 mm
LGCY-35/25P-G4 →
- Model
- LGCY-35/25P-G4
- Tooling & air — Discharge pressure
- 1.8-2.5 MPa
- Tooling & air — Air delivery
- 31-35 m³/min
- Tooling & air — Supporting engine
- Yuchai 400 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4420 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3460 x 2000 x 2445 mm
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Two-wheel or four-wheel chassis
- Cold-start kit
Frequently asked questions
How do pressure and air delivery vary across the LGCY Diesel Mobile Air Compressor Series?
See the published specifications for each model, retaining the listed pressure, delivery and operating conditions.
How do I choose between LGCY-11/18T-2W and LGCY-15/18-17/12T?
Compare the two rows in the model table above — focus on required pressure and air delivery against your drilling tool and rig demand. Our team can confirm the match for your site.
What drilling rigs can this series match?
DTH drilling rigs need air pressure and delivery matched to the hammer in use — tell us your rig and hammer and we will confirm the right compressor model.
Can the compressor be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
Related series
Single-stage Diesel Mobile Air Compressor
KSCY diesel mobile screw air compressors with published pressure and air-delivery figures for model selection.
View series →Electric Drive Mobile Air Compressor
Electric drive mobile screw air compressors — site air supply without diesel emissions. Compare published pressure and air delivery model by model.
View series →Deep Well Two-stage Air Compressor
Deep well two-stage diesel compressors — two-stage air matched to water well drilling rigs. Compare published pressure and air delivery model by model.
View series →
