High-pressure Deep Well Air Compressor Series
Deep well high-pressure diesel compressors for deep water well and geothermal drilling projects. Compare published pressure and air delivery model by model.
Applications
- Water well drilling
- Deep well drilling
- Geothermal drilling
Key features
- ✓High-pressure class for deep water well and geothermal work
- ✓Yuchai/Cummins diesel engines
- ✓Dual-work-condition switching
- ✓Compare the published pressure and air-delivery figures before selecting a model
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the LGZJ Series range before opening a model page.
Deep well programs
High-pressure class matched to deep water well programs; published figures per model.
Geothermal drilling projects
High-pressure class for geothermal air demand; published figures per model.
Different depths on the same site
Dual-mode switching covers two pressure conditions with one unit.
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
| Model | Machine | Engine power (HP) | Weight (kg) | Air delivery / pressure (m³/min; MPa) |
|---|---|---|---|---|
| LGZJ-31/25-35/18 → | LGZJ-31/25-35/18 High-Pressure Diesel Air Compressor | 400 HP | 4500 kg | 31 m³/min at 2.5 MPa; 35 m³/min at 1.8 MPa |
| LGZJ-36/30-41/20 → | 560 HP | 6000 kg | 36 m³/min at 3 MPa; 41 m³/min at 2 MPa | |
| LGZJ-36/30-41/20K → | LGZJ-36/30-41/20K High-Pressure Diesel Air Compressor | 550 HP | 5800 kg | 36 m³/min at 3 MPa; 41 m³/min at 2 MPa |
| LGZJ-30/35-35/25 → | LGZJ-30/35-35/25 High-Pressure Diesel Air Compressor | 560 HP | 6000 kg | 30 m³/min at 3.5 MPa; 35 m³/min at 2.5 MPa |
| LGZJ-30/35-35/25K → | 550 HP | 5800 kg | 30 m³/min at 3.5 MPa; 35 m³/min at 2.5 MPa | |
| LGZJ-35/25-38/20 → | 560 HP | 4500 kg | 35 m³/min at 2.5 MPa; 38 m³/min at 2 MPa | |
| LGZJ-35/25-38/20K → | 550 HP | 4500 kg | 35 m³/min at 2.5 MPa; 38 m³/min at 2 MPa | |
| LGZJ-31/25-35/18K-G2 → | 430 HP | 4500 kg | 31 m³/min at 2.5 MPa; 35 m³/min at 1.8 MPa | |
| LGCC-29/23 → | LGCC-29/23 Air Compressor | 400 HP | 4500 kg | Air delivery: 29 m³/min; Pressure: 2.3 MPa |
| LGCC-31/25-35/18 → | LGCC-31/25-35/18 Air Compressor | 400 HP | 4500 kg | 31 m³/min at 2.5 MPa; 35 m³/min at 1.8 MPa |
Complete specifications by model

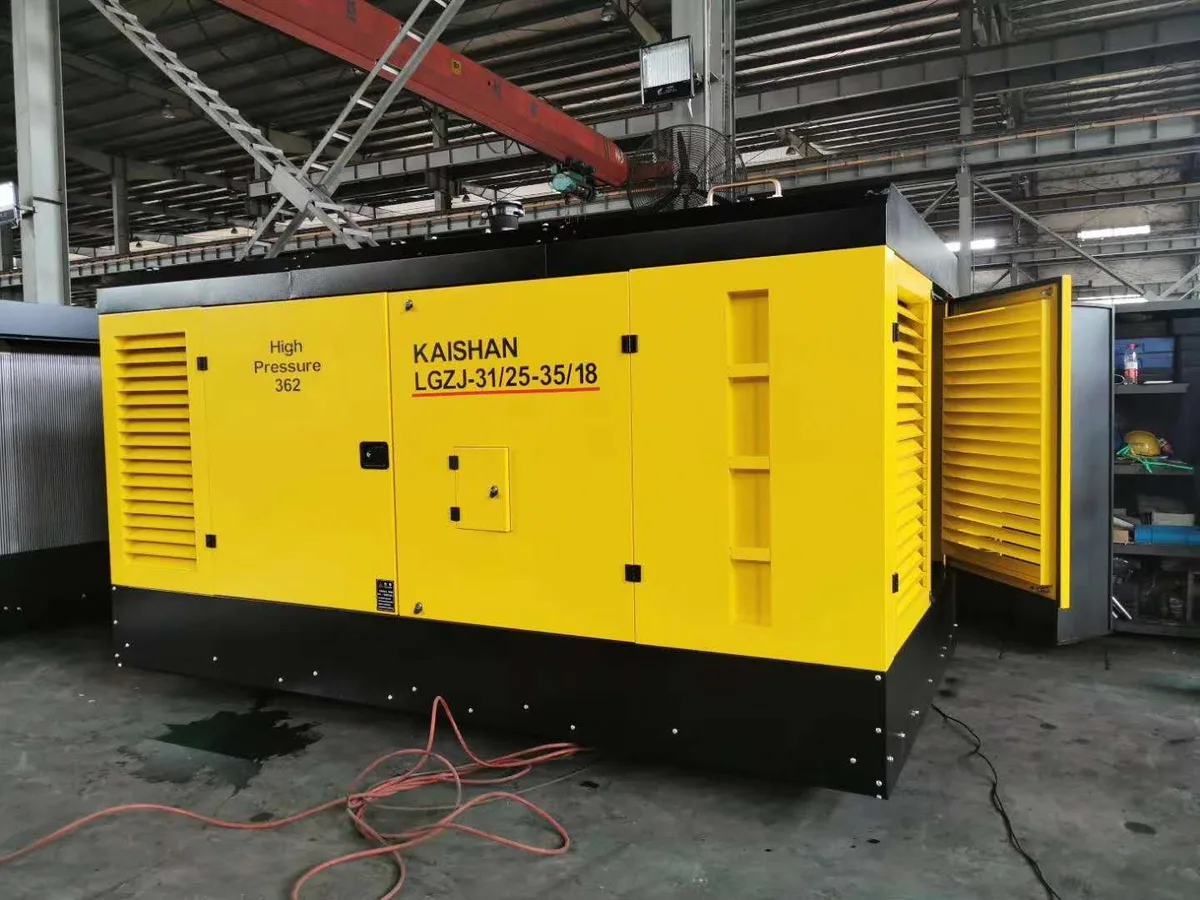

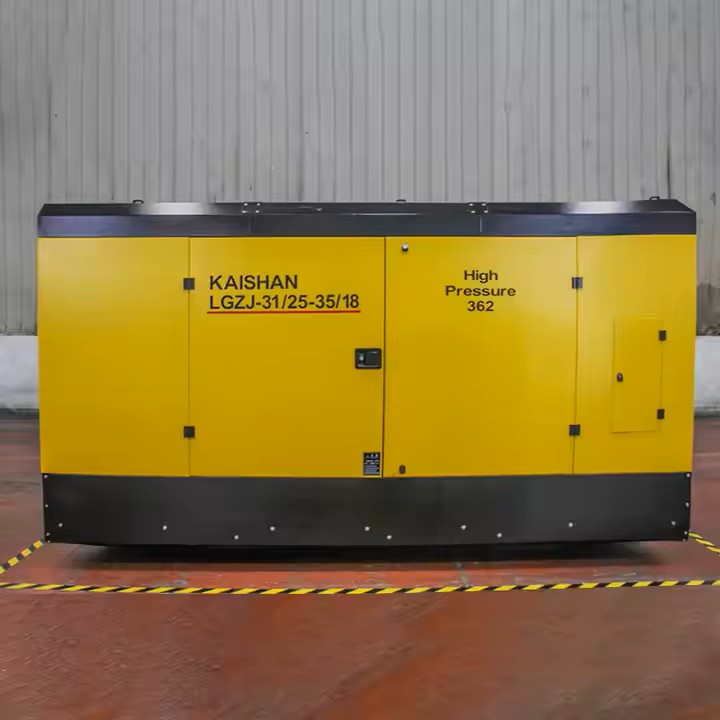

LGZJ-31/25-35/18 →
- Model
- LGZJ-31/25-35/18
- Tooling & air — Discharge pressure
- 2.5-1.8 MPa
- Tooling & air — Air delivery
- 31-35 m³/min
- Tooling & air — Supporting engine
- Yuchai 400 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3650 x 2000 x 2200 mm
LGZJ-36/30-41/20 →
- Model
- LGZJ-36/30-41/20
- Tooling & air — Discharge pressure
- 3.0-2.0 MPa
- Tooling & air — Air delivery
- 36-41 m³/min
- Tooling & air — Supporting engine
- Yuchai 560 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 6000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3800 x 2160 x 2300 mm
LGZJ-36/30-41/20K →
- Model
- LGZJ-36/30-41/20K
- Tooling & air — Discharge pressure
- 3.0-2.0 MPa
- Tooling & air — Air delivery
- 36-41 m³/min
- Tooling & air — Supporting engine
- Cummins 550 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 5800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3800 x 2160 x 2330 mm
LGZJ-30/35-35/25 →
- Model
- LGZJ-30/35-35/25
- Tooling & air — Discharge pressure
- 3.5-2.5 MPa
- Tooling & air — Air delivery
- 30-35 m³/min
- Tooling & air — Supporting engine
- Yuchai 560 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 6000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3800 x 2160 x 2300 mm
LGZJ-30/35-35/25K →
- Model
- LGZJ-30/35-35/25K
- Tooling & air — Discharge pressure
- 3.5-2.5 MPa
- Tooling & air — Air delivery
- 30-35 m³/min
- Tooling & air — Supporting engine
- Cummins 550 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 5800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3800 x 2160 x 2330 mm
LGZJ-35/25-38/20 →
- Model
- LGZJ-35/25-38/20
- Tooling & air — Discharge pressure
- 2.5-2.0 MPa
- Tooling & air — Air delivery
- 35-38 m³/min
- Tooling & air — Supporting engine
- Yuchai 560 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3500 x 1950 x 2320 mm

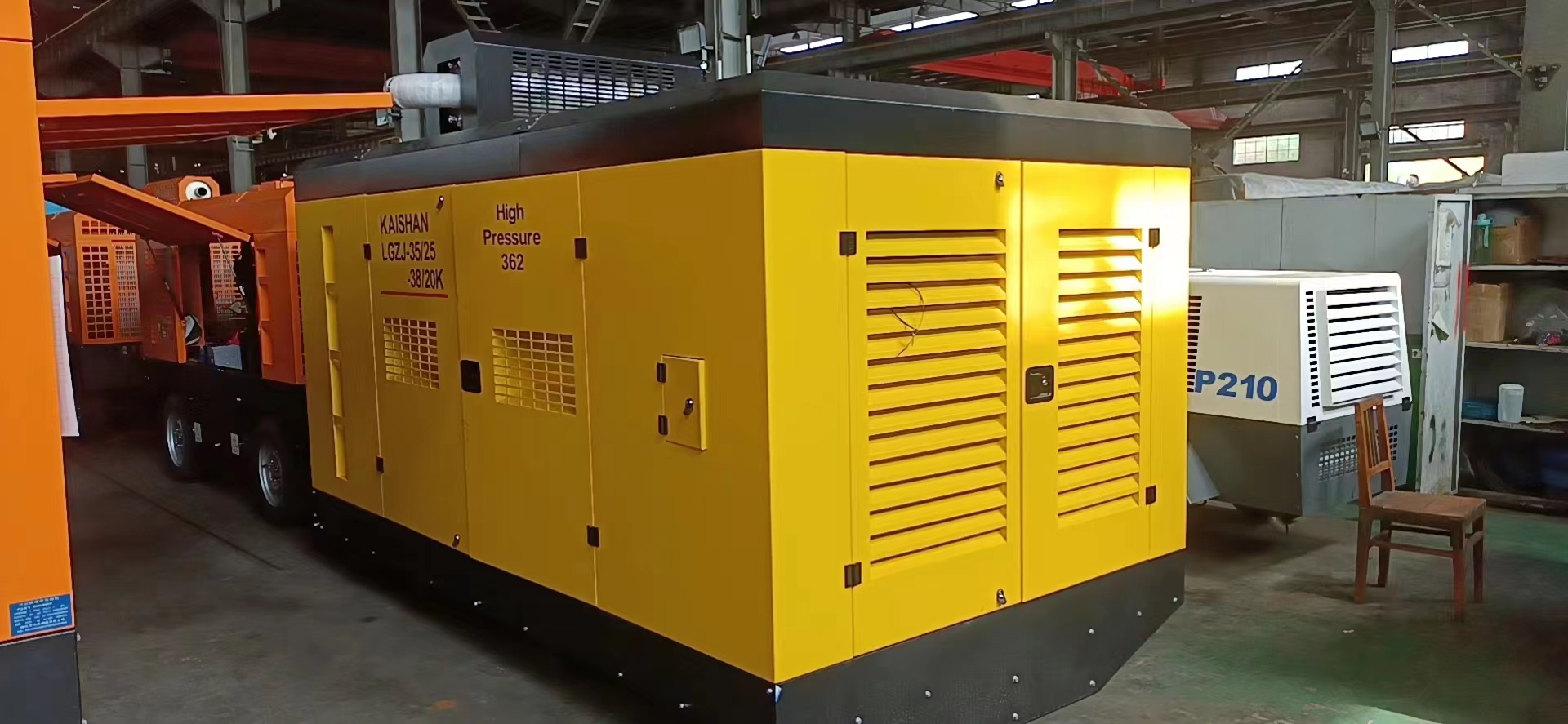

LGZJ-35/25-38/20K →
- Model
- LGZJ-35/25-38/20K
- Tooling & air — Discharge pressure
- 2.5-2.0 MPa
- Tooling & air — Air delivery
- 35-38 m³/min
- Tooling & air — Supporting engine
- Cummins 550 HP
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3500 x 1950 x 2200 mm
LGZJ-31/25-35/18K-G2 →
- Model
- LGZJ-31/25-35/18K-G2
- Tooling & air — Discharge pressure
- 2.5-1.8 MPa
- Tooling & air — Air delivery
- 31-35 m³/min
- Tooling & air — Supporting engine
- Cummins 430 HP (China Stage II)
- Tooling & air — Discharge port
- G2 x 1, G¾ x 1
- Dimensions & weight — Weight
- 4500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 3450 x 2000 x 2250 mm
LGCC-29/23 →
- Model
- LGCC-29/23
- Tooling & air — Air delivery
- 29 m³/min
- Tooling & air — Discharge pressure
- 2.3 MPa
- Engine brand
- Yuchai
- Engine power
- 400 HP
- Dimensions & weight — Overall dimensions (L × W × H)
- 3900x2190x2700 mm
- Dimensions & weight — Weight
- 4500 kg
- Discharge port
- G2x1,G³/4x1
LGCC-31/25-35/18 →
- Model
- LGCC-31/25-35/18
- Tooling & air — Air delivery
- 31-35 m³/min
- Tooling & air — Discharge pressure
- 2.5-1.8 MPa
- Engine brand
- Yuchai
- Engine power
- 400 HP
- Dimensions & weight — Overall dimensions (L × W × H)
- 3900x2190x2700 mm
- Dimensions & weight — Weight
- 4500 kg
- Discharge port
- G2x1,G³/4x1
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Crawler chassis (LGCC)
- Remote monitoring
Frequently asked questions
How do pressure and air delivery vary across the High-pressure Deep Well Air Compressor Series?
See the published specifications for each model, retaining the listed pressure, delivery and operating conditions.
How do I choose between LGZJ-31/25-35/18 and LGZJ-36/30-41/20?
Compare the two rows in the model table above — focus on required pressure and air delivery against your drilling tool and rig demand. Our team can confirm the match for your site.
What drilling rigs can this series match?
Water well rigs and DTH drilling rigs need air pressure and delivery matched to the hammer in use — tell us your rig and hammer and we will confirm the right compressor model.
Can the compressor be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
