Drilling Solutions
Mechanical Power Head Drilling Rigs
Mechanical power head rigs with high torque — strong pull-up for deep water wells. Compare published depth, torque and engine power model by model.
Applications
- Water well drilling
- Deep boreholes
- Foundation drilling
Key features
- ✓Mechanical power head with high rotary torque
- ✓Covers the mid-depth to deep well classes
- ✓Simple, low-maintenance mechanical drive train
- ✓TEC-800J flagship for deep-well programs
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the Mechanical Power Head Series range before opening a model page.
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
| Model | Machine | Hole diameter (mm) | Drilling depth (m) | Engine power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| CDC-300J → | CDC-300J Multi-function Top Head Drive Rig (300m) | 50–2000 mm | 300 m | 120 kW | 15000 kg |
| CDC-450JK → | CDC-450JK Multi-function Top Head Drive Rig (450m) | 50–2000 mm | 450 m | 120 kW | 28000 kg |
| CDC-600JK → | CDC-600JK Multi-function Top Head Drive Rig (600m) | 50–2000 mm | 600 m | 144 kW | 28000 kg |
| TE-400 → | TE-400 Mechanical Top Head Drive Water Well Drilling Rig | 100–1800 mm | 400 m | 168 kW | 28500 kg |
| TEC-450J → | TEC-450J Mechanical Power Head Water Well Drilling Rig | 90–850 mm | 450–500 m | 144 kW | 18500 kg |
| TEC-600J → | TEC-600J Truck-Mounted Mechanical Power Head Drilling Rig | 90–850 mm | 600 m | 152 kW | 16500 kg |
| TEC-800J → | TEC-800J Truck-Mounted Mechanical Power Head Drilling Rig | 90–850 mm | 800 m | 320 kW | On request |
Complete specifications by model
CDC-300J →
- Drilling capability — Drilling depth
- 300 m
- Drilling capability — Hole diameter
- 50–2000 mm
- Mast load capacity
- 45 t
- Mast height
- 10 m
- Pull-down force
- 15 t
- Pull-up force
- 30 t
- Power head torque
- 15000 N·m
- Power head speed
- 0–236 rpm
- Engine power
- 120 kW
- Mud pump
- 720 L/min at 3 MPa
- Drill pipe length
- 6 m
- Dimensions & weight — Overall dimensions
- 10500 × 2500 × 4300 mm
- Dimensions & weight — Operating weight
- 15000 kg
CDC-450JK →
- Drilling capability — Drilling depth
- 450 m
- Drilling capability — Hole diameter
- 50–2000 mm
- Mast load capacity
- 45 t
- Mast height
- 10 m
- Pull-down force
- 15 t
- Pull-up force
- 30 t
- Power head torque
- 15000 N·m
- Power head speed
- 0–236 rpm
- Engine power
- 120 kW
- Truck chassis
- Sinotruk 6×4
- Air compressor
- 1200 CFM at 350 PSI
- Mud pump
- 720 L/min at 3 MPa
- Drill pipe length
- 6 m
- Dimensions & weight — Overall dimensions
- 11500 × 2500 × 4300 mm
- Dimensions & weight — Operating weight
- 28000 kg
CDC-600JK →
- Drilling capability — Drilling depth
- 600 m
- Drilling capability — Hole diameter
- 50–2000 mm
- Mast load capacity
- 50 t
- Mast height
- 10 m
- Pull-down force
- 15 t
- Pull-up force
- 35 t
- Power head torque
- 15000 N·m
- Power head speed
- 0–236 rpm
- Engine power
- 144 kW
- Truck chassis
- Sinotruk 6×4
- Air compressor
- 1200 CFM at 350 PSI
- Mud pump
- 1100 L/min at 5 MPa
- Drill pipe length
- 6 m
- Dimensions & weight — Overall dimensions
- 11500 × 2500 × 4300 mm
- Dimensions & weight — Operating weight
- 28000 kg
TE-400 →
- Drilling depth
- 400 m
- Hole diameter
- 100–1800 mm
- Mast load capacity
- 45 t
- Mast height
- 9 m
- Pull-down force
- 15 t
- Pull-up force
- 30 t
- Power head torque
- 13000–1361 N·m
- Power head speed
- 27–208 rpm
- Engine
- Cummins
- Engine power
- 168 kW
- Mud pump
- 2 × BW600/30
- Mud pump flow
- 1440 (combined) L/min
- Mud pump pressure
- 3 MPa
- Air compressor flow
- 31 m³/min
- Air compressor pressure
- 2.5 MPa
- Truck chassis
- Sinotruk 6×4
- Dimensions & weight — Overall dimensions
- 12000 × 2500 × 4150 mm
- Dimensions & weight — Operating weight
- 28500 kg

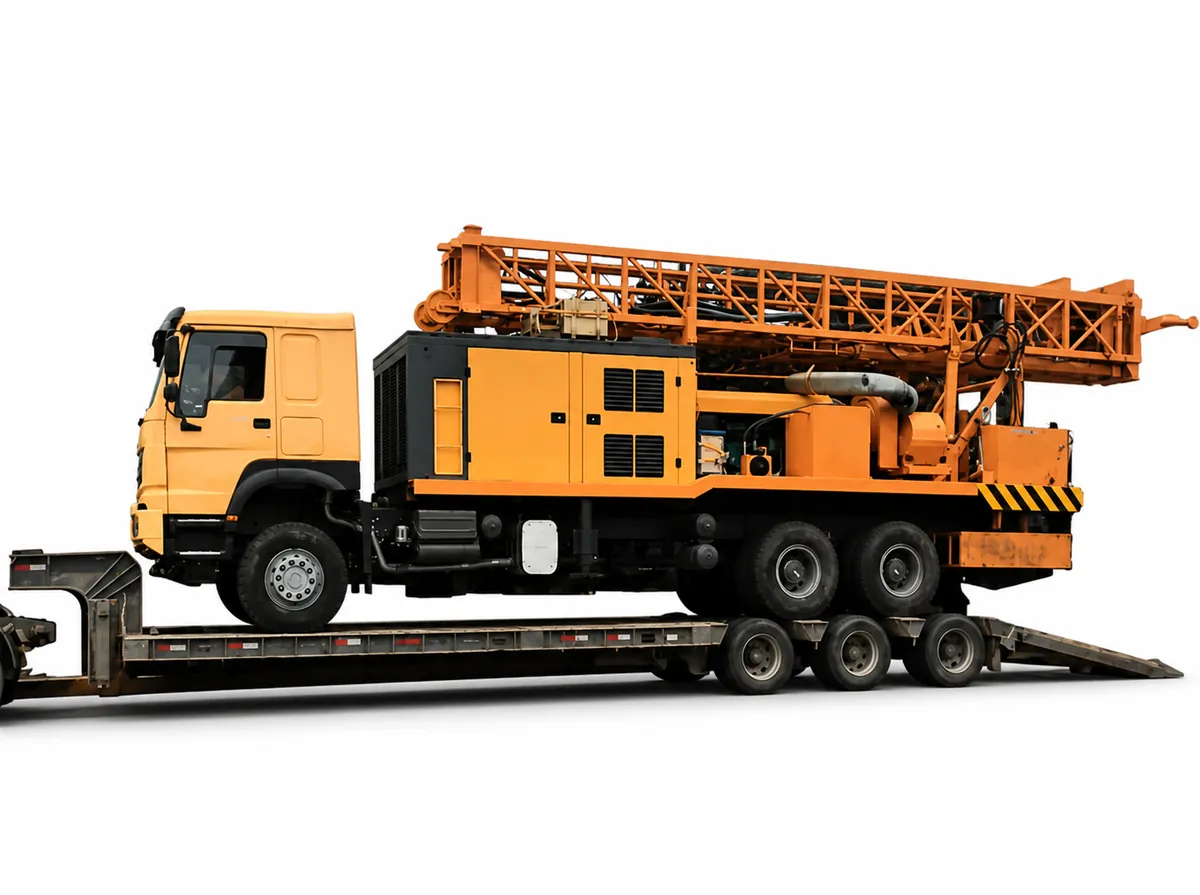

TEC-450J →
- Drilling depth
- 450–500 m
- Hole diameter
- 90–850 mm
- Mast load capacity
- 70 t
- Mast height
- 9.8 m
- Power head torque
- 29000–7500 N·m
- Power head speed
- 27–208 rpm
- Engine
- Weichai
- Engine power
- 144 kW
- Mud pump
- 2 × BW600/30
- Mud pump flow
- 1200 (combined) L/min
- Mud pump pressure
- 3 MPa
- Foam pump
- B-36EX1
- Foam pump flow
- 42 L/min
- Foam pump pressure
- 4 MPa
- Truck chassis
- Howo / Sinotruk / Dongfeng 6×4 (optional)
- Dimensions & weight — Overall dimensions
- 10500 × 2500 × 4150 mm
- Dimensions & weight — Operating weight
- 18500 kg
TEC-600J →
- Drilling depth
- 600 m
- Drilling depth with Ø89 mm drill pipe
- 750 m
- Hole diameter
- 90–850 mm
- Mast load capacity
- 60 t
- Mast height
- 9 m
- Pull-down force
- 10 t
- Pull-up force
- 30 t
- Power head torque
- 28566–2500 N·m
- Power head speed
- 27–208 rpm
- Engine
- Weichai
- Engine power
- 152 kW
- Mud pump
- BW1100/6
- Mud pump flow
- 1100 L/min
- Mud pump pressure
- 6 MPa
- Chassis
- Two-axle engineering trailer
- Dimensions & weight — Overall dimensions
- 10500 × 2500 × 4500 mm
- Dimensions & weight — Operating weight
- 16500 kg

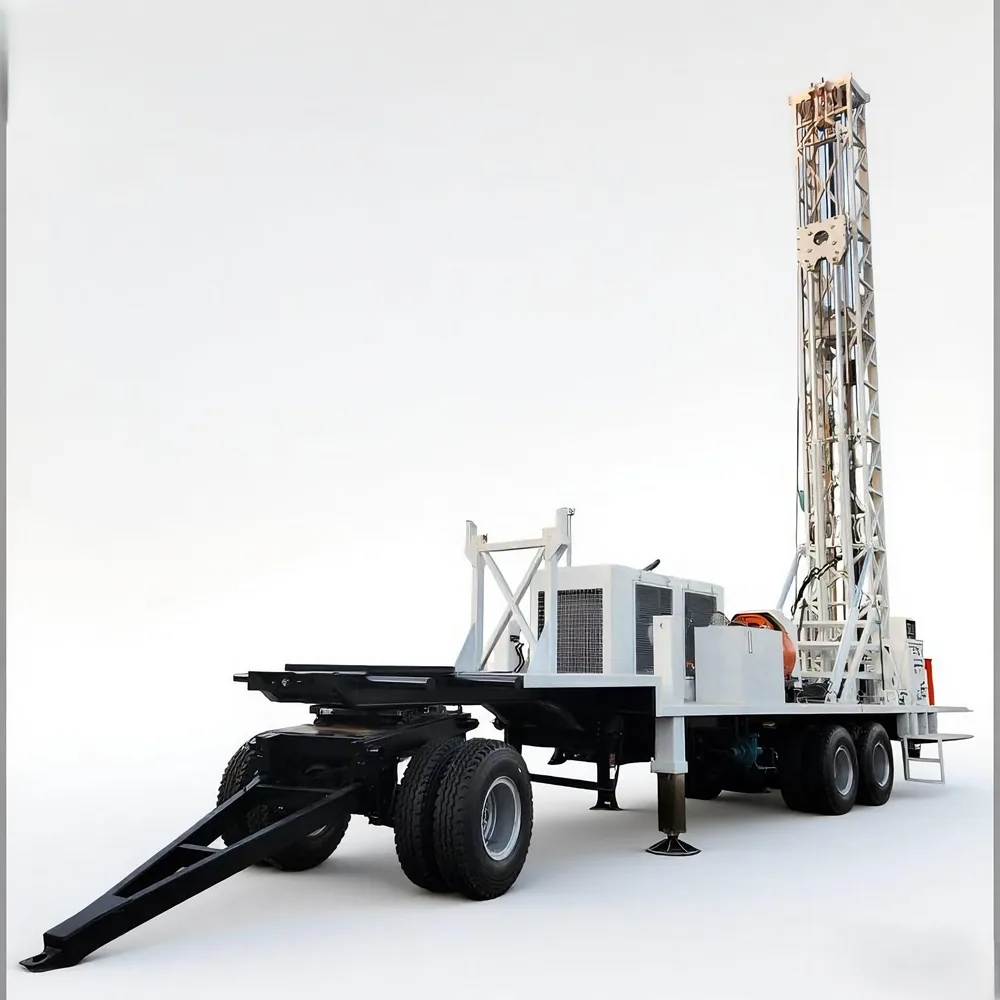

TEC-800J →
- Configurations
- Truck / Trailer; multi-value rows below are listed in this order
- Drilling depth
- 800 m
- Hole diameter
- 90–850 mm
- Mast load capacity
- 60 t
- Mast height
- 11 m
- Pull-down force
- 15 t
- Pull-up force
- 40 t
- Power head torque
- 28566–2500 N·m
- Power head speed
- 27–208 rpm
- Engine
- Weichai
- Engine power
- 320 kW
- Mud pump
- BW1200/10
- Mud pump flow
- 1200 L/min
- Mud pump pressure
- 10 MPa
- Alternator
- STC-30KW, 30 kW
- Chassis
- SinoTruck or Dongfeng 6×4 truck, or trailer
- Dimensions & weight — Overall dimensions
- 14000 × 2500 × 4500 (truck) / 13000 × 2500 × 4500 (trailer) mm
- Dimensions & weight — Operating weight
- 22850 (truck) / 19850 (trailer) kg
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Mud pump
- Rod handling
- Emissions variants
Frequently asked questions
How do I choose between CDC-300J and CDC-450JK?
Compare the two rows in the model table above — focus on hole diameter, drilling depth and power against your project conditions. Our team can confirm the match for your site.
What applications is this series suited to?
Water well drilling, Deep boreholes, Foundation drilling.
Can the equipment be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
