TEC-800J

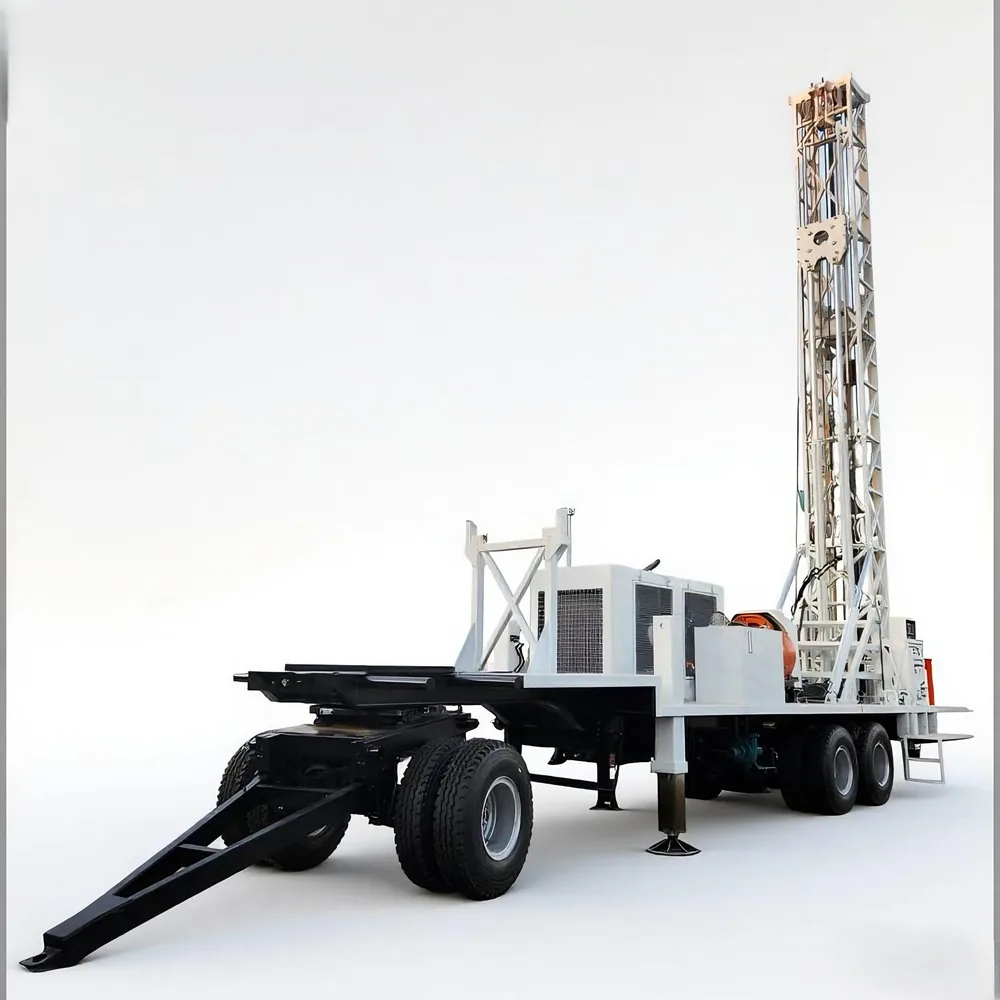

The TEC-800J is a truck-mounted or trailer-mounted mechanical power head drilling rig with a drilling depth of 800 m and a hole diameter of 90–850 mm, a 60 t mast load at 11 m mast height, pull-down 15 t and pull-up 40 t, a power head with 28566–2500 N·m torque at 27–208 rpm, a Weichai 320 kW diesel engine, a BW1200/10 mud pump (1200 L/min at 10 MPa) and a 30 kW STC-30KW alternator. In the truck configuration the operating weight is 22850 kg and the dimensions are 14000 × 2500 × 4500 mm; in the trailer configuration they are 19850 kg and 13000 × 2500 × 4500 mm.
Configurations
Truck / Trailer; multi-value rows below are listed in this order
Drilling depth
800 m
Hole diameter
90–850 mm
Mast load capacity
60 t
Overview
The TEC-800J is a truck-mounted or trailer-mounted mechanical power head drilling rig with a drilling depth of 800 m and a hole diameter of 90–850 mm, a 60 t mast load at 11 m mast height, pull-down 15 t and pull-up 40 t, a power head with 28566–2500 N·m torque at 27–208 rpm, a Weichai 320 kW diesel engine, a BW1200/10 mud pump (1200 L/min at 10 MPa) and a 30 kW STC-30KW alternator. In the truck configuration the operating weight is 22850 kg and the dimensions are 14000 × 2500 × 4500 mm; in the trailer configuration they are 19850 kg and 13000 × 2500 × 4500 mm.
Key highlights
- ✓Truck or trailer configuration, with the operating weight and dimensions published for each.
- ✓60 t mast load at 11 m mast height, pull-down 15 t and pull-up 40 t.
- ✓Mechanical power head, 28566–2500 N·m torque at 27–208 rpm.
- ✓Weichai 320 kW diesel engine with a BW1200/10 mud pump (1200 L/min at 10 MPa).
- ✓30 kW STC-30KW alternator on board.
Applications: Deep water wells to 800 m. · Geological exploration and geothermal wells. · Projects where either a truck or a trailer chassis is required.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Configurations | Truck / Trailer; multi-value rows below are listed in this order |
| Drilling depth | 800 m |
| Hole diameter | 90–850 mm |
| Mast load capacity | 60 t |
| Mast height | 11 m |
| Pull-down force | 15 t |
| Pull-up force | 40 t |
| Power head torque | 28566–2500 N·m |
| Power head speed | 27–208 rpm |
| Engine | Weichai |
| Engine power | 320 kW |
| Mud pump | BW1200/10 |
| Mud pump flow | 1200 L/min |
| Mud pump pressure | 10 MPa |
| Alternator | STC-30KW, 30 kW |
| Chassis | SinoTruck or Dongfeng 6×4 truck, or trailer |
Dimensions & weight
| Overall dimensions | 14000 × 2500 × 4500 (truck) / 13000 × 2500 × 4500 (trailer) mm |
| Operating weight | 22850 (truck) / 19850 (trailer) kg |
Applications
- Water well drilling
- Deep boreholes
- Foundation drilling
Recommended packages
Air compressor match
Mechanical power head rigs drill with mud circulation (e.g. TEC-600J runs a BW1100/6 mud pump). Match the pump to depth and hole diameter rather than an air package.
DTH hammer & bits
Mud rotary method — drill pipes and bits match the power head torque (up to 29 000 N·m on TEC-J series). DTH conversion available on request.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the TEC-800J?
Water well drilling, Deep boreholes, Foundation drilling.
Which air compressor pairs with the TEC-800J?
Mechanical power head rigs drill with mud circulation (e.g. TEC-600J runs a BW1100/6 mud pump). Match the pump to depth and hole diameter rather than an air package.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
