Truck-Mounted Drilling Rigs/Mechanical Power Head Drilling Rigs

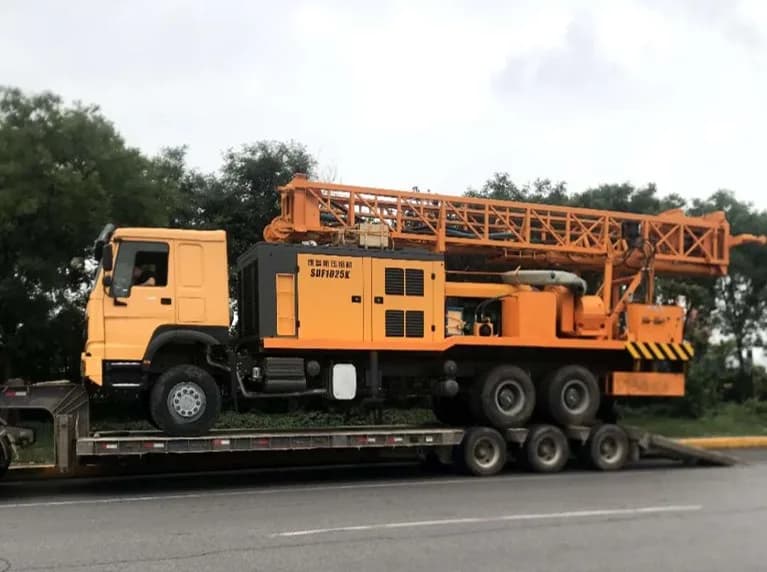

TE-400
The TE-400 is a truck-mounted mechanical power head water well drilling rig with a drilling depth of 400 m and a hole diameter of 100–1800 mm, a 45 t mast load at 9 m mast height, pull-down 15 t and pull-up 30 t, a power head with 13000–1361 N·m torque at 27–208 rpm, a Cummins 168 kW diesel engine, dual BW600/30 mud pumps (combined 1440 L/min at 3 MPa), a 31 m³/min air compressor at 2.5 MPa, a Sinotruk 6×4 chassis and an operating weight of 28500 kg.
Drilling depth
400 m
Hole diameter
100–1800 mm
Mast load capacity
45 t
Mast height
9 m
Overview
The TE-400 is a truck-mounted mechanical power head water well drilling rig with a drilling depth of 400 m and a hole diameter of 100–1800 mm, a 45 t mast load at 9 m mast height, pull-down 15 t and pull-up 30 t, a power head with 13000–1361 N·m torque at 27–208 rpm, a Cummins 168 kW diesel engine, dual BW600/30 mud pumps (combined 1440 L/min at 3 MPa), a 31 m³/min air compressor at 2.5 MPa, a Sinotruk 6×4 chassis and an operating weight of 28500 kg.
Key highlights
- ✓45 t mast load at 9 m mast height, pull-down 15 t and pull-up 30 t.
- ✓Mechanical power head with 13000–1361 N·m torque at 27–208 rpm.
- ✓Cummins 168 kW diesel engine with dual BW600/30 mud pumps (combined 1440 L/min at 3 MPa).
- ✓Air compressor 31 m³/min at 2.5 MPa for DTH hammer work.
- ✓Sinotruk 6×4 truck chassis.
Applications: Deep water wells to 400 m. · Geological exploration and agricultural irrigation. · Urban and rural water supply.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Drilling depth | 400 m |
| Hole diameter | 100–1800 mm |
| Mast load capacity | 45 t |
| Mast height | 9 m |
| Pull-down force | 15 t |
| Pull-up force | 30 t |
| Power head torque | 13000–1361 N·m |
| Power head speed | 27–208 rpm |
| Engine | Cummins |
| Engine power | 168 kW |
| Mud pump | 2 × BW600/30 |
| Mud pump flow | 1440 (combined) L/min |
| Mud pump pressure | 3 MPa |
| Air compressor flow | 31 m³/min |
| Air compressor pressure | 2.5 MPa |
| Truck chassis | Sinotruk 6×4 |
Dimensions & weight
| Overall dimensions | 12000 × 2500 × 4150 mm |
| Operating weight | 28500 kg |
Applications
- Water well drilling
- Deep boreholes
- Foundation drilling
Recommended packages
Air compressor match
Hydraulic top drive rigs handle both mud circulation and DTH drilling. For DTH work, match a KSZJ/LGZJ compressor to the hammer pressure and flow.
DTH hammer & bits
For DTH work, match hammers to the hole diameter (up to 505 mm on the CDC-600K high-spec); mud work uses standard rotary bits.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the TE-400?
Water well drilling, Deep boreholes, Foundation drilling.
Which air compressor pairs with the TE-400?
Hydraulic top drive rigs handle both mud circulation and DTH drilling. For DTH work, match a KSZJ/LGZJ compressor to the hammer pressure and flow.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
