Mid-size Crawler DTH Drill Rig Series
Mid-size crawler DTH rigs matched with a separate air compressor for open-pit mine bench blasting. Compare published hole diameter and depth model by model.
Applications
- Open-pit mining
- Bench blasting
- Production drilling
Key features
- ✓Mid-size crawler DTH rigs on Yuchai diesel engines
- ✓Wide hole-diameter coverage for bench blasting
- ✓Combined diesel + electric drive on select models (KG420S/SH)
- ✓Hydraulic rod handling and dust collection system
- ✓Runs with a separate air compressor — match capacity to hole size
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the KG Series range before opening a model page.
RequirementModels to reviewPublished selection basis
General bench drilling
KG420B / BH / S / SH / T / TH; KG430 / KG430H widen the hole-diameter coverage.
Faster relocation on larger benches
Higher travel speed for benches with more holes per shift (published figures per model).
Diesel + electric operation
Combined diesel + electric drive where grid power is available on the bench.
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
Kaishan KG Series are mid-size crawler-mounted surface DTH drilling rigs built as the production workhorse for open-pit mines. Powered by Yuchai diesel engines, with select models offering combined diesel + electric drive (KG420S/SH), the series delivers a reliable bench-blasting hole cycle. The rig runs with a separate air compressor supplying drilling air, which lets operators match compressor capacity to hole size and site conditions. Hydraulic rod handling and a dust collection system keep hole cycles fast on production blasting programs, making the KG Series the default choice for mine bench blasting and anchor drilling. At publication, the series covers 16 models — key specifications are listed below.
| Model | Machine | Hole diameter (mm) | Economical drilling depth (m) | Air consumption (m³/min) | Engine power (kW) | Weight (kg) | Gradeability (°) |
|---|---|---|---|---|---|---|---|
| KG726III → | KG726III Surface DTH Drilling Rig | 90–115 mm | 25 m | 10–17 m³/min | 59 kW | 4200 kg | ≤30° |
| KG726HIII → | Surface DTH Drilling Rig (with dust collector) | 90–115 mm | 25 m | 10–17 m³/min | 59 kW | 4400 kg | ≤30° |
| KG420B → | KG420B Surface DTH Drilling Rig | 90–130 mm | 25 m | 10–17 m³/min | 58 kW | 4150 kg | ≤30° |
| KG420BH → | KG420BH Surface DTH Drilling Rig | 90–130 mm | 25 m | 10–17 m³/min | 58 kW | 4350 kg | ≤30° |
| KG420S → | KG420S Surface DTH Drilling Rig | 90–152 mm | 25 m | 13–20 m³/min | 58 kW | 5800 kg | ≤30° |
| KG420SH → | KG420SH Surface DTH Drilling Rig | 90–152 mm | 25 m | 13–20 m³/min | 58 kW | 6100 kg | ≤30° |
| KG420T → | KG420T Surface DTH Drilling Rig | 90–152 mm | 25 m | 13–20 m³/min | 58 kW | 5050 kg | ≤30° |
| KG420TH → | KG420TH Surface DTH Drilling Rig | 90–152 mm | 25 m | 13–20 m³/min | 73.5 kW | 5350 kg | ≤30° |
| KG430 → | KG430 Surface DTH Drilling Rig | 90–152 mm | 25 m | 13–20 m³/min | 58 kW | 5250 kg | ≤30° |
| KG430H → | KG430H Surface DTH Drilling Rig | 90–152 mm | 25 m | 13–20 m³/min | 73 kW | 5700 kg | ≤30° |
| KG520 → | KG520 Surface DTH Drilling Rig | 105–152 mm | 25 m | 15–22 m³/min | 73.5 kW | 6500 kg | ≤30° |
| KG520H → | KG520H Surface DTH Drilling Rig | 105–152 mm | 25 m | 15–22 m³/min | 73.5 kW | 7000 kg | ≤30° |
| KG550 → | KG550 Surface DTH Drilling Rig | 115–254 mm | On request | 15–35 m³/min | 73.5 kW | 6200 kg | ≤30° |
| KG940A → | KG940A Surface DTH Drilling Rig | 105–203 mm | On request | 15–26 m³/min | On request | 6450 kg | ≤30° |
| KG940AH → | KG940AH Surface DTH Drilling Rig | 105–203 mm | On request | 15–26 m³/min | On request | 6900 kg | ≤30° |
| KQLG-115 → | KQLG-115 DTH Mining Drilling Rig | 90–152 mm | 25 m | 12–25 m³/min | 58 kW | 6450 kg | ≤30° |
Complete specifications by model
KG726III →
- Model of drill rig
- KG726III
- Dimensions & weight — Weight of complete machine
- 4200 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5600 x 2400 x 2300 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-115 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-120 rpm
- Drilling capability — Rotary torque (max)
- 2000 N·m
- Drilling capability — Lifting force
- 18 kN
- Drilling capability — Method of feed
- Cylinder and leaf chain
- Drilling capability — Feed stroke
- 3780 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 350 mm
- Drilling capability — Tilt angle of beam
- down 135°, up 50°, total 185°
- Drilling capability — Swing angle of beam
- left 100°, right 45°, total 145°
- Drilling capability — Pitch angle of drill boom
- down 50°, up 25°, total 75°
- Drilling capability — Swing angle of drill boom
- left 44°, right 45°, total 89°
- Drilling capability — Compensation length of beam
- 900 mm
- Engine & drive — Supporting power
- Yuchai YCD4R23T8-80, 59 kW / 2400 r/min
- Engine & drive — DTH hammer
- 3 in
- Engine & drive — Drilling rod
- Φ64 x 3 m
- Engine & drive — Air consumption
- 10-17 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2750 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-90, 8 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-120, 12 filter elements
KG726HIII →
- Model of drill rig
- KG726HIII
- Dimensions & weight — Weight of complete machine
- 4400 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5600 x 2600 x 2300 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-115 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-120 rpm
- Drilling capability — Rotary torque (max)
- 2000 N·m
- Drilling capability — Lifting force
- 18 kN
- Drilling capability — Method of feed
- Cylinder and leaf chain
- Drilling capability — Feed stroke
- 3780 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 350 mm
- Drilling capability — Tilt angle of beam
- down 135°, up 50°, total 185°
- Drilling capability — Swing angle of beam
- left 100°, right 45°, total 145°
- Drilling capability — Pitch angle of drill boom
- down 50°, up 25°, total 75°
- Drilling capability — Swing angle of drill boom
- left 44°, right 45°, total 89°
- Drilling capability — Compensation length of beam
- 900 mm
- Engine & drive — Supporting power
- Yuchai YCD4R23T8-80, 59 kW / 2400 r/min
- Engine & drive — DTH hammer
- 3 in
- Engine & drive — Drilling rod
- Φ64 x 3 m
- Engine & drive — Air consumption
- 10-17 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2750 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-90, 8 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-120, 12 filter elements

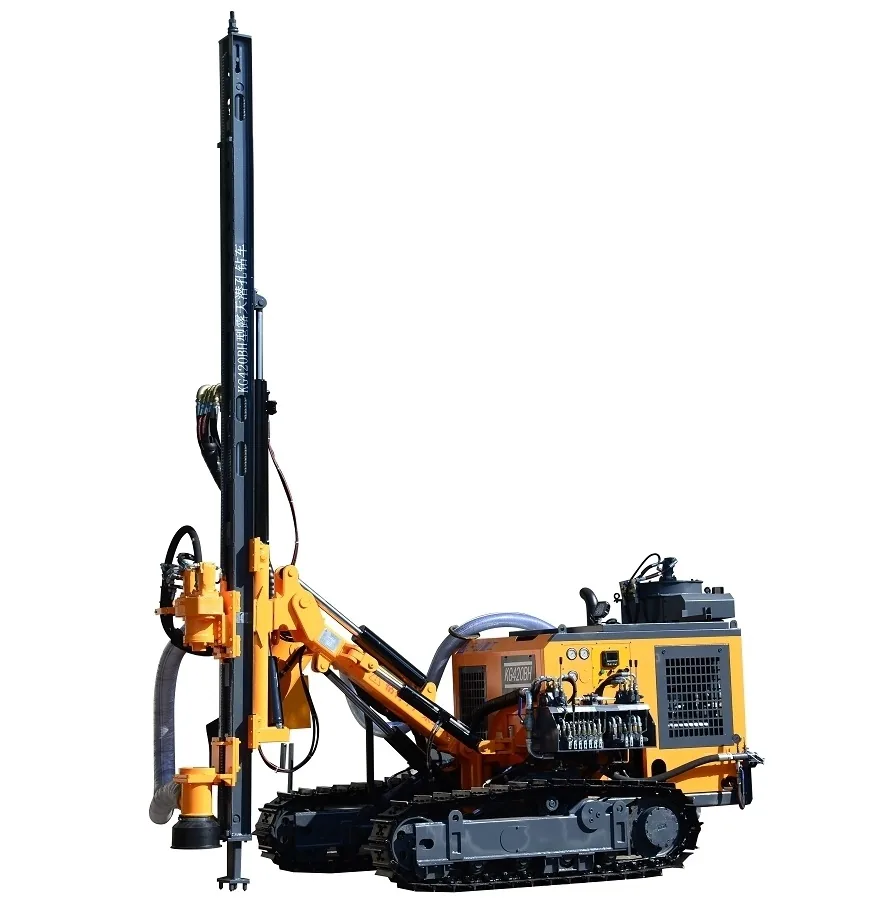

KG420B →
- Model of drill rig
- KG420B
- Dimensions & weight — Weight of complete machine
- 4150 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5500 x 2250 x 2350 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-130 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-140 rpm
- Drilling capability — Rotary torque (max)
- 2000 N·m
- Drilling capability — Lifting force
- 25 kN
- Drilling capability — Method of feed
- Cylinder and leaf chain
- Drilling capability — Feed stroke
- 3780 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 280 mm
- Drilling capability — Tilt angle of beam
- down 135°, up 50°, total 185°
- Drilling capability — Swing angle of beam
- left 100°, right 45°, total 145°
- Drilling capability — Pitch angle of drill boom
- down 50°, up 25°, total 75°
- Drilling capability — Swing angle of drill boom
- left 44°, right 45°, total 89°
- Drilling capability — Leveling angle of track
- ±10°
- Drilling capability — Compensation length of beam
- 900 mm
- Engine & drive — Supporting power
- Yuchai YC4DK80-T302, 58 kW / 2200 r/min
- Engine & drive — DTH hammer
- 3 in, 4 in
- Engine & drive — Drilling rod
- Φ64 x 3 m or Φ76 x 3 m
- Engine & drive — Air consumption
- 10-17 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2750 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-90, 8 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-120, 12 filter elements
KG420BH →
- Model of drill rig
- KG420B
- Dimensions & weight — Weight of complete machine
- 4150 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5600 x 2450 x 2350 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-130 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-140 rpm
- Drilling capability — Rotary torque (max)
- 2000 N·m
- Drilling capability — Lifting force
- 25 kN
- Drilling capability — Method of feed
- Cylinder and leaf chain
- Drilling capability — Feed stroke
- 3780 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 280 mm
- Drilling capability — Tilt angle of beam
- down 135°, up 50°, total 185°
- Drilling capability — Swing angle of beam
- left 100°, right 45°, total 145°
- Drilling capability — Pitch angle of drill boom
- down 50°, up 25°, total 75°
- Drilling capability — Swing angle of drill boom
- left 44°, right 45°, total 89°
- Drilling capability — Leveling angle of track
- ±10°
- Drilling capability — Compensation length of beam
- 900 mm
- Engine & drive — Supporting power
- Yuchai YC4DK80-T302, 58 kW / 2200 r/min
- Engine & drive — DTH hammer
- 3 in, 4 in
- Engine & drive — Drilling rod
- Φ64 x 3 m or Φ76 x 3 m
- Engine & drive — Air consumption
- 10-17 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2750 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-90, 8 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-120, 12 filter elements
KG420S →
- Model of drill rig
- KG420S
- Dimensions & weight — Weight of complete machine
- 5800 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 6400 x 2250 x 2700 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-152 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-90 rpm
- Drilling capability — Rotary torque (max)
- 5000 N·m
- Drilling capability — Lifting force
- 40 kN
- Drilling capability — Method of feed
- Cylinder and roller chain
- Drilling capability — Feed stroke
- 3175 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 290 mm
- Drilling capability — Tilt angle of beam
- down 110°, up 35°, total 145°
- Drilling capability — Swing angle of beam
- left 91°, right 5°, total 96°
- Drilling capability — Pitch angle of drill boom
- down 55°, up 15°, total 70°
- Drilling capability — Swing angle of drill boom
- left 32°, right 32°, total 64°
- Drilling capability — Compensation length of beam
- 970 mm
- Engine & drive — Supporting power (diesel engine)
- Yuchai YC4DK80-T302, 58 kW / 2200 r/min
- Engine & drive — Supporting power (electric motor)
- YE3-250M-4, 55 kW / 1460 r/min
- Engine & drive — DTH hammer
- 4 in
- Engine & drive — Drilling rod
- Φ76 x 2 m + Φ76 x 3 m
- Engine & drive — Air consumption
- 13-20 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2850 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-120, 12 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-140, 16 filter elements
KG420SH →
- Model of drill rig
- KG420SH
- Dimensions & weight — Weight of complete machine
- 6100 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 6400 x 2420 x 2700 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-152 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-90 rpm
- Drilling capability — Rotary torque (max)
- 5000 N·m
- Drilling capability — Lifting force
- 40 kN
- Drilling capability — Method of feed
- Cylinder and roller chain
- Drilling capability — Feed stroke
- 3175 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 290 mm
- Drilling capability — Tilt angle of beam
- down 110°, up 35°, total 145°
- Drilling capability — Swing angle of beam
- left 91°, right 5°, total 96°
- Drilling capability — Pitch angle of drill boom
- down 55°, up 15°, total 70°
- Drilling capability — Swing angle of drill boom
- left 32°, right 32°, total 64°
- Drilling capability — Compensation length of beam
- 970 mm
- Engine & drive — Supporting power (diesel engine)
- Yuchai YC4DK80-T302, 58 kW / 2200 r/min
- Engine & drive — Supporting power (electric motor)
- YE3-250M-4, 55 kW / 1460 r/min
- Engine & drive — DTH hammer
- 4 in
- Engine & drive — Drilling rod
- Φ76 x 2 m + Φ76 x 3 m
- Engine & drive — Air consumption
- 13-20 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2850 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-120, 12 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-140, 16 filter elements
KG420T →
- Model of drill rig
- KG420T
- Dimensions & weight — Weight of complete machine
- 5050 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5300 x 2250 x 2400 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-152 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-90 rpm
- Drilling capability — Rotary torque (max)
- 3500 N·m
- Drilling capability — Lifting force
- 40 kN
- Drilling capability — Method of feed
- Cylinder and roller chain
- Drilling capability — Feed stroke
- 3175 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 280 mm
- Drilling capability — Tilt angle of beam
- down 135°, up 50°, total 185°
- Drilling capability — Swing angle of beam
- left 100°, right 45°, total 145°
- Drilling capability — Pitch angle of drill boom
- down 50°, up 25°, total 75°
- Drilling capability — Swing angle of drill boom
- left 44°, right 45°, total 89°
- Drilling capability — Leveling angle of track
- ±10°
- Drilling capability — Compensation length of beam
- 900 mm
- Engine & drive — Supporting power
- Yuchai YC4DK80-T302, 58 kW / 2200 r/min
- Engine & drive — DTH hammer
- 4 in
- Engine & drive — Drilling rod
- Φ76 x 2 m + Φ76 x 3 m
- Engine & drive — Air consumption
- 13-20 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2750 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-120, 12 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-140, 16 filter elements
KG420TH →
- Model of drill rig
- KG420TH
- Dimensions & weight — Weight of complete machine
- 5350 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 5300 x 2450 x 2400 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-152 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-90 rpm
- Drilling capability — Rotary torque (max)
- 3500 N·m
- Drilling capability — Lifting force
- 40 kN
- Drilling capability — Method of feed
- Cylinder and roller chain
- Drilling capability — Feed stroke
- 3175 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 280 mm
- Drilling capability — Tilt angle of beam
- down 135°, up 50°, total 185°
- Drilling capability — Swing angle of beam
- left 100°, right 45°, total 145°
- Drilling capability — Pitch angle of drill boom
- down 50°, up 25°, total 75°
- Drilling capability — Swing angle of drill boom
- left 44°, right 45°, total 89°
- Drilling capability — Leveling angle of track
- ±10°
- Drilling capability — Compensation length of beam
- 900 mm
- Engine & drive — Supporting power
- Yuchai YC4DK100-T304, 73.5 kW / 2200 r/min
- Engine & drive — DTH hammer
- 4 in
- Engine & drive — Drilling rod
- Φ76 x 2 m + Φ76 x 3 m
- Engine & drive — Air consumption
- 13-20 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2750 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-120, 12 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-140, 16 filter elements
KG430 →
- Model of drill rig
- KG430
- Dimensions & weight — Weight of complete machine
- 5250 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 6300 x 2250 x 2700 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-152 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-90 rpm
- Drilling capability — Rotary torque (max)
- 5000 N·m
- Drilling capability — Lifting force
- 40 kN
- Drilling capability — Method of feed
- Cylinder and roller chain
- Drilling capability — Feed stroke
- 3175 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 290 mm
- Drilling capability — Tilt angle of beam
- down 110°, up 35°, total 145°
- Drilling capability — Swing angle of beam
- left 91°, right 5°, total 96°
- Drilling capability — Pitch angle of drill boom
- down 55°, up 15°, total 70°
- Drilling capability — Swing angle of drill boom
- left 32°, right 32°, total 64°
- Drilling capability — Leveling angle of track
- ±10°
- Drilling capability — Compensation length of beam
- 970 mm
- Engine & drive — Supporting power
- Yuchai YC4DK80-T302, 58 kW / 2200 r/min
- Engine & drive — DTH hammer
- 4 in
- Engine & drive — Drilling rod
- Φ76 x 2 m + Φ76 x 3 m
- Engine & drive — Air consumption
- 13-20 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2850 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-120, 12 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-140, 16 filter elements
KG430H →
- Model of drill rig
- KG430H
- Dimensions & weight — Weight of complete machine
- 5700 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 6300 x 2400 x 2700 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ90-152 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-90 rpm
- Drilling capability — Rotary torque (max)
- 5000 N·m
- Drilling capability — Lifting force
- 40 kN
- Drilling capability — Method of feed
- Cylinder and roller chain
- Drilling capability — Feed stroke
- 3175 mm
- Drilling capability — Travelling speed
- 0-2.5 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 290 mm
- Drilling capability — Tilt angle of beam
- down 110°, up 35°, total 145°
- Drilling capability — Swing angle of beam
- left 91°, right 5°, total 96°
- Drilling capability — Pitch angle of drill boom
- down 55°, up 15°, total 70°
- Drilling capability — Swing angle of drill boom
- left 32°, right 32°, total 64°
- Drilling capability — Leveling angle of track
- ±10°
- Drilling capability — Compensation length of beam
- 970 mm
- Engine & drive — Supporting power
- Yuchai YC4DK100-T304, 73 kW / 2200 r/min
- Engine & drive — DTH hammer
- 4 in
- Engine & drive — Drilling rod
- Φ76 x 2 m + Φ76 x 3 m
- Engine & drive — Air consumption
- 13-20 m³/min
- Engine & drive — Maximum height of horizontal hole
- 2850 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
- Engine & drive — Dust collector (standard configuration)
- QZA-120, 12 filter elements
- Engine & drive — Dust collector (alternative configuration)
- QZA-140, 16 filter elements

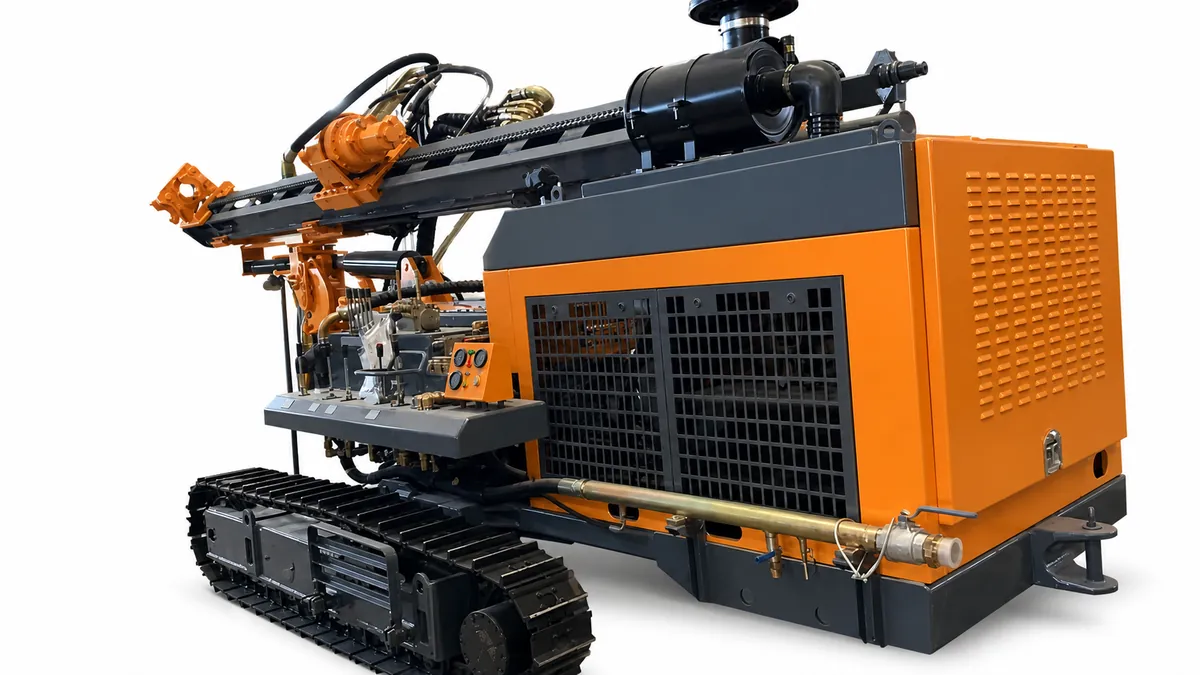

KG520 →
- Model of drill rig
- KG520
- Dimensions & weight — Weight of complete machine
- 6500 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 6800 x 2200 x 2850 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ105-152 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-100 rpm
- Drilling capability — Rotary torque (max)
- 4000 N·m
- Drilling capability — Lifting force
- 25 kN
- Drilling capability — Method of feed
- Motor and roller chain
- Drilling capability — Feed stroke
- 4150 mm
- Drilling capability — Travelling speed
- 0-4 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 440 mm
- Drilling capability — Tilt angle of beam
- down 135°, up 50°, total 185°
- Drilling capability — Swing angle of beam
- left 50°, right 50°, total 100°
- Drilling capability — Pitch angle of drill boom
- down 50°, up 25°, total 75°
- Drilling capability — Swing angle of drill boom
- left 45°, right 45°, total 90°
- Drilling capability — Leveling angle of track
- ±10°
- Drilling capability — Compensation length of beam
- 900 mm
- Engine & drive — Supporting power
- Yuchai YC4DK100-T304, 73.5 kW / 2200 r/min
- Engine & drive — DTH hammer
- 4 in
- Engine & drive — Drilling rod
- Φ76 x 3 m or Φ89 x 3 m
- Engine & drive — Air consumption
- 15-22 m³/min
- Engine & drive — Maximum height of horizontal hole
- 3500 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm
KG520H →
- Model of drill rig
- KG520H
- Dimensions & weight — Weight of complete machine
- 7000 kg
- Dimensions & weight — Overall dimensions (L × W × H)
- 6800 x 2350 x 2850 mm
- Drilling capability — Drilling hardness
- f = 6-20
- Drilling capability — Drilling diameter
- Φ105-152 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Drilling capability — Rotary speed
- 0-100 rpm
- Drilling capability — Rotary torque (max)
- 4000 N·m
- Drilling capability — Lifting force
- 25 kN
- Drilling capability — Method of feed
- Motor and roller chain
- Drilling capability — Feed stroke
- 4150 mm
- Drilling capability — Travelling speed
- 0-4 km/h
- Drilling capability — Climbing capacity
- ≤30°
- Drilling capability — Ground clearance
- 440 mm
- Drilling capability — Tilt angle of beam
- down 135°, up 50°, total 185°
- Drilling capability — Swing angle of beam
- left 50°, right 50°, total 100°
- Drilling capability — Pitch angle of drill boom
- down 50°, up 25°, total 75°
- Drilling capability — Swing angle of drill boom
- left 45°, right 45°, total 90°
- Drilling capability — Leveling angle of track
- ±10°
- Drilling capability — Compensation length of beam
- 900 mm
- Engine & drive — Supporting power
- Yuchai YC4DK100-T304, 73.5 kW / 2200 r/min
- Engine & drive — DTH hammer
- 4 in
- Engine & drive — Drilling rod
- Φ76 x 3 m or Φ89 x 3 m
- Engine & drive — Air consumption
- 15-22 m³/min
- Engine & drive — Maximum height of horizontal hole
- 3500 mm
- Engine & drive — Minimum height of horizontal hole
- 350 mm

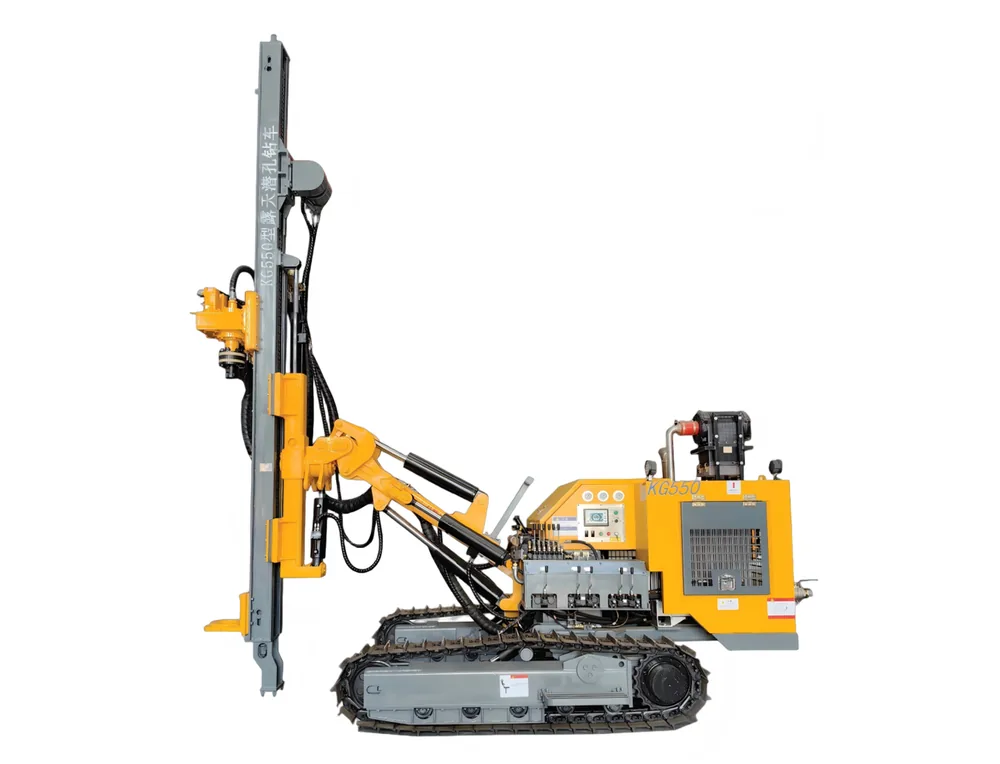

KG550 →
- Model
- KG550
- Tooling & air — Air consumption
- 15-35 m³/min
- Tooling & air — Lifting force
- 20 kN
- Tooling & air — Max. rotary torque
- 4000 N·m
- Tooling & air — Rotation speed
- 0-110 rpm
- Feed length
- 3820 mm
- Hole diameter
- φ115-254 mm
- Rock hardness
- f=6-20
- Engine model
- Yuchai DKC2G3
- Engine power
- 73.5 kW
- Engine speed
- 2200 rpm
- Boom pitch angle
- Down 50° / up 25° (75° total)
- Boom swing angle
- Left 26° / right 24.5° (50.5° total)
- Mast compensation length
- 900 mm
- Mast pitch angle
- Down 135° / up 50° (185° total)
- Mast swing angle
- Left 45° / right 45° (90° total)
- Performance & mobility — Gradeability
- ≤30°
- Performance & mobility — Track leveling angle
- ±10°
- Performance & mobility — Tramming speed
- 0-3 km/h
- Dimensions & weight — Ground clearance
- 325 mm
- Dimensions & weight — Overall height
- 2400 mm
- Dimensions & weight — Overall length
- 6500 mm
- Dimensions & weight — Overall width
- 2350 mm
- Dimensions & weight — Weight
- 6200 kg
- Drill pipe diameter
- φ76/φ89/φ102
- DTH hammer
- K4, K5, K6, K8
- Dust collector option 1 filter count
- 16
- Dust collector option 1 model
- QZA-140
- Dust collector option 2 filter count
- 20
- Dust collector option 2 model
- QZA-160
- Feed method
- Motor + 24A roller chain
KG940A →
- Machine weight
- 6450 kg
- Overall dimensions (L × W × H)
- 6150×2260×2600 mm
- Rock hardness
- F=6–20
- Hole diameter
- 105–203 mm
- Rotary working speed
- 0–65 (0–130) rpm
- Maximum rotary torque
- ≥3200 N·m (250 motor)
- Lifting force
- 30 kN
- Feed method
- Hydraulic cylinder + 24B roller chain
- Feed stroke
- 3800 mm
- Travel speed
- 0–3 km/h
- Gradeability
- ≤30°
- Ground clearance
- 320 mm
- Feed beam pitch
- Down 135°; up 50°
- Feed beam swing
- Left 45°; right 45°
- Drill boom pitch
- Down 50°; up 25°
- Drill boom swing
- Left 45°; right 45°
- Track leveling angle
- ±10°
- Feed beam compensation
- 1200 mm
- Engine
- Yuchai DKC2G3; 73.5 kW at 2200 r/min
- DTH hammer
- 3–6 in
- Drill rod
- Ø76 × 3000 mm
- Air consumption
- 15–26 m³/min
- Dust collector
- Not equipped
KG940AH →
- Machine weight
- 6900 kg
- Overall dimensions (L × W × H)
- 6500×2260×2600 mm
- Rock hardness
- F=6–20
- Hole diameter
- 105–203 mm
- Rotary working speed
- 0–65 (0–130) rpm
- Maximum rotary torque
- ≥3200 N·m (250 motor)
- Lifting force
- 30 kN
- Feed method
- Hydraulic cylinder + 24B roller chain
- Feed stroke
- 3800 mm
- Travel speed
- 0–3 km/h
- Gradeability
- ≤30°
- Ground clearance
- 320 mm
- Feed beam pitch
- Down 135°; up 50°
- Feed beam swing
- Left 45°; right 45°
- Drill boom pitch
- Down 50°; up 25°
- Drill boom swing
- Left 45°; right 45°
- Track leveling angle
- ±10°
- Feed beam compensation
- 1200 mm
- Engine
- Yuchai DKC2G3; 73.5 kW at 2200 r/min
- DTH hammer
- 3–6 in
- Drill rod
- Ø76 × 3000 mm
- Air consumption
- 15–26 m³/min
- Dust collector
- 12 filter elements
KQLG-115 →
- Model
- KQLG-115
- Tooling & air — Air consumption
- 12-25 m³/min
- Tooling & air — Lifting force
- 40 kN
- Tooling & air — Max. rotary torque
- 5000 N·m
- Tooling & air — Rotation speed
- 0-90 rpm
- Economical drilling depth
- 25 m
- Feed length
- 2620 mm
- Hole diameter
- Φ90-152 mm
- Max. horizontal hole height
- 3500 mm
- Min. horizontal hole height
- 350 mm
- Rock hardness
- f=6-20
- Engine model
- Yuchai YC4DK80-T302
- Engine power
- 58 kW
- Engine speed
- 2200 r/min
- Electric motor model
- YE3-250M-4
- Motor power
- 55 kW
- Motor speed
- 1460 rpm
- Boom pitch angle
- Down 42° / up 25° (67° total)
- Boom swing angle
- Left 32° / right 32° (64° total)
- Mast compensation length
- 600 mm
- Mast pitch angle
- Down 135°, up 50°, total 270°
- Mast swing angle
- Left 180° / right 180° (360° total)
- Performance & mobility — Gradeability
- ≤30°
- Performance & mobility — Tramming speed
- 0-2.5 km/h
- Dimensions & weight — Ground clearance
- 290 mm
- Dimensions & weight — Overall height
- 2700 mm
- Dimensions & weight — Overall length
- 7300 mm
- Dimensions & weight — Overall width
- 2420 mm
- Dimensions & weight — Weight
- 6450 kg
- Drill pipe option 1 diameter
- Φ64 mm
- Drill pipe option 1 length
- 2000 mm
- Drill pipe option 2 diameter
- Φ76 mm
- Drill pipe option 2 length
- 2000 mm
- Drill pipe option relationship
- or
- DTH hammer
- 3-4"
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Dust collection system
- Electric drive variant
- Rod carriage
- Remote monitoring
Frequently asked questions
How do I choose between KG726III and KG726HIII?
Compare the two rows in the model table above — focus on hole diameter, drilling depth and power against your project conditions. Our team can confirm the match for your site.
What applications is this series suited to?
Open-pit mining, Bench blasting, Production drilling.
Can the equipment be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
Related series
Crawler DTH Drill Rig with Integrated Air Compressor
Full-range crawler DTH rigs with the air compressor built in — for quarry, construction and slope drilling. Compare published hole diameter and weight model by model.
View series →Compact Crawler DTH Drill Rig with Integrated Air Compressor
Compact crawler DTH rigs with the air compressor built in — easy to relocate for small mines and quarries. Compare published hole diameter and weight model by model.
View series →Top Hammer Drill Rig
Full hydraulic top hammer drill rig for road cuts, foundations and open-pit bench blasting. Compare published hole diameter and depth model by model.
View series →
