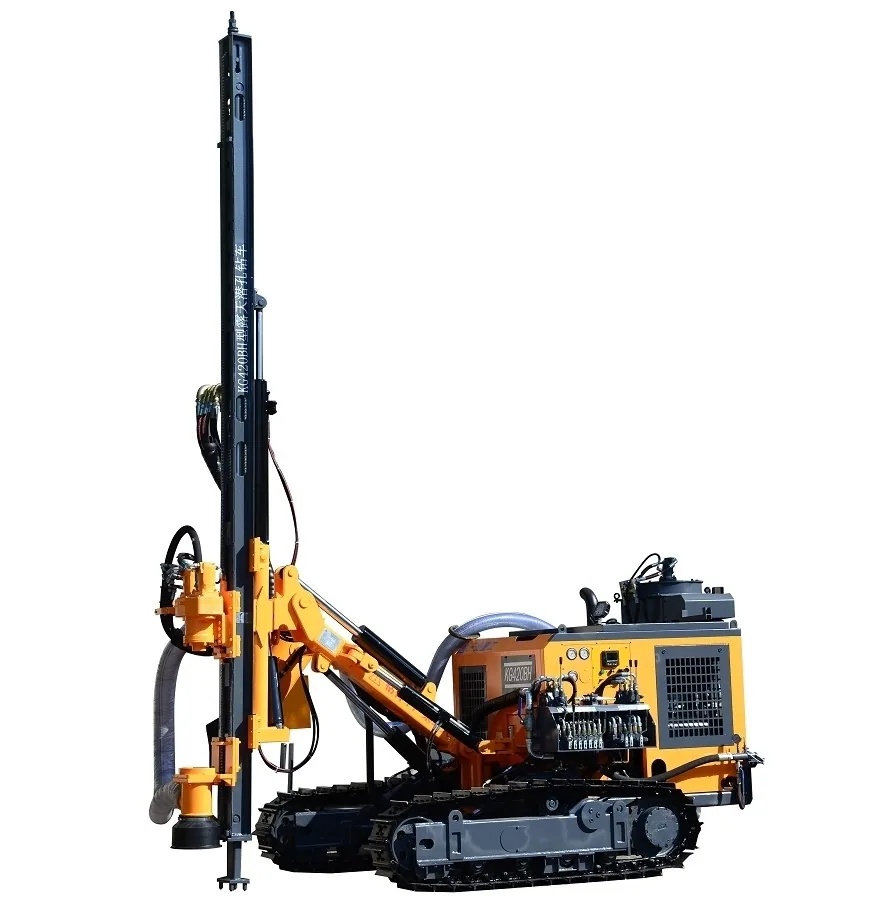

KG420SH
The KG420SH surface DTH drilling rig is a split-type drill rig of the Kaishan KG series with dual diesel/electric power and dust collector, with a drilling diameter of Φ90-152mm, economical drilling depth of 25m, powered by a Yuchai YC4DK80-T302 engine (58kW) and a YE3-250M-4 electric motor (55kW), with a total weight of 6100kg.
Hole diameter
Φ90-152 mm
Drilling depth
25 m
Weight
6100 kg
Overview
The KG420SH surface DTH drilling rig is a split-type drill rig of the Kaishan KG series with dual diesel/electric power and dust collector, with a drilling diameter of Φ90-152mm, economical drilling depth of 25m, powered by a Yuchai YC4DK80-T302 engine (58kW) and a YE3-250M-4 electric motor (55kW), with a total weight of 6100kg.
Key highlights
- ✓Drilling diameter Φ90-152mm, economical drilling depth 25m, wide coverage range
- ✓Standard QZA-120 dust collector (12 filter cartridges), optional QZA-140 (16 filter cartridges) for cleaner operation
- ✓Dual power: Yuchai YC4DK80-T302 diesel engine (58kW/2200r/min) + YE3-250M-4 electric motor (55kW/1460r/min)
- ✓Max rotary torque 5000N·m, rotation speed 0-90rpm, lifting force 40kN
- ✓4" DTH hammer with Φ76×2m + Φ76×3m drill rods, air consumption 13-20m³/min
Applications: Open-pit mining sites around urban areas or with strict environmental requirements, as well as blast hole drilling in open-pit mines and quarries.
Genuine Kaishan equipment supplied through our authorized distribution channel, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Rock hardness | f=6-20 |
| Hole diameter (mm) | Φ90-152 |
| Drilling depth (m) | 25 |
| Feed length (mm) | 3175 |
| Max horizontal hole height (mm) | 2850 |
| Min horizontal hole height (mm) | 350 |
Dimensions & weight
| Weight (kg) | 6100 |
| Dimensions (mm) | 6400×2420×2700 |
Drive & handling
| Rotary speed | 0-90 rpm |
| Max rotary torque | 5000 N·m |
| Lifting force | 40 kN |
| Mast compensation length (mm) | 970 |
Tooling & air
| DTH hammer | 4" |
| Drill rod | Φ76×2 m + Φ76×3 m |
| Air consumption | 13-20 m³/min |
Performance & mobility
| Travel speed | 0-2.5 km/h |
| Gradeability | ≤30° |
| Ground clearance (mm) | 290 |
Applications
- Open-pit mining
- Bench blasting
- Production drilling
Recommended packages
Air compressor match
This rig draws 10-17 m³/min at the hammer (3" or 4"). The standard pairing is a KSCY mobile compressor in the 18-21 m³/min class — e.g. KSCY-310/22 (21 m³/min @ 2.2 MPa) or KSCY-650/20-700/17T (18-19 m³/min dual-mode).
DTH hammer & bits
3" and 4" DTH hammers cover the Φ90-130 mm range — K3/K30C class for 90-105 mm holes, moving up a size for 130 mm holes. Matching button bits order as a set.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KG420SH?
Open-pit mining, Bench blasting, Production drilling.
Which air compressor pairs with the KG420SH?
This rig draws 10-17 m³/min at the hammer (3" or 4"). The standard pairing is a KSCY mobile compressor in the 18-21 m³/min class — e.g. KSCY-310/22 (21 m³/min @ 2.2 MPa) or KSCY-650/20-700/17T (18-19 m³/min dual-mode).
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
