Drilling Solutions
KS Crawler Water Well Drilling Rigs
Crawler-mounted water well drilling rigs for boreholes and deep wells. Compare published hole diameter, depth and drill pipe model by model.
Applications
- Water well drilling
- Deep wells
- Geological drilling
Key features
- ✓Full-hydraulic drive with single-lever operation for fast rod handling
- ✓Matched rotary head, mud pump and mast system for reliable deep drilling
- ✓Wide hole diameter coverage for water well and borehole projects
- ✓Stable crawler chassis with outriggers for uneven site conditions
- ✓Cold-climate tested components for desert and high-altitude sites
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the Crawler Water Well Series range before opening a model page.
RequirementModels to reviewPublished selection basis
Deep projects
Deep-well class with water-and-air dual working systems; pair with LGZJ high-pressure compressors.
Soft or uneven terrain
30° gradeability; long site-to-site moves need a lowboy trailer.
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
KS crawler water well drilling rigs are full-hydraulic drilling units built for water well, borehole, geothermal and geological projects, and every published depth, hole diameter and drill pipe size is listed per model. Each rig pairs a matched rotary head, mud pump and lattice mast system, and is powered by heavy-duty diesel engines with hydraulic outriggers for stable operation on uneven sites. The series is designed for one-man operation: single-lever feed control, auto rod handling and clear instrument panels speed up hole cycles on production projects. KS rigs are cold-climate tested for desert, plateau and remote-site conditions, and can be delivered as a complete package with a matched high-pressure air compressor (KSZJ/LGZJ series), DTH hammer and drill pipe sets. At publication, the series covers 12 models — key specifications are listed below.
| Model | Machine | Hole diameter (mm) | Drilling depth (m) | Air consumption (m³/min) | Engine power (kW) | Weight (t) |
|---|---|---|---|---|---|---|
| KS180 → | KS180 Crawler Water Well Drilling Rig | 140–254 mm | 180 m | 17–31 m³/min | 60 kW | 5.2 t |
| KS260 → | Crawler Water Well Drilling Rig 260m | 140–305 mm | 260 m | 17–31 m³/min | 76 kW | 5.7 t |
| KS300A → | Light Crawler Water Well Drilling Rig 300m | 140–325 mm | 300 m | On request | 85 kW | 6.8 t |
| KS300B → | KS300B Crawler Water Well Drilling Rig | 140–325 mm | 300 m | On request | 85 kW | 8 t |
| KS350 → | Crawler Water Well Drilling Rig 350m | On request | On request | On request | 91 kW | On request |
| KS400 → | Crawler Water Well Drilling Rig 400m | 140–325 mm | 400 m | 17–36 m³/min | 92 kW | 9.2 t |
| KS450 → | KS450 Crawler Water Well Drilling Rig | 140–350 mm | 450 m | 17–36 m³/min | 110 kW | 9.2 t |
| KS500 → | Crawler Water Well Drilling Rig 500m | 140–350 mm | 500 m | 17–42 m³/min | 118 kW | 9.5 t |
| KS600 → | Crawler Water Well Drilling Rig 600m | 140–350 mm | 600 m | 17–42 m³/min | 113 kW | 11.5 t |
| KS700 → | Crawler Water Well Drilling Rig 700m | 140–350 mm | 700 m | 17–42 m³/min | 132 kW | 12 t |
| KS800 → | KS800 Crawler Water Well Drilling Rig | 140–400 mm | 800 m | 17–42 m³/min | 153 kW | 12 t |
| KS1000 → | KS1000 Crawler Water Well Drilling Rig | 140–520 mm | 1000 m | 17–42 m³/min | 194 kW | 13 t |
Complete specifications by model

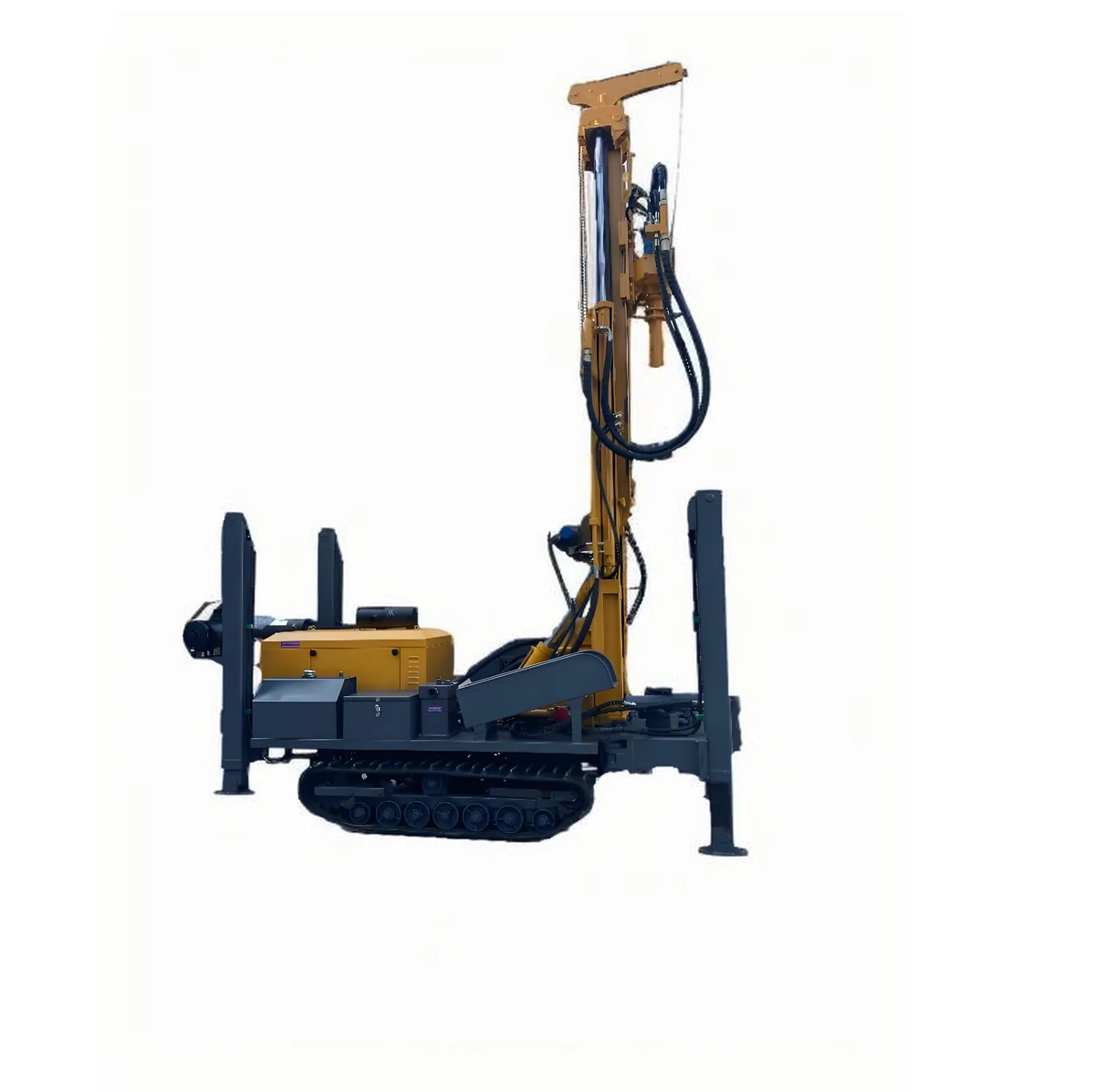

KS180 →
- Machine weight
- 5.2 t
- Drill pipe diameter
- Φ76 Φ89 mm
- Hole diameter
- 140-254 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m
- Drilling depth
- 180 m
- Lifting capacity
- 12 t
- Feed stroke
- 3.3 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.4 m
- Engine power
- 60 kW
- Working air pressure
- 1.7-2.5 MPa
- Rotary torque
- 3200-4600 N·m
- Air consumption
- 17-31 m³/min
- Overall dimensions
- 4000×1630×2250 mm
- Rotary speed
- 45-70 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 10-35 m/h
- Outrigger stroke
- 1.4 m
- Engine manufacturer
- Yuchai
KS260 →
- Machine weight
- 5.7 t
- Drill pipe diameter
- Φ76 Φ89 mm
- Hole diameter
- 140-305 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m
- Drilling depth
- 260 m
- Lifting capacity
- 15 t
- Feed stroke
- 3.3 m
- Rapid lifting speed
- 24 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.73 m
- Winch lifting capacity
- 1.5 t
- Working air pressure
- 1.7-2.5 MPa
- Rotary torque
- 4000-5300 N·m
- Air consumption
- 17-31 m³/min
- Overall dimensions
- 3900×1750×2250 mm
- Rotary speed
- 45-70 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 10-35 m/h
- Outrigger stroke
- 1.4 m
- Engine & drive — Engine
- Quanchai, 76 kW
- Equipment configuration
- Steel tracks; winch; welding machine
KS300A →
- Dimensions & weight — Machine weight
- 6.8 t
- Drilling capability — Drill pipe diameter
- Φ76, Φ89 mm
- Drilling capability — Hole diameter
- 140-325 mm
- Drilling capability — Drill pipe length options
- 1.5/2.0/3.0 m
- Drilling capability — Drilling depth
- 300 m
- Lifting capacity
- 18 t
- Feed stroke
- 3.3 m
- Rapid lifting speed
- 22 m/min
- Performance & mobility — Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Performance & mobility — Maximum gradeability
- 30°
- Dimensions & weight — Loading width
- 2.6 m
- Engine & drive — Engine power
- 85 kW
- Engine & drive — Engine manufacturer
- Yuchai
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.0 MPa
- Rotary torque
- 5700-7500 N·m
- Air consumption
- 17-36 m³/min
- Dimensions & weight — Overall dimensions
- 4100×2000×2260 mm
- Rotary speed
- 40-70 rpm
- Drilling capability — Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.4 m
KS300B →
- Dimensions & weight — Machine weight
- 8 t
- Drilling capability — Drill pipe diameter
- Φ75, Φ89, Φ102 mm
- Drilling capability — Hole diameter
- 140-325 mm
- Drilling capability — Drill pipe length options
- 1.5/2.0/3.0/6.0 m
- Drilling capability — Drilling depth
- 300 m
- Lifting capacity
- 18 t
- Feed stroke
- 6.6 m
- Rapid lifting speed
- 22 m/min
- Performance & mobility — Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Performance & mobility — Maximum gradeability
- 30°
- Dimensions & weight — Loading width
- 2.6 m
- Engine & drive — Engine power
- 85 kW
- Engine & drive — Engine manufacturer
- Yuchai
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.0 MPa
- Rotary torque
- 5700-7500 N·m
- Air consumption
- 17-36 m³/min
- Dimensions & weight — Overall dimensions
- 5900×1850×2200 mm
- Rotary speed
- 40-70 rpm
- Drilling capability — Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.4 m
KS350 →
- Engine & drive — Engine
- Yuchai, 91 kW
- Equipment configuration
- Steel tracks; winch; dual water/air quick-switch valve; welding machine; access ladder; 6.6 m feed stroke
KS400 →
- Machine weight
- 9.2 t
- Drill pipe diameter
- Φ89 Φ102 mm
- Hole diameter
- 140-325 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m 6.0m
- Drilling depth
- 400 m
- Lifting capacity
- 24 t
- Feed stroke
- 6.6 m
- Rapid lifting speed
- 18 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 33 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.7 m
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.4 MPa
- Rotary torque
- 6500-9000 N·m
- Air consumption
- 17-36 m³/min
- Overall dimensions
- 6000*2000*2550 mm
- Rotary speed
- 66-135 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.4 m
- Engine & drive — Engine
- Yuchai, 92 kW
- Equipment configuration
- Steel tracks; winch; dual water/air quick-switch valve; welding machine; access ladder; 6.6 m feed stroke

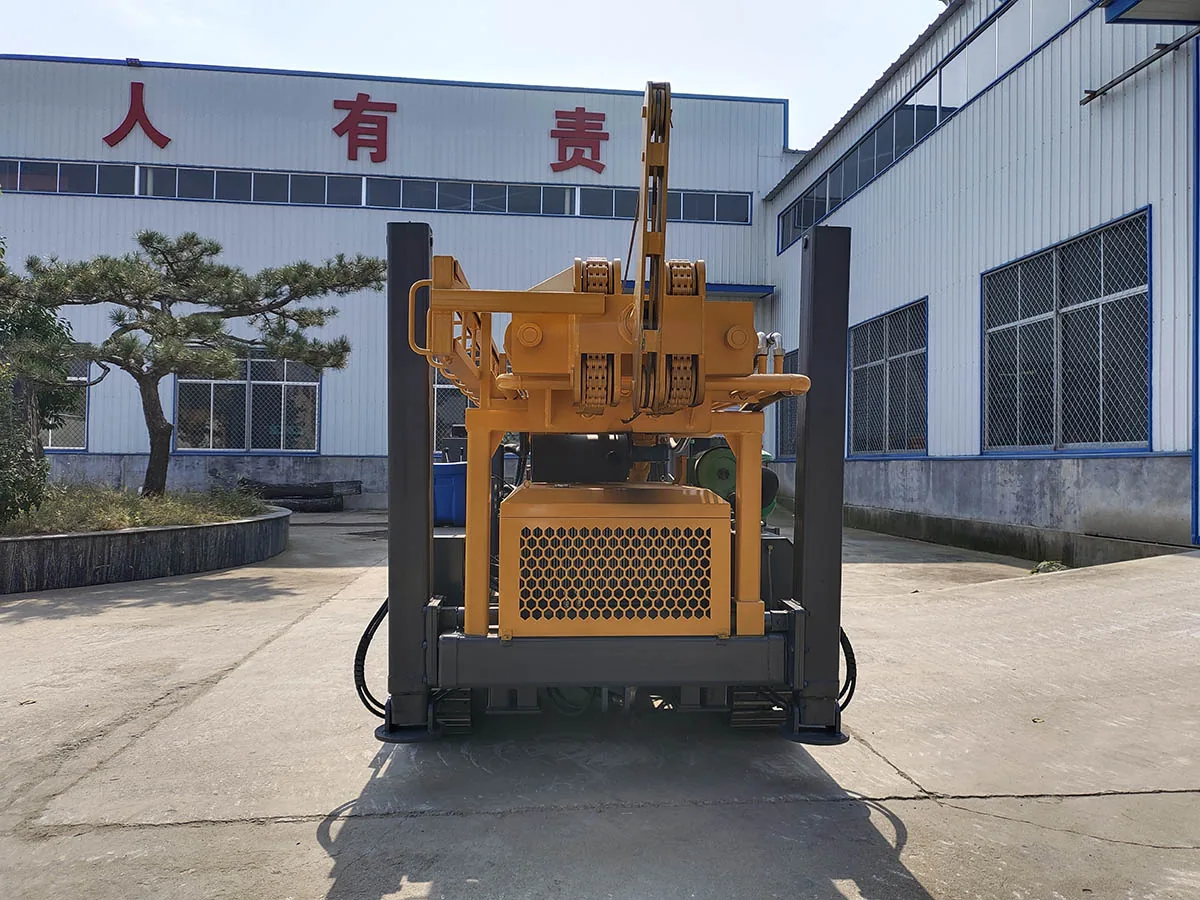

KS450 →
- Machine weight
- 9.2 t
- Drill pipe diameter
- Φ89 Φ102 mm
- Hole diameter
- 140-350 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m 6.0m
- Drilling depth
- 450 m
- Lifting capacity
- 25 t
- Feed stroke
- 6.6 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.8 m
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.5 MPa
- Rotary torque
- 7000-9500 N·m
- Air consumption
- 17-36 m³/min
- Overall dimensions
- 6150×2200×2600 mm
- Rotary speed
- 30-135 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.6 m
- Engine & drive — Engine
- Yuchai, 110 kW
- Equipment configuration
- Steel tracks; winch; foam pump; welding machine; access ladder; 6.6 m feed stroke; dual water/air quick-switch valve
KS500 →
- Machine weight
- 9.5 t
- Drill pipe diameter
- Φ102 Φ108 Φ114 mm
- Hole diameter
- 140-350 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m 6.0m
- Drilling depth
- 500 m
- Lifting capacity
- 26 t
- Feed stroke
- 6.6 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.85 m
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.5 MPa
- Rotary torque
- 7500-10000 N·m
- Air consumption
- 17-42 m³/min
- Overall dimensions
- 6150×2200×2600 mm
- Rotary speed
- 45-130 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.6 m
- Engine & drive — Engine
- Yuchai, 118 kW
- Equipment configuration
- Steel tracks; winch; foam pump; welding machine; access ladder; 6.6 m feed stroke; dual water/air quick-switch valve
- Engine & drive — Engine cylinders
- 6
KS600 →
- Machine weight
- 11.5 t
- Drill pipe diameter
- Φ102 Φ108 Φ114 mm
- Hole diameter
- 140-350 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m 6.0m
- Drilling depth
- 600 m
- Lifting capacity
- 28 t
- Feed stroke
- 6.6 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.85 m
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.5 MPa
- Rotary torque
- 8500-11000 N·m
- Air consumption
- 17-42 m³/min
- Overall dimensions
- 6300×2200×2650 mm
- Rotary speed
- 45-130 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.7 m
- Engine & drive — Engine
- Cummins, 113 kW
- Equipment configuration
- Reinforced steel tracks; large chassis; reinforced hydraulic pump; winch; foam pump; welding machine; access ladder; 6.6 m feed stroke; front outrigger swing cylinders; separate cooling; dual water/air quick-switch valve
- Engine & drive — Engine cylinders
- 6
KS700 →
- Machine weight
- 12 t
- Drill pipe diameter
- Φ102 Φ108 Φ114 mm
- Hole diameter
- 140-350 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m 6.0m
- Drilling depth
- 700 m
- Lifting capacity
- 28 t
- Feed stroke
- 6.6 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.95 m
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.5 MPa
- Rotary torque
- 8500-11000 N·m
- Air consumption
- 17-42 m³/min
- Overall dimensions
- 6200*2200*2950 mm
- Rotary speed
- 45-140 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.7 m
- Engine & drive — Engine
- Cummins, 132 kW
- Equipment configuration
- Reinforced steel tracks; large chassis; reinforced hydraulic pump; winch; foam pump; welding machine; access ladder; 6.6 m feed stroke; front outrigger swing cylinders; separate cooling; dual water/air quick-switch valve
- Engine & drive — Engine cylinders
- 6

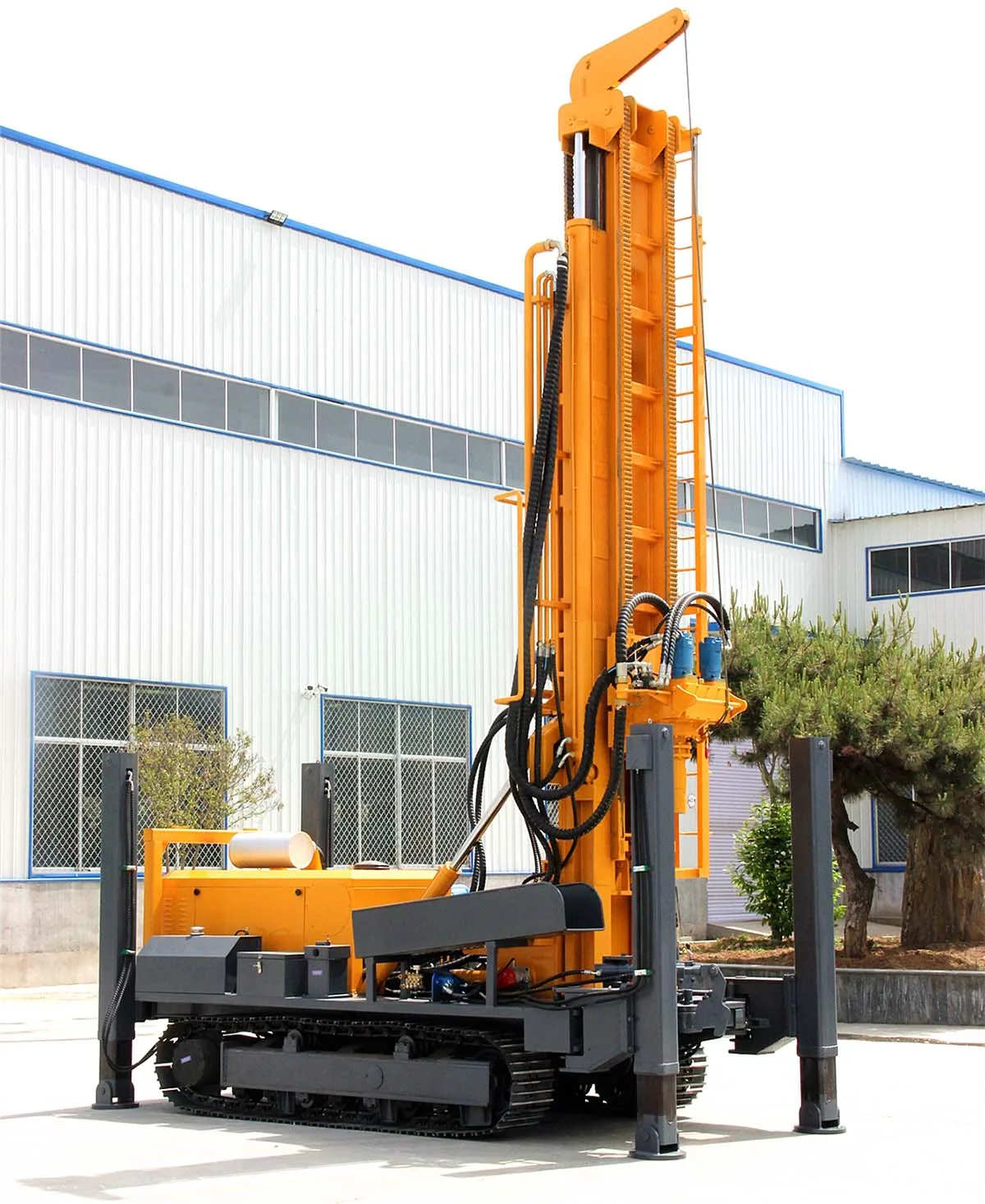

KS800 →
- Machine weight
- 12 t
- Drill pipe diameter
- Φ102 Φ108 Φ114 mm
- Hole diameter
- 140-400 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m 6.0m
- Drilling depth
- 800 m
- Lifting capacity
- 30 t
- Feed stroke
- 6.6 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.95 m
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.5 MPa
- Rotary torque
- 8850-13150 N·m
- Air consumption
- 17-42 m³/min
- Overall dimensions
- 6300×2300×2950 mm
- Rotary speed
- 45-140 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.7 m
- Engine & drive — Engine
- Cummins, 153 kW
- Equipment configuration
- Reinforced steel tracks; large chassis; reinforced hydraulic pump; winch; foam pump; welding machine; access ladder; 6.6 m feed stroke; front outrigger swing cylinders; separate cooling; dual water/air quick-switch valve
- Engine & drive — Engine cylinders
- 6
KS1000 →
- Machine weight
- 13 t
- Drill pipe diameter
- Φ102 Φ108 Φ114 Φ117 mm
- Hole diameter
- 140-520 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m 6.0m
- Drilling depth
- 1000 m
- Lifting capacity
- 50 t
- Feed stroke
- 6.6 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.95 m
- Winch lifting capacity
- 2 t
- Working air pressure
- 1.7-3.5 MPa
- Rotary torque
- 9000-20000 N·m
- Air consumption
- 17-42 m³/min
- Overall dimensions
- 6300×2300×2950 mm
- Rotary speed
- 45-140 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 15-35 m/h
- Outrigger stroke
- 1.7 m
- Engine & drive — Engine
- Cummins, 194 kW
- Equipment configuration
- Reinforced steel tracks; large chassis; reinforced hydraulic pump; winch; foam pump; welding machine; access ladder; 6.6 m feed stroke; front outrigger swing cylinders; separate cooling; dual water/air quick-switch valve
- Engine & drive — Engine cylinders
- 6
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Low-temperature start system
- Aftercooler and moisture separator
- Remote start/stop, monitoring and positioning system
- Matched high-pressure air compressor package (KSZJ/LGZJ series)
- DTH hammer and drill pipe packages
Frequently asked questions
How do I choose between KS180 and KS260?
Compare the two rows in the model table above — focus on hole diameter, drilling depth and power against your project conditions. Our team can confirm the match for your site.
What applications is this series suited to?
Water well drilling, Deep wells, Geological drilling.
Can the equipment be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
