Crawler DTH Drill Rig with Integrated Air Compressor Series
Full-range crawler DTH rigs with the air compressor built in — for quarry, construction and slope drilling. Compare published hole diameter and weight model by model.

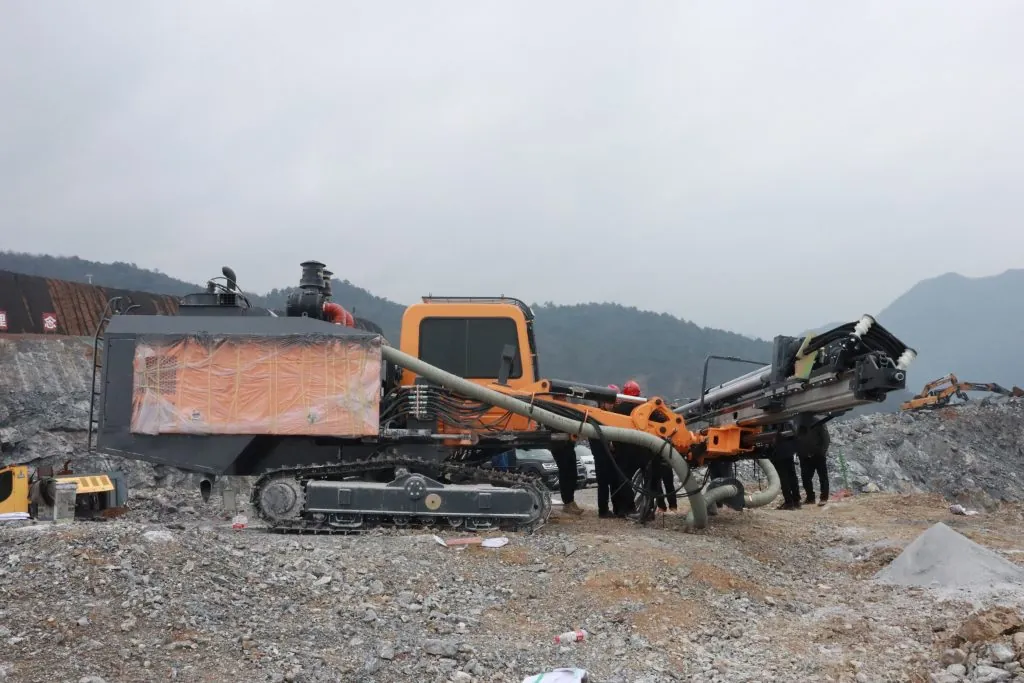

Applications
- Quarrying
- Construction
- Slope & bench drilling
Key features
- ✓Air compressor built into the machine — no separate unit needed
- ✓Compact to heavy weight classes across the range
- ✓High swing torque for large-diameter holes
- ✓Yuchai/Cummins engines across the range
- ✓Models from compact KT6C/KT5C to heavy KT30
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the KT Series range before opening a model page.
RequirementModels to reviewPublished selection basis
All-in-one drilling air
Air compressor is built into the machine — no separate compressor unit to buy, transport or match on site.
Quarry & construction holes, compact class
KT5C (compact entry)
Compact entry for quarry and construction holes; step up as holes grow.
Transport-limited sites
The range spans compact to heavy classes — match to site access and relocation frequency.
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
Kaishan KT Series is the broadest crawler-mounted DTH line, covering models from the compact KT6C/KT5C to the heavy KT30. Hole diameters and swing torque vary widely across the range, powered by Yuchai/Cummins engines. The KT line is compressor-integrated: the air compressor is built into the machine, so the rig supplies its own drilling air on site without a separate compressor unit. The wide model range lets quarry, construction and slope projects pick a rig matched to their hole size and transport requirements, with options for rod carriages and dust collection. At publication, the series covers 17 models — key specifications are listed below.
| Model | Machine | Hole diameter (mm) | Economical drilling depth (m) | Pressure (bar) | Engine power (kW) | Weight (kg) | Gradeability (°) |
|---|---|---|---|---|---|---|---|
| KT15i → | KT15i Crawler DTH Drilling Rig | 140–190 mm | 36 m | 24 bar | 316 kW | 25090 kg | 25° |
| KT5C → | KT5C Crawler DTH Drilling Rig | 90–115 mm | 25 m | 15 bar | 162 kW | 8000 kg | ≤25° |
| KT5H → | KT5H Integrated Surface DTH Drilling Rig | 90–127 mm | 24 m | 18 bar | 162 kW | 9500 kg | 25° |
| KT6C → | KT6C Integrated Surface DTH Drilling Rig | 90–127 mm | 20 m | 18 bar | 162 kW | 7700 kg | ≤25° |
| KT7C → | Integrated Surface DTH Drilling Rig | 90–135 mm | 25 m | 18 bar | 176 kW | 8700 kg | ≤25° |
| KT7D → | KT7D Integrated Surface DTH Drilling Rig | 90–135 mm | 24 m | 18 bar | 176 kW | 10000 kg | ≤25° |
| KT7H → | KT7H Integrated Surface DTH Drilling Rig | 105–146 mm | 24 m | 18 bar | 191 kW | 10000 kg | ≤25° |
| KT9C → | KT9C Crawler DTH Drilling Rig | 115–165 mm | 25 m | 22 bar | 295 kW | 12100 kg | ≤25° |
| KT9D → | KT9D Integrated Surface DTH Drilling Rig | 115–165 mm | 24 m | 22 bar | 295 kW | 13000 kg | ≤25° |
| KT11 → | KT11 Integrated Surface DTH Drilling Rig | 90–140 mm | 32 m | 20 bar | 242 kW | 17000 kg | 25° |
| KT12 → | KT12 Integrated Surface DTH Drilling Rig | 115–152 mm | 28 m | 22 bar | 264 kW | 17500 kg | 25° |
| KT15C → | KT15C Integrated Surface DTH Drilling Rig | 140–190 mm | On request | 24 bar | 298 kW | 24800 kg | 25° |
| KT25 → | KT25 Integrated Surface DTH Drilling Rig | 152–203 mm | On request | 25 bar | 372 kW | 28100 kg | 25° |
| KT30 → | KT30 Crawler DTH Drilling Rig | 195–254 mm | 27 m | 25 bar | 563 kW | 33930 kg | 25° |
| KT20C → | 90–165 mm | On request | On request | On request | On request | On request | |
| KT25RC → | 90–178 mm | On request | On request | On request | On request | On request | |
| KT60i → | KT60i | 140–190 mm | On request | On request | 316 kW | 25090 kg | 25° |
Complete specifications by model
KT15i →
- Transport dimensions (L × W × H)
- 11050×2780×3600/3800 mm
- Machine weight
- 25090 kg
- Rock hardness
- f=6–20
- Hole diameter
- 140–190 mm
- Economical drilling depth
- 36 m
- Rod capacity
- 8+1
- Drill rod
- Ø89×4000 mm
- Ground clearance
- 430 mm
- Track leveling angle
- ±10°
- Travel speed
- 0–3 km/h
- Gradeability
- 25°
- Traction force
- 140 kN
- Drill boom lift
- Up 50°; down 20°
- Drill boom swing
- Right 45°; left 15°
- Carriage swing
- Right 33°; left 98°
- Feed beam pitch
- 125°
- Frame leveling angle
- Up 10°; down 10°
- Compensation stroke
- 1500 mm
- Feed stroke
- 4580 mm
- Maximum feed force
- 65 kN
- Feed method
- Motor + roller chain
- Maximum rotary torque
- 4100 N·m
- Rotary speed
- 0–100 rpm
- Engine
- Cummins L9CS4 430C
- Rated engine power
- 316 kW
- Rated speed
- 2100 r/min
- Screw air compressor
- Kaishan SKY11HG165-A
- Compressor air delivery
- 22 m³/min
- Air pressure
- 24 bar
- DTH hammer
- K4, K5, K6
- Travel control
- Hydraulic + electronic control
- Drilling control
- Hydraulic + electronic control
- Filter fineness
- 10 μm
- Ambient temperature (cooling capability)
- Ambient temperature −30°C to 45°C
- Electrical system
- 24 V DC
- Dust removal
- Dry
- Rod handling
- Automatic rod coupling and uncoupling
- Anti-jamming
- Electro-hydraulic anti-sticking control
- Drill rod thread lubrication
- Automatic oil injection and lubrication
- Drill rod thread protection
- Floating joint to protect drill rod threads
- Cab protection
- Meets FOPS & ROPS requirements as stated in the brochure

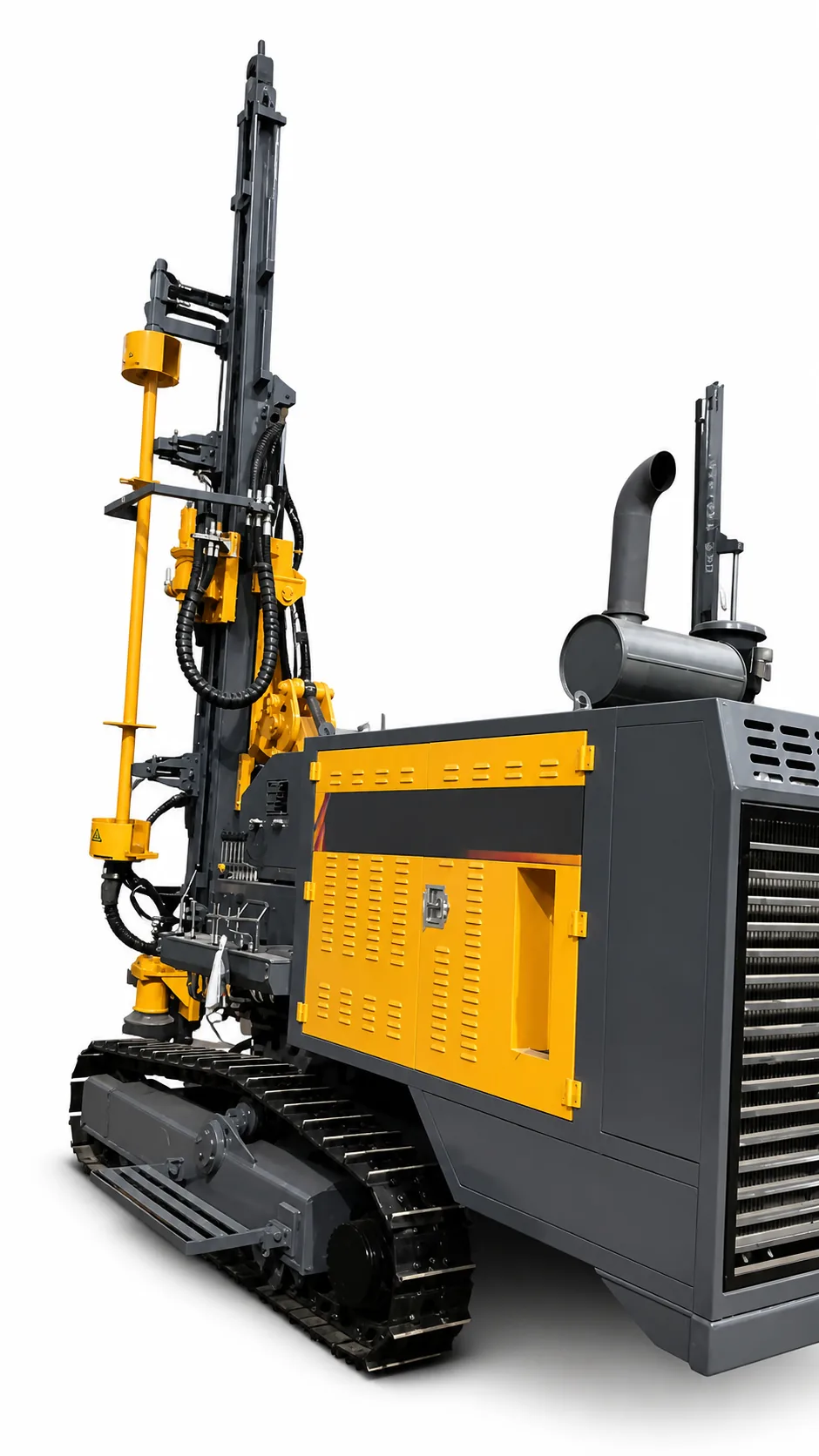

KT5C →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 90-115 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Travelling speed
- 0-4 km / h
- Climbing capacity
- ≤25°
- Ground clearance
- 430 mm
- Power of complete machine
- 162 kW / 2200r / min
- Diesel engine
- Yuchai YC6J220-T303
- Screw compressor
- 12 m³ / min / 15 bar
- Dimensions & weight — Overall dimensions (L × W × H)
- 7800×2300×2500 mm
- Dimensions & weight — Weight
- 8000 kg
- Rotation speed of gyrator
- 0-120 r / min
- Rotary torque (max)
- 1680 N·m（Max)
- Drilling capability — Maximum push-pull force
- 25000 N
- Drilling capability — Lifting angle of drill boom
- Up 54°, Down 26°
- Drilling capability — Tilt angle of beam
- 125°
- Drilling capability — Swing angle of carriage
- Right 47°,left47°
- Drilling capability — Pitch angle of drill boom
- Up 54°, Down 26°
- Drilling capability — Swing angle of drill boom
- Right 53°, Left 15°
- Leveling angle of frame
- Up 10°, Down 9°
- Drilling capability — One-time advance length
- 3000 mm
- Drilling capability — Compensation length
- 900 mm
- DTH hammer
- 3 in
- Drilling rod
- φ64×3000 mm
- Method of dust collecting
- Dry type (hydraulic cyclonic laminar flow)
KT5H →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 90-127 mm
- Drilling capability — Depth of economical drilling
- 24 m
- Travelling speed
- 0-3 km / h
- Climbing capacity
- 25°
- Ground clearance
- 330 mm
- Power of complete machine
- 162 kW / 2200r / min
- Diesel engine
- Yuchai YC6J220-T300
- Screw compressor
- 18 bar）
- Dimensions & weight — Overall dimensions (L × W × H)
- 8300×2450×2650 mm
- Dimensions & weight — Weight
- 9500 kg
- Rotation speed of gyrator
- 0-120 r / min
- Rotary torque (max)
- 1680 N·m（Max)
- Drilling capability — Maximum push-pull force
- 25000 N
- Drilling capability — Lifting angle of drill boom
- Up 48°, Down 16°
- Drilling capability — Tilt angle of beam
- 147°
- Drilling capability — Swing angle of carriage
- Right 53°,left52°
- Drilling capability — Swing angle of drill boom
- Right 34°, Left 25°
- Leveling angle of frame
- Up 10°, Down 10°
- Drilling capability — One-time advance length
- 3500 mm
- Drilling capability — Compensation length
- 900 mm
- DTH hammer
- 3 in
- Drilling rod
- φ64×3000 mm
- Number of rods
- 7+1
- Method of dust collecting
- Dry type (hydraulic cyclonic laminar flow)
- Method of extension rod
- Automatic unloading rod
- Method of drilling rod lubrication
- Automatic oil injection and lubrication
KT6C →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 90-127 mm
- Drilling capability — Depth of economical drilling
- 20 m
- Travelling speed
- 2.5 / 4 km / h（two-speed）
- Climbing capacity
- ≤25°
- Ground clearance
- 330 mm
- Power of complete machine
- 162 kW
- Diesel engine
- Yuchai YC6J220-T300
- Screw compressor
- 18 bar
- Dimensions & weight — Overall dimensions (L × W × H)
- 7900×2390×2620 mm
- Dimensions & weight — Weight
- 7700 kg
- Rotation speed of gyrator
- 0-120 r / min
- Rotary torque (max)
- 2000 N·m（Max)
- Drilling capability — Maximum push-pull force
- 25000 N
- Drilling capability — Lifting angle of drill boom
- Up 50°, Down 25°
- Drilling capability — Tilt angle of beam
- 125°
- Drilling capability — Swing angle of carriage
- Left 39°,Right 40°
- Drilling capability — Swing angle of drill boom
- Left 44°,Right 39°
- Leveling angle of frame
- Up 10°, Down 10°
- Drilling capability — One-time advance length
- 3000 mm
- Drilling capability — Compensation length
- 900 mm
- DTH hammer
- 3 in
- Drilling rod
- φ64×3000 mm
- Method of dust collecting
- Dry type (hydraulic cyclonic laminar flow)
KT7C →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 90-135 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Travelling speed
- 2.5 / 4.0 km / h（two-speed shifting）
- Climbing capacity
- ≤25°
- Ground clearance
- 330 mm
- Power of complete machine
- 176 kW / 2200r / min
- Diesel engine
- Yuchai YCA07240-T300
- Screw compressor
- 18 bar）
- Dimensions & weight — Overall dimensions (L × W × H)
- 8000×2350×2700 mm
- Dimensions & weight — Weight
- 8700 kg
- Rotation speed of gyrator
- 0-110 r / min
- Rotary torque (max)
- 2500N·m（Max)
- Drilling capability — Maximum push-pull force
- 22000 N
- Drilling capability — Lifting angle of drill boom
- Up 60°, Down 30°
- Drilling capability — Tilt angle of beam
- 130°
- Drilling capability — Swing angle of carriage (hinge points)
- right36° left40° / Hinge point2right2° left92°
- Drilling capability — Swing angle of drill boom
- Right 40°, Left 40°
- Leveling angle of frame
- Up 10°, Down 10°
- Drilling capability — One-time advance length
- 3590 mm
- Drilling capability — Compensation length
- 900 mm
- DTH hammer
- 3 in、4 in
- Drilling rod
- φ64 / 76×3000 mm
- Method of dust collecting
- Dry type (hydraulic cyclonic laminar flow)
KT7D →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 90-135 mm
- Drilling capability — Depth of economical drilling
- 24 m
- Travelling speed
- 0-3km / h
- Climbing capacity
- ≤25°
- Ground clearance
- 430 mm
- Power of complete machine
- 176 kW / 2200r / min
- Diesel engine
- Yuchai YCA07240-T300
- Screw compressor
- 18 bar）
- Dimensions & weight — Overall dimensions (L × W × H)
- 8000×2300×2700 mm
- Dimensions & weight — Weight
- 10000 kg
- Rotation speed of gyrator
- 0-180 r / min
- Rotary torque (max)
- 1560N·m（Max)
- Drilling capability — Maximum push-pull force
- 22000 N
- Drilling capability — Lifting angle of drill boom
- Up 48°, Down 16°
- Drilling capability — Tilt angle of beam
- 147°
- Drilling capability — Swing angle of carriage
- Right 53 °,Left 52°
- Drilling capability — Swing angle of drill boom
- Right 50°, Left 58°
- Leveling angle of frame
- Up 10°, Down 10°
- Drilling capability — One-time advance length
- 3590 mm
- Drilling capability — Compensation length
- 900 mm
- DTH hammer
- 3 in、4 in
- Drilling rod
- φ64 / 76×3000 mm
- Number of rods
- 7+1
- Method of dust collecting
- Dry type (hydraulic cyclonic laminar flow)
- Method of extension rod
- Automatic unloading rod
- Method of drilling rod lubrication
- Automatic oil injection and lubrication
KT7H →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 105-146 mm
- Drilling capability — Depth of economical drilling
- 24 m
- Travelling speed
- 0-4 km / h
- Climbing capacity
- ≤25°
- Ground clearance
- 430 mm
- Power of complete machine
- 191 kW / 2100 r / min
- Diesel engine
- Yuchai YC6A260-T301
- Screw compressor
- 18 bar）
- Dimensions & weight — Overall dimensions (L × W × H)
- 8500×2400×2800 mm
- Dimensions & weight — Weight
- 10000 kg
- Rotation speed of gyrator
- 0-90 r / min
- Rotary torque (max)
- 2800N·m（Max)
- Drilling capability — Maximum push-pull force
- 22000 N
- Drilling capability — Lifting angle of drill boom
- Up 48°, Down 16°
- Drilling capability — Tilt angle of beam
- 147°
- Drilling capability — Swing angle of carriage
- Right 53 °,Left 52°
- Drilling capability — Swing angle of drill boom
- Right 50°, Left 58°
- Leveling angle of frame
- Up 10°, Down 10°
- Drilling capability — One-time advance length
- 3590 mm
- Drilling capability — Compensation length
- 900 mm
- DTH hammer
- 3 in、4 in
- Drilling rod
- φ64 / 76×3000 mm
- Number of rods
- 7+1
- Method of dust collecting
- Dry type (hydraulic cyclonic laminar flow)
- Method of extension rod
- Automatic unloading rod
- Method of drilling rod lubrication
- Automatic oil injection and lubrication
KT9C →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- Φ115-165 mm
- Drilling capability — Depth of economical drilling
- 25 m
- Travelling speed
- 2.5 / 3.5 km / h
- Climbing capacity
- ≤25°
- Ground clearance
- 430 mm
- Power of complete machine
- 295kW / 1900r / min
- Diesel engine
- Yuchai YCK09400-T300
- Screw compressor
- 22 bar
- Dimensions & weight — Overall dimensions (L × W × H)
- 8250×2300×3200 mm
- Dimensions & weight — Weight
- 12100 kg
- Rotation speed of gyrator
- 0-100 r / min
- Rotary torque (max)
- 4000 N·m（Max)
- Drilling capability — Maximum push-pull force
- 25K N
- Drilling capability — Lifting angle of drill boom
- Up 47°, Down 20°
- Drilling capability — Tilt angle of beam
- 120°
- Drilling capability — Swing angle of carriage
- Right 35°, Left 95°
- Drilling capability — Swing angle of drill boom
- Right 39°, Left 34°
- Leveling angle of frame
- ±10°
- Drilling capability — One-time advance length
- 4010 mm
- Drilling capability — Compensation length
- 900 mm
- DTH hammer
- 5 in
- Drilling rod
- φ76 / φ89×3000 mm
- Method of dust collecting
- Dry type (hydraulic cyclonic laminar flow)
KT9D →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- Φ115-165 mm
- Drilling capability — Depth of economical drilling
- 24 m
- Number of rods
- 7+1
- Travelling speed
- 2.5 / 3.5 km / h
- Climbing capacity
- ≤25°
- Ground clearance
- 430 mm
- Power of complete machine
- 295kW / 1900r / min
- Diesel engine
- Yuchai YCK09400-T300
- Screw compressor
- 22 bar
- Dimensions & weight — Overall dimensions (L × W × H)
- 8670×2300×3200 mm
- Dimensions & weight — Weight
- 13000 kg
- Rotation speed of gyrator
- 0-100 r / min
- Rotary torque (max)
- 4000 N·m（Max)
- Drilling capability — Maximum push-pull force
- 25K N
- Drilling capability — Method of propulsion
- Motor+roller chain
- Drilling capability — Lifting angle of drill boom
- Up 50°, Down 20°
- Drilling capability — Tilt angle of beam
- 120°
- Drilling capability — Swing angle of carriage (hinge points)
- right48° left47° / Hinge point2right92° left3°
- Drilling capability — Swing angle of drill boom
- Right 46°, Left 59°
- Leveling angle of frame
- ±10°
- Drilling capability — One-time advance length
- 3590 mm
- Drilling capability — Compensation length
- 900 mm
- DTH hammer
- 5 in
- Drilling rod
- φ76×3000 mm
- Method of dust collecting
- Dry type (hydraulic cyclonic laminar flow)
KT11 →
- Dimensions & weight — Transport dimensions (L × W × H)
- 9100*2600*3300 / 3600 mm
- Dimensions & weight — Weight
- 17000 kg
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 90-140 mm
- Ground clearance
- 420 mm
- Leveling angle of track
- 10°Up, 10°Down
- Travelling speed
- 0-3 km / h
- Climbing capacity
- 25°
- Traction
- 88 K N
- Rotary torque (max)
- 2800 N·m（Max)
- Rotation speed
- 0-120 rpm
- Drilling capability — Lifting angle of drill boom
- Up 47°, Down 20°
- Drilling capability — Swing angle of drill boom
- Right 50°, Left 15°
- Drilling capability — Swing angle of carriage
- Right 96°, Left 30°
- Drilling capability — Tilt angle of beam
- 114°
- Drilling capability — Compensation stroke
- 1353 mm
- Drilling capability — Feed stroke
- 4490 mm
- Drilling capability — Maximum propelling force
- 40 K N
- Drilling capability — Method of propulsion
- Motor+Roller chain
- Drilling capability — Depth of economical drilling
- 32 m
- Number of rods
- 7+1
- Specifications of drilling rod
- Φ64 / Φ76x4000 mm
- DTH hammer
- 3 in、4 in
- Engine
- Cummins QSL8.9-C325-30
- Output power
- 242 kW / 2200 rpm
- Screw air compressor
- 20 bar
- Travelling control system
- Hydraulic pilot
- Drilling control system
- Hydraulic pilot
- Anti-jamming
- Automatic electro-hydraulic anti-jamming
- Voltage
- 24V, DC
- Safe cab
- Meet the requirements of FOPS & ROPS
- Indoor noise
- Below 85dB (A)
- Seat
- Adjustable
- Air-conditioning
- Standard temperature
- Entertainment
- Radio +Mp3
KT12 →
- Dimensions & weight — Transport dimensions (L × W × H)
- 9900*2600*3350 / 3600 mm
- Dimensions & weight — Weight
- 17500 kg
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 115-152 mm
- Ground clearance
- 420 mm
- Leveling angle of track
- 10°Up, 10°Down
- Travelling speed
- 0-3 km / h
- Climbing capacity
- 25°
- Traction
- 120 K N
- Rotary torque (max)
- 3450 N·m（Max)
- Rotation speed
- 0-100 rpm
- Drilling capability — Lifting angle of drill boom
- Up 47°, Down 20°
- Drilling capability — Swing angle of drill boom
- Right 50°, Left 15°
- Drilling capability — Swing angle of carriage
- Right 96°, Left 30°
- Drilling capability — Tilt angle of beam
- 114°
- Drilling capability — Compensation stroke
- 1353 mm
- Drilling capability — Feed stroke
- 4490 mm
- Drilling capability — Maximum propelling force
- 40 K N
- Drilling capability — Method of propulsion
- Motor+Roller chain
- Drilling capability — Depth of economical drilling
- 28 m
- Number of rods
- 6+1
- Specifications of drilling rod
- Φ76 / Φ89x4000 mm
- DTH hammer
- 4 in、5 in
- Engine
- Cummins QSL8.9-C360-30
- Number of cylinders
- 6
- Output power
- 264 kW / 2200 rpm
- Hydraulic pump
- 5× gear pump
- Screw air compressor
- 22 bar
- Travelling control system
- Hydraulic pilot
- Drilling control system
- Hydraulic pilot
- Anti-jamming
- Automatic electro-hydraulic anti-Jamming
- Voltage
- 24V, DC
- Safe cab
- Meet the requirements of FOPS & ROPS
- Indoor noise
- Below 85dB（A）
- Seat
- Adjustable
- Air-conditioning
- Standard temperature
- Entertainment
- Radio +Mp3

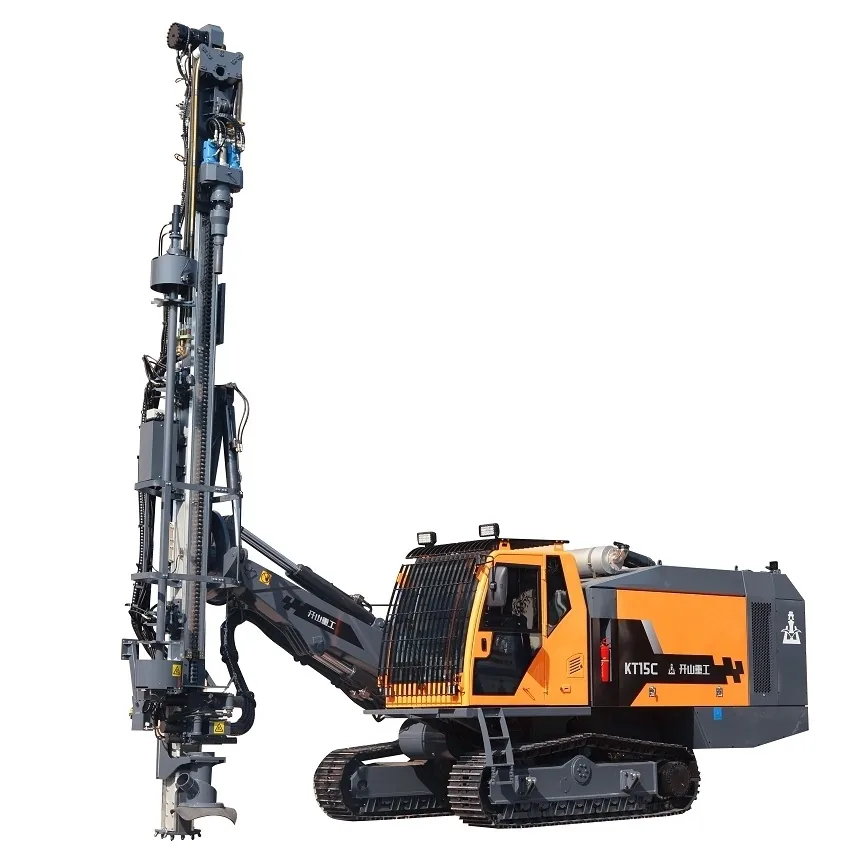

KT15C →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 140-190 mm
- Drilling capability — Depth of economical drilling
- 36 / 35 m
- Travelling speed
- 3.0 km / h
- Climbing capacity
- Climbing capacity 25°
- Traction
- 140 K N
- Ground clearance
- 430 mm
- Power of complete machine
- 298 kW
- Diesel engine
- Cummins QSZ13-C400-30
- Screw compressor
- 24 bar
- Dimensions & weight — Overall dimensions (L × W × H)
- 11000x2780x3800 mm
- Dimensions & weight — Weight
- 24800 kg
- Rotation speed of gyrator
- 0-100 r / min
- Rotary torque (max)
- 4100 N·m
- Drilling capability — Maximum push-pull force
- 65000 N
- Drilling capability — Method of propulsion
- Roller chain
- Drilling capability — Tilt angle of beam
- 128°
- Drilling capability — Lifting angle of drill boom
- Up 51° , down19°
- Drilling capability — Swing angle of carriage
- Right 97°, Left 33°
- Drilling capability — Swing angle of drill boom
- Right 45°, Left 15°
- Leveling angle of frame
- Up 10°, Down 10°
- Drilling capability — Compensation length
- 1500 / 1800 mm
- Drilling capability — Feed stroke
- 4580 / 5580 mm
- DTH hammer
- 4 in、5 in、6 in
- Drilling rod (diameter × length)
- φ89 / φ102×4000 mm / φ89 / φ102×5000 mm
- Number of rods
- 8+1 / 6+1
- Method of dust removal
- wet (optional)
- Method of extension rod
- Automatic unloading rod
- Method of automatic anti-jamming
- Electro-hydraulic control anti-sticking
- Method of drilling rod lubrication
- Automatic oil injection and lubrication
- Protection of thread of drilling rod
- Equipped with floating joint to protect rod thread Equipped with the floating joint to protect the thread of drilling rod
- Drilling display
- Real-time display of drilling angle and depth Real-time display of drilling angle and depth
- Safe cab
- Meet the requirements of FOPS&ROPS
KT25 →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 152-203 mm
- Drilling capability — Depth of economical drilling
- 35 m / 36 m
- Travelling speed
- 3.0 km / h
- Climbing capacity
- Climbing capacity 25°
- Ground clearance
- 410 mm
- Power of complete machine
- 372 kW
- Diesel engine
- Cummins QSZ13-500-30
- Screw compressor
- 25 bar
- Dimensions & weight — Overall dimensions (L × W × H)
- 12100×2900×3850 mm
- Dimensions & weight — Weight
- 28100 kg
- Rotation speed of gyrator
- 0-100 / 0-150 r / min
- Rotary torque (max)
- 6100 N·m
- Drilling capability — Maximum push-pull force
- 65 K N
- Drilling capability — Tilt angle of beam
- 133°
- Drilling capability — Swing angle of carriage
- Right 37°, Left 37°
- Drilling capability — Swing angle of drill boom
- Right 30°, Left 17°
- Drilling capability — Lifting angle of drill boom
- Up 49°, Down 13°
- Leveling angle of frame
- Up 10°, Down 10°
- Drilling capability — Compensation length
- 1800 mm
- Drilling capability — Method of propulsion
- Motor+roller chain
- Drilling capability — Feed stroke
- 5700 mm / 6700 mm
- DTH hammer
- 5 in、6 in
- Drilling rod (diameter × length)
- Φ102 / Φ114 / Φ127×5000 mm or Φ102 / Φ114 / Φ127×6000 mm
- Number of rods
- 6+1 / 5+1
- Method of dust removal
- wet (optional)
- Method of extension rod
- Automatic unloading rod
- Method of automatic anti-jamming
- Electro-hydraulic control anti-sticking
- Method of drilling rod lubrication
- Automatic oil injection and lubrication
- Protection of thread of drilling rod
- Equipped with the floating joint to protect the thread of drilling rod
- Drilling display
- Real-time display of drilling angle and depth
- Safe cab
- Meet the requirements of FOPS&ROPS
KT30 →
- Drilling capability — Rock hardness
- f=6-20
- Drilling capability — Drilling diameter
- 195-254 mm
- Drilling capability — Depth of economical drilling
- 27 m
- Travelling speed
- 3.0 km / h
- Climbing capacity
- Climbing capacity 25°
- Ground clearance
- 430 mm
- Power of complete machine
- 563 kW
- Diesel engine
- Cummins QSM15 77C
- Screw compressor
- 25 bar
- Dimensions & weight — Overall dimensions (L × W × H)
- 14300×3000×4100 mm
- Dimensions & weight — Weight
- 33930 kg
- Rotation speed of gyrator
- 0-100 / 0-150 r / min
- Rotary torque (max)
- 6100 N·m
- Drilling capability — Maximum push-pull force
- 70 K N
- Drilling capability — Tilt angle of beam
- 132°
- Drilling capability — Swing angle of carriage
- Right 37°, Left 37°
- Drilling capability — Swing angle of drill boom
- Right 29°, Left 17°
- Drilling capability — Lifting angle of drill boom
- Up 55°, Down 13°
- Leveling angle of frame
- Up 10°, Down 10°
- Drilling capability — Compensation length
- 1800 mm
- Drilling capability — Method of propulsion
- Motor+roller chain
- Drilling capability — Feed stroke
- 9550 mm
- DTH hammer
- k8 / 8’’
- Drilling rod (diameter × length)
- Φ140×9000 mm
- Number of rods
- 2+1
- Method of dust removal
- wet (optional)
- Method of extension rod
- Semi-automatic rod handling
- Method of automatic anti-jamming
- Electro-hydraulic control anti-sticking
- Method of drilling rod lubrication
- Automatic oil injection and lubrication
- Protection of thread of drilling rod
- Equipped with the floating joint to protect the thread of drilling rod
- Drilling display
- Real-time display of drilling angle and depth
- Safe cab
- Meet the requirements of FOPS&ROPS
KT20C →
- Model
- KT20C
- Hole diameter
- 90-165 mm
- Chassis
- crawler
KT25RC →
- Model
- KT25RC
- Hole diameter
- 90-178 mm
- Chassis
- crawler
KT60i →
- Model
- KT60i
- Tooling & air — Air production
- 22 m³/min
- Drilling depth
- 36 m
- Hole diameter
- 140-190 mm
- Power
- 316 kW
- Performance & mobility — Gradeability
- 25°
- Dimensions & weight — Overall dimensions (L × W × H)
- 11050×2780×3600/3800 mm
- Dimensions & weight — Weight
- 25090 kg
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Rod carriage
- Dust collection
- Emissions variants (G2/G4)
Frequently asked questions
How do I choose between KT15i and KT5C?
Compare the two rows in the model table above — focus on hole diameter, drilling depth and power against your project conditions. Our team can confirm the match for your site.
What applications is this series suited to?
Quarrying, Construction, Slope & bench drilling.
Can the equipment be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
Related series
Mid-size Crawler DTH Drill Rig
Mid-size crawler DTH rigs matched with a separate air compressor for open-pit mine bench blasting. Compare published hole diameter and depth model by model.
View series →Compact Crawler DTH Drill Rig with Integrated Air Compressor
Compact crawler DTH rigs with the air compressor built in — easy to relocate for small mines and quarries. Compare published hole diameter and weight model by model.
View series →Top Hammer Drill Rig
Full hydraulic top hammer drill rig for road cuts, foundations and open-pit bench blasting. Compare published hole diameter and depth model by model.
View series →
