KT12

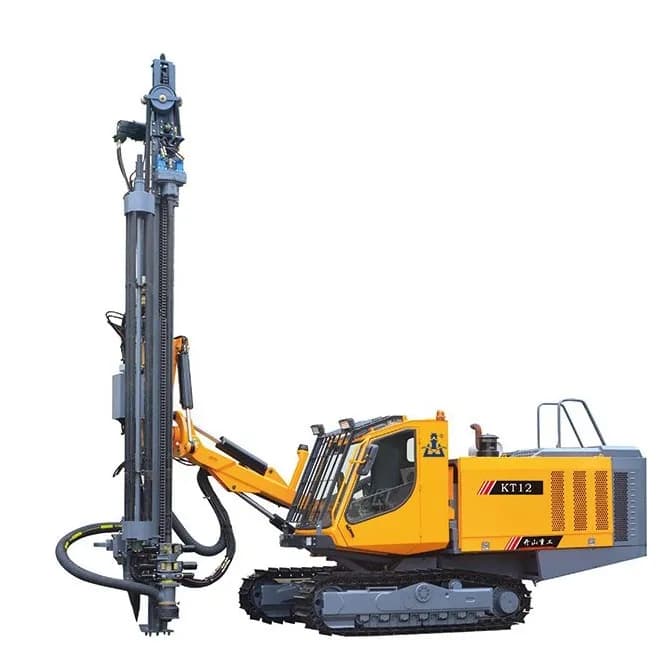

The KT12 integrated surface DTH drilling rig can drill vertical, inclined and horizontal holes and is mainly used in large open-pit mines and stonework for blast holes and pre-splitting holes. A Cummins non-road diesel engine is the single power source; through two-end output it drives both the screw compressor system and the hydraulic transmission system. The rig is equipped with an automatic rod handling system, a drilling rod floating slide module, a drill pipe lubrication module, a drill pipe sticking prevention system, a hydraulic dry dust collection system and an air-conditioned cab, with optional drilling angle and depth indication. It is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety.
Dimensions & weight — Transport dimensions (L × W × H)
9900*2600*3350 / 3600 mm
Dimensions & weight — Weight
17500 kg
Drilling capability — Rock hardness
f=6-20
Drilling capability — Drilling diameter
115-152 mm
Overview
The KT12 integrated surface DTH drilling rig can drill vertical, inclined and horizontal holes and is mainly used in large open-pit mines and stonework for blast holes and pre-splitting holes. A Cummins non-road diesel engine is the single power source; through two-end output it drives both the screw compressor system and the hydraulic transmission system. The rig is equipped with an automatic rod handling system, a drilling rod floating slide module, a drill pipe lubrication module, a drill pipe sticking prevention system, a hydraulic dry dust collection system and an air-conditioned cab, with optional drilling angle and depth indication. It is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety.
Key highlights
- ✓Single diesel engine drives both the on-board screw compressor and the hydraulic transmission system through two-end output.
- ✓Integrated rig: the on-board screw compressor supplies the drilling air, no separate air compressor is needed on site.
- ✓Automatic rod handling system and drill rod lubrication module.
- ✓Hydraulic dry dust collection system; wet dust collection available as an option on larger models.
- ✓Automatic or electro-hydraulic anti-jamming control depending on model.
- ✓ROPS & FOPS protected cab with air-conditioning.
- ✓Capable of drilling vertical, inclined and horizontal holes.
Applications: Used in large open-pit mines and stonework for blast holes and pre-splitting holes.
Specifications
Request the current specification sheet for this model using the button above.
Dimensions & weight
| Transport dimensions (L × W × H) | 9900*2600*3350 / 3600 mm |
| Weight | 17500 kg |
Drilling capability
| Rock hardness | f=6-20 |
| Drilling diameter | 115-152 mm |
Other specifications
| Ground clearance | 420 mm |
| Leveling angle of track | 10°Up, 10°Down |
| Travelling speed | 0-3 km / h |
| Climbing capacity | 25° |
| Traction | 120 K N |
| Rotary torque (max) | 3450 N·m（Max) |
| Rotation speed | 0-100 rpm |
Drilling capability
| Lifting angle of drill boom | Up 47°, Down 20° |
| Swing angle of drill boom | Right 50°, Left 15° |
| Swing angle of carriage | Right 96°, Left 30° |
| Tilt angle of beam | 114° |
| Compensation stroke | 1353 mm |
| Feed stroke | 4490 mm |
| Maximum propelling force | 40 K N |
| Method of propulsion | Motor+Roller chain |
| Depth of economical drilling | 28 m |
Other specifications
| Number of rods | 6+1 |
| Specifications of drilling rod | Φ76 / Φ89x4000 mm |
| DTH hammer | 4 in、5 in |
| Engine | Cummins QSL8.9-C360-30 |
| Number of cylinders | 6 |
| Output power | 264 kW / 2200 rpm |
| Hydraulic pump | 5× gear pump |
| Screw air compressor | 22 bar |
| Travelling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-jamming | Automatic electro-hydraulic anti-Jamming |
| Voltage | 24V, DC |
| Safe cab | Meet the requirements of FOPS & ROPS |
| Indoor noise | Below 85dB（A） |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio +Mp3 |
