Kaishan Surface Drilling Rigs/Crawler DTH Drill Rig with Integrated Air Compressor Series
KT11

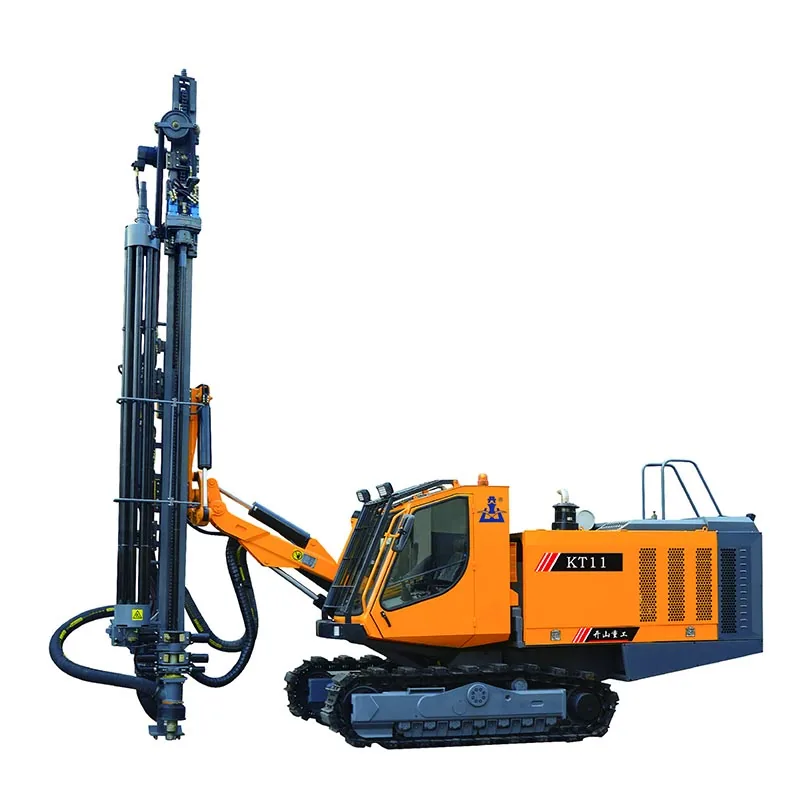

The KT11 integrated surface DTH drilling rig can drill vertical, inclined and horizontal holes and is mainly used in large open-pit mines and stonework for blast holes and pre-splitting holes. A Cummins non-road diesel engine is the single power source; through two-end output it drives both the screw compressor system and the hydraulic transmission system. The rig is equipped with an automatic rod handling system, a drilling rod floating slide module, a drill pipe lubrication module, a drill pipe sticking prevention system, a hydraulic dry dust collection system and an air-conditioned cab, with optional drilling angle and depth indication. It is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety.
Dimensions & weight — Transport dimensions (L × W × H)
9100*2600*3300 / 3600 mm
Dimensions & weight — Weight
17000 kg
Drilling capability — Rock hardness
f=6-20
Drilling capability — Drilling diameter
90-140 mm
Overview
The KT11 integrated surface DTH drilling rig can drill vertical, inclined and horizontal holes and is mainly used in large open-pit mines and stonework for blast holes and pre-splitting holes. A Cummins non-road diesel engine is the single power source; through two-end output it drives both the screw compressor system and the hydraulic transmission system. The rig is equipped with an automatic rod handling system, a drilling rod floating slide module, a drill pipe lubrication module, a drill pipe sticking prevention system, a hydraulic dry dust collection system and an air-conditioned cab, with optional drilling angle and depth indication. It is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety.
Key highlights
- ✓Single diesel engine drives both the on-board screw compressor and the hydraulic transmission system through two-end output.
- ✓Integrated rig: the on-board screw compressor supplies the drilling air, no separate air compressor is needed on site.
- ✓Automatic rod handling system and drill rod lubrication module.
- ✓Hydraulic dry dust collection system; wet dust collection available as an option on larger models.
- ✓Automatic or electro-hydraulic anti-jamming control depending on model.
- ✓ROPS & FOPS protected cab with air-conditioning.
- ✓Capable of drilling vertical, inclined and horizontal holes.
Applications: Used in large open-pit mines and stonework for blast holes and pre-splitting holes.
Specifications
Request the current specification sheet for this model using the button above.
Dimensions & weight
| Transport dimensions (L × W × H) | 9100*2600*3300 / 3600 mm |
| Weight | 17000 kg |
Drilling capability
| Rock hardness | f=6-20 |
| Drilling diameter | 90-140 mm |
Other specifications
| Ground clearance | 420 mm |
| Leveling angle of track | 10°Up, 10°Down |
| Travelling speed | 0-3 km / h |
| Climbing capacity | 25° |
| Traction | 88 K N |
| Rotary torque (max) | 2800 N·m（Max) |
| Rotation speed | 0-120 rpm |
Drilling capability
| Lifting angle of drill boom | Up 47°, Down 20° |
| Swing angle of drill boom | Right 50°, Left 15° |
| Swing angle of carriage | Right 96°, Left 30° |
| Tilt angle of beam | 114° |
| Compensation stroke | 1353 mm |
| Feed stroke | 4490 mm |
| Maximum propelling force | 40 K N |
| Method of propulsion | Motor+Roller chain |
| Depth of economical drilling | 32 m |
Other specifications
| Number of rods | 7+1 |
| Specifications of drilling rod | Φ64 / Φ76x4000 mm |
| DTH hammer | 3 in、4 in |
| Engine | Cummins QSL8.9-C325-30 |
| Output power | 242 kW / 2200 rpm |
| Screw air compressor | 20 bar |
| Travelling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V, DC |
| Safe cab | Meet the requirements of FOPS & ROPS |
| Indoor noise | Below 85dB (A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio +Mp3 |
Applications
- Quarrying
- Construction
- Slope & bench drilling
Recommended packages
Air compressor match
Integrated rig — the screw air compressor is built into the machine, so no separate compressor unit is needed. Only confirm the onboard compressor rating (pressure and flow) matches your hammer size.
DTH hammer & bits
Match the DTH hammer class to your hole diameter: K3/K30C for 90-105 mm, K5/K50 for 135-165 mm — see the DTH hammer series page for the full ladder.
Need a complete drilling package? Request a rig + compressor + tooling quote →
