Kaishan drilling rigs
Underground Tunnelling (Development) Drilling Rigs
Hydraulic tunnelling drill jumbos — KJ Series for face development, from narrow tunnels to two-boom machines.
Applications
- Underground mining
- Development drilling
- Tunnel face drilling
Key features
- ✓One-boom and two-boom jumbos (KJ421/422)
- ✓Narrow-tunnel variant KJ215
- ✓Intelligent models with rock-drilling robotics (KJ212i/KJ311i)
- ✓Hydraulic rock drills with auto rod handling
- ✓Matched to narrow and standard headings
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the KJ Series range before opening a model page.
RequirementModels to reviewPublished selection basis
Narrow tunnels
Matched to smaller cross-sections; check the published tunnel-size range per model.
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
Kaishan underground tunnelling (development) rigs are hydraulic drill jumbos for development faces in underground mines. The KJ Series covers one-boom and two-boom machines (KJ421/422), narrow-tunnel variants (KJ215), secondary crushing duty (KJ314) and intelligent models (KJ212i/KJ311i) with rock-drilling robotics. Matched to tunnel widths from about 3.2 m, with hydraulic rock drills and auto rod handling for faster face cycles. At publication, the series covers 10 models — key specifications are listed below.
| Model | Machine | Weight (kg) | Hole diameter (mm) | Impact power (kW) |
|---|---|---|---|---|

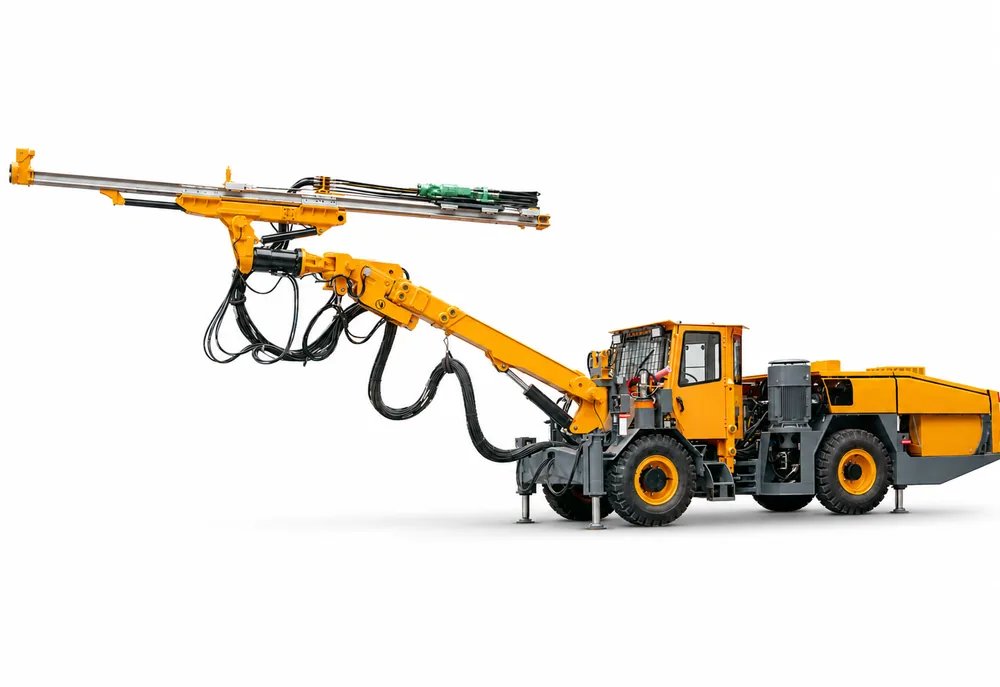

| KJ212i → | KJ212i Underground Development Drill Rig | 13000 kg | On request | On request |
| KJ311i → | KJ311i Underground Development Drill Rig | 16050 kg | On request | On request |
| KJ211 → | KJ211 Underground Development Drill Rig | 11000 kg | On request | On request |
| KJ212 → | KJ212 Hydraulic Tunnelling Drilling Rig | 11000 kg | On request | On request |
| KJ215 → | KJ215 Hydraulic Tunnelling Drilling Rig (Narrow tunnel) | 11000 kg | On request | On request |
| KJ310 → | KJ310 Hydraulic Tunnelling Drilling Rig | 13500 kg | On request | On request |
| KJ311 → | KJ311 Hydraulic Tunnelling Drilling Rig | 12000 kg | On request | On request |
| KJ314 → | KJ314 Hydraulic Tunnelling Drilling Rig (Secondary Crushing) | 12000 kg | 32–76 mm | 13 kW |
| KJ421 → | KJ421 Hydraulic Tunnelling Drilling Rig | 22000 kg | 42–102 mm | On request |

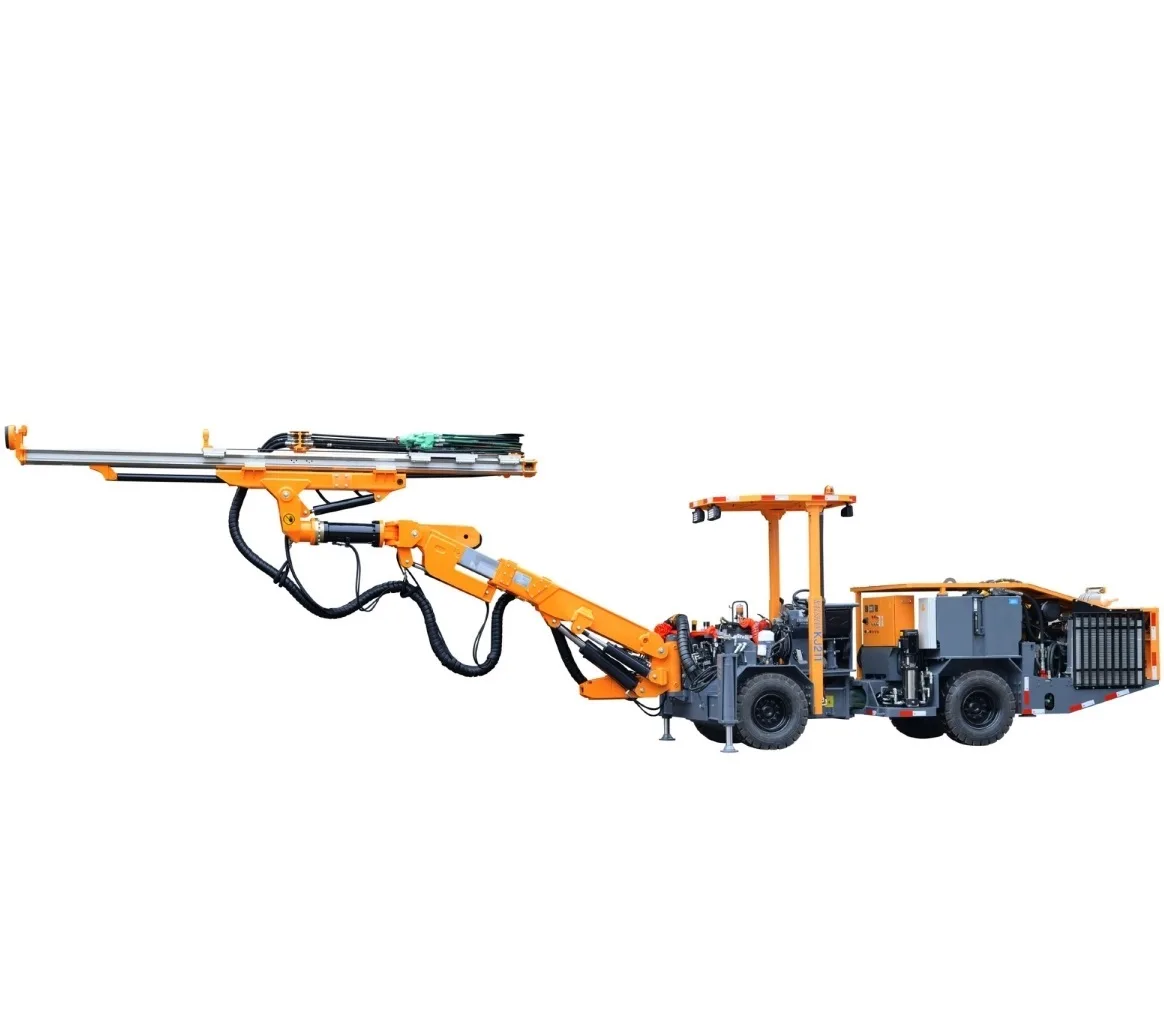

| KJ422 → | KJ422 Hydraulic Tunnelling Drilling Rig | On request | 42–102 mm | On request |
Complete specifications by model
KJ212i →
- Drilling capability — Tunnel working range
- 3.5 m × 2.4 m to 9 m × 5.8 m
- Drilling capability — Rock drill
- HC50 / 18U / HC95LMH/22U
- Drilling capability — Hole diameter
- HC50: Φ32-76 mm; 18U: Φ42-89 mm; HC95LMH/22U: Φ42-102 mm
- Drilling capability — Impact power
- HC50: 13 kW; 18U: 18 kW; HC95LMH/22U: 21 kW/22 kW
- Drilling capability — Impact frequency
- HC50: 62 Hz; 18U: 57 Hz; HC95LMH/22U: 62 Hz/53 Hz
- Drilling capability — Boom model
- K36; Self-leveling
- Drilling capability — Boom extension
- 1800 mm
- Drilling capability — Feed beam
- Rotation 360°; extension 1600 mm
- Engine & drive — Chassis engine
- Cummins B3.9CS4-80C, 59 kW / 2500 rpm
- Engine & drive — Motor power
- 45 kW; 55 kW; 75 kW
- Engine & drive — Electrical supply
- 380 V; 50 Hz; starting: Star-triangle
- Engine & drive — Cable specification
- 3x35+3G6 / 3x50+3G10
- Dimensions & weight — Dimensions (L × W × H)
- 12200 × 2050 × 1990/2510 mm
- Dimensions & weight — Weight
- approx. 13000 kg
- Drive & handling — Steering & axle
- Articulated steering, ±40°; rear axle swing ±6°
- Drive & handling — Parking brake
- Multidisc brake
- Drive & handling — Safety canopy & noise
- Lifting roof: FOPS & ROPS certified; noise < 100 dB(A)
- Mud & hydraulic — Impact/feed/positioning pump
- Axial variable displacement piston pump
- Mud & hydraulic — Rotation pump
- Gear pump
- Mud & hydraulic — Hydraulic oil system
- Tank 240 L; filtration 10 μ; Water cooler
- Mud & hydraulic — Fuel tank
- 30 L
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B); 0.7 m³/min; 6-8 bar
- Tooling & air — Water pump
- 1.5 kW / 3 m³/h; 4 kW / 5.8 m³/h
- Tooling & air — Shank lubrication
- Electronic pulse lubrication pump; oil 180-250 g/h; air 0.3 m³/min
- Performance & mobility — Travel speed
- 10 km/h
- Performance & mobility — Gradeability
- 25% (14°)
- Performance & mobility — Drive system
- Closed hydraulic system for four-wheel driving
KJ311i →
- Drilling capability — Tunnel working range
- 3.5 m × 3.5 m to 9 m × 5.8 m
- Dimensions & weight — Overall dimensions (L × W × H)
- 12500 × 2170 × (2500/2900) mm
- Dimensions & weight — Weight
- approx. 16050 kg
- Dimensions & weight — Tramming speed on flat ground
- 10 km/h
- Dimensions & weight — Maximum climbing capacity
- 25% (14°)
- Noise level
- < 100 dB(A)
- Lifting safety roof
- FOPS & ROPS certified
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B)
- Tooling & air — Capacity of air compressor
- 0.7 m³/min
- Tooling & air — Pressure
- 6-8 bar
- Tooling & air — Device of shank lubrication
- Electronic pulse lubrication pump
- Tooling & air — Oil consumption of lubrication
- 180-250 g/h
- Tooling & air — Air consumption of lubrication
- 0.3 m³/min
- Tooling & air — Water pump (printed power / capacity options)
- Power: 1.5 / 4 kW; Capacity: 3 / 5.8 m³/h
- Drive & handling — Diesel engine
- Cummins B3.9CS4-130C, 96 kW / 2500 rpm
- Drive & handling — Drive system
- Closed hydraulic system for four-wheel driving
- Drive & handling — Swing angle of rear axle
- ±10°
- Drive & handling — Steering mechanism
- Articulated steering, ±40°
- Drive & handling — Travelling braking
- Two-circuit hydraulic brake
- Drive & handling — Parking braking
- Wet multidisc brake
- Drive & handling — Fuel tank
- 60 L
- Drilling capability — Rock drill (option 1)
- HC50; impact power 13 kW; impact frequency 62 Hz; hole diameter Φ32-76 mm; rod size R38
- Drilling capability — Rock drill (option 2)
- 18U; impact power 18 kW; impact frequency 57 Hz; hole diameter Φ42-89 mm; rod size T38
- Drilling capability — Rock drill (option 3)
- HC95LMH/22U; impact power 21 kW/22 kW; impact frequency 62 Hz/53 Hz; hole diameter Φ42-102 mm; rod size T38
- Drilling capability — Beam rotation
- 360°
- Drilling capability — Feed extension
- 1600 mm
- Drilling capability — Model of drill boom
- K 36
- Drilling capability — Form of drill boom
- Self-leveling
- Drilling capability — Boom extension
- 1800 mm
- Engine & drive — Motor (option 1)
- 45 kW
- Engine & drive — Motor (option 2)
- 55 kW
- Engine & drive — Motor (option 3)
- 75 kW
- Engine & drive — Impact / feed / positioning pump
- Axial variable displacement piston pump
- Engine & drive — Rotation pump
- Gear pump
- Engine & drive — Filter fineness
- 10 μ
- Engine & drive — Hydraulic oil tank
- 240 L
- Engine & drive — Hydraulic cooler
- Water cooler
- Engine & drive — Working voltage
- 380 V
- Engine & drive — Frequency
- 50 Hz
- Engine & drive — Starting method
- Star-triangle
- Engine & drive — Cable specifications
- 3×35+3G6 / 3×50+3G10
KJ211 →
- Dimensions & weight — Overall dimensions (L × W × H)
- 11150 × 1600 × (1850/2650) mm
- Dimensions & weight — Weight
- approx. 11000 kg
- Dimensions & weight — Tramming speed on flat ground
- 10 km/h
- Dimensions & weight — Maximum climbing capacity
- 25% (14°)
- Noise level
- < 100 dB(A)
- Lifting safety roof
- FOPS & ROPS certified
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B)
- Tooling & air — Capacity of air compressor
- 0.7 m³/min
- Tooling & air — Pressure
- 6-8 bar
- Tooling & air — Device of shank lubrication
- Electronic pulse lubrication pump
- Tooling & air — Oil consumption of lubrication
- 180-250 g/h
- Tooling & air — Air consumption of lubrication
- 0.3 m³/min
- Tooling & air — Water pump (printed power / capacity options)
- Power: 1.5 / 4 kW; Capacity: 3 / 5.8 m³/h
- Drive & handling — Diesel engine
- Cummins B3.9CS4-80C, 59 kW / 2500 rpm
- Drive & handling — Drive system
- Closed hydraulic system for four-wheel driving
- Drive & handling — Swing angle of rear axle
- ±6°
- Drive & handling — Steering mechanism
- Articulated steering, ±35°
- Drive & handling — Parking braking
- Multidisc brake
- Drive & handling — Travelling braking
- Hydrostatic braking
- Drive & handling — Fuel tank
- 30 L
- Drilling capability — Rock drill (option 1)
- HC50; impact power 13 kW; impact frequency 62 Hz; hole diameter Φ32-76 mm; rod size R38
- Drilling capability — Rock drill (option 2)
- 18U; impact power 18 kW; impact frequency 57 Hz; hole diameter Φ42-89 mm; rod size T38
- Drilling capability — Rock drill (option 3)
- HC95LMH/22U; impact power 21 kW/22 kW; impact frequency 62 Hz/53 Hz; hole diameter Φ42-102 mm; rod size T38
- Drilling capability — Beam rotation
- 360°
- Drilling capability — Feed extension
- 1600 mm
- Drilling capability — Model of drill boom
- K 22
- Drilling capability — Form of drill boom
- Self-leveling
- Drilling capability — Boom extension
- 800 mm
- Engine & drive — Motor (option 1)
- 45 kW
- Engine & drive — Motor (option 2)
- 55 kW
- Engine & drive — Motor (option 3)
- 75 kW
- Engine & drive — Impact / feed / positioning pump
- Axial variable displacement piston pump
- Engine & drive — Rotation pump
- Gear pump
- Engine & drive — Filter fineness
- 10 μ
- Engine & drive — Hydraulic oil tank
- 240 L
- Engine & drive — Hydraulic cooler
- Water cooler
- Engine & drive — Working voltage
- 380 V
- Engine & drive — Frequency
- 50 Hz
- Engine & drive — Starting method
- Star-triangle
- Engine & drive — Cable specifications
- 3×35+3G6 / 3×50+3G10
- Tunnel working range
- 7-25 m²
KJ212 →
- Drilling capability — Tunnel passage section
- 2.5 m × 1.5 m
- Drilling capability — Tunnel working range
- 3.5 m × 1.8 m to 5 m × 4.8 m
- Dimensions & weight — Overall dimensions (L × W × H)
- 11160 × 2000 × (1465/1985) mm
- Dimensions & weight — Weight
- approx. 11000 kg
- Dimensions & weight — Tramming speed on flat ground
- 10 km/h
- Dimensions & weight — Maximum climbing capacity
- 25% (14°)
- Noise level
- < 100 dB(A)
- Lifting safety roof
- FOPS & ROPS certified
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B)
- Tooling & air — Capacity of air compressor
- 0.7 m³/min
- Tooling & air — Pressure
- 6-8 bar
- Tooling & air — Device of shank lubrication
- Electronic pulse lubrication pump
- Tooling & air — Oil consumption of lubrication
- 180-250 g/h
- Tooling & air — Air consumption of lubrication
- 0.3 m³/min
- Tooling & air — Water pump (printed power / capacity options)
- Power: 1.5 / 4 kW; Capacity: 3 / 5.8 m³/h
- Drive & handling — Diesel engine
- Cummins B3.9CS4-80C, 59 kW / 2500 rpm
- Drive & handling — Drive system
- Closed hydraulic system for four-wheel driving
- Drive & handling — Swing angle of rear axle
- ±6°
- Drive & handling — Steering mechanism
- Articulated steering, ±35°
- Drive & handling — Parking braking
- Multidisc brake
- Drive & handling — Emergency braking
- Multidisc brake
- Drive & handling — Fuel tank
- 30 L
- Drilling capability — Rock drill (option 1)
- HC50; impact power 13 kW; impact frequency 62 Hz; hole diameter Φ32-76 mm; rod size R38
- Drilling capability — Rock drill (option 2)
- 18U; impact power 18 kW; impact frequency 57 Hz; hole diameter Φ42-89 mm; rod size T38
- Drilling capability — Beam rotation
- 360°
- Drilling capability — Feed extension
- 1600 mm
- Drilling capability — Model of drill boom
- K 26
- Drilling capability — Form of drill boom
- Self-leveling
- Drilling capability — Boom extension
- 1200 mm
- Engine & drive — Motor (option 1)
- 45 kW
- Engine & drive — Motor (option 2)
- 55 kW
- Engine & drive — Impact / feed / positioning pump
- Axial variable displacement piston pump
- Engine & drive — Rotation pump
- Gear pump
- Engine & drive — Filter fineness
- 10 μ
- Engine & drive — Hydraulic oil tank
- 240 L
- Engine & drive — Hydraulic cooler
- Water cooler
- Engine & drive — Working voltage
- 380 V
- Engine & drive — Frequency
- 50 Hz
- Engine & drive — Starting method
- Star-triangle
- Engine & drive — Cable specifications
- 3×35+3G6 / 3×50+3G10
KJ215 →
- Drilling capability — Tunnel working range
- 5-25 m²
- Drilling capability — Rock drill
- HC50 / 18U
- Drilling capability — Hole diameter
- HC50: Φ32-76 mm; 18U: Φ42-89 mm
- Drilling capability — Impact power
- HC50: 13 kW; 18U: 18 kW
- Drilling capability — Impact frequency
- HC50: 62 Hz; 18U: 57 Hz
- Drilling capability — Rod size
- R38 / T38
- Drilling capability — Boom model
- K 21; Self-leveling
- Drilling capability — Feed beam
- Rotation 360°; extension 1600 mm
- Engine & drive — Chassis engine
- Cummins B3.9CS4-80C, 59 kW / 2500 rpm
- Engine & drive — Motor power
- 45 kW; 55 kW
- Engine & drive — Electrical supply
- 380 V; 50 Hz; starting: Star-triangle
- Engine & drive — Cable specification
- 45 kW motor: 3×35+3G6; 55 kW motor: 3×50+3G10
- Dimensions & weight — Dimensions (L × W × H)
- 10220 × 1400 × (2000/2850) mm
- Dimensions & weight — Weight
- approx. 11000 kg
- Drive & handling — Steering & axle
- Articulated steering, ±40°; rear axle swing ±6°
- Drive & handling — Parking brake
- Wet multidisc brake
- Drive & handling — Travel brake
- Hydrostatic braking
- Drive & handling — Safety canopy & noise
- Lifting roof: FOPS & ROPS certified; noise < 100 dB(A)
- Mud & hydraulic — Impact/feed/positioning pump
- Axial variable displacement piston pump
- Mud & hydraulic — Rotation pump
- Gear pump
- Mud & hydraulic — Hydraulic oil system
- Tank 240 L; filtration 10 μ; Water cooler
- Mud & hydraulic — Fuel tank
- 30 L
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B); 0.7 m³/min; 6-8 bar
- Tooling & air — Water pump
- 1.5 kW / 3 m³/h; 4 kW / 5.8 m³/h
- Tooling & air — Shank lubrication
- Electronic pulse lubrication pump; oil 180-250 g/h; air 0.3 m³/min
- Performance & mobility — Travel speed
- 10 km/h
- Performance & mobility — Gradeability
- 25% (14°)
- Performance & mobility — Drive system
- Closed hydraulic system for four-wheel driving
KJ310 →
- Drilling capability — Tunnel working range
- 12-35 m²
- Drilling capability — Rock drill
- HC50 / 18U / HC95LMH/22U
- Drilling capability — Hole diameter
- HC50: Φ32-76 mm; 18U: Φ42-102 mm; HC95LMH/22U: Φ42-102 mm
- Drilling capability — Impact power
- HC50: 13 kW; 18U: 18 kW; HC95LMH/22U: 21 kW/22 kW
- Drilling capability — Impact frequency
- HC50: 62 Hz; 18U: 57 Hz; HC95LMH/22U: 62 Hz/53 Hz
- Drilling capability — Rod size
- R38 / T38
- Drilling capability — Boom model
- K 26F; Self-leveling
- Drilling capability — Boom extension
- 1200 mm
- Drilling capability — Feed beam
- Rotation 360°; extension 1600 mm
- Engine & drive — Chassis engine
- Cummins B3.9CS4-80C, 59 kW / 2500 rpm
- Engine & drive — Motor power
- 75 kW
- Engine & drive — Electrical supply
- 380 V; 50 Hz; starting: Star-triangle
- Engine & drive — Cable specification
- 3×50+3G10
- Dimensions & weight — Dimensions (L × W × H)
- 10250 × 1800 × (2000/2730) mm
- Dimensions & weight — Weight
- approx. 13500 kg
- Drive & handling — Steering & axle
- Articulated steering, ±40°; rear axle swing ±10°
- Drive & handling — Parking brake
- Wet multidisc brake of reducer
- Drive & handling — Travel brake
- Two-circuit hydraulic brake
- Drive & handling — Safety canopy & noise
- Lifting roof: FOPS & ROPS certified; noise < 100 dB(A)
- Mud & hydraulic — Impact/feed/positioning pump
- Axial variable displacement piston pump
- Mud & hydraulic — Rotation pump
- Gear pump
- Mud & hydraulic — Hydraulic oil system
- Tank 240 L; filtration 10 μ; Water cooler
- Mud & hydraulic — Fuel tank
- 34 L
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B); 0.7 m³/min; 8 bar
- Tooling & air — Water pump
- 4 kW / 5.8 m³/h
- Tooling & air — Shank lubrication
- Electronic pulse lubrication pump; oil 180-250 g/h; air 0.3 m³/min
- Performance & mobility — Travel speed
- 2.5 km/h
- Performance & mobility — Gradeability
- 20°
- Performance & mobility — Drive system
- Closed hydraulic system for four-wheel driving
KJ311 →
- Dimensions & weight — Overall dimensions (L × W × H)
- 11500 × 1750 × (2000/3000) mm
- Dimensions & weight — Weight
- approx. 12000 kg
- Dimensions & weight — Tramming speed on flat ground
- 10 km/h
- Dimensions & weight — Maximum climbing capacity
- 25% (14°)
- Noise level
- < 100 dB(A)
- Lifting safety roof
- FOPS & ROPS certified
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B); capacity 0.7 m³/min; pressure 6-8 bar
- Tooling & air — Shank lubrication
- Electronic pulse lubrication pump; oil 180-250 g/h; air 0.3 m³/min
- Tooling & air — Water pump
- Power 1.5 kW / 4 kW; capacity 3 m³/h / 5.8 m³/h
- Drive & handling — Diesel engine
- Cummins B3.9CS4-80C, 59 kW / 2500 rpm
- Drive & handling — Drive system
- Closed hydraulic system for four-wheel driving
- Drive & handling — Swing angle of rear axle
- ±10°
- Drive & handling — Steering mechanism
- Articulated steering, ±40°
- Drive & handling — Travelling braking
- Two-circuit hydraulic brake
- Drive & handling — Parking braking
- Wet multidisc brake of reducer
- Drive & handling — Fuel tank
- 60 L
- Drilling capability — Rock drill configurations
- HC50: 13 kW, 62 Hz, Φ32-76 mm; 18U: 18 kW, 57 Hz, Φ42-89 mm; HC95LMH/22U: 21/22 kW, 62/53 Hz, Φ42-102 mm; drill capacity: 0.8 / 1.1 m/min
- Drilling capability — Beam rotation
- 360°
- Drilling capability — Feed extension
- 1600 mm
- Drilling capability — Model of drill boom
- K 26F
- Drilling capability — Form of drill boom
- Self-leveling
- Drilling capability — Boom extension
- 1200 mm
- Engine & drive — Electric motor (power unit)
- 45 kW / 55 kW / 75 kW
- Engine & drive — Impact / feed / positioning pump
- Axial variable displacement piston pump
- Engine & drive — Rotation pump
- Gear pump
- Engine & drive — Filter fineness
- 10 μm
- Engine & drive — Hydraulic oil tank
- 240 L
- Engine & drive — Hydraulic cooler
- Water cooler
- Engine & drive — Working voltage
- 380 V
- Engine & drive — Frequency
- 50 Hz
- Engine & drive — Starting method
- Star-triangle
- Engine & drive — Cable specifications
- 3×35+3G6 / 3×50+3G10
- Optional large-tunnel version
- Maximum working section 7.6 × 7.4 m (W × H)
- Optional rock-bolt version
- 2.2 m-deep rock bolts in a 4 m-high tunnel
- Optional equipment: auxiliary cab
- Provides safe protection and a comfortable working environment
- Drilling capability — Rod size
- R38 / T38
- Tunnel working range
- 12-35 m²
KJ314 →
- Drilling capability — Rock drill
- 1×HC50
- Drilling capability — Hole diameter
- Φ32-76 mm
- Drilling capability — Impact power
- 13 kW
- Drilling capability — Impact frequency
- 62 Hz
- Drilling capability — Rod size
- R38
- Drilling capability — Drilling depth & rod
- 1000 mm: R38-H35-R32-1350; 1500 mm: R38-H35-R32-1850
- Drilling capability — Boom model
- K25; Telescopic
- Drilling capability — Boom extension
- 1200 mm
- Drilling capability — Feed beam
- Rotation 360°; extension 850 mm
- Engine & drive — Chassis engine
- Cummins B3.9CS4-130C, 96 kW / 2500 rpm
- Dimensions & weight — Dimensions (L × W × H)
- 8200 × 1780 × (2000/3000) mm
- Dimensions & weight — Weight
- approx. 12000 kg
- Drive & handling — Steering & axle
- Articulated steering, ±35°; rear axle swing ±6°
- Drive & handling — Travel & parking brakes
- Multidisc brake
- Drive & handling — Safety canopy & noise
- Lifting roof: FOPS & ROPS certified; noise < 100 dB(A)
- Mud & hydraulic — Impact/feed/positioning pump
- Axial variable displacement piston pump
- Mud & hydraulic — Rotation pump
- Gear pump
- Mud & hydraulic — Hydraulic oil system
- Tank 240 L; filtration 10 μ; Wind cooler
- Mud & hydraulic — Fuel tank
- 170 L
- Tooling & air — Air compressor
- 0.3 m³/min; 3-5 bar
- Tooling & air — Water pump
- 3 m³/h
- Tooling & air — Shank lubrication
- Electronic pulse lubrication pump; oil 180-250 g/h
- Performance & mobility — Travel speed
- 10 km/h
- Performance & mobility — Gradeability
- 25% (14°)
- Performance & mobility — Drive system
- Four-wheel driving with closed hydraulic system
KJ421 →
- Dimensions & weight — Overall dimensions (L × W × H)
- 13000 × 2200 × (2400/3100) mm
- Dimensions & weight — Weight
- approx. 22000 kg
- Dimensions & weight — Tramming speed on flat ground
- 10 km/h
- Dimensions & weight — Maximum climbing capacity
- 25% (14°)
- Noise level
- < 100 dB(A)
- Lifting safety roof
- FOPS & ROPS certified
- Tooling & air — Air compressor
- DLGF 1.5/8-11(B)
- Tooling & air — Capacity of air compressor
- 1.55 m³/min
- Tooling & air — Pressure
- 8 bar
- Tooling & air — Device of shank lubrication
- Electronic pulse lubrication pump
- Tooling & air — Oil consumption of lubrication
- 2×180-250 g/h
- Tooling & air — Air consumption of lubrication
- 2×0.3 m³/min
- Tooling & air — Water pump (printed power / capacity options)
- Power: 7.5 kW; Capacity: 10 m³/h
- Drive & handling — Diesel engine
- Cummins B3.9CS4-130C, 96 kW / 2500 rpm
- Drive & handling — Drive system
- Hydraulic torque converter + gearbox
- Drive & handling — Travelling braking
- Wet bridge brake
- Drive & handling — Parking braking
- Mechanical brake
- Drive & handling — Fuel tank
- 120 L
- Drilling capability — Rock drill
- 2× HC95LMH / 22U; rod size R38 / T38; impact power 21 kW / 22 kW; impact frequency 62 Hz / 53 Hz; hole diameter Φ42-102 mm
- Drilling capability — Beam rotation
- 360°
- Drilling capability — Feed extension
- 1600 mm
- Drilling capability — Model of drill boom
- K 40
- Drilling capability — Form of drill boom
- Self-leveling
- Drilling capability — Boom extension
- 1800 mm
- Engine & drive — Motor
- 2×75 kW
- Engine & drive — Impact / feed / positioning pump
- Axial variable displacement piston pump
- Engine & drive — Rotation pump
- Gear pump
- Engine & drive — Filter fineness
- 10 μ
- Engine & drive — Hydraulic oil tank
- 400 L
- Engine & drive — Hydraulic cooler
- Water cooler
- Engine & drive — Working voltage
- 380 V
- Engine & drive — Frequency
- 50 Hz
- Engine & drive — Starting method
- Star-triangle
- Engine & drive — Cable specifications
- 3×120+3G25
- Tunnel working range
- 16-68 m²
KJ422 →
- Dimensions & weight — Overall dimensions (L × W × H)
- 15000 × 2550 × (2400/3100) mm
- Dimensions & weight — Weight
- Appr. 28000 (excluding the workbench) kg
- Dimensions & weight — Tramming speed on flat ground
- 10 km/h
- Dimensions & weight — Maximum climbing capacity
- 25% (14°)
- Noise level
- < 100 dB(A)
- Lifting safety roof
- FOPS & ROPS certified
- Tooling & air — Air compressor
- DLGF 1.5/8-11(B)
- Tooling & air — Capacity of air compressor
- 1.55 m³/min
- Tooling & air — Pressure
- 8 bar
- Tooling & air — Device of shank lubrication
- Electronic pulse lubrication pump
- Tooling & air — Oil consumption of lubrication
- 2×180-250 g/h
- Tooling & air — Air consumption of lubrication
- 2×0.3 m³/min
- Tooling & air — Water pump (printed power / capacity options)
- Power: 7.5 kW; Capacity: 10 m³/h
- Drive & handling — Diesel engine
- Cummins B3.9CS4-130C, 96 kW / 2500 rpm
- Drive & handling — Drive system
- Hydraulic torque converter + gearbox
- Drive & handling — Travelling braking
- Wet bridge brake
- Drive & handling — Parking braking
- Mechanical brake
- Drive & handling — Fuel tank
- 120 L
- Drilling capability — Rock drill
- 2× HC95LMH / 22U; rod size R38 / T38; impact power 21 kW / 22 kW; impact frequency 62 Hz / 53 Hz; hole diameter Φ42-102 mm
- Drilling capability — Beam rotation
- 360°
- Drilling capability — Feed extension
- 1600 mm
- Drilling capability — Model of drill boom
- K 50
- Drilling capability — Form of drill boom
- Self-leveling
- Drilling capability — Boom extension
- 2000 mm
- Engine & drive — Motor
- 2×75 kW
- Engine & drive — Impact / feed / positioning pump
- Axial variable displacement piston pump
- Engine & drive — Rotation pump
- Gear pump
- Engine & drive — Filter fineness
- 10 μ
- Engine & drive — Hydraulic oil tank
- 400 L
- Engine & drive — Hydraulic cooler
- Water cooler
- Engine & drive — Working voltage
- 380 V
- Engine & drive — Frequency
- 50 Hz
- Engine & drive — Starting method
- Star-triangle
- Engine & drive — Cable specifications
- 3×120+3G25
- Tunnel working range
- 16-95 m²
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Wireless remote control
- Auto rod changer
Frequently asked questions
How do I choose between KJ212i and KJ311i?
Compare the two rows in the model table above — focus on hole diameter, drilling depth and power against your project conditions. Our team can confirm the match for your site.
What applications is this series suited to?
Underground mining, Development drilling, Tunnel face drilling.
Can the equipment be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
Related series
Rock Bolting Rigs
Hydraulic roof bolting drill jumbos — KM Series for anchor support in underground headings.
View series →Production Drilling Rigs
Hydraulic mining drill jumbos — KS Series for blast-hole production drilling in medium and small drifts.
View series →Scaling Rigs
Hydraulic scaling rigs — KQ Series for loose-rock removal to secure backs and walls after blasting.
View series →
