Kaishan Underground Drilling Rigs/Underground Tunnelling (Development) Drilling Rigs
KJ314

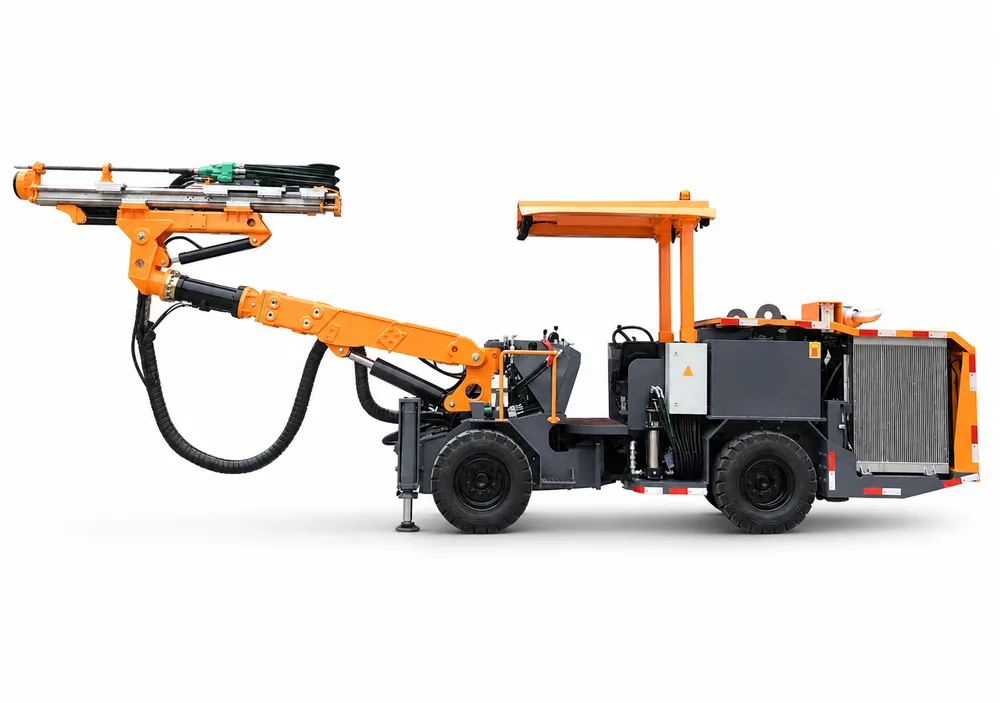

KJ314 Hydraulic Tunnelling Drilling Rig (Secondary Crushing) is specially designed for short-time multi-station rock drilling, powered by a diesel engine with onboard air compressor and water tank supply, requiring no external water, air or power supply; total weight about 12,000kg. It is equipped with a K25 boom (1,200mm extension) and HC50/R38 rock drill (13kW impact power), drilling holes of Φ32-76mm to depths of 1,000-1,500mm, with a working range of ≥2.6×2.6m.
Hole diameter
Φ32-76 mm
Drilling depth
1000mm / 1500mm
Overview
KJ314 Hydraulic Tunnelling Drilling Rig (Secondary Crushing) is specially designed for short-time multi-station rock drilling, powered by a diesel engine with onboard air compressor and water tank supply, requiring no external water, air or power supply; total weight about 12,000kg. It is equipped with a K25 boom (1,200mm extension) and HC50/R38 rock drill (13kW impact power), drilling holes of Φ32-76mm to depths of 1,000-1,500mm, with a working range of ≥2.6×2.6m.
Key highlights
- ✓Fully self-contained power: Cummins B3.9CS4-130C (96KW) diesel engine, onboard air compressor (0.3m³/min, 3-5bar) and water tank supply, no external utilities required
- ✓Rapid drilling and relocation: quick drilling and site transfer for large ore block processing in block caving mining; travel speed 10km/h, max climbing capacity 25% (14°)
- ✓Drilling capability: HC50/R38 rock drill with 13kW impact power at 62Hz, hole diameter Φ32-76mm, drilling depth 1,000/1,500mm
- ✓Flexible boom: K25 boom with 1,200mm extension, 360° beam rotation and 850mm compensation stroke for multi-station operations
- ✓Safety and protection: FOPS & ROPS certified canopy, air cooler, 170L fuel tank for long working hours
Applications: Secondary crushing of large ore blocks in natural block caving mining and short-time multi-station drilling underground.
Genuine Kaishan equipment supplied through our authorized distribution channel, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Hole diameter (mm) | Φ32-76 |
| Drilling depth (m) | 1000mm / 1500mm |
| Tunnel working range | work range ≥2.6×2.6 m |
Engine & drive
| Chassis engine | Cummins B3.9CS4-130C 96KW/2500rpm |
| Impact power | 13kW |
| Frequency | 62Hz |
Drive & handling
| Feed beam tilt | 360° |
| Mast compensation length (mm) | 850 |
| Boom model | K25 |
| Boom extension | 1200mm |
Mud & hydraulic
| Fuel tank (L) | 170 |
| Filtration precision | 10μ |
| Hydraulic oil (L) | 240 |
Tooling & air
| Rock drill | 1×HC50 / R38 |
Performance & mobility
| Travel speed | 10km/h |
| Gradeability | 25%(14°) |
Other specifications
| Noise | <100dB(A) |
Applications
- Underground mining
- Development drilling
- Tunnel face drilling
