Kaishan Underground Drilling Rigs/Underground Tunnelling (Development) Drilling Rigs
KJ422

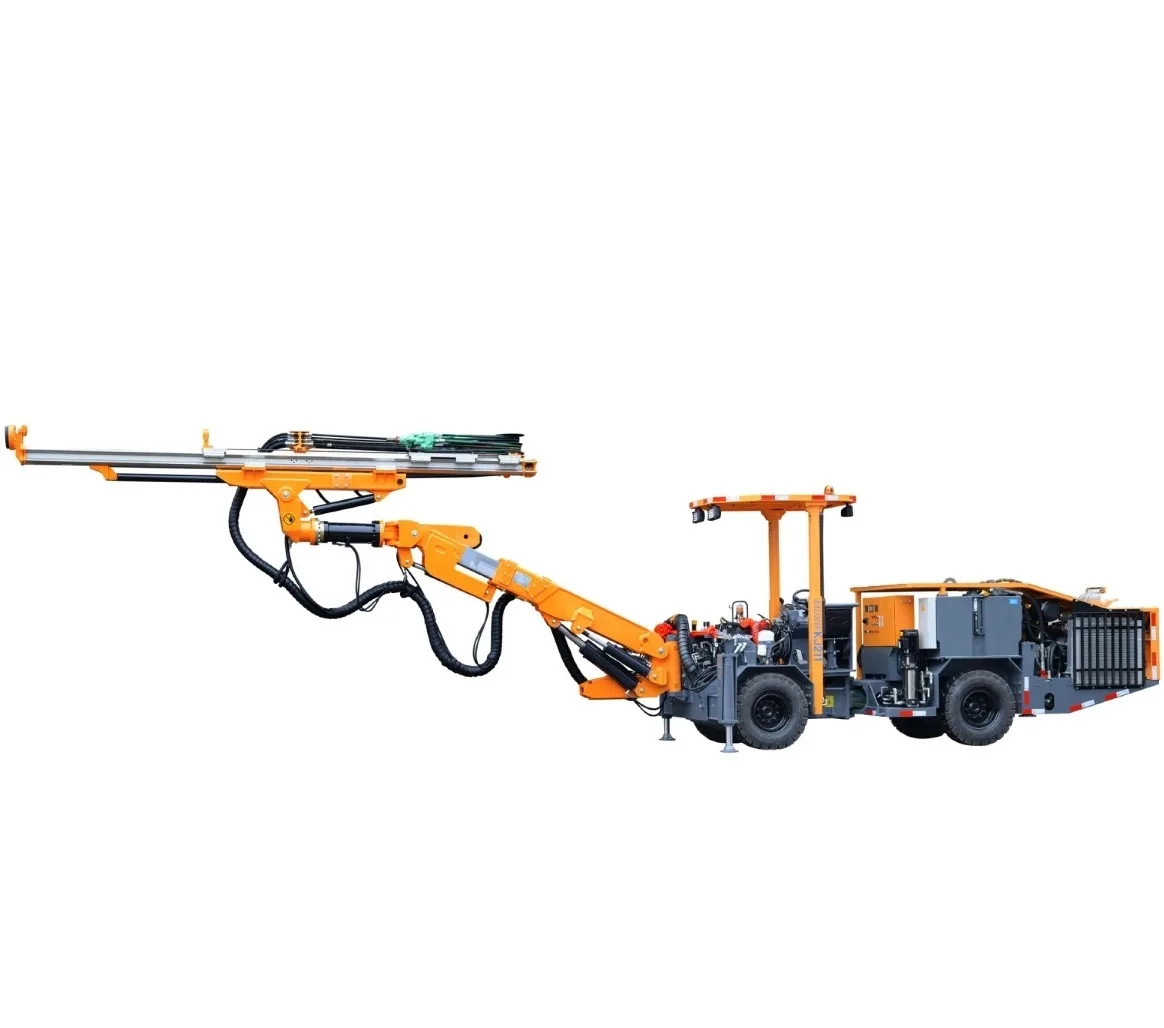

KJ422 hydraulic tunnelling drilling rig is suitable for the drilling of tunnels whose section falls in the range of 16-95 m². It drills blast holes and rock-bolting holes in vertical, inclined and horizontal directions.
Dimensions & weight — Overall dimensions (L × W × H)
15000 × 2550 × (2400/3100) mm
Dimensions & weight — Weight
Appr. 28000 (excluding the workbench) kg
Dimensions & weight — Tramming speed on flat ground
10 km/h
Dimensions & weight — Maximum climbing capacity
25% (14°)
Overview
KJ422 hydraulic tunnelling drilling rig is suitable for the drilling of tunnels whose section falls in the range of 16-95 m². It drills blast holes and rock-bolting holes in vertical, inclined and horizontal directions.
Key highlights
- ✓The drilling rig is fitted with a flexible boom in two symmetric rectangular coordinates without any operation blind spot; 360° rotation and a self-levelling beam make drill-hole positioning easy, and it can also be used for lateral cross-cut holes and rock bolting.
- ✓The drill rig provides a good view for the operator; balanced layout and the articulated chassis of four-wheel drive of the machine ensure flexible, fast and safe driving in the narrow tunnel.
- ✓The stepped piston is used for the high-frequency impact rock drill, which improves impact-wave transmission, raises drilling speed and reduces drill-tool consumption.
- ✓Considerable space and automatic functions let the driver concentrate on drilling in a safe, fast and accurate manner.
- ✓All relevant parts are kept in good protection and are easy to maintain.
Applications: Tunnels with sections of 16-95 m². · Drilling of blast holes and rock-bolting holes in vertical, inclined and horizontal directions. · Lateral cross-cut hole drilling.
Specifications
Request the current specification sheet for this model using the button above.
Dimensions & weight
| Overall dimensions (L × W × H) | 15000 × 2550 × (2400/3100) mm |
| Weight | Appr. 28000 (excluding the workbench) kg |
| Tramming speed on flat ground | 10 km/h |
| Maximum climbing capacity | 25% (14°) |
Other specifications
| Noise level | < 100 dB(A) |
| Lifting safety roof | FOPS & ROPS certified |
Tooling & air
| Air compressor | DLGF 1.5/8-11(B) |
| Capacity of air compressor | 1.55 m³/min |
| Pressure | 8 bar |
| Device of shank lubrication | Electronic pulse lubrication pump |
| Oil consumption of lubrication | 2×180-250 g/h |
| Air consumption of lubrication | 2×0.3 m³/min |
| Water pump (printed power / capacity options) | Power: 7.5 kW; Capacity: 10 m³/h |
Drive & handling
| Diesel engine | Cummins B3.9CS4-130C, 96 kW / 2500 rpm |
| Drive system | Hydraulic torque converter + gearbox |
| Travelling braking | Wet bridge brake |
| Parking braking | Mechanical brake |
| Fuel tank | 120 L |
Drilling capability
| Rock drill | 2× HC95LMH / 22U; rod size R38 / T38; impact power 21 kW / 22 kW; impact frequency 62 Hz / 53 Hz; hole diameter Φ42-102 mm |
| Beam rotation | 360° |
| Feed extension | 1600 mm |
| Model of drill boom | K 50 |
| Form of drill boom | Self-leveling |
| Boom extension | 2000 mm |
Engine & drive
| Motor | 2×75 kW |
| Impact / feed / positioning pump | Axial variable displacement piston pump |
| Rotation pump | Gear pump |
| Filter fineness | 10 μ |
| Hydraulic oil tank | 400 L |
| Hydraulic cooler | Water cooler |
| Working voltage | 380 V |
| Frequency | 50 Hz |
| Starting method | Star-triangle |
| Cable specifications | 3×120+3G25 |
Other specifications
| Tunnel working range | 16-95 m² |
Applications
- Underground mining
- Development drilling
- Tunnel face drilling
Recommended packages
Air compressor match
Underground jumbos run on the mine's electric/hydraulic supply — confirm voltage and water/air services at the heading. Where air is needed, match a KSDY electric compressor to the site power.
DTH hammer & bits
Kaishan underground rigs use premium hydraulic rock drills (Montabert HC50/HC95/HC109) for face and production drilling; the KSQ31 DTH model runs K-class hammers. Confirm rock drill model against your tunnel section.
Need a complete drilling package? Request a rig + compressor + tooling quote →
