KJ212i

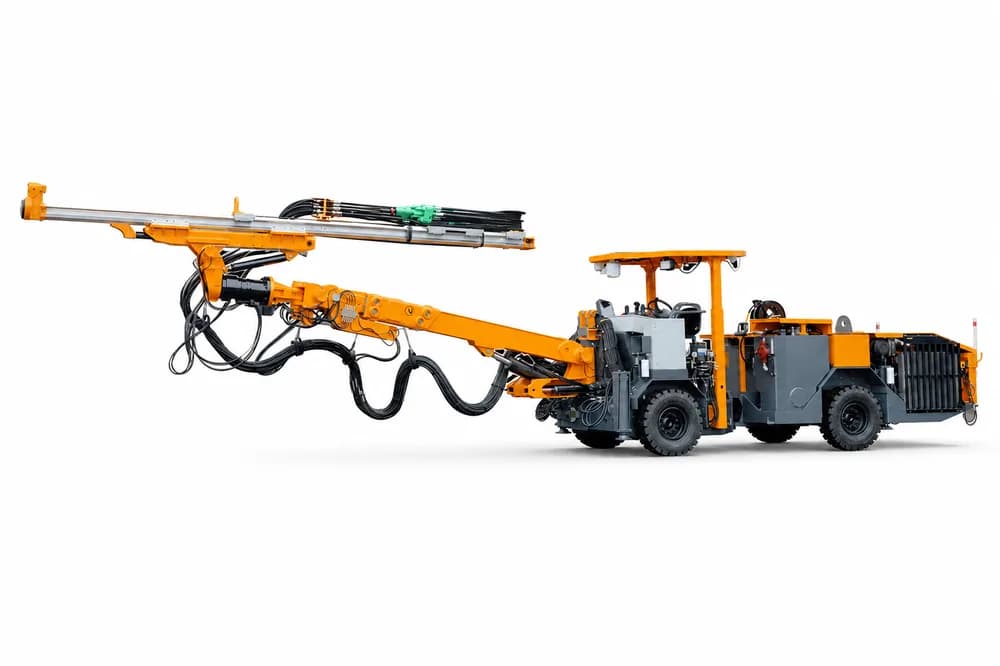

KJ212i is Kaishan's intelligent underground development drill rig for automated drilling in hard-rock mines and low roadways. Its operating section range is 3.5 m × 2.4 m to 9 m × 5.8 m.
Drilling capability — Tunnel working range
3.5 m × 2.4 m to 9 m × 5.8 m
Drilling capability — Rock drill
HC50 / 18U / HC95LMH/22U
Drilling capability — Hole diameter
HC50: Φ32-76 mm; 18U: Φ42-89 mm; HC95LMH/22U: Φ42-102 mm
Drilling capability — Impact power
HC50: 13 kW; 18U: 18 kW; HC95LMH/22U: 21 kW/22 kW
Overview
KJ212i is Kaishan's intelligent underground development drill rig for automated drilling in hard-rock mines and low roadways. Its operating section range is 3.5 m × 2.4 m to 9 m × 5.8 m.
Key highlights
- ✓Laser-guided positioning covers the working face; support legs deploy and the carrier levels automatically.
- ✓Working-face scanning builds a 3D model, checks the mine hole layout and determines the drilling sequence.
- ✓The boom and feed beam position automatically for each hole.
- ✓Automatic drilling includes opening, drilling-parameter and anti-jamming adjustment, hole washing and retraction.
- ✓Where the mine network permits, one operator can control several rigs remotely from the ground control room, reducing on-site staffing.
- ✓Drilling-process data is collected and analysed to support process improvement.
Applications: Automated roadway development and excavation in hard-rock mines. · Drilling in low roadways; remote operation where mine network conditions permit.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Tunnel working range | 3.5 m × 2.4 m to 9 m × 5.8 m |
| Rock drill | HC50 / 18U / HC95LMH/22U |
| Hole diameter | HC50: Φ32-76 mm; 18U: Φ42-89 mm; HC95LMH/22U: Φ42-102 mm |
| Impact power | HC50: 13 kW; 18U: 18 kW; HC95LMH/22U: 21 kW/22 kW |
| Impact frequency | HC50: 62 Hz; 18U: 57 Hz; HC95LMH/22U: 62 Hz/53 Hz |
| Boom model | K36; Self-leveling |
| Boom extension | 1800 mm |
| Feed beam | Rotation 360°; extension 1600 mm |
Engine & drive
| Chassis engine | Cummins B3.9CS4-80C, 59 kW / 2500 rpm |
| Motor power | 45 kW; 55 kW; 75 kW |
| Electrical supply | 380 V; 50 Hz; starting: Star-triangle |
| Cable specification | 3x35+3G6 / 3x50+3G10 |
Dimensions & weight
| Dimensions (L × W × H) | 12200 × 2050 × 1990/2510 mm |
| Weight | approx. 13000 kg |
Drive & handling
| Steering & axle | Articulated steering, ±40°; rear axle swing ±6° |
| Parking brake | Multidisc brake |
| Safety canopy & noise | Lifting roof: FOPS & ROPS certified; noise < 100 dB(A) |
Mud & hydraulic
| Impact/feed/positioning pump | Axial variable displacement piston pump |
| Rotation pump | Gear pump |
| Hydraulic oil system | Tank 240 L; filtration 10 μ; Water cooler |
| Fuel tank | 30 L |
Tooling & air
| Air compressor | DLGF 0.7/8-5.5(B); 0.7 m³/min; 6-8 bar |
| Water pump | 1.5 kW / 3 m³/h; 4 kW / 5.8 m³/h |
| Shank lubrication | Electronic pulse lubrication pump; oil 180-250 g/h; air 0.3 m³/min |
Performance & mobility
| Travel speed | 10 km/h |
| Gradeability | 25% (14°) |
| Drive system | Closed hydraulic system for four-wheel driving |
Applications
- Underground mining
- Development drilling
- Tunnel face drilling
