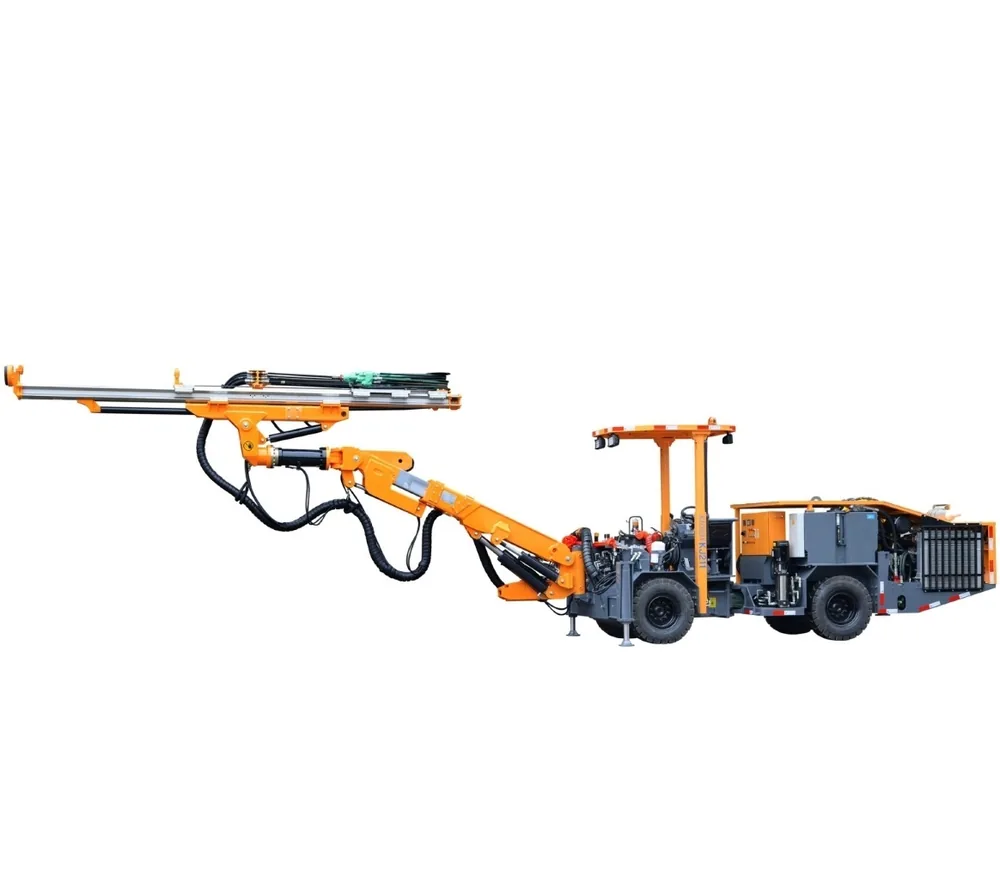

KJ211
KJ211 is a hydraulic tunnelling drilling rig used for mining preparations and tunnel driving. It is an independent diesel-hydraulic drill jumbo that can drill vertical, inclined and horizontal blast holes in hard rock, and is suitable for sections of 7-25 m².
Dimensions & weight — Overall dimensions (L × W × H)
11150 × 1600 × (1850/2650) mm
Dimensions & weight — Weight
approx. 11000 kg
Dimensions & weight — Tramming speed on flat ground
10 km/h
Dimensions & weight — Maximum climbing capacity
25% (14°)
Overview
KJ211 is a hydraulic tunnelling drilling rig used for mining preparations and tunnel driving. It is an independent diesel-hydraulic drill jumbo that can drill vertical, inclined and horizontal blast holes in hard rock, and is suitable for sections of 7-25 m².
Key highlights
- ✓The firm flexible boom is capable of optical coverage of the section; 360° rotation and a self-levelling beam make drill-hole positioning easy.
- ✓The boom can also be used for drilling lateral cross-cut holes and rock-bolting holes.
- ✓The drill rig provides a good view for the operator.
- ✓Balanced layout and the articulated chassis of four-wheel drive ensure flexible, fast and safe driving in the narrow tunnel.
- ✓The stepped piston is used for the high-frequency impact rock drill, which improves impact-wave transmission, raises drilling speed and reduces drill-tool consumption for safer operation.
- ✓Considerable space and automatic functions let the driver concentrate on drilling in a safe, fast and accurate manner.
- ✓All relevant parts are kept in good protection and are easy to maintain.
Applications: Mining preparation work and tunnel/roadway driving. · Hard-rock sections of 7-25 m². · Drilling of vertical, inclined and horizontal blast holes, lateral cross-cut holes and rock-bolting holes.
Specifications
Request the current specification sheet for this model using the button above.
Dimensions & weight
| Overall dimensions (L × W × H) | 11150 × 1600 × (1850/2650) mm |
| Weight | approx. 11000 kg |
| Tramming speed on flat ground | 10 km/h |
| Maximum climbing capacity | 25% (14°) |
Other specifications
| Noise level | < 100 dB(A) |
| Lifting safety roof | FOPS & ROPS certified |
Tooling & air
| Air compressor | DLGF 0.7/8-5.5(B) |
| Capacity of air compressor | 0.7 m³/min |
| Pressure | 6-8 bar |
| Device of shank lubrication | Electronic pulse lubrication pump |
| Oil consumption of lubrication | 180-250 g/h |
| Air consumption of lubrication | 0.3 m³/min |
| Water pump (printed power / capacity options) | Power: 1.5 / 4 kW; Capacity: 3 / 5.8 m³/h |
Drive & handling
| Diesel engine | Cummins B3.9CS4-80C, 59 kW / 2500 rpm |
| Drive system | Closed hydraulic system for four-wheel driving |
| Swing angle of rear axle | ±6° |
| Steering mechanism | Articulated steering, ±35° |
| Parking braking | Multidisc brake |
| Travelling braking | Hydrostatic braking |
| Fuel tank | 30 L |
Drilling capability
| Rock drill (option 1) | HC50; impact power 13 kW; impact frequency 62 Hz; hole diameter Φ32-76 mm; rod size R38 |
| Rock drill (option 2) | 18U; impact power 18 kW; impact frequency 57 Hz; hole diameter Φ42-89 mm; rod size T38 |
| Rock drill (option 3) | HC95LMH/22U; impact power 21 kW/22 kW; impact frequency 62 Hz/53 Hz; hole diameter Φ42-102 mm; rod size T38 |
| Beam rotation | 360° |
| Feed extension | 1600 mm |
| Model of drill boom | K 22 |
| Form of drill boom | Self-leveling |
| Boom extension | 800 mm |
Engine & drive
| Motor (option 1) | 45 kW |
| Motor (option 2) | 55 kW |
| Motor (option 3) | 75 kW |
| Impact / feed / positioning pump | Axial variable displacement piston pump |
| Rotation pump | Gear pump |
| Filter fineness | 10 μ |
| Hydraulic oil tank | 240 L |
| Hydraulic cooler | Water cooler |
| Working voltage | 380 V |
| Frequency | 50 Hz |
| Starting method | Star-triangle |
| Cable specifications | 3×35+3G6 / 3×50+3G10 |
Other specifications
| Tunnel working range | 7-25 m² |
Applications
- Underground mining
- Development drilling
- Tunnel face drilling
Recommended packages
Air compressor match
Underground jumbos run on the mine's electric/hydraulic supply — confirm voltage and water/air services at the heading. Where air is needed, match a KSDY electric compressor to the site power.
DTH hammer & bits
Kaishan underground rigs use premium hydraulic rock drills (Montabert HC50/HC95/HC109) for face and production drilling; the KSQ31 DTH model runs K-class hammers. Confirm rock drill model against your tunnel section.
Need a complete drilling package? Request a rig + compressor + tooling quote →
