KJ311i

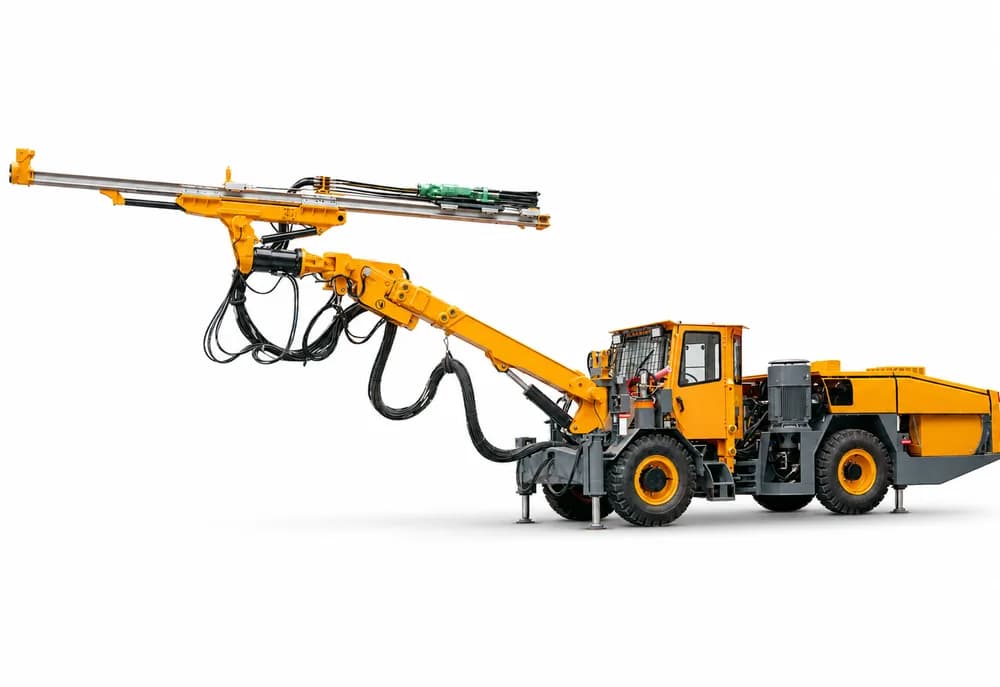

KJ311i is Kaishan's intelligent tunnelling drilling rig (underground rock-drilling robot), an intelligent roadway tunnelling machine suitable for drilling in hard-rock mines whose section falls in the range of 3.5 m x 3.5 m to 9 m x 5.8 m.
Drilling capability — Tunnel working range
3.5 m × 3.5 m to 9 m × 5.8 m
Dimensions & weight — Overall dimensions (L × W × H)
12500 × 2170 × (2500/2900) mm
Dimensions & weight — Weight
approx. 16050 kg
Dimensions & weight — Tramming speed on flat ground
10 km/h
Overview
KJ311i is Kaishan's intelligent tunnelling drilling rig (underground rock-drilling robot), an intelligent roadway tunnelling machine suitable for drilling in hard-rock mines whose section falls in the range of 3.5 m x 3.5 m to 9 m x 5.8 m.
Key highlights
- ✓Auxiliary shutdown system: a laser rangefinder guides the rig to stop in a reasonable area covering the drilling range of the working face, after which the legs are deployed and the carrier levelled automatically.
- ✓Analog computing system: the working face is scanned and processed to build and display a 3D model of it; the rationality of each hole position is calculated from the mine hole layout scheme and the optimal drilling sequence is determined.
- ✓Hole positioning system: the drill boom and beam are driven automatically to the target positions in the drilling sequence to complete hole positioning.
- ✓Automatic drilling system: opening, drilling, drilling-parameter adjustment, anti-stuck adjustment, hole washing and retraction are completed automatically until the drilling task is finished.
- ✓Remote control system: where roadway network conditions permit, the ground control room can be networked for remote operation, so one operator can run several machines and on-site operators are reduced or no longer needed.
- ✓Data acquisition and analysis module: drilling-process data is collected to provide a basis for improving the drilling process, making the equipment progressively more efficient.
Applications: Intelligent roadway excavation and working-face drilling in hard-rock mines with sections from 3.5 m x 3.5 m to 9 m x 5.8 m. · Mines that need mechanised, automated drilling with hole layout planning and automatic boom positioning. · Mines whose roadway network supports remote operation from a ground control room.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Tunnel working range | 3.5 m × 3.5 m to 9 m × 5.8 m |
Dimensions & weight
| Overall dimensions (L × W × H) | 12500 × 2170 × (2500/2900) mm |
| Weight | approx. 16050 kg |
| Tramming speed on flat ground | 10 km/h |
| Maximum climbing capacity | 25% (14°) |
Other specifications
| Noise level | < 100 dB(A) |
| Lifting safety roof | FOPS & ROPS certified |
Tooling & air
| Air compressor | DLGF 0.7/8-5.5(B) |
| Capacity of air compressor | 0.7 m³/min |
| Pressure | 6-8 bar |
| Device of shank lubrication | Electronic pulse lubrication pump |
| Oil consumption of lubrication | 180-250 g/h |
| Air consumption of lubrication | 0.3 m³/min |
| Water pump (printed power / capacity options) | Power: 1.5 / 4 kW; Capacity: 3 / 5.8 m³/h |
Drive & handling
| Diesel engine | Cummins B3.9CS4-130C, 96 kW / 2500 rpm |
| Drive system | Closed hydraulic system for four-wheel driving |
| Swing angle of rear axle | ±10° |
| Steering mechanism | Articulated steering, ±40° |
| Travelling braking | Two-circuit hydraulic brake |
| Parking braking | Wet multidisc brake |
| Fuel tank | 60 L |
Drilling capability
| Rock drill (option 1) | HC50; impact power 13 kW; impact frequency 62 Hz; hole diameter Φ32-76 mm; rod size R38 |
| Rock drill (option 2) | 18U; impact power 18 kW; impact frequency 57 Hz; hole diameter Φ42-89 mm; rod size T38 |
| Rock drill (option 3) | HC95LMH/22U; impact power 21 kW/22 kW; impact frequency 62 Hz/53 Hz; hole diameter Φ42-102 mm; rod size T38 |
| Beam rotation | 360° |
| Feed extension | 1600 mm |
| Model of drill boom | K 36 |
| Form of drill boom | Self-leveling |
| Boom extension | 1800 mm |
Engine & drive
| Motor (option 1) | 45 kW |
| Motor (option 2) | 55 kW |
| Motor (option 3) | 75 kW |
| Impact / feed / positioning pump | Axial variable displacement piston pump |
| Rotation pump | Gear pump |
| Filter fineness | 10 μ |
| Hydraulic oil tank | 240 L |
| Hydraulic cooler | Water cooler |
| Working voltage | 380 V |
| Frequency | 50 Hz |
| Starting method | Star-triangle |
| Cable specifications | 3×35+3G6 / 3×50+3G10 |
Applications
- Underground mining
- Development drilling
- Tunnel face drilling
Recommended packages
Air compressor match
Underground jumbos run on the mine's electric/hydraulic supply — confirm voltage and water/air services at the heading. Where air is needed, match a KSDY electric compressor to the site power.
DTH hammer & bits
Kaishan underground rigs use premium hydraulic rock drills (Montabert HC50/HC95/HC109) for face and production drilling; the KSQ31 DTH model runs K-class hammers. Confirm rock drill model against your tunnel section.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KJ311i?
Underground mining, Development drilling, Tunnel face drilling.
Which air compressor pairs with the KJ311i?
Underground jumbos run on the mine's electric/hydraulic supply — confirm voltage and water/air services at the heading. Where air is needed, match a KSDY electric compressor to the site power.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
