Underground Rock Bolting Drilling Rigs
Hydraulic roof bolting drill jumbos — KM Series for anchor support in underground headings.
Applications
- Underground mining
- Roof bolting
- Anchor support
Key features
- ✓Purpose-built for roof and wall anchor support
- ✓Drill feed angles for systematic bolting patterns
- ✓Keeps crews under supported ground during installation
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the Underground Bolting Series range before opening a model page.
RequirementModels to reviewPublished selection basis
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
Kaishan underground rock bolting rigs are hydraulic drill jumbos purpose-built for roof and wall anchor support in underground headings. The KM Series (KM211, KM311) positions drill feed angles for systematic rock bolting patterns, keeping crews under supported ground while installation cycles stay fast. A dedicated bolting machine improves both safety and cycle time compared to adapting a face drill. At publication, the series covers 2 models — key specifications are listed below.
| Model | Machine | Hole diameter (mm) | Weight (kg) |
|---|---|---|---|

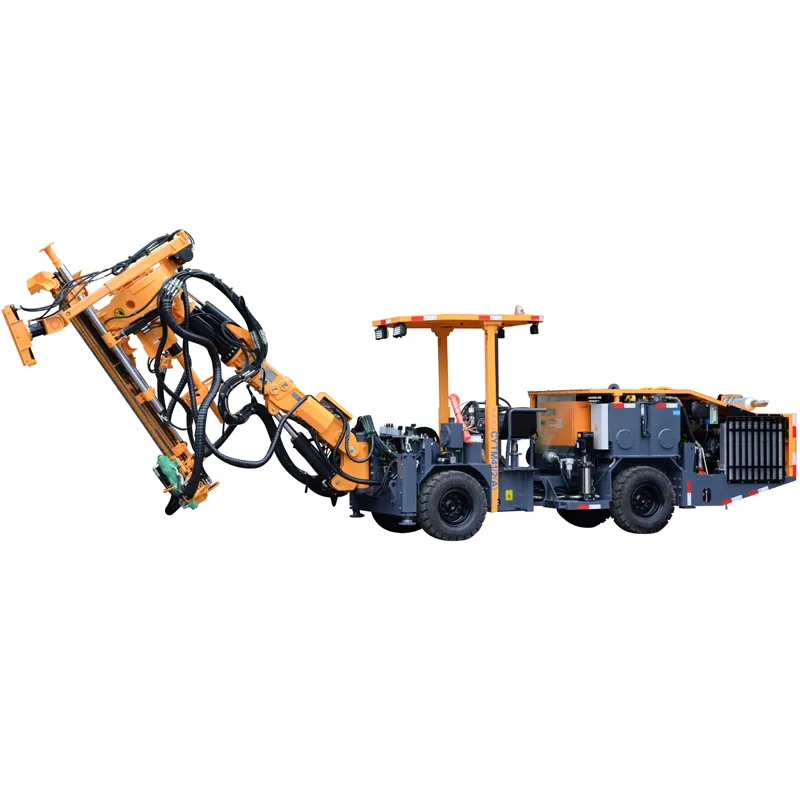

| KM211 → | KM211 Underground Bolting Drill Rig | 32–51 mm | 12000 kg |

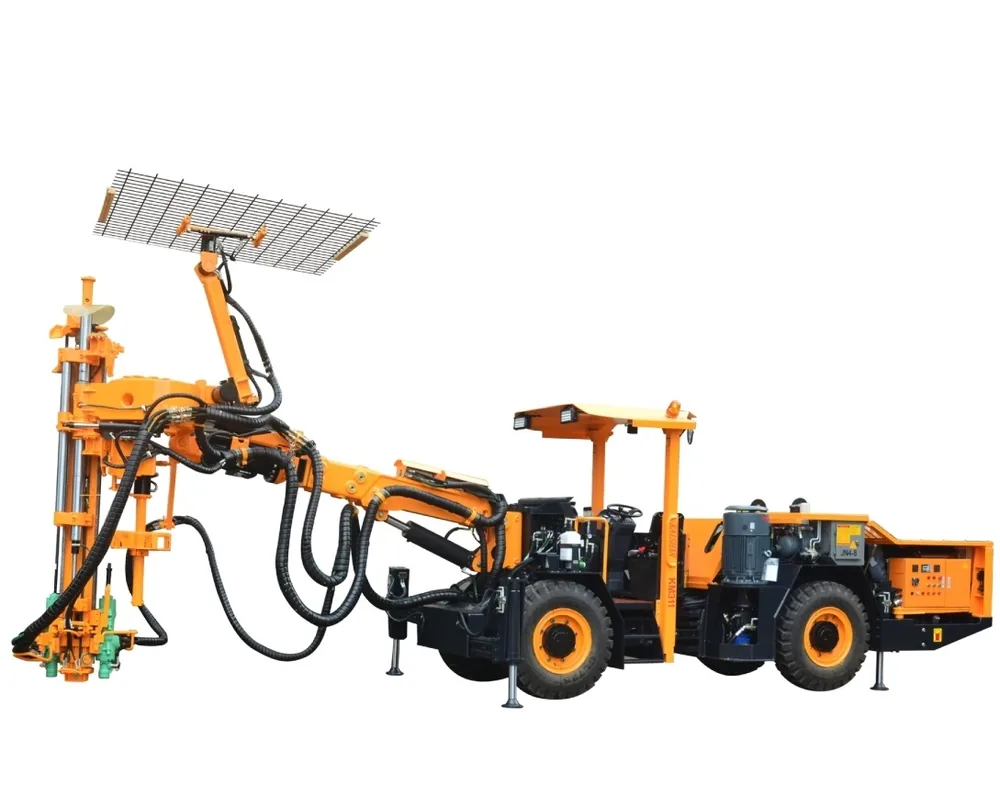

| KM311 → | KM311 Hydraulic Rock Bolting Rig | 32–51 mm | 12000 kg |
Complete specifications by model
KM211 →
- Dimensions & weight — Overall dimensions (L × W × H)
- 10200 × 1600 × (1800/2650) mm
- Dimensions & weight — Weight
- approx. 12000 kg
- Dimensions & weight — Tramming speed on flat ground
- 10 km/h
- Dimensions & weight — Maximum climbing capacity
- 25% (14°)
- Noise level
- < 100 dB(A)
- Lifting safety roof
- FOPS & ROPS certified
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B)
- Tooling & air — Capacity of air compressor
- 0.7 m³/min
- Tooling & air — Pressure
- 6-8 bar
- Tooling & air — Device of shank lubrication
- Electronic pulse lubrication pump
- Tooling & air — Oil consumption of lubrication
- 180-250 g/h
- Tooling & air — Air consumption of lubrication
- 0.3 m³/min
- Tooling & air — Water pump (printed power / capacity options)
- Power: 1.5 kW; Capacity: 3 m³/h
- Drive & handling — Diesel engine
- Cummins B3.9CS4-80C, 59 kW / 2500 rpm
- Drive & handling — Drive system
- Four-wheel drive with closed travelling system
- Drive & handling — Travelling braking
- Hydraulic brake
- Drive & handling — Parking braking
- Multidisc brake
- Drive & handling — Fuel tank
- 30 L
- Model of drill boom
- K22
- Boom extension
- 800 mm
- Drilling capability — Rock drill (drilling / bolt-rod installation)
- HC25 / HC28 for both functions; rod size R32; impact power 8 kW (HC25) / 10 kW (HC28); impact frequency 55-65 Hz (HC25) / 47-53 Hz (HC28); hole diameter Φ32-51 mm for drilling
- Drilling capability — Beam rotation
- 360°
- Drilling capability — Feed extension
- 310 mm
- Drilling capability — Applicable height of tunnel (HC25)
- About drill-rod length + 1500 mm
- Drilling capability — Applicable height of tunnel (HC28)
- About drill-rod length + 1700 mm
- Engine & drive — Motor
- 45 kW
- Engine & drive — Impact / feed / positioning pump
- Axial variable displacement piston pump
- Engine & drive — Rotation pump
- Gear pump
- Engine & drive — Filter fineness
- 10 μ
- Engine & drive — Hydraulic oil tank
- 240 L
- Engine & drive — Hydraulic cooler
- Water cooler
- Engine & drive — Working voltage
- 380 V
- Engine & drive — Frequency
- 50 Hz
- Engine & drive — Starting method
- Star-triangle
- Engine & drive — Cable specifications
- 3×35+3G6
KM311 →
- Dimensions & weight — Overall dimensions (L × W × H)
- 10700 × 1750 × (2000/3000) mm
- Dimensions & weight — Weight
- approx. 12000 kg
- Dimensions & weight — Tramming speed on flat ground
- 10 km/h
- Dimensions & weight — Maximum climbing capacity
- 25% (14°)
- Noise level
- < 100 dB(A)
- Lifting safety roof
- FOPS & ROPS certified
- Tooling & air — Air compressor
- DLGF 0.7/8-5.5(B)
- Tooling & air — Capacity of air compressor
- 0.7 m³/min
- Tooling & air — Pressure
- 6-8 bar
- Tooling & air — Device of shank lubrication
- Electronic pulse lubrication pump
- Tooling & air — Oil consumption of lubrication
- 180-250 g/h
- Tooling & air — Air consumption of lubrication
- 0.3 m³/min
- Tooling & air — Water pump (printed power / capacity options)
- Power: 1.5 kW; Capacity: 3 m³/h
- Drive & handling — Diesel engine
- Cummins B3.9CS4-80C, 59 kW / 2500 rpm
- Drive & handling — Drive system
- Four-wheel drive system with wet axle (closed travelling system)
- Drive & handling — Travelling braking
- Wet brake
- Drive & handling — Parking braking
- Multidisc brake
- Drive & handling — Fuel tank
- 60 L
- Model of drill boom
- K26F
- Boom extension
- 1200 mm
- Drilling capability — Rock drill (drilling / bolt-rod installation)
- HC25 / HC28 for both functions; rod size R32; impact power 8 kW (HC25) / 10 kW (HC28); impact frequency 55-65 Hz (HC25) / 47-53 Hz (HC28); hole diameter Φ32-51 mm for drilling
- Drilling capability — Beam rotation
- 360°
- Drilling capability — Feed extension
- 310 mm
- Drilling capability — Applicable height of tunnel (HC25)
- About drill-rod length + 1500 mm
- Drilling capability — Applicable height of tunnel (HC28)
- About drill-rod length + 1700 mm
- Engine & drive — Motor
- 45 kW
- Engine & drive — Impact / feed / positioning pump
- Axial variable displacement piston pump
- Engine & drive — Rotation pump
- Gear pump
- Engine & drive — Filter fineness
- 10 μ
- Engine & drive — Hydraulic oil tank
- 240 L
- Engine & drive — Hydraulic cooler
- Water cooler
- Engine & drive — Working voltage
- 380 V
- Engine & drive — Frequency
- 50 Hz
- Engine & drive — Starting method
- Star-triangle
- Engine & drive — Cable specifications
- 3×35+3G6
- Passable section (W × H)
- 2.5 × 2.2 m
- Anchoring tunnel section
- Width over 3 m; height over 3 m
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Feed angle kit
- Remote control
Frequently asked questions
How do I choose between KM211 and KM311?
Compare the two rows in the model table above — focus on hole diameter, drilling depth and power against your project conditions. Our team can confirm the match for your site.
What applications is this series suited to?
Underground mining, Roof bolting, Anchor support.
Can the equipment be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
