Kaishan Underground Drilling Rigs/Underground Rock Bolting Drilling Rigs
KM211

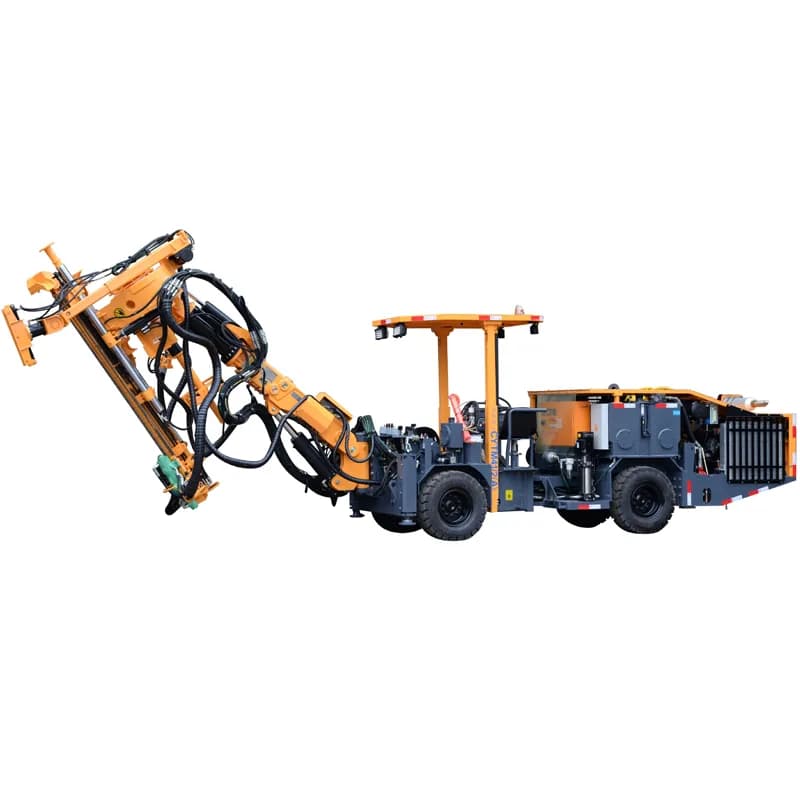

KM211 hydraulic rock bolting rig is specially designed for the construction of rock bolts in the pipe seam of low tunnels; it can pass a section 2 m wide and 2.5 m high. It is qualified for anchoring operations in tunnels whose section extends to a width of over 2.5 m and a height of over 3 m.
Dimensions & weight — Overall dimensions (L × W × H)
10200 × 1600 × (1800/2650) mm
Dimensions & weight — Weight
approx. 12000 kg
Dimensions & weight — Tramming speed on flat ground
10 km/h
Dimensions & weight — Maximum climbing capacity
25% (14°)
Overview
KM211 hydraulic rock bolting rig is specially designed for the construction of rock bolts in the pipe seam of low tunnels; it can pass a section 2 m wide and 2.5 m high. It is qualified for anchoring operations in tunnels whose section extends to a width of over 2.5 m and a height of over 3 m.
Key highlights
- ✓Complete functions: the two-position advancing beam is equipped with a magazine holding 10 rock bolts; the optional protective netting module completes the processes of drilling, netting and installing rock bolts.
- ✓High safety: operators are protected by the ceiling, far away from the danger area.
- ✓High efficiency: the stepped piston used for the high-frequency rock drill improves impact-wave transmission, raises drilling speed and reduces drill-tool consumption.
- ✓The drill rig provides a good view for the operator; the articulated chassis of four-wheel drive ensures flexible, quick and safe driving in the narrow tunnel.
- ✓Considerable space and automatic functions let the driver concentrate on drilling in a safe, fast and accurate manner.
- ✓All the relevant parts are kept in good protection and are easy to maintain.
Applications: Rock-bolt construction in the pipe seam of low tunnels. · Anchoring operations in tunnels wider than 2.5 m and higher than 3 m. · Drilling, protective netting and rock-bolt installation with the optional netting module.
Specifications
Request the current specification sheet for this model using the button above.
Dimensions & weight
| Overall dimensions (L × W × H) | 10200 × 1600 × (1800/2650) mm |
| Weight | approx. 12000 kg |
| Tramming speed on flat ground | 10 km/h |
| Maximum climbing capacity | 25% (14°) |
Other specifications
| Noise level | < 100 dB(A) |
| Lifting safety roof | FOPS & ROPS certified |
Tooling & air
| Air compressor | DLGF 0.7/8-5.5(B) |
| Capacity of air compressor | 0.7 m³/min |
| Pressure | 6-8 bar |
| Device of shank lubrication | Electronic pulse lubrication pump |
| Oil consumption of lubrication | 180-250 g/h |
| Air consumption of lubrication | 0.3 m³/min |
| Water pump (printed power / capacity options) | Power: 1.5 kW; Capacity: 3 m³/h |
Drive & handling
| Diesel engine | Cummins B3.9CS4-80C, 59 kW / 2500 rpm |
| Drive system | Four-wheel drive with closed travelling system |
| Travelling braking | Hydraulic brake |
| Parking braking | Multidisc brake |
| Fuel tank | 30 L |
Other specifications
| Model of drill boom | K22 |
| Boom extension | 800 mm |
Drilling capability
| Rock drill (drilling / bolt-rod installation) | HC25 / HC28 for both functions; rod size R32; impact power 8 kW (HC25) / 10 kW (HC28); impact frequency 55-65 Hz (HC25) / 47-53 Hz (HC28); hole diameter Φ32-51 mm for drilling |
| Beam rotation | 360° |
| Feed extension | 310 mm |
| Applicable height of tunnel (HC25) | About drill-rod length + 1500 mm |
| Applicable height of tunnel (HC28) | About drill-rod length + 1700 mm |
Engine & drive
| Motor | 45 kW |
| Impact / feed / positioning pump | Axial variable displacement piston pump |
| Rotation pump | Gear pump |
| Filter fineness | 10 μ |
| Hydraulic oil tank | 240 L |
| Hydraulic cooler | Water cooler |
| Working voltage | 380 V |
| Frequency | 50 Hz |
| Starting method | Star-triangle |
| Cable specifications | 3×35+3G6 |
Applications
- Underground mining
- Roof bolting
- Anchor support
Recommended packages
Air compressor match
Underground jumbos run on the mine's electric/hydraulic supply — confirm voltage and water/air services at the heading. Where air is needed, match a KSDY electric compressor to the site power.
DTH hammer & bits
Kaishan underground rigs use premium hydraulic rock drills (Montabert HC50/HC95/HC109) for face and production drilling; the KSQ31 DTH model runs K-class hammers. Confirm rock drill model against your tunnel section.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KM211?
Underground mining, Roof bolting, Anchor support.
Which air compressor pairs with the KM211?
Underground jumbos run on the mine's electric/hydraulic supply — confirm voltage and water/air services at the heading. Where air is needed, match a KSDY electric compressor to the site power.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
