KS Wheeled Water Well Drilling Rigs
Wheeled and truck-mounted water well drilling rigs for rapid site moves.
Applications
- Water well drilling
- Rapid site relocation
- Rural water supply
Key features
- ✓Wheeled and truck-mounted chassis for fast site-to-site relocation
- ✓Full-hydraulic drive for smooth, precise drilling control
- ✓Compact footprint for restricted-access sites and small projects
- ✓Deployed outriggers for stable operation on soft ground
- ✓Low transport height for easy road movement
Quick Selection Guide
Use the published hole range, drive arrangement and duty notes to narrow the Wheeled Truck Water Well Series range before opening a model page.
Farm wells with good road access
Shallowest class in the wheeled line; published figures per model.
Not sure which model fits your project? Send your hole diameter, depth, site conditions and compressor requirement — we will confirm the match before quotation.
Full Specification Comparison
Compare all models below. Click any model name to view full specifications and inquiry details.
| Model | Machine | Hole diameter (mm) | Drilling depth (m) | Air consumption (m³/min) | Engine power (kW) | Weight (t) |
|---|---|---|---|---|---|---|
| KS180A → | KS180A Crawler Water Well Drilling Rig | 140–254 mm | 180 m | 17–31 m³/min | 55 kW | 4.5 t |
| KS200A → | KS200A Crawler Water Well Drilling Rig | 140–254 mm | 200 m | 17–31 m³/min | 58 kW | 4.7 t |
| KS200B → | KS200B Wheeled Water Well Drilling Rig | 140–254 mm | 200 m | 17–31 m³/min | 58 kW | 4.7 t |
| KS130 → | KS130 Wheeled Water Well Drilling Rig | On request | On request | On request | On request | On request |
Complete specifications by model
KS180A →
- Machine weight
- 4.5 t
- Drill pipe diameter
- Φ76 Φ89 mm
- Hole diameter
- 140-254 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m
- Drilling depth
- 180 m
- Lifting capacity
- 12 t
- Feed stroke
- 3.3 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.4 m
- Working air pressure
- 1.7-2.5 MPa
- Rotary torque
- 3200-4600 N·m
- Air consumption
- 17-31 m³/min
- Overall dimensions
- 3950×1630×2250 mm
- Rotary speed
- 45-70 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 10-35 m/h
- Outrigger stroke
- 1.4 m
- Engine & drive — Engine
- Quanchai, 55 kW
- Equipment configuration
- Rubber tracks; no winch; no welding machine

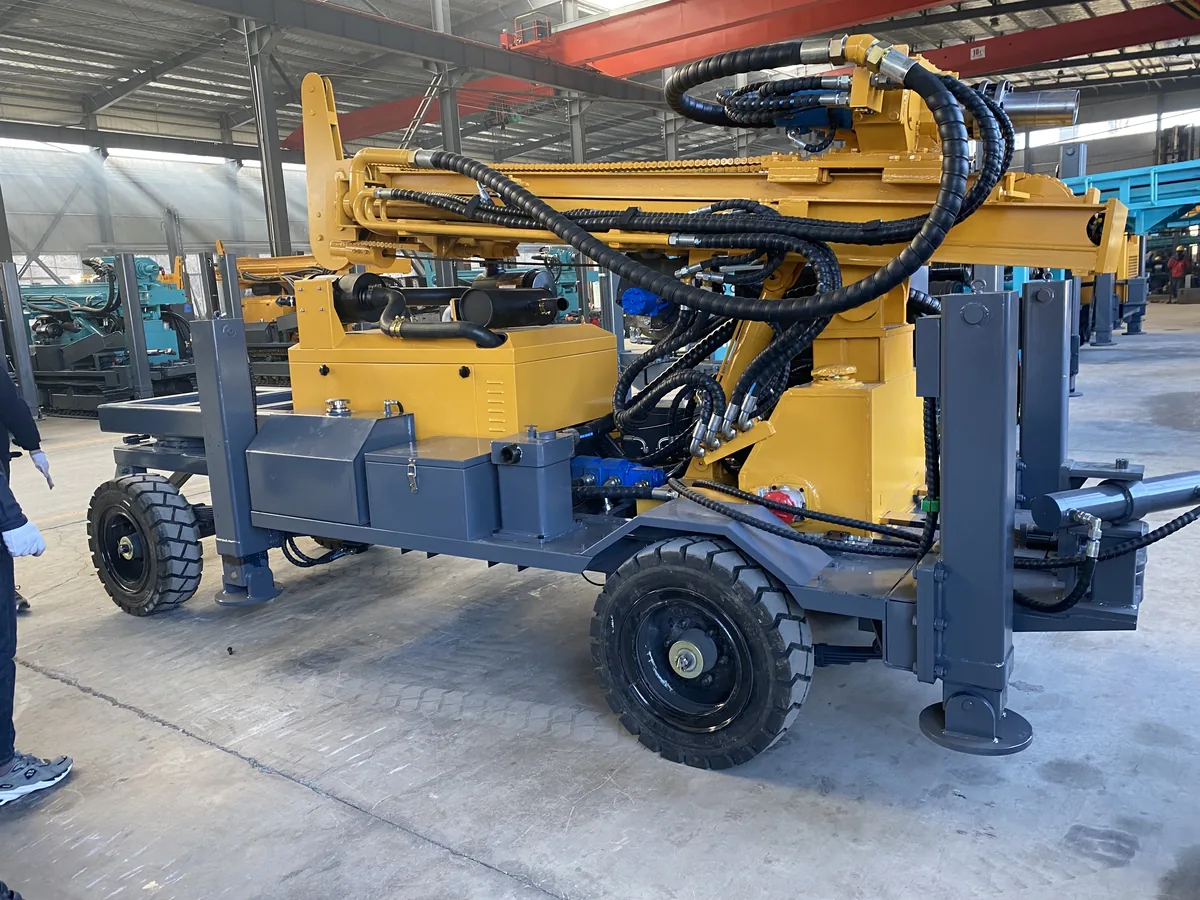

KS200A →
- Machine weight
- 4.7 t
- Drill pipe diameter
- Φ76 Φ89 mm
- Hole diameter
- 140-254 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m
- Drilling depth
- 200 m
- Lifting capacity
- 13 t
- Feed stroke
- 3.3 m
- Rapid lifting speed
- 30 m/min
- Travel speed
- 2.5 km/h
- Rapid feed speed
- 60 m/min
- Maximum gradeability
- 30°
- Loading width
- 2.6 m
- Winch lifting capacity
- 1.5 t
- Working air pressure
- 1.7-2.5 MPa
- Rotary torque
- 3400-4700 N·m
- Air consumption
- 17-31 m³/min
- Overall dimensions
- 3950×1750×2250 mm
- Rotary speed
- 45-70 rpm
- Compatible DTH hammer
- Medium- and high-pressure DTH hammers
- Penetration rate
- 10-35 m/h
- Outrigger stroke
- 1.4 m
- Engine & drive — Engine
- Yuchai, 58 kW
- Alternative engine configuration
- Older Quanchai version, 76 kW; rubber tracks; winch included; welding machine not included
- Equipment configuration
- Rubber tracks; winch included; welding machine not included

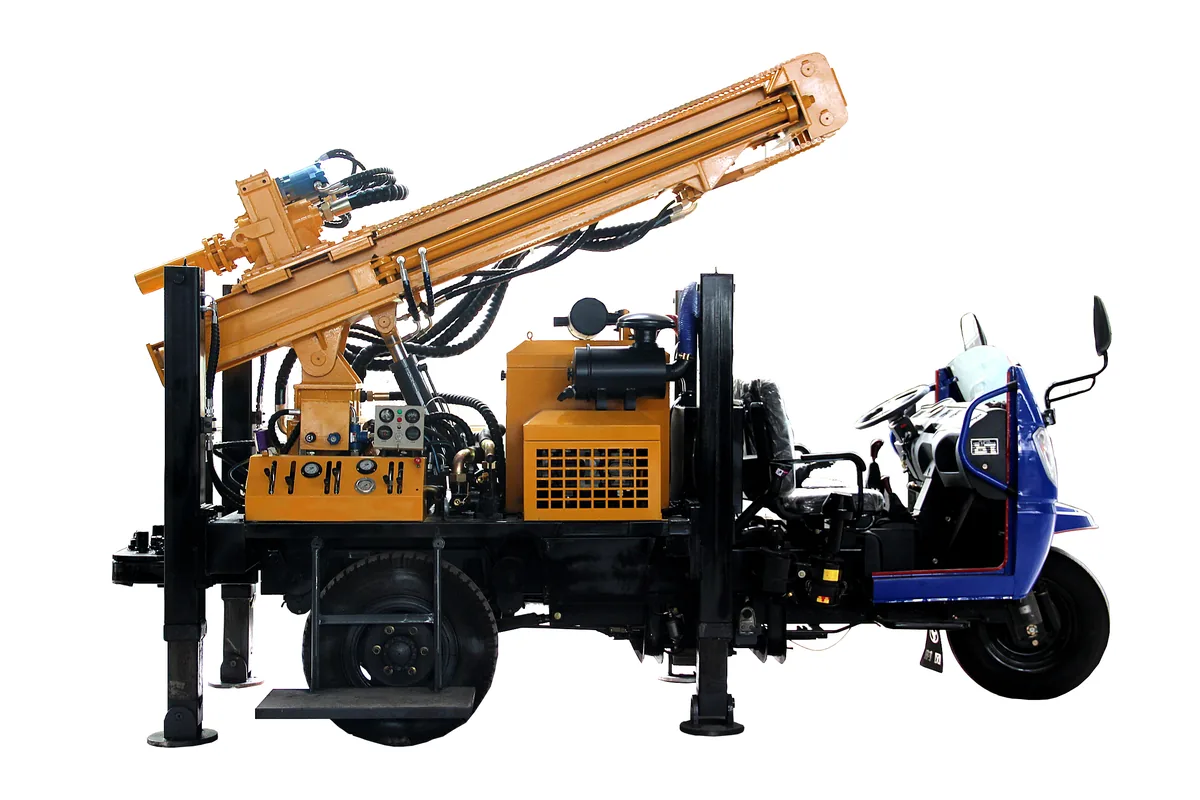

KS200B →
- Machine weight
- 4.7 t
- Drill pipe diameter
- Φ76 Φ89 mm
- Hole diameter
- 140-254 mm
- Drill pipe length options
- 1.5m 2.0m 3.0m
- Drilling depth
- 200 m
- Lifting capacity
- 13 t
- Feed stroke
- 3.3 m
- Rapid lifting speed
- 20 m/min
- Travel speed
- 20-40 km/h
- Rapid feed speed
- 40 m/min
- Maximum gradeability
- 30°
- Rotary speed
- 45-65 rpm
- Working air pressure
- 1.7-2.5 MPa
- Rotary torque
- 3400-4700 N·m
- Air consumption
- 17-31 m³/min
- Overall dimensions
- 4350×1600×2450 mm
- Penetration rate
- 10-35 m/h
- Outrigger stroke
- 1.4 m
- Engine & drive — Engine
- Yuchai, 58 kW
- Equipment configuration
- Three-wheel vehicle-mounted chassis; no winch; no welding machine

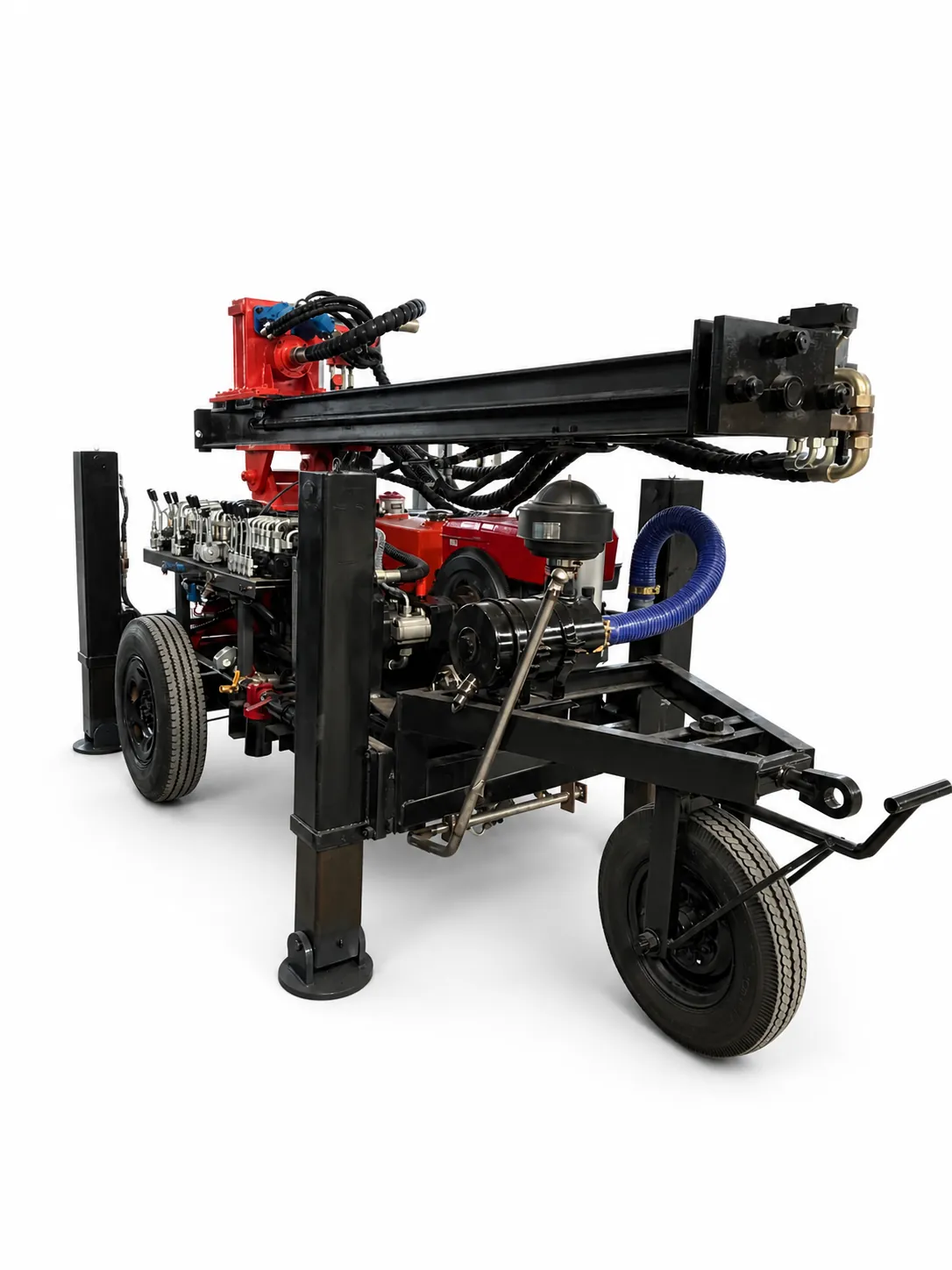

KS130 →
- Engine & drive — Engine
- Changchai, 32 hp
- Equipment configuration
- Self-propelled wheeled chassis; fully hydraulic operation
Configuration & customization
Each rig can be configured to your project. Standard and optional packages include:
- Aftercooler and moisture separator
- Remote monitoring system
- Matched air compressor package
- Drill pipe and DTH hammer packages
Frequently asked questions
How do I choose between KS180A and KS200A?
Compare the two rows in the model table above — focus on hole diameter, drilling depth and power against your project conditions. Our team can confirm the match for your site.
What applications is this series suited to?
Water well drilling, Rapid site relocation, Rural water supply.
Can the equipment be configured to my project?
Yes — standard and optional packages are listed under Configuration & customization above. Send your project details through the inquiry form and we will confirm the matching configuration.
