KS130

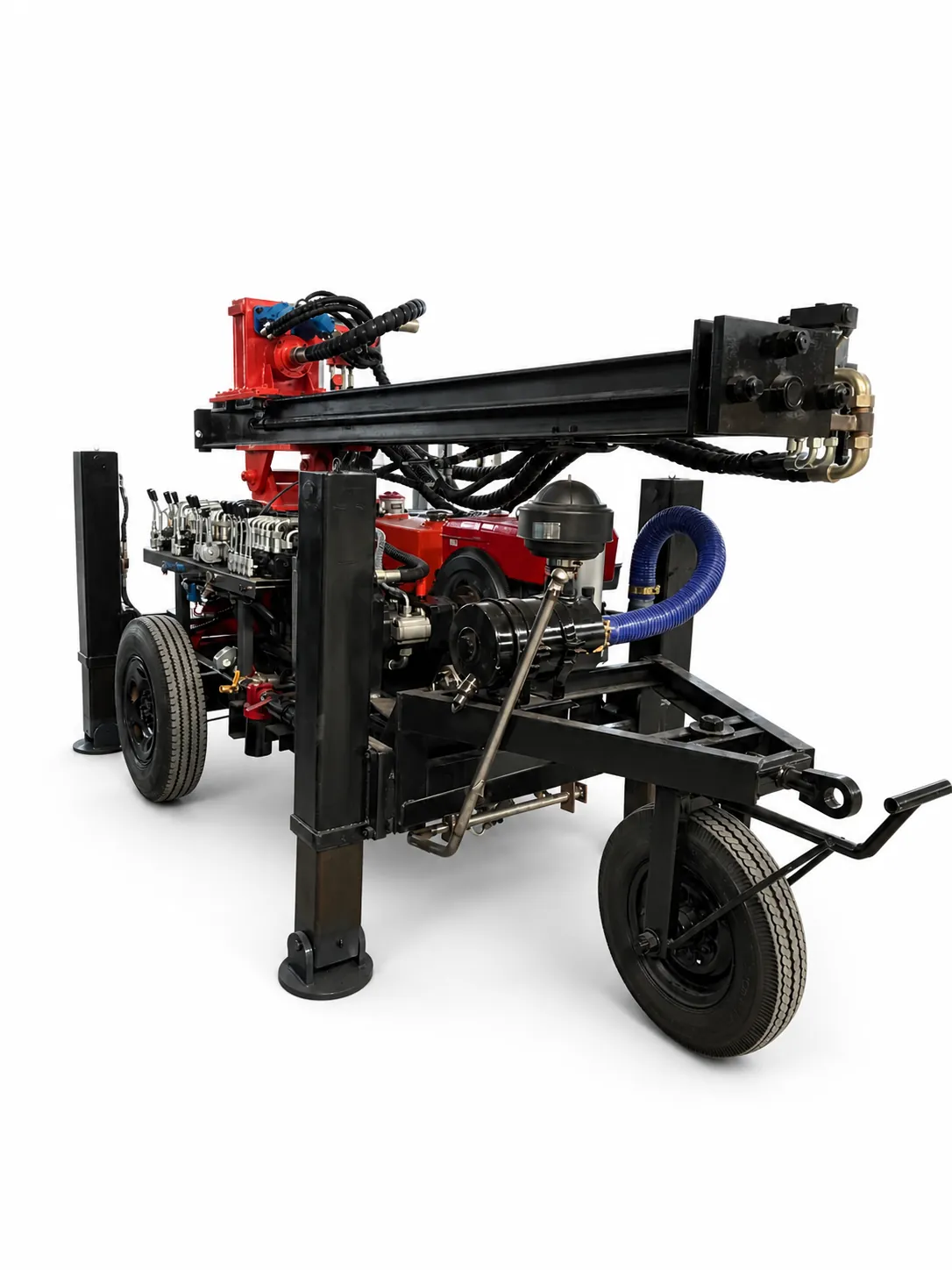

KS130 is a Wheeled Water Well Drilling Rig. Published specifications include working air pressure 1.45-2.5 MPa; engine power 23 kW; drilling depth 130 m; hole diameter 100-219 mm; weight 3 t. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Hole diameter
100-219 mm
Drilling depth
130 m
Engine
Changchai 23 kW
Weight
3 t
Overview
KS130 is a Wheeled Water Well Drilling Rig. Published specifications include working air pressure 1.45-2.5 MPa; engine power 23 kW; drilling depth 130 m; hole diameter 100-219 mm; weight 3 t. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Supplied by KaishanDrilling as part of a complete drilling solution, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Hole diameter (mm) | 100-219 |
| Drilling depth (m) | 130 |
Engine & drive
| Engine power | Changchai 23 kW |
Dimensions & weight
| Weight (t) | 3 |
| Dimensions (mm) | 4000×1450×2050 |
Drive & handling
| Advance length (m) | 2.3 |
| Lifting force (t) | 6 |
| Rotary speed | 40-65 rpm |
| Rotary torque (N·m) | 2200-3000 |
Tooling & air
| Working air pressure (MPa) | 1.45-2.5 |
| Air consumption (m³/min) | 15-29 |
| Drill pipe diameter (mm) | Φ76, Φ89 |
| Drill pipe length (m) | 1.5/2.0 |
Performance & mobility
| Walking speed (km/h) | 3 |
| Gradeability (°) | 30 |
Applications
- Water well drilling
- Rapid site relocation
- Rural water supply
Recommended packages
Air compressor match
Shallow wells (130-200 m): match a KSZJ-18/17A class or portable LGCY compressor to the rig's 1.45-2.5 MPa working pressure for air-feed work.
DTH hammer & bits
Match hammers to the 100-254 mm hole range of the wheeled rigs — a complete DTH package ships with the rig on request.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KS130?
Water well drilling, Rapid site relocation, Rural water supply.
Which air compressor pairs with the KS130?
Shallow wells (130-200 m): match a KSZJ-18/17A class or portable LGCY compressor to the rig's 1.45-2.5 MPa working pressure for air-feed work.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
