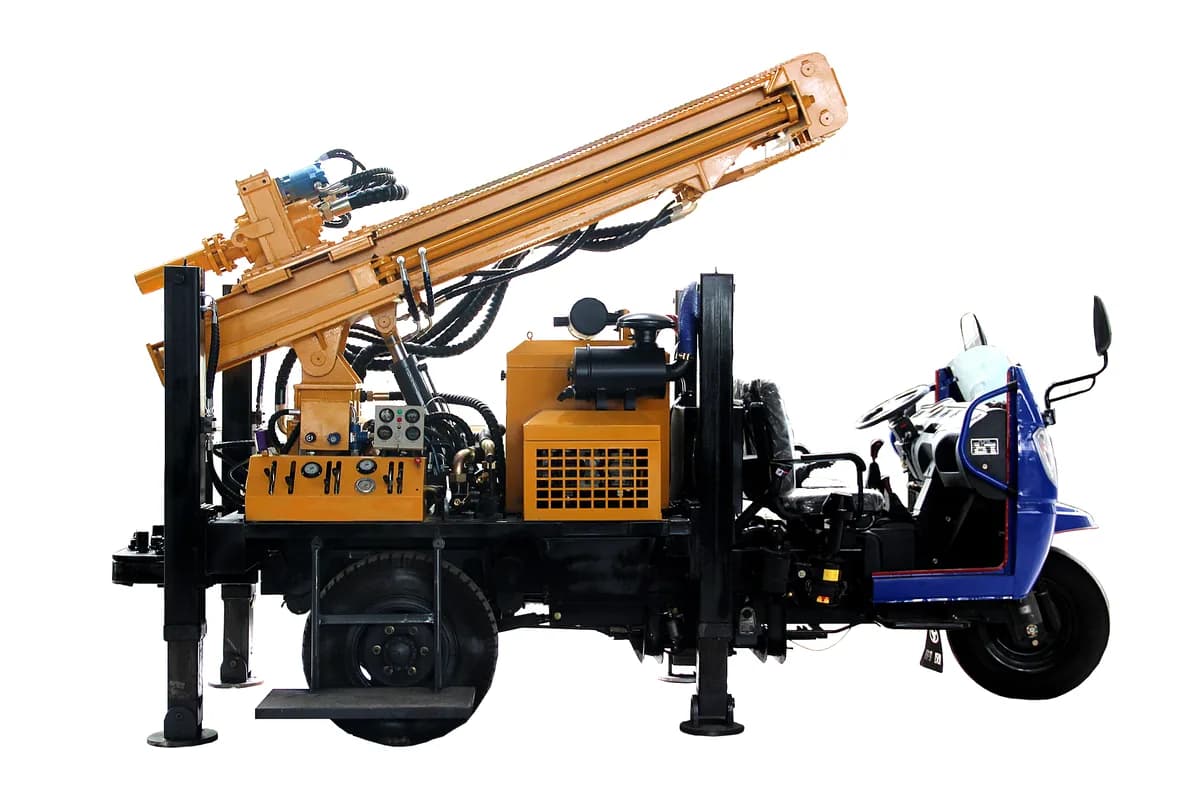

KS200B
FYL200 is a wheeled water well drilling rig. It provides a stated drilling depth of 200 m and a hole diameter range of 140-254 mm. The listed configuration uses a Yuchai engine rated at 58 kW.
Machine weight
4.7 t
Drill pipe diameter
Φ76 Φ89 mm
Hole diameter
140-254 mm
Drill pipe length options
1.5m 2.0m 3.0m
Overview
FYL200 is a wheeled water well drilling rig. It provides a stated drilling depth of 200 m and a hole diameter range of 140-254 mm. The listed configuration uses a Yuchai engine rated at 58 kW.
Key highlights
- ✓13 t lifting capacity.
- ✓3.3 m feed stroke.
- ✓3400-4700 N·m rotary torque.
Applications: Water well drilling.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Machine weight | 4.7 t |
| Drill pipe diameter | Φ76 Φ89 mm |
| Hole diameter | 140-254 mm |
| Drill pipe length options | 1.5m 2.0m 3.0m |
| Drilling depth | 200 m |
| Lifting capacity | 13 t |
| Feed stroke | 3.3 m |
| Rapid lifting speed | 20 m/min |
| Travel speed | 20-40 km/h |
| Rapid feed speed | 40 m/min |
| Maximum gradeability | 30° |
| Rotary speed | 45-65 rpm |
| Working air pressure | 1.7-2.5 MPa |
| Rotary torque | 3400-4700 N·m |
| Air consumption | 17-31 m³/min |
| Overall dimensions | 4350×1600×2450 mm |
| Penetration rate | 10-35 m/h |
| Outrigger stroke | 1.4 m |
Engine & drive
| Engine | Yuchai, 58 kW |
Other specifications
| Equipment configuration | Three-wheel vehicle-mounted chassis; no winch; no welding machine |
Applications
- Water well drilling
- Rapid site relocation
- Rural water supply
Recommended packages
Air compressor match
Shallow wells (130-200 m): match a KSZJ-18/17A class or portable LGCY compressor to the rig's 1.45-2.5 MPa working pressure for air-feed work.
DTH hammer & bits
Match hammers to the 100-254 mm hole range of the wheeled rigs — a complete DTH package ships with the rig on request.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KS200B?
Water well drilling, Rapid site relocation, Rural water supply.
Which air compressor pairs with the KS200B?
Shallow wells (130-200 m): match a KSZJ-18/17A class or portable LGCY compressor to the rig's 1.45-2.5 MPa working pressure for air-feed work.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
