Kaishan Surface Drilling Rigs/Crawler DTH Drill Rig with Integrated Air Compressor Series
KT15i

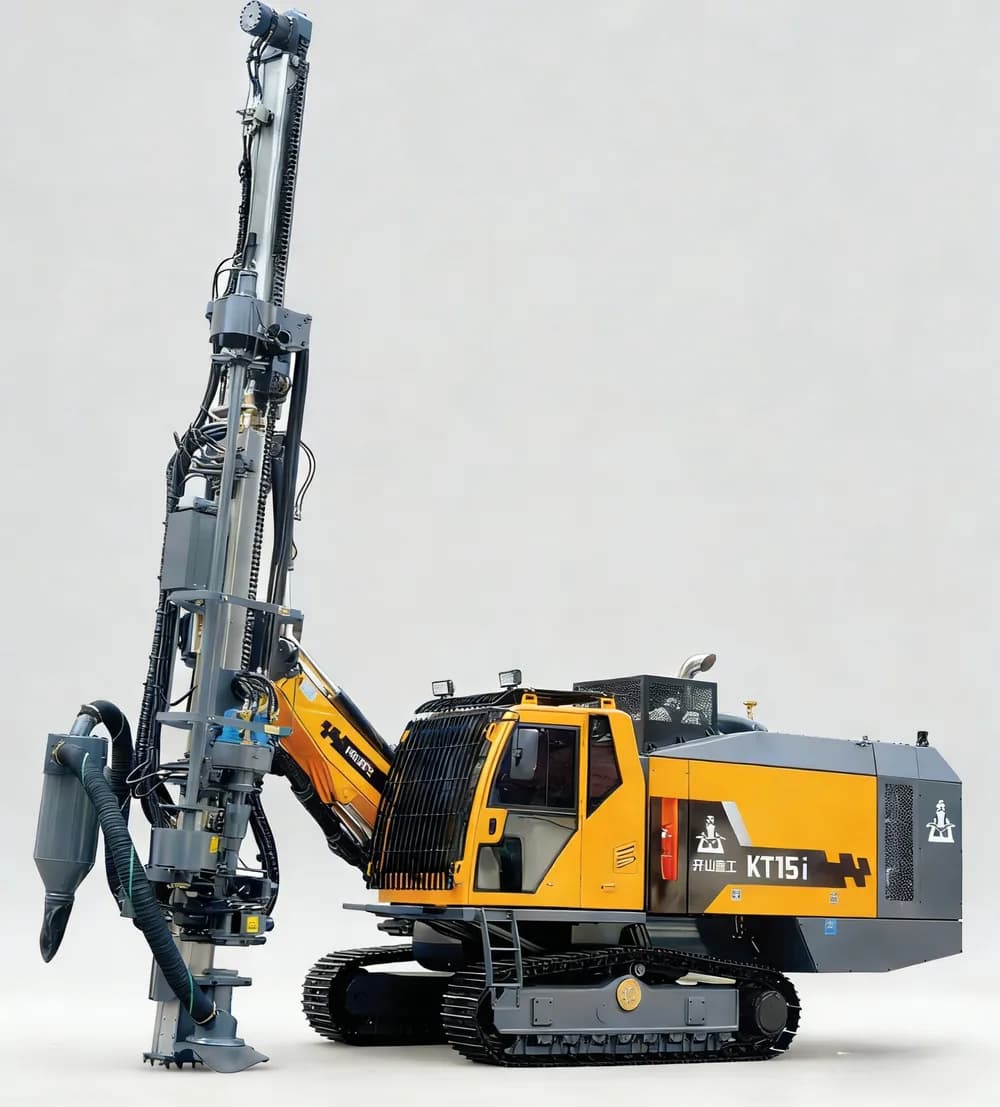

The KT15i intelligent surface DTH drilling rig is designed for blasting-hole drilling in open-pit mines, stone quarries and engineering construction. RTK positioning, drilling assistance and automatic drilling functions support intelligent mine operations, with a drilling-data system and network-dependent remote control.
Transport dimensions (L × W × H)
11050×2780×3600/3800 mm
Machine weight
25090 kg
Rock hardness
f=6–20
Hole diameter
140–190 mm
Overview
The KT15i intelligent surface DTH drilling rig is designed for blasting-hole drilling in open-pit mines, stone quarries and engineering construction. RTK positioning, drilling assistance and automatic drilling functions support intelligent mine operations, with a drilling-data system and network-dependent remote control.
Key highlights
- ✓RTK-based positioning with an error of less than 10 cm as stated in the brochure.
- ✓Imported drilling-coordinate files guide automatic feed-beam positioning and drilling-angle adjustment.
- ✓Automatic drilling adjusts opening and drilling parameters to the rock structure, with anti-sticking control and automatic drilling, lifting and rod handling to the preset depth.
- ✓Automatic drilling-data collection and transmission, with measurement-while-drilling and lithology acquisition systems.
- ✓Where mine network conditions permit, a control room can remotely operate multiple machines; remote control is mainly used for tramming.
Applications: Blasting-hole drilling in open-pit mining. · Stone-quarry blasting-hole drilling. · Blasting-hole drilling for engineering construction projects.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Transport dimensions (L × W × H) | 11050×2780×3600/3800 mm |
| Machine weight | 25090 kg |
| Rock hardness | f=6–20 |
| Hole diameter | 140–190 mm |
| Economical drilling depth | 36 m |
| Rod capacity | 8+1 |
| Drill rod | Ø89×4000 mm |
| Ground clearance | 430 mm |
| Track leveling angle | ±10° |
| Travel speed | 0–3 km/h |
| Gradeability | 25° |
| Traction force | 140 kN |
| Drill boom lift | Up 50°; down 20° |
| Drill boom swing | Right 45°; left 15° |
| Carriage swing | Right 33°; left 98° |
| Feed beam pitch | 125° |
| Frame leveling angle | Up 10°; down 10° |
| Compensation stroke | 1500 mm |
| Feed stroke | 4580 mm |
| Maximum feed force | 65 kN |
| Feed method | Motor + roller chain |
| Maximum rotary torque | 4100 N·m |
| Rotary speed | 0–100 rpm |
| Engine | Cummins L9CS4 430C |
| Rated engine power | 316 kW |
| Rated speed | 2100 r/min |
| Screw air compressor | Kaishan SKY11HG165-A |
| Compressor air delivery | 22 m³/min |
| Air pressure | 24 bar |
| DTH hammer | K4, K5, K6 |
| Travel control | Hydraulic + electronic control |
| Drilling control | Hydraulic + electronic control |
| Filter fineness | 10 μm |
| Ambient temperature (cooling capability) | Ambient temperature −30°C to 45°C |
| Electrical system | 24 V DC |
| Dust removal | Dry |
| Rod handling | Automatic rod coupling and uncoupling |
| Anti-jamming | Electro-hydraulic anti-sticking control |
| Drill rod thread lubrication | Automatic oil injection and lubrication |
| Drill rod thread protection | Floating joint to protect drill rod threads |
| Cab protection | Meets FOPS & ROPS requirements as stated in the brochure |
Applications
- Quarrying
- Construction
- Slope & bench drilling
Recommended packages
Air compressor match
Integrated rig — the screw air compressor is built into the machine, so no separate compressor unit is needed. Only confirm the onboard compressor rating (pressure and flow) matches your hammer size.
DTH hammer & bits
Match the DTH hammer class to your hole diameter: K3/K30C for 90-105 mm, K5/K50 for 135-165 mm — see the DTH hammer series page for the full ladder.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KT15i?
Quarrying, Construction, Slope & bench drilling.
Which air compressor pairs with the KT15i?
Integrated rig — the screw air compressor is built into the machine, so no separate compressor unit is needed. Only confirm the onboard compressor rating (pressure and flow) matches your hammer size.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
