Kaishan Surface Drilling Rigs/Crawler DTH Drill Rig with Integrated Air Compressor Series

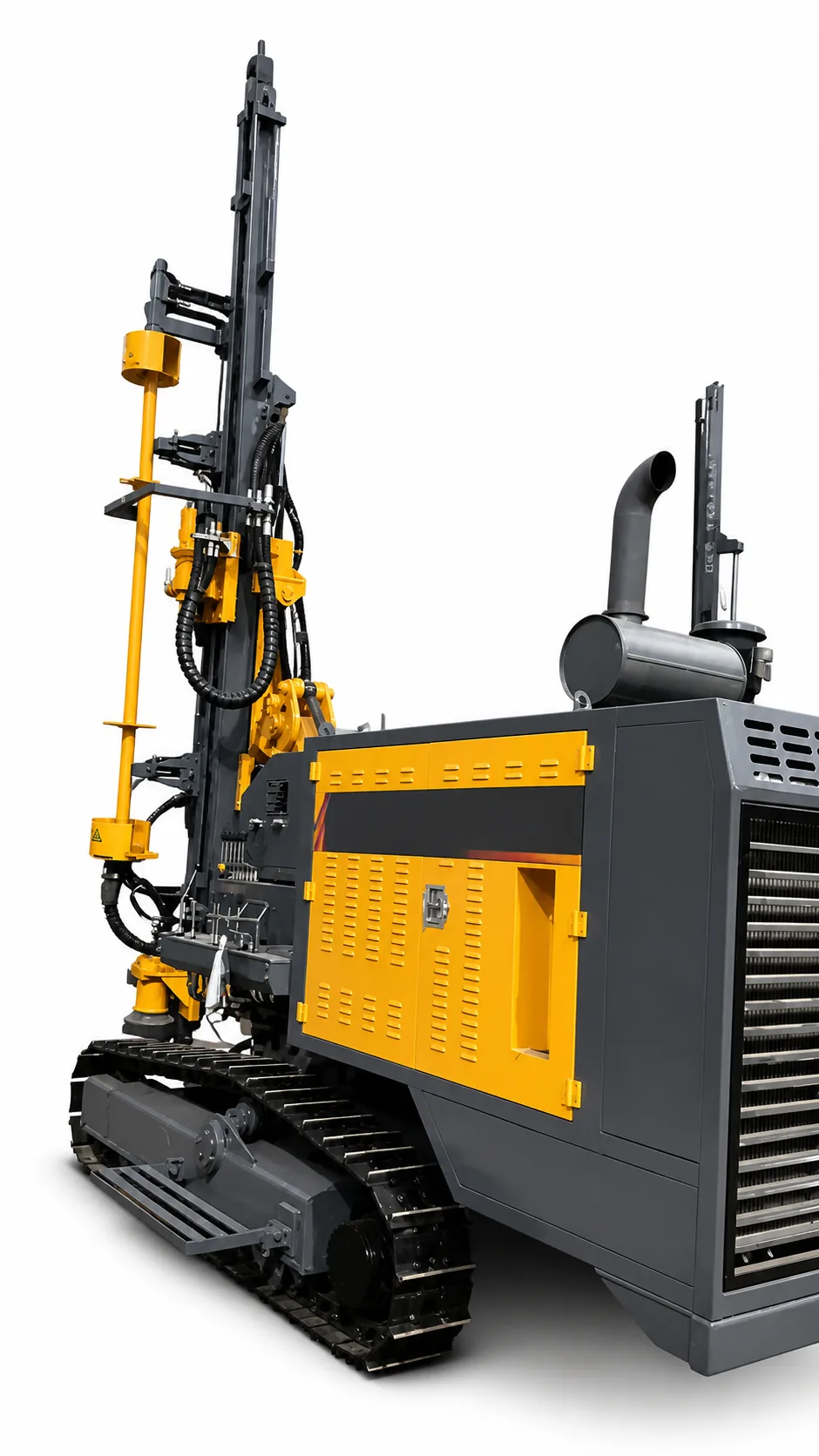

KT5C
The KT5C integrated surface DTH drilling rig is an advanced drilling device integrating the down-the-hole drilling system and screw air compressor system. It is capable of drilling vertical, inclined and horizontal holes and is mainly used in open-pit mines and stonework for blast holes and pre-splitting holes. Equipped with a Yuchai non-road diesel engine and an efficient dust collection system, the drill rig meets national standards for emissions and environment. It is typical of energy conservation, high efficiency, safety, environment-friendliness, mobility, simple operation and stable performance.
Drilling capability — Rock hardness
f=6-20
Drilling capability — Drilling diameter
90-115 mm
Drilling capability — Depth of economical drilling
25 m
Travelling speed
0-4 km / h
Overview
The KT5C integrated surface DTH drilling rig is an advanced drilling device integrating the down-the-hole drilling system and screw air compressor system. It is capable of drilling vertical, inclined and horizontal holes and is mainly used in open-pit mines and stonework for blast holes and pre-splitting holes. Equipped with a Yuchai non-road diesel engine and an efficient dust collection system, the drill rig meets national standards for emissions and environment. It is typical of energy conservation, high efficiency, safety, environment-friendliness, mobility, simple operation and stable performance.
Key highlights
- ✓Single diesel engine drives both the on-board screw compressor and the hydraulic transmission system through two-end output.
- ✓Integrated rig: the on-board screw compressor supplies the drilling air, no separate air compressor is needed on site.
- ✓Automatic rod handling system and drill rod lubrication module.
- ✓Hydraulic dry dust collection system; wet dust collection available as an option on larger models.
- ✓Automatic or electro-hydraulic anti-jamming control depending on model.
- ✓ROPS & FOPS protected cab with air-conditioning.
- ✓Capable of drilling vertical, inclined and horizontal holes.
Applications: Used in open-pit mines and stonework for blast holes and pre-splitting holes.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Rock hardness | f=6-20 |
| Drilling diameter | 90-115 mm |
| Depth of economical drilling | 25 m |
Other specifications
| Travelling speed | 0-4 km / h |
| Climbing capacity | ≤25° |
| Ground clearance | 430 mm |
| Power of complete machine | 162 kW / 2200r / min |
| Diesel engine | Yuchai YC6J220-T303 |
| Screw compressor | 12 m³ / min / 15 bar |
Dimensions & weight
| Overall dimensions (L × W × H) | 7800×2300×2500 mm |
| Weight | 8000 kg |
Other specifications
| Rotation speed of gyrator | 0-120 r / min |
| Rotary torque (max) | 1680 N·m（Max) |
Drilling capability
| Maximum push-pull force | 25000 N |
| Lifting angle of drill boom | Up 54°, Down 26° |
| Tilt angle of beam | 125° |
| Swing angle of carriage | Right 47°,left47° |
| Pitch angle of drill boom | Up 54°, Down 26° |
| Swing angle of drill boom | Right 53°, Left 15° |
Other specifications
| Leveling angle of frame | Up 10°, Down 9° |
Drilling capability
| One-time advance length | 3000 mm |
| Compensation length | 900 mm |
Other specifications
| DTH hammer | 3 in |
| Drilling rod | φ64×3000 mm |
| Method of dust collecting | Dry type (hydraulic cyclonic laminar flow) |
Applications
- Quarrying
- Construction
- Slope & bench drilling
Recommended packages
Air compressor match
Integrated rig — the screw air compressor is built into the machine, so no separate compressor unit is needed. Only confirm the onboard compressor rating (pressure and flow) matches your hammer size.
DTH hammer & bits
Match the DTH hammer class to your hole diameter: K3/K30C for 90-105 mm, K5/K50 for 135-165 mm — see the DTH hammer series page for the full ladder.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KT5C?
Quarrying, Construction, Slope & bench drilling.
Which air compressor pairs with the KT5C?
Integrated rig — the screw air compressor is built into the machine, so no separate compressor unit is needed. Only confirm the onboard compressor rating (pressure and flow) matches your hammer size.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
