Kaishan Surface Drilling Rigs/Crawler DTH Drill Rig with Integrated Air Compressor Series
KT30

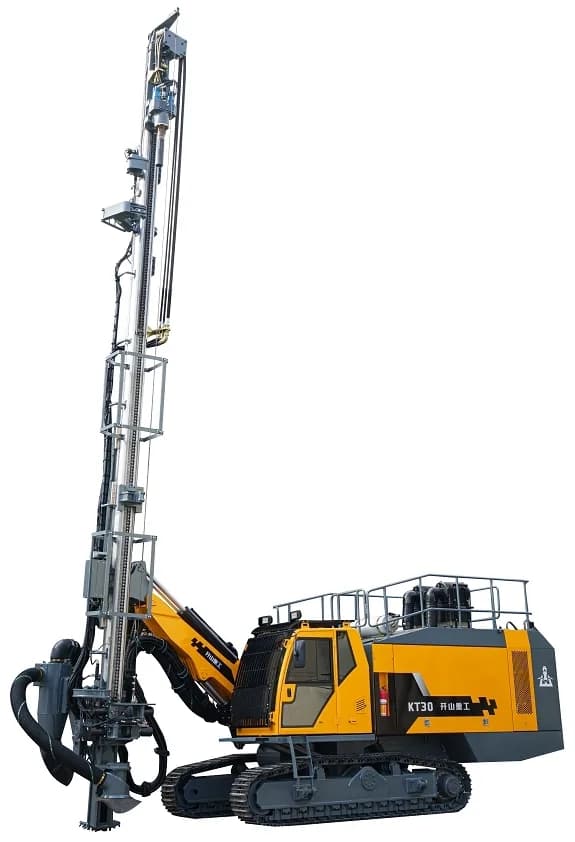

KT30 is a Crawler DTH Drilling Rig. Published specifications include dimensions 14300×3000×4100 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Hole diameter
195-254 mm
Drilling depth
27 m
Engine
563 kW
Weight
33930 kg
Overview
KT30 is a Crawler DTH Drilling Rig. Published specifications include dimensions 14300×3000×4100 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Genuine Kaishan equipment supplied through our authorized distribution channel, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Rock hardness | f=6-20 |
| Hole diameter (mm) | 195-254 |
| Drilling depth (m) | 27 |
| Feed length (mm) | 9550 |
Engine & drive
| Engine power | 563 kW |
Dimensions & weight
| Dimensions (mm) | 14300×3000×4100 |
| Weight (kg) | 33930 |
Drive & handling
| Rotary speed | 0-100/0-150 r/min |
| Max rotary torque | 6100 N·m |
| Max push/pull force | 70 kN |
| Mast pitch angle | 132° |
| Mast compensation length (mm) | 1800 |
Tooling & air
| DTH hammer | k8 / 8" |
| Drill rod | Φ140×9000 mm |
| Rod capacity | 2+1 |
Performance & mobility
| Travel speed | 3.0 km/h |
| Gradeability | 25° |
| Ground clearance (mm) | 430 |
Applications
- Quarrying
- Construction
- Slope & bench drilling
Recommended packages
Air compressor match
Integrated rig — the screw air compressor is built into the machine, so no separate compressor unit is needed. Only confirm the onboard compressor rating (pressure and flow) matches your hammer size.
DTH hammer & bits
Match the DTH hammer class to your hole diameter: K3/K30C for 90-105 mm, K5/K50 for 135-165 mm — see the DTH hammer series page for the full ladder.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KT30?
Quarrying, Construction, Slope & bench drilling.
Which air compressor pairs with the KT30?
Integrated rig — the screw air compressor is built into the machine, so no separate compressor unit is needed. Only confirm the onboard compressor rating (pressure and flow) matches your hammer size.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
