KS600

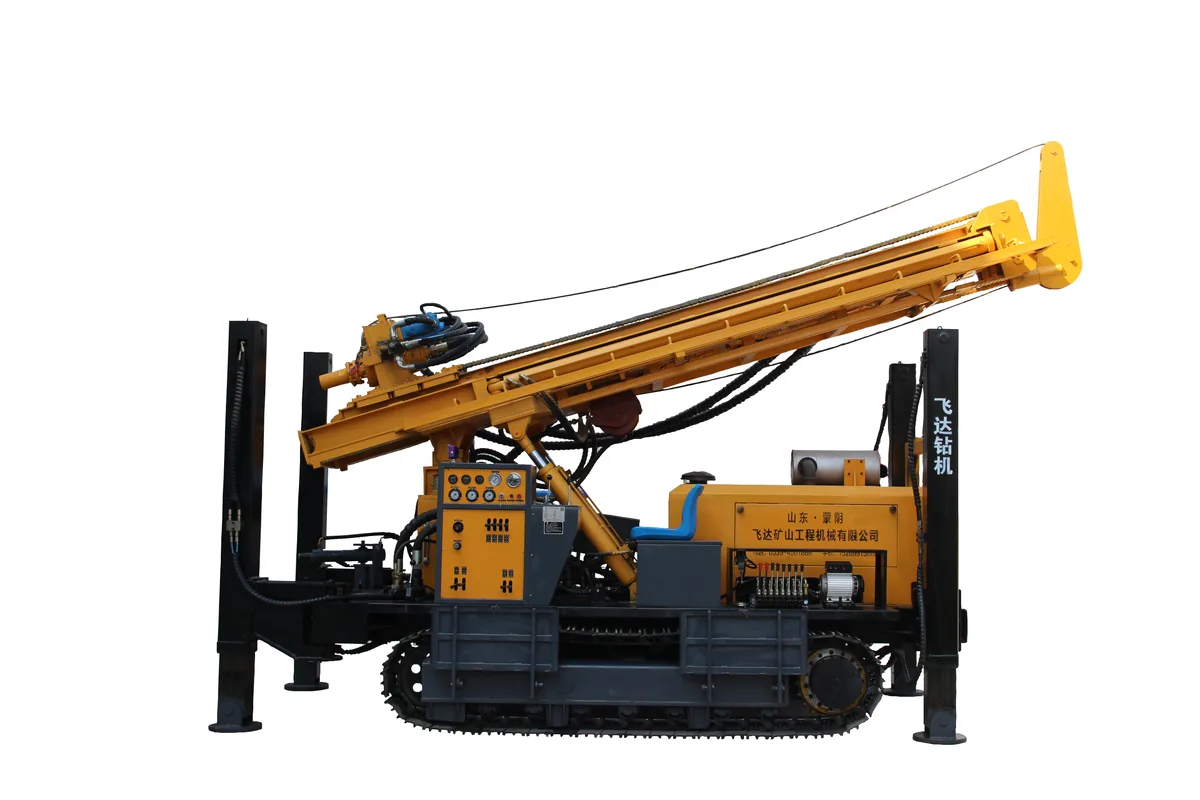

The KS600 is a crawler-mounted water well drilling rig with a maximum drilling depth of 600 m, hole diameter of 140-400 mm, powered by a 153 kW Cummins engine, with a total weight of 11.5 t.
Hole diameter
140-400 mm
Drilling depth
600 m
Engine
Cummins 153 kW
Weight
11.5 t
Overview
The KS600 is a crawler-mounted water well drilling rig with a maximum drilling depth of 600 m, hole diameter of 140-400 mm, powered by a 153 kW Cummins engine, with a total weight of 11.5 t.
Key highlights
- ✓153 kW Cummins engine, a globally recognized brand, delivering strong and reliable power
- ✓Up to 400 mm hole diameter with Φ102/Φ108/Φ114 drill pipes (up to 6.0 m) for large-diameter deep wells
- ✓6.6 m feed stroke and 45-140 rpm rotation speed, achieving 15-35 m/h penetration efficiency
- ✓Working air pressure of 1.7-3.5 MPa for DTH drilling in varied formations
- ✓11.5 t operating weight, 6200×2200×2650 mm dimensions and 2.5 km/h traveling speed for stable operation.
Applications: geothermal drilling, deep water supply and mining engineering drilling, with a 600 m depth rating for deep geothermal and large-scale water supply wells.
Supplied by KaishanDrilling as part of a complete drilling solution, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Hole diameter (mm) | 140-400 |
| Drilling depth (m) | 600 |
| Feed efficiency (m/h) | 15-35 |
Engine & drive
| Engine power | Cummins 153 kW |
Dimensions & weight
| Weight (t) | 11.5 |
| Dimensions (mm) | 6200×2200×2650 |
Drive & handling
| Advance length (m) | 6.6 |
| Rotary speed | 45-140 rpm |
Tooling & air
| Drill pipe diameter (mm) | 102/108/114 |
| Drill pipe length (m) | 1.5/2.0/3.0/6.0 |
| Working air pressure (MPa) | 1.7-3.5 |
Performance & mobility
| Walking speed (km/h) | 2.5 |
Applications
- Water well drilling
- Deep wells
- Geological drilling
Recommended packages
Air compressor match
KS300B-KS450 pair with the KSZJ-29/23 class (29 m³/min @ 2.3 MPa, 400 HP Yuchai) — the standard water-well pairing for 300-450 m programs.
DTH hammer & bits
Match hammers to the 140-350 mm hole range; each rig can ship as a complete package with DTH hammer and drill pipe sets.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KS600?
Water well drilling, Deep wells, Geological drilling.
Which air compressor pairs with the KS600?
KS300B-KS450 pair with the KSZJ-29/23 class (29 m³/min @ 2.3 MPa, 400 HP Yuchai) — the standard water-well pairing for 300-450 m programs.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
