KS1000

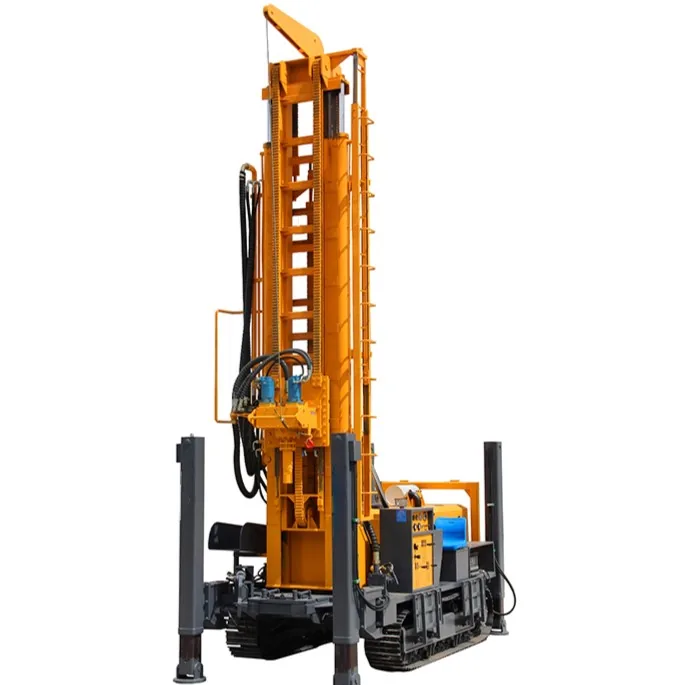

KS1000 is a Crawler Water Well Drilling Rig. Published specifications include engine power 194 kW; drilling depth 1000 m; hole diameter 140-350 mm; weight 13 t; dimensions 6300×2300×2950 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Hole diameter
140-350 mm
Drilling depth
1000 m
Engine
Cummins 194 kW
Weight
13 t
Overview
KS1000 is a Crawler Water Well Drilling Rig. Published specifications include engine power 194 kW; drilling depth 1000 m; hole diameter 140-350 mm; weight 13 t; dimensions 6300×2300×2950 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Supplied by KaishanDrilling as part of a complete drilling solution, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Hole diameter (mm) | 140-350 |
| Drilling depth (m) | 1000 |
Engine & drive
| Engine power | Cummins 194 kW |
Dimensions & weight
| Weight (t) | 13 |
| Dimensions (mm) | 6300×2300×2950 |
Drive & handling
| Working system | water & air dual system |
| Rotary speed | 45-140 rpm |
Applications
- Water well drilling
- Deep wells
- Geological drilling
Recommended packages
Air compressor match
Deep-well rigs need high pressure: pair KS800/KS1000 with the LGZJ family (e.g. LGZJ-31/25-35/18: 31 m³/min @ 2.5 MPa / 35 m³/min @ 1.8 MPa dual-mode).
DTH hammer & bits
KS800/KS1000 run φ102/φ108/φ114 mm drill pipe with water-and-air dual working systems — confirm hammer and pipe package with our engineers for 800-1000 m programs.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KS1000?
Water well drilling, Deep wells, Geological drilling.
Which air compressor pairs with the KS1000?
Deep-well rigs need high pressure: pair KS800/KS1000 with the LGZJ family (e.g. LGZJ-31/25-35/18: 31 m³/min @ 2.5 MPa / 35 m³/min @ 1.8 MPa dual-mode).
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
