KS260

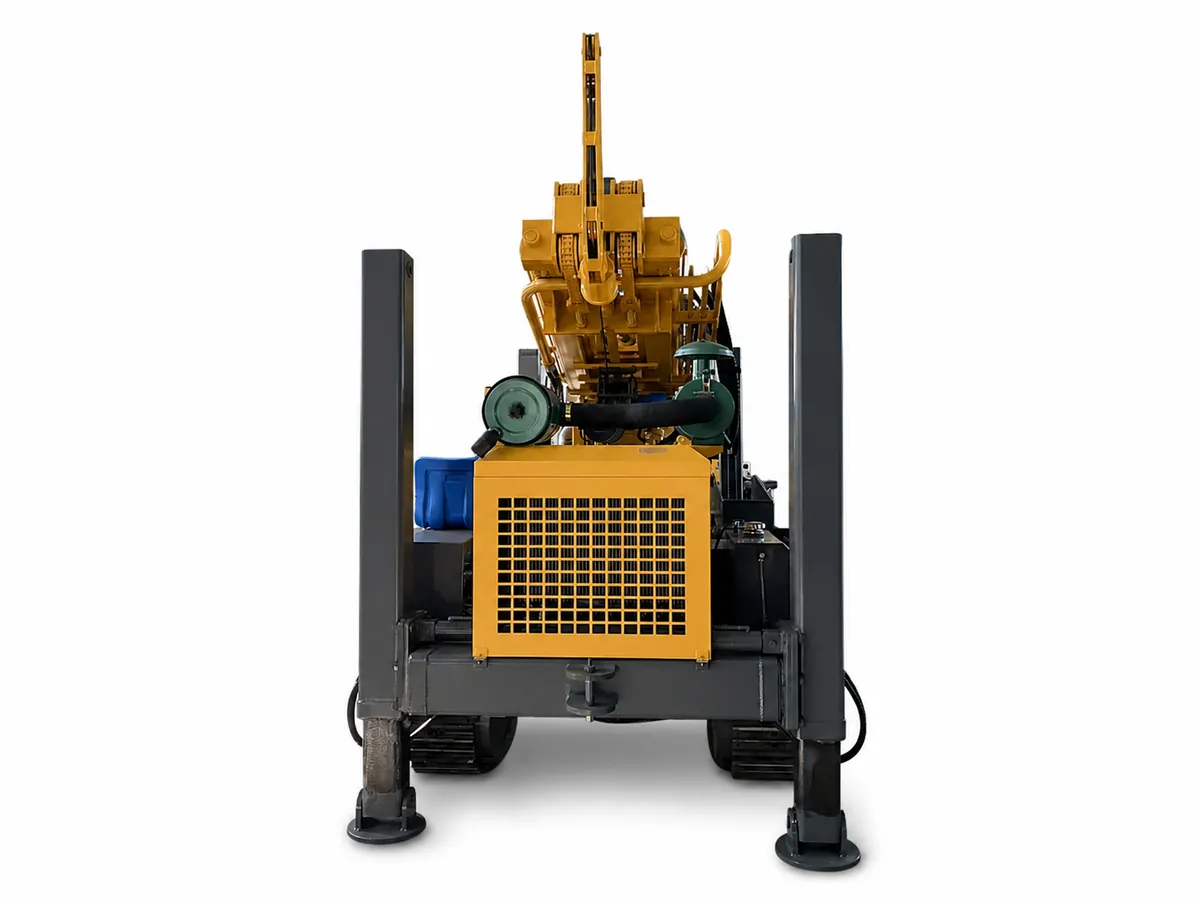

The KS260 is a crawler-mounted water well drilling rig with a maximum drilling depth of 260 m, hole diameter of 140-305 mm, powered by a 76 kW Quanchai engine, with a total weight of 5.7 t.
Hole diameter
140-305 mm
Drilling depth
260 m
Engine
Quanchai 76 kW
Weight
5.7 t
Overview
The KS260 is a crawler-mounted water well drilling rig with a maximum drilling depth of 260 m, hole diameter of 140-305 mm, powered by a 76 kW Quanchai engine, with a total weight of 5.7 t.
Key highlights
- ✓76 kW Quanchai engine with fully hydraulic drive for strong, stable power
- ✓15 t rig lifting force plus 1.5 t winch, 24 m/min rapid rise and 40 m/min fast feed speeds for 10-35 m/h penetration
- ✓Swing torque of 4000-5300 N·m at 45-70 rpm, compatible with Φ76/Φ89 drill pipes (1.5/2.0/3.0 m)
- ✓Working air pressure of 1.7-2.5 MPa with 17-31 m³/min air consumption for DTH drilling
- ✓5.7 t operating weight, 30° climbing capability and 1.4 m high-leg stroke for challenging terrain.
Applications: Suited for agricultural irrigation, rural/urban water supply and geothermal drilling, balancing medium-depth capability with site mobility.
Supplied by KaishanDrilling as part of a complete drilling solution, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Hole diameter (mm) | 140-305 |
| Drilling depth (m) | 260 |
| Penetration efficiency (m/h) | 10-35 |
Engine & drive
| Engine power | Quanchai 76 kW |
Dimensions & weight
| Weight (t) | 5.7 |
| Loading width (m) | 2.73 |
| Dimensions (mm) | 3900×1750×2250 |
Drive & handling
| Lifting force (t) | 15 |
| Advance length (m) | 3.3 |
| Rapid rise speed (m/min) | 24 |
| Fast feed speed (m/min) | 40 |
| Winch hoisting force (t) | 1.5 |
| Swing torque (N·m) | 4000-5300 |
| Swing speed (rpm) | 45-70 |
| High-leg stroke (m) | 1.4 |
Tooling & air
| Drill pipe diameter (mm) | Φ76, Φ89 |
| Drill pipe length (m) | 1.5/2.0/3.0 |
| Working air pressure (MPa) | 1.7-2.5 |
| Air consumption (m³/min) | 17-31 |
Performance & mobility
| Walking speed (km/h) | 2.5 |
| Gradeability (°) | 30 |
Applications
- Water well drilling
- Deep wells
- Geological drilling
Recommended packages
Air compressor match
For air-feed DTH work, pair KS180/KS260 with a KSZJ-18/17A class compressor (18 m³/min @ 1.7 MPa). Mud-circulation drilling needs only the onboard mud pump.
DTH hammer & bits
Match DTH hammers to your hole diameter (140-305 mm range for these rigs) — confirm pressure rating against the compressor before ordering.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KS260?
Water well drilling, Deep wells, Geological drilling.
Which air compressor pairs with the KS260?
For air-feed DTH work, pair KS180/KS260 with a KSZJ-18/17A class compressor (18 m³/min @ 1.7 MPa). Mud-circulation drilling needs only the onboard mud pump.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
