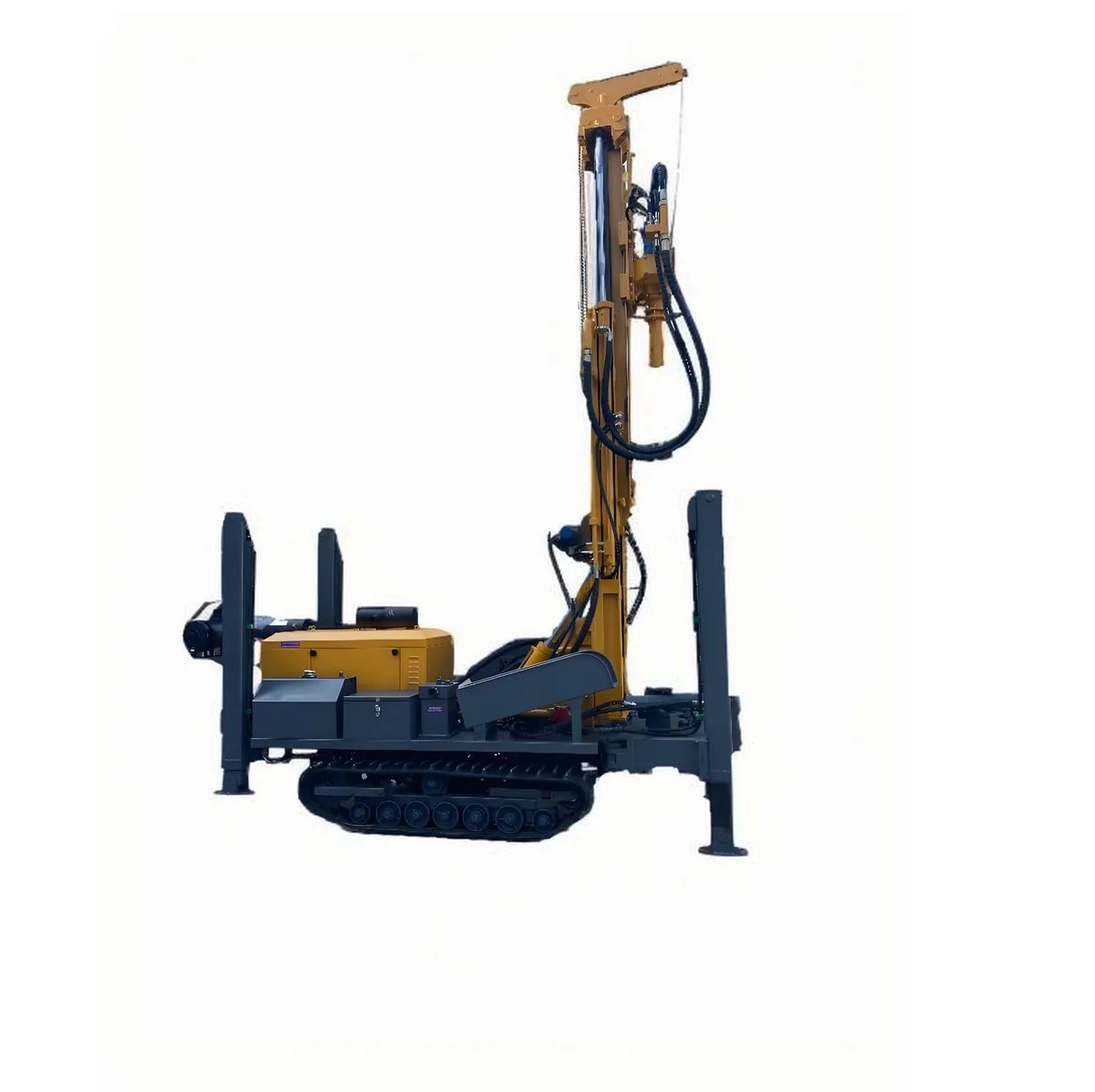

KS180
FY180 is a water well drilling rig. It provides a stated drilling depth of 180 m and a hole diameter range of 140-254 mm.
Machine weight
5.2 t
Drill pipe diameter
Φ76 Φ89 mm
Hole diameter
140-254 mm
Drill pipe length options
1.5m 2.0m 3.0m
Overview
FY180 is a water well drilling rig. It provides a stated drilling depth of 180 m and a hole diameter range of 140-254 mm.
Key highlights
- ✓12 t lifting capacity.
- ✓3.3 m feed stroke.
- ✓3200-4600 N·m rotary torque.
Applications: Water well drilling.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Machine weight | 5.2 t |
| Drill pipe diameter | Φ76 Φ89 mm |
| Hole diameter | 140-254 mm |
| Drill pipe length options | 1.5m 2.0m 3.0m |
| Drilling depth | 180 m |
| Lifting capacity | 12 t |
| Feed stroke | 3.3 m |
| Rapid lifting speed | 20 m/min |
| Travel speed | 2.5 km/h |
| Rapid feed speed | 40 m/min |
| Maximum gradeability | 30° |
| Loading width | 2.4 m |
| Engine power | 60 kW |
| Working air pressure | 1.7-2.5 MPa |
| Rotary torque | 3200-4600 N·m |
| Air consumption | 17-31 m³/min |
| Overall dimensions | 4000×1630×2250 mm |
| Rotary speed | 45-70 rpm |
| Compatible DTH hammer | Medium- and high-pressure DTH hammers |
| Penetration rate | 10-35 m/h |
| Outrigger stroke | 1.4 m |
| Engine manufacturer | Yuchai |
Applications
- Water well drilling
- Deep wells
- Geological drilling
Recommended packages
Air compressor match
For air-feed DTH work, pair KS180/KS260 with a KSZJ-18/17A class compressor (18 m³/min @ 1.7 MPa). Mud-circulation drilling needs only the onboard mud pump.
DTH hammer & bits
Match DTH hammers to your hole diameter (140-305 mm range for these rigs) — confirm pressure rating against the compressor before ordering.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KS180?
Water well drilling, Deep wells, Geological drilling.
Which air compressor pairs with the KS180?
For air-feed DTH work, pair KS180/KS260 with a KSZJ-18/17A class compressor (18 m³/min @ 1.7 MPa). Mud-circulation drilling needs only the onboard mud pump.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
