Water Well Rigs/KS Crawler Water Well Drilling Rigs

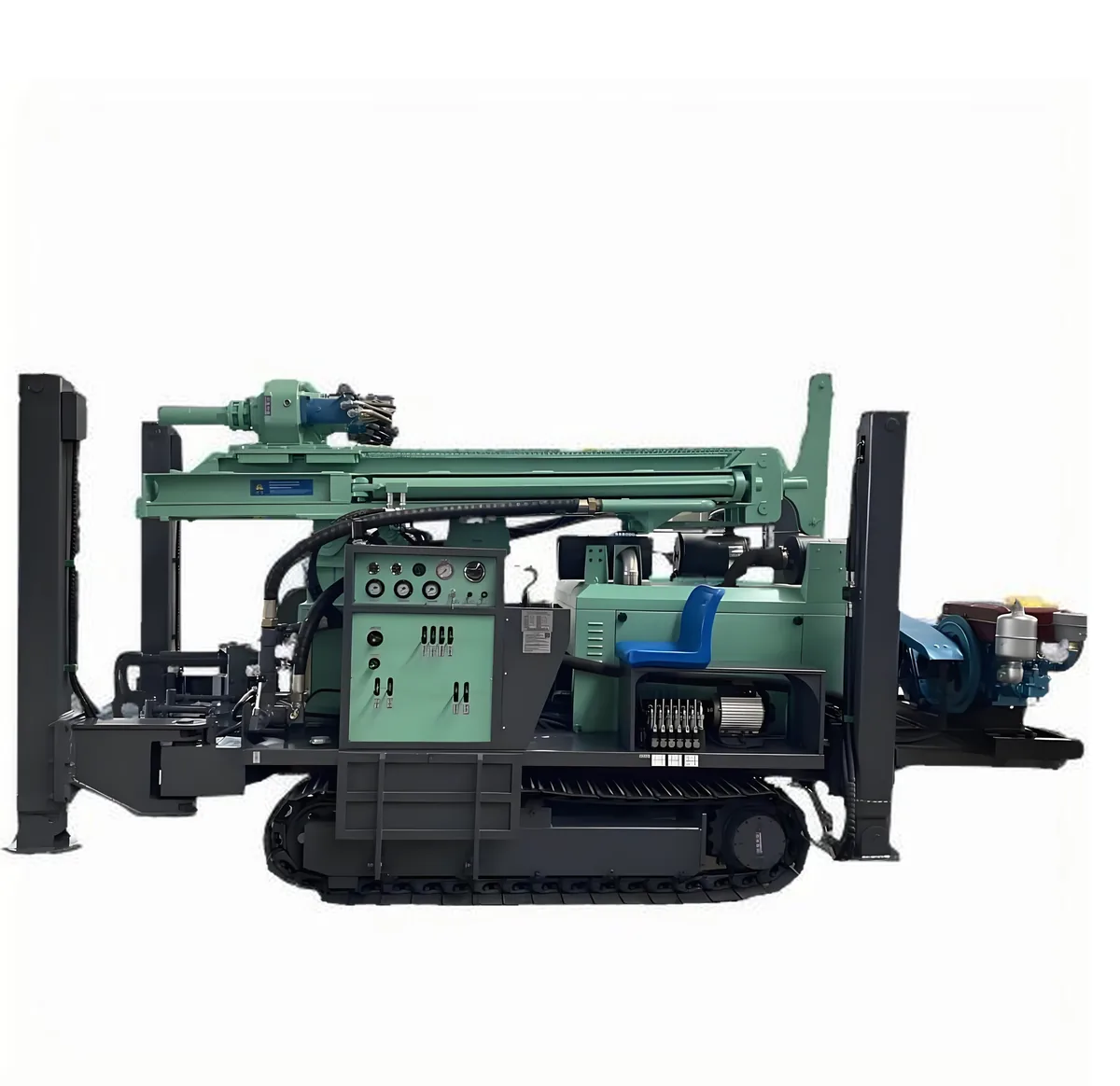

KS300B
FY300 is a Crawler Water Well Drilling Rig. Published specifications include working air pressure 1.7-3.0 MPa; engine power 85 kW; drilling depth 300 m; hole diameter 140-325 mm; weight 8 t. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Dimensions & weight — Machine weight
8 t
Drilling capability — Drill pipe diameter
Φ75, Φ89, Φ102 mm
Drilling capability — Hole diameter
140-325 mm
Drilling capability — Drill pipe length options
1.5/2.0/3.0/6.0 m
Overview
FY300 is a Crawler Water Well Drilling Rig. Published specifications include working air pressure 1.7-3.0 MPa; engine power 85 kW; drilling depth 300 m; hole diameter 140-325 mm; weight 8 t. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Specifications
Request the current specification sheet for this model using the button above.
Dimensions & weight
| Machine weight | 8 t |
Drilling capability
| Drill pipe diameter | Φ75, Φ89, Φ102 mm |
| Hole diameter | 140-325 mm |
| Drill pipe length options | 1.5/2.0/3.0/6.0 m |
| Drilling depth | 300 m |
Other specifications
| Lifting capacity | 18 t |
| Feed stroke | 6.6 m |
| Rapid lifting speed | 22 m/min |
Performance & mobility
| Travel speed | 2.5 km/h |
Other specifications
| Rapid feed speed | 40 m/min |
Performance & mobility
| Maximum gradeability | 30° |
Dimensions & weight
| Loading width | 2.6 m |
Engine & drive
| Engine power | 85 kW |
| Engine manufacturer | Yuchai |
Other specifications
| Winch lifting capacity | 2 t |
| Working air pressure | 1.7-3.0 MPa |
| Rotary torque | 5700-7500 N·m |
| Air consumption | 17-36 m³/min |
Dimensions & weight
| Overall dimensions | 5900×1850×2200 mm |
Other specifications
| Rotary speed | 40-70 rpm |
Drilling capability
| Penetration rate | 15-35 m/h |
Other specifications
| Outrigger stroke | 1.4 m |
Applications
- Water well drilling
- Deep wells
- Geological drilling
Recommended packages
Air compressor match
KS300B-KS450 pair with the KSZJ-29/23 class (29 m³/min @ 2.3 MPa, 400 HP Yuchai) — the standard water-well pairing for 300-450 m programs.
DTH hammer & bits
Match hammers to the 140-350 mm hole range; each rig can ship as a complete package with DTH hammer and drill pipe sets.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KS300B?
Water well drilling, Deep wells, Geological drilling.
Which air compressor pairs with the KS300B?
KS300B-KS450 pair with the KSZJ-29/23 class (29 m³/min @ 2.3 MPa, 400 HP Yuchai) — the standard water-well pairing for 300-450 m programs.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
