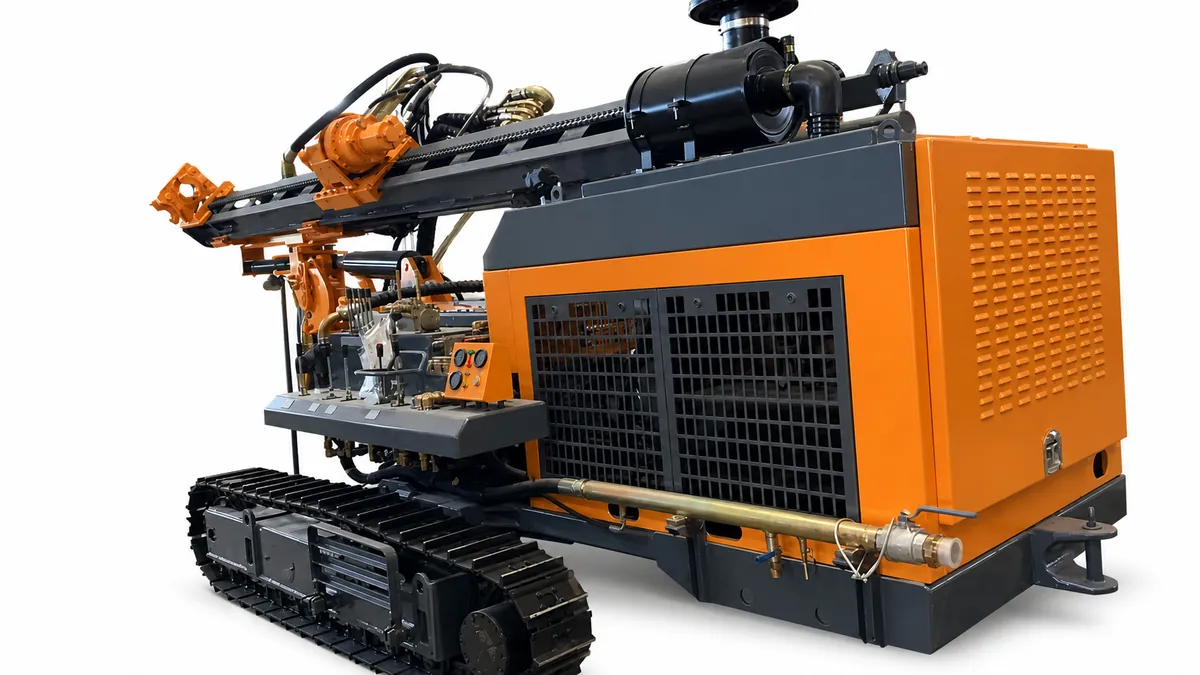

KG520
The KG520/KG520H surface DTH drilling rig is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment. The folding frame track and four-wheel drive are adopted; track leveling and the plunger-piston walking motor improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The rotary torque and revolving speed are raised; the propulsion motor and chain are used to raise the lifting force and reliability. The dust collector is enlarged to produce a better effect on dust collection. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
Model of drill rig
KG520
Dimensions & weight — Weight of complete machine
6500 kg
Dimensions & weight — Overall dimensions (L × W × H)
6800 x 2200 x 2850 mm
Drilling capability — Drilling hardness
f = 6-20
Overview
The KG520/KG520H surface DTH drilling rig is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment. The folding frame track and four-wheel drive are adopted; track leveling and the plunger-piston walking motor improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The rotary torque and revolving speed are raised; the propulsion motor and chain are used to raise the lifting force and reliability. The dust collector is enlarged to produce a better effect on dust collection. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
Key highlights
- ✓Yuchai four-cylinder diesel engine meeting national emission and environmental standards.
- ✓Folding frame track with four-wheel drive for rough ground.
- ✓Track leveling and a plunger-piston walking motor improve working pressure and climbing capacity.
- ✓Expanded pitch and lifting-arm hydraulic cylinder meet the requirements of limiting positions.
- ✓Rotary torque and revolving speed are raised.
- ✓Propulsion motor and chain raise lifting force and reliability.
- ✓Enlarged dust collector produces a better dust-collection effect.
- ✓Thickened profile folded housing raises structural strength and rigidity; additional lifting ring eases handling.
Applications: Surface down-the-hole (DTH) drilling of holes from Φ105 mm to 152 mm. · Rock of hardness f = 6-20, at an economical drilling depth of 25 m. · Sites that pair the rig with a portable air compressor: selection depends on hole diameter and air-hose length, and the catalog recommends KSCY310/22, KSCY750/20-800/17T and LGCY19/21-21/18.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Model of drill rig | KG520 |
Dimensions & weight
| Weight of complete machine | 6500 kg |
| Overall dimensions (L × W × H) | 6800 x 2200 x 2850 mm |
Drilling capability
| Drilling hardness | f = 6-20 |
| Drilling diameter | Φ105-152 mm |
| Depth of economical drilling | 25 m |
| Rotary speed | 0-100 rpm |
| Rotary torque (max) | 4000 N·m |
| Lifting force | 25 kN |
| Method of feed | Motor and roller chain |
| Feed stroke | 4150 mm |
| Travelling speed | 0-4 km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 440 mm |
| Tilt angle of beam | down 135°, up 50°, total 185° |
| Swing angle of beam | left 50°, right 50°, total 100° |
| Pitch angle of drill boom | down 50°, up 25°, total 75° |
| Swing angle of drill boom | left 45°, right 45°, total 90° |
| Leveling angle of track | ±10° |
| Compensation length of beam | 900 mm |
Engine & drive
| Supporting power | Yuchai YC4DK100-T304, 73.5 kW / 2200 r/min |
| DTH hammer | 4 in |
| Drilling rod | Φ76 x 3 m or Φ89 x 3 m |
| Air consumption | 15-22 m³/min |
| Maximum height of horizontal hole | 3500 mm |
| Minimum height of horizontal hole | 350 mm |
Applications
- Open-pit mining
- Bench blasting
- Production drilling
Recommended packages
Air compressor match
This rig draws 15-22 m³/min at the hammer. Pair it with a KSCY-650/20-700/17T (18-19 m³/min dual-mode 2.0/1.7 MPa) or the next class up, keeping 10-15% flow margin.
DTH hammer & bits
K5/K50 class hammers (135-165 mm) suit the Φ105-152 mm range of this model — confirm the hammer pressure rating against your compressor before ordering.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KG520?
Open-pit mining, Bench blasting, Production drilling.
Which air compressor pairs with the KG520?
This rig draws 15-22 m³/min at the hammer. Pair it with a KSCY-650/20-700/17T (18-19 m³/min dual-mode 2.0/1.7 MPa) or the next class up, keeping 10-15% flow margin.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
