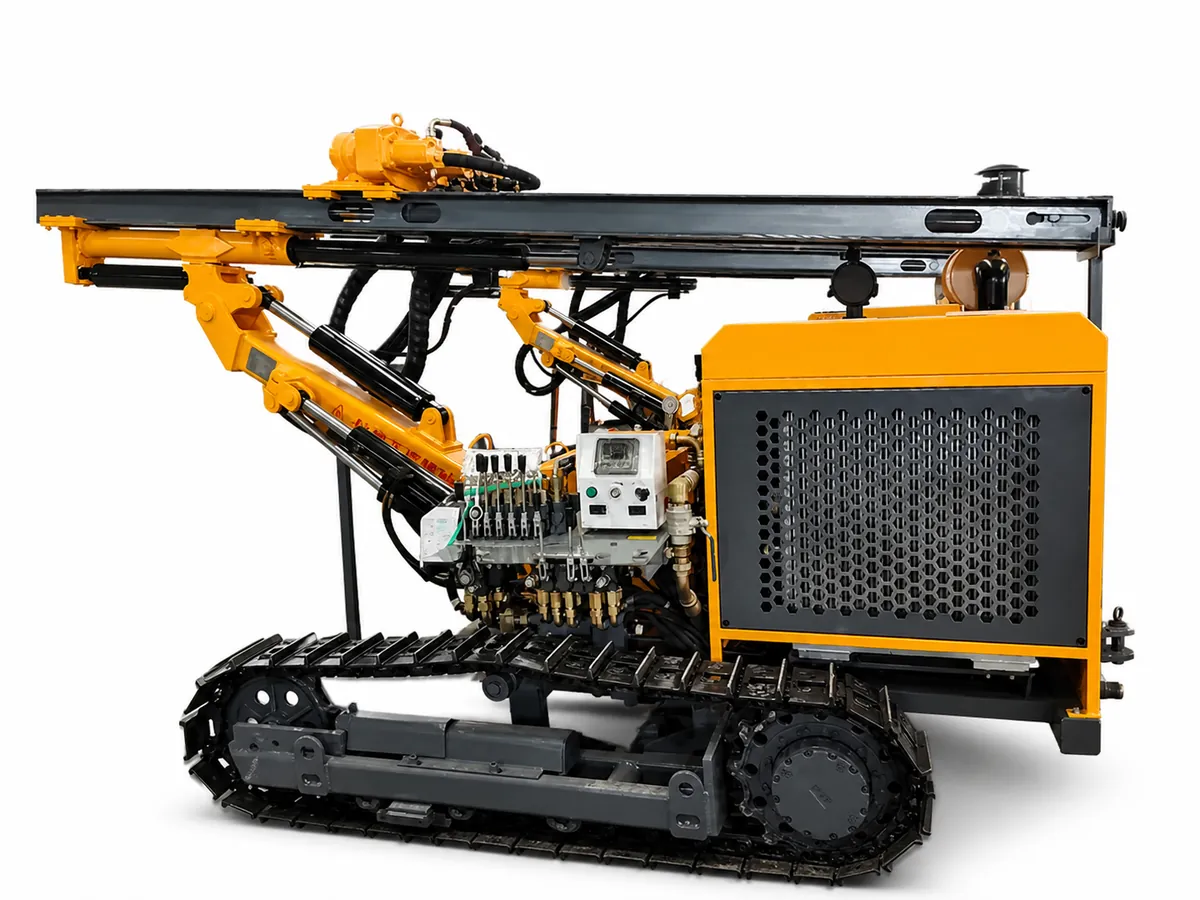

Kaishan Surface Drilling Rigs/Mid-size Crawler DTH Drill Rig Series
KG726HIII
The KG726III/KG726HIII surface DTH drilling rig is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine, the drill rig meets national standards for emissions and environment. The plunger-piston tramming motor and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved, thereby providing increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient. The KG726HIII surface DTH drilling rig is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Model of drill rig
KG726HIII
Dimensions & weight — Weight of complete machine
4400 kg
Dimensions & weight — Overall dimensions (L × W × H)
5600 x 2600 x 2300 mm
Drilling capability — Drilling hardness
f = 6-20
Overview
The KG726III/KG726HIII surface DTH drilling rig is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine, the drill rig meets national standards for emissions and environment. The plunger-piston tramming motor and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved, thereby providing increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient. The KG726HIII surface DTH drilling rig is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Key highlights
- ✓Yuchai engine meeting national emission and environmental standards.
- ✓Plunger-piston tramming motor and four-wheel drive improve working pressure and climbing capacity.
- ✓Expanded pitch and lifting-arm hydraulic cylinder meet limiting-position requirements.
- ✓Improved hydraulic system provides increased system flow and rotary speed.
- ✓Optimized hydraulic cylinder is more reliable.
- ✓Guide rail installed in an inclined way makes operation and observation easier.
- ✓Thickened profile housing with an additional lifting ring eases handling and lifting.
- ✓Dust-collector version KG726HIII adds a dust collector for more environment-friendly and reliable operation.
Applications: Surface down-the-hole (DTH) drilling of holes from Φ90 mm to 115 mm. · Rock of hardness f = 6-20, at an economical drilling depth of 25 m. · Sites that pair the rig with a portable air compressor: selection depends on hole diameter and air-hose length, and the catalog recommends KSCY425-10, KSCY180-15.5 and LGCY17/18-18/15T.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Model of drill rig | KG726HIII |
Dimensions & weight
| Weight of complete machine | 4400 kg |
| Overall dimensions (L × W × H) | 5600 x 2600 x 2300 mm |
Drilling capability
| Drilling hardness | f = 6-20 |
| Drilling diameter | Φ90-115 mm |
| Depth of economical drilling | 25 m |
| Rotary speed | 0-120 rpm |
| Rotary torque (max) | 2000 N·m |
| Lifting force | 18 kN |
| Method of feed | Cylinder and leaf chain |
| Feed stroke | 3780 mm |
| Travelling speed | 0-2.5 km/h |
| Climbing capacity | ≤30° |
| Ground clearance | 350 mm |
| Tilt angle of beam | down 135°, up 50°, total 185° |
| Swing angle of beam | left 100°, right 45°, total 145° |
| Pitch angle of drill boom | down 50°, up 25°, total 75° |
| Swing angle of drill boom | left 44°, right 45°, total 89° |
| Compensation length of beam | 900 mm |
Engine & drive
| Supporting power | Yuchai YCD4R23T8-80, 59 kW / 2400 r/min |
| DTH hammer | 3 in |
| Drilling rod | Φ64 x 3 m |
| Air consumption | 10-17 m³/min |
| Maximum height of horizontal hole | 2750 mm |
| Minimum height of horizontal hole | 350 mm |
| Dust collector (standard configuration) | QZA-90, 8 filter elements |
| Dust collector (alternative configuration) | QZA-120, 12 filter elements |
