Kaishan Surface Drilling Rigs/Mid-size Crawler DTH Drill Rig Series
KG520H

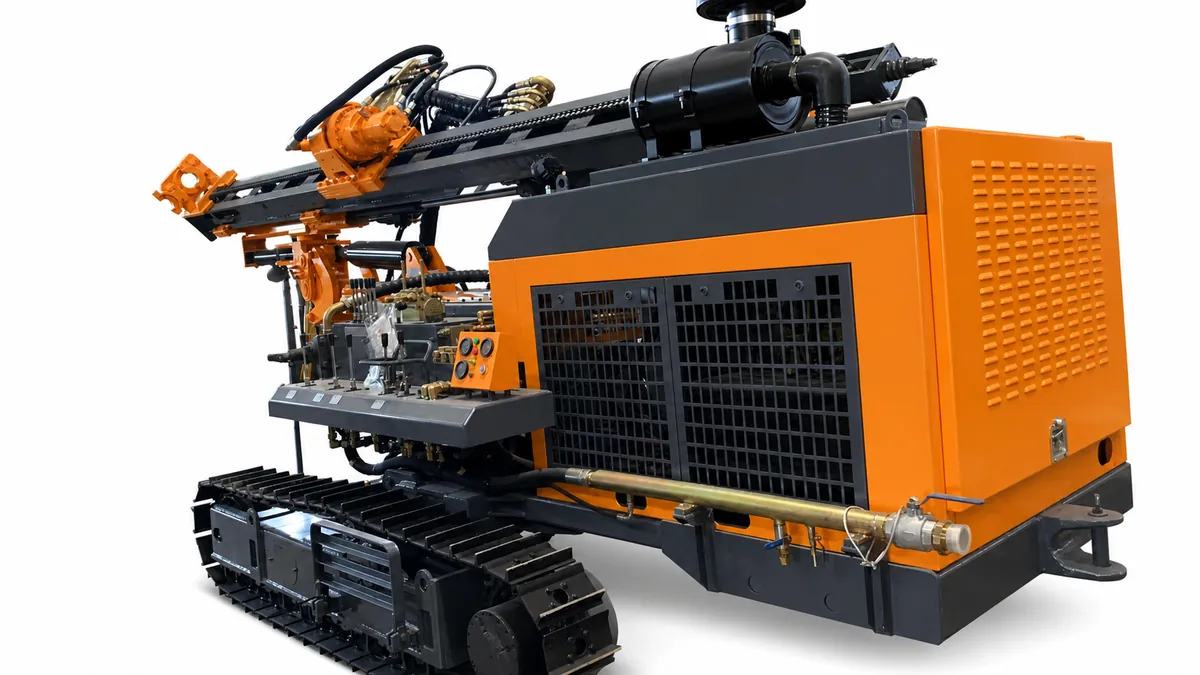

The KG520H surface DTH drilling rig is a medium split-type drill rig of the Kaishan KG series with dust collector, with a drilling diameter of Φ105-152mm, economical drilling depth of 25m, powered by a Yuchai YC4DK100-T304 engine (73.5kW/2200r/min), with a total weight of 7000kg.
Hole diameter
Φ105-152 mm
Drilling depth
25 m
Weight
7000 kg
Overview
The KG520H surface DTH drilling rig is a medium split-type drill rig of the Kaishan KG series with dust collector, with a drilling diameter of Φ105-152mm, economical drilling depth of 25m, powered by a Yuchai YC4DK100-T304 engine (73.5kW/2200r/min), with a total weight of 7000kg.
Key highlights
- ✓Drilling diameter Φ105-152mm, economical drilling depth 25m, horizontal hole height from 350mm up to 3500mm
- ✓Standard dust collector for cleaner and more reliable operation
- ✓Yuchai YC4DK100-T304 engine (73.5kW/2200r/min), compliant with non-road emission requirements
- ✓Max rotary torque 4000N·m, rotation speed 0-100rpm, lifting force 25kN
- ✓4" DTH hammer, compatible with Φ76 or Φ89×3m drill rods, air consumption 15-22m³/min
Applications: Open-pit mining sites around urban areas or with strict environmental requirements, as well as blast hole drilling in medium mines and quarries.
Genuine Kaishan equipment supplied through our authorized distribution channel, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Rock hardness | f=6-20 |
| Hole diameter (mm) | Φ105-152 |
| Drilling depth (m) | 25 |
| Feed length (mm) | 4150 |
| Max horizontal hole height (mm) | 3500 |
| Min horizontal hole height (mm) | 350 |
Dimensions & weight
| Weight (kg) | 7000 |
| Dimensions (mm) | 6800×2350×2850 |
Drive & handling
| Rotary speed | 0-100 rpm |
| Max rotary torque | 4000 N·m |
| Lifting force | 25 kN |
| Track leveling angle | ±10° |
| Mast compensation length (mm) | 900 |
Tooling & air
| DTH hammer | 4" |
| Air consumption | 15-22 m³/min |
Performance & mobility
| Travel speed | 0-4 km/h |
| Gradeability | ≤30° |
| Ground clearance (mm) | 440 |
Applications
- Open-pit mining
- Bench blasting
- Production drilling
Recommended packages
Air compressor match
This rig draws 15-22 m³/min at the hammer. Pair it with a KSCY-650/20-700/17T (18-19 m³/min dual-mode 2.0/1.7 MPa) or the next class up, keeping 10-15% flow margin.
DTH hammer & bits
K5/K50 class hammers (135-165 mm) suit the Φ105-152 mm range of this model — confirm the hammer pressure rating against your compressor before ordering.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KG520H?
Open-pit mining, Bench blasting, Production drilling.
Which air compressor pairs with the KG520H?
This rig draws 15-22 m³/min at the hammer. Pair it with a KSCY-650/20-700/17T (18-19 m³/min dual-mode 2.0/1.7 MPa) or the next class up, keeping 10-15% flow margin.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
