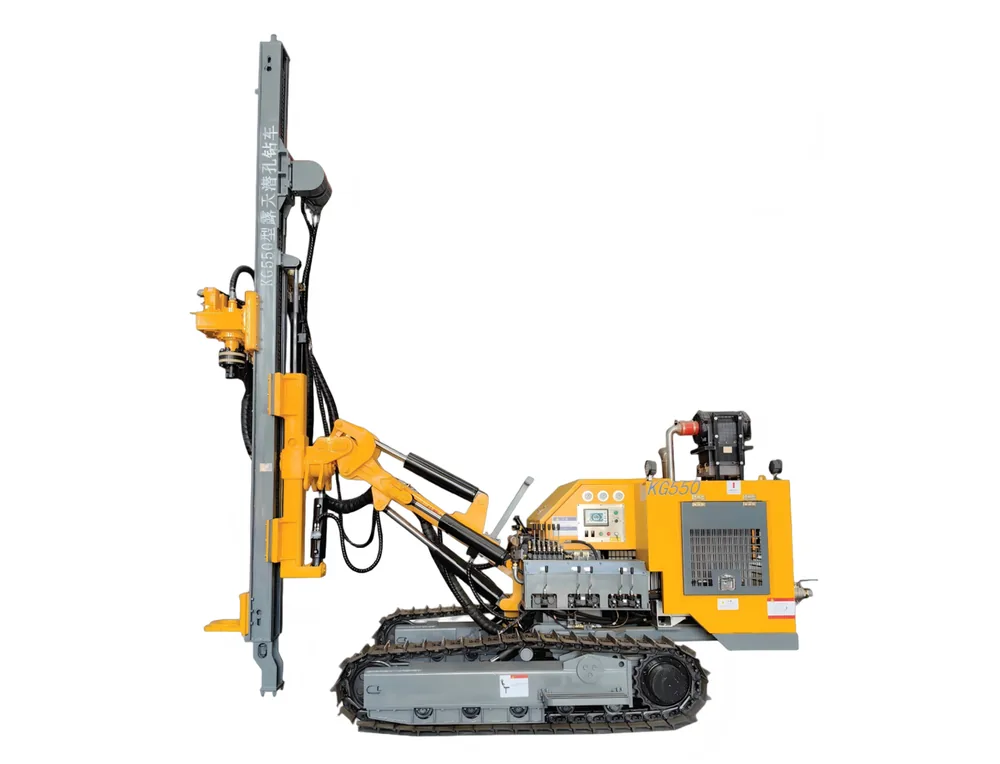

KG550
KG550 is a Surface DTH Drilling Rig. Published specifications include air consumption 15-35 m³/min; drive power Yuchai DKC2G3 (73.5 kW/2200 rpm); hole diameter φ115-254 mm; weight 6200 kg; dimensions 6500×2350×2400 mm. The rig combines an integrated operating controller, track levelling, a dual-motor rotary head and a roller-chain feed system. Wear-resistant slide components and multiple access doors support servicing.
Model
KG550
Tooling & air — Air consumption
15-35 m³/min
Tooling & air — Lifting force
20 kN
Tooling & air — Max. rotary torque
4000 N·m
Overview
KG550 is a Surface DTH Drilling Rig. Published specifications include air consumption 15-35 m³/min; drive power Yuchai DKC2G3 (73.5 kW/2200 rpm); hole diameter φ115-254 mm; weight 6200 kg; dimensions 6500×2350×2400 mm. The rig combines an integrated operating controller, track levelling, a dual-motor rotary head and a roller-chain feed system. Wear-resistant slide components and multiple access doors support servicing.
Key highlights
- ✓Integrated controller monitors operating parameters in real time.
- ✓Track levelling and reinforced piston travel motors support tramming and climbing.
- ✓A dual-motor rotary head and motor-driven roller-chain feed form the drilling system; the chain designation remains subject to configuration confirmation.
- ✓Wear-resistant slide strips and upgraded cast-iron hydraulic gear pumps support the working mechanism.
- ✓Optimised component layout and multiple access doors provide maintenance access.
Applications: Drilling for large-diameter photovoltaic foundation piles. · Blast-hole work in open-pit mining, hydropower, road and tunnel construction.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Model | KG550 |
Tooling & air
| Air consumption | 15-35 m³/min |
| Lifting force | 20 kN |
| Max. rotary torque | 4000 N·m |
| Rotation speed | 0-110 rpm |
Other specifications
| Feed length | 3820 mm |
| Hole diameter | φ115-254 mm |
| Rock hardness | f=6-20 |
| Engine model | Yuchai DKC2G3 |
| Engine power | 73.5 kW |
| Engine speed | 2200 rpm |
| Boom pitch angle | Down 50° / up 25° (75° total) |
| Boom swing angle | Left 26° / right 24.5° (50.5° total) |
| Mast compensation length | 900 mm |
| Mast pitch angle | Down 135° / up 50° (185° total) |
| Mast swing angle | Left 45° / right 45° (90° total) |
Performance & mobility
| Gradeability | ≤30° |
| Track leveling angle | ±10° |
| Tramming speed | 0-3 km/h |
Dimensions & weight
| Ground clearance | 325 mm |
| Overall height | 2400 mm |
| Overall length | 6500 mm |
| Overall width | 2350 mm |
| Weight | 6200 kg |
Other specifications
| Drill pipe diameter | φ76/φ89/φ102 |
| DTH hammer | K4, K5, K6, K8 |
| Dust collector option 1 filter count | 16 |
| Dust collector option 1 model | QZA-140 |
| Dust collector option 2 filter count | 20 |
| Dust collector option 2 model | QZA-160 |
| Feed method | Motor + 24A roller chain |
Applications
- Open-pit mining
- Bench blasting
- Production drilling
Recommended packages
Air compressor match
KG550 air demand runs 15-35 m³/min depending on hammer — pair with a KSCY unit matched to the hammer you run (K4, K5, K6 or K8), with working pressure covering the hammer rating.
DTH hammer & bits
Supports K4, K5, K6 and K8 DTH hammers with φ76/φ89/φ102 drill rods — choose the hammer class by hole diameter, then match the compressor flow to it.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KG550?
Open-pit mining, Bench blasting, Production drilling.
Which air compressor pairs with the KG550?
KG550 air demand runs 15-35 m³/min depending on hammer — pair with a KSCY unit matched to the hammer you run (K4, K5, K6 or K8), with working pressure covering the hammer rating.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
