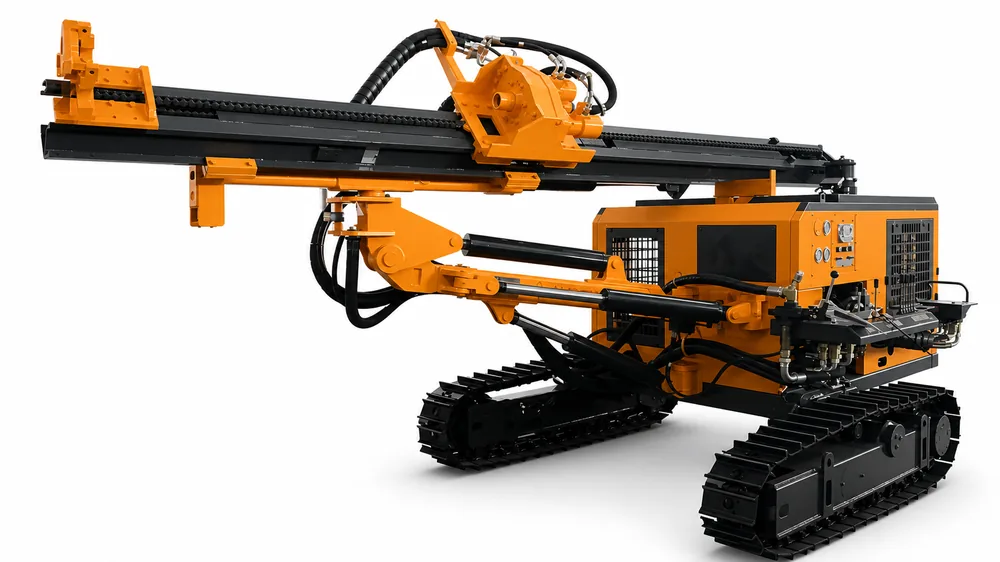

KG430H
The KG430H surface DTH drilling rig is a medium split-type drill rig of the Kaishan KG series with dust collector, with a drilling diameter of Φ90-152mm, economical drilling depth of 25m, powered by a Yuchai YC4DK100-T304 engine (73kW/2200r/min), with a total weight of 5700kg.
Hole diameter
Φ90-152 mm
Drilling depth
25 m
Weight
5700 kg
Overview
The KG430H surface DTH drilling rig is a medium split-type drill rig of the Kaishan KG series with dust collector, with a drilling diameter of Φ90-152mm, economical drilling depth of 25m, powered by a Yuchai YC4DK100-T304 engine (73kW/2200r/min), with a total weight of 5700kg.
Key highlights
- ✓Drilling diameter Φ90-152mm, economical drilling depth 25m, horizontal hole coverage from 350mm to 2850mm
- ✓Standard QZA-120 dust collector (12 filter cartridges) for cleaner and more reliable operation
- ✓Yuchai YC4DK100-T304 engine (73kW/2200r/min), compliant with non-road emission requirements
- ✓Max rotary torque 5000N·m, rotation speed 0-90rpm, lifting force 40kN
- ✓4" DTH hammer with Φ76×2m + Φ76×3m drill rods, air consumption 13-20m³/min
Applications: Open-pit mining sites around urban areas or with strict environmental requirements, as well as blast hole drilling in medium mines and quarries.
Genuine Kaishan equipment supplied through our authorized distribution channel, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Rock hardness | f=6-20 |
| Hole diameter (mm) | Φ90-152 |
| Drilling depth (m) | 25 |
| Feed length (mm) | 3175 |
| Max horizontal hole height (mm) | 2850 |
| Min horizontal hole height (mm) | 350 |
Dimensions & weight
| Weight (kg) | 5700 |
| Dimensions (mm) | 6300×2400×2700 |
Drive & handling
| Rotary speed | 0-90 rpm |
| Max rotary torque | 5000 N·m |
| Lifting force | 40 kN |
| Track leveling angle | ±10° |
| Mast compensation length (mm) | 970 |
Tooling & air
| DTH hammer | 4" |
| Drill rod | Φ76×2 m + Φ76×3 m |
| Air consumption | 13-20 m³/min |
Performance & mobility
| Travel speed | 0-2.5 km/h |
| Gradeability | ≤30° |
| Ground clearance (mm) | 290 |
Applications
- Open-pit mining
- Bench blasting
- Production drilling
Recommended packages
Air compressor match
This rig draws 10-17 m³/min at the hammer (3" or 4"). The standard pairing is a KSCY mobile compressor in the 18-21 m³/min class — e.g. KSCY-310/22 (21 m³/min @ 2.2 MPa) or KSCY-650/20-700/17T (18-19 m³/min dual-mode).
DTH hammer & bits
3" and 4" DTH hammers cover the Φ90-130 mm range — K3/K30C class for 90-105 mm holes, moving up a size for 130 mm holes. Matching button bits order as a set.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KG430H?
Open-pit mining, Bench blasting, Production drilling.
Which air compressor pairs with the KG430H?
This rig draws 10-17 m³/min at the hammer (3" or 4"). The standard pairing is a KSCY mobile compressor in the 18-21 m³/min class — e.g. KSCY-310/22 (21 m³/min @ 2.2 MPa) or KSCY-650/20-700/17T (18-19 m³/min dual-mode).
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
