Truck-Mounted Drilling Rigs/Mechanical Power Head Drilling Rigs
TEC-450J

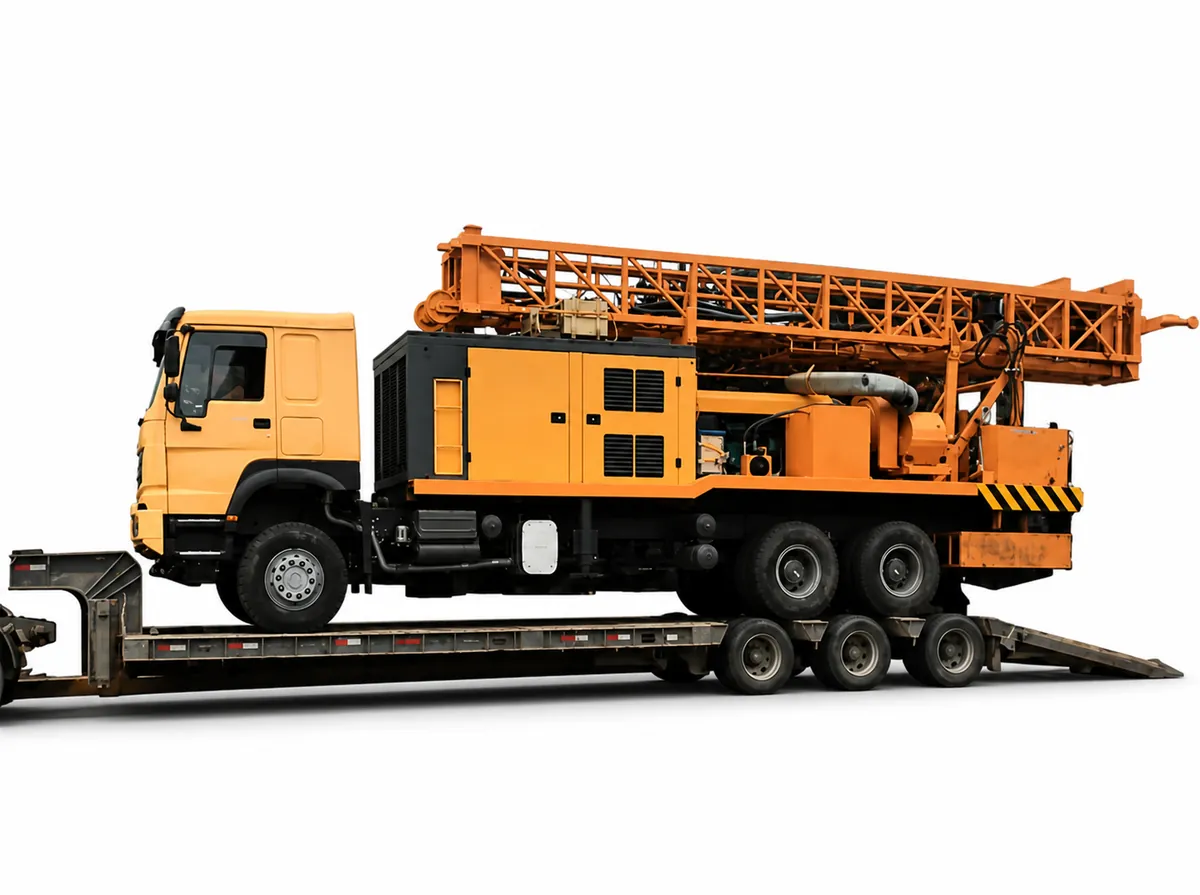

The TEC-450J is a truck-mounted mechanical power head water well drilling rig with a drilling depth of 450–500 m and a hole diameter of 90–850 mm, a 70 t mast load at 9.8 m mast height, a power head with 29000–7500 N·m torque at 27–208 rpm, a Weichai 144 kW diesel engine, dual BW600/30 mud pumps (combined 1200 L/min at 3 MPa), a B-36EX1 foam pump (42 L/min at 4 MPa), an optional Howo/Sinotruk/Dongfeng 6×4 chassis and an operating weight of 18500 kg.
Drilling depth
450–500 m
Hole diameter
90–850 mm
Mast load capacity
70 t
Mast height
9.8 m
Overview
The TEC-450J is a truck-mounted mechanical power head water well drilling rig with a drilling depth of 450–500 m and a hole diameter of 90–850 mm, a 70 t mast load at 9.8 m mast height, a power head with 29000–7500 N·m torque at 27–208 rpm, a Weichai 144 kW diesel engine, dual BW600/30 mud pumps (combined 1200 L/min at 3 MPa), a B-36EX1 foam pump (42 L/min at 4 MPa), an optional Howo/Sinotruk/Dongfeng 6×4 chassis and an operating weight of 18500 kg.
Key highlights
- ✓70 t mast load at 9.8 m mast height.
- ✓Mechanical power head, 29000–7500 N·m torque at 27–208 rpm.
- ✓Weichai 144 kW diesel engine with dual BW600/30 mud pumps (combined 1200 L/min at 3 MPa).
- ✓B-36EX1 foam pump (42 L/min at 4 MPa) for foam drilling.
- ✓Chassis selectable from Howo, Sinotruk or Dongfeng 6×4.
Applications: Deep water wells to 450–500 m. · Geothermal wells and geological exploration. · Urban and rural water supply.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Drilling depth | 450–500 m |
| Hole diameter | 90–850 mm |
| Mast load capacity | 70 t |
| Mast height | 9.8 m |
| Power head torque | 29000–7500 N·m |
| Power head speed | 27–208 rpm |
| Engine | Weichai |
| Engine power | 144 kW |
| Mud pump | 2 × BW600/30 |
| Mud pump flow | 1200 (combined) L/min |
| Mud pump pressure | 3 MPa |
| Foam pump | B-36EX1 |
| Foam pump flow | 42 L/min |
| Foam pump pressure | 4 MPa |
| Truck chassis | Howo / Sinotruk / Dongfeng 6×4 (optional) |
Dimensions & weight
| Overall dimensions | 10500 × 2500 × 4150 mm |
| Operating weight | 18500 kg |
Applications
- Water well drilling
- Deep boreholes
- Foundation drilling
Recommended packages
Air compressor match
Mechanical power head rigs drill with mud circulation (e.g. TEC-600J runs a BW1100/6 mud pump). Match the pump to depth and hole diameter rather than an air package.
DTH hammer & bits
Mud rotary method — drill pipes and bits match the power head torque (up to 29 000 N·m on TEC-J series). DTH conversion available on request.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the TEC-450J?
Water well drilling, Deep boreholes, Foundation drilling.
Which air compressor pairs with the TEC-450J?
Mechanical power head rigs drill with mud circulation (e.g. TEC-600J runs a BW1100/6 mud pump). Match the pump to depth and hole diameter rather than an air package.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
