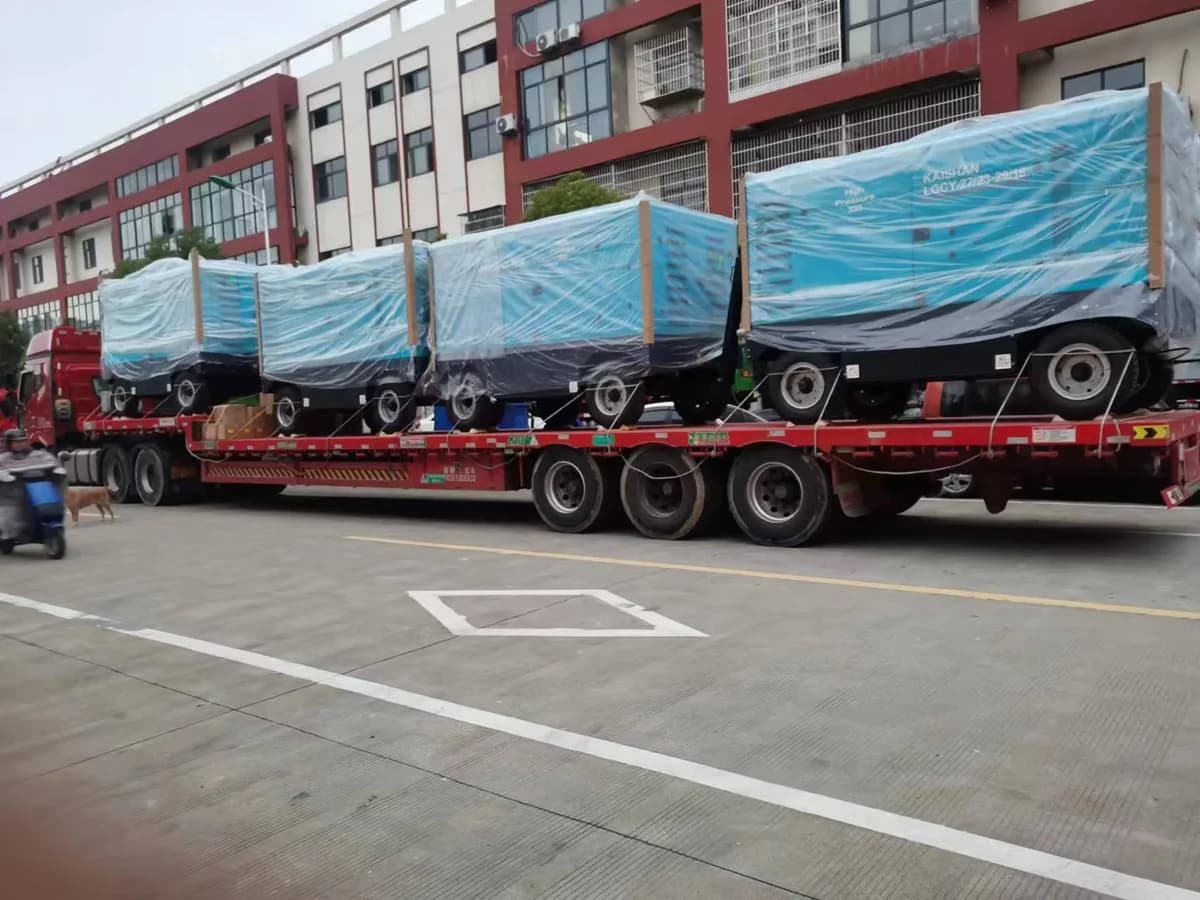

Kaishan Air Compressors/LGCY Diesel Mobile Air Compressor Series
LGCY-26/25
LGCY-26/25 is a LGCY High-Pressure Diesel Compressor Unit. Published specifications include discharge pressure 2.5 MPa; air delivery 26 m³/min; diesel engine Yuchai560HP; outlet G2x1,G3/4x1; weight 6800 kg; dimensions 4700x2160x2650 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Working pressure
2.5 MPa
Air delivery
26 m³/min
Engine
Yuchai 560 HP
Weight
6800 kg
Overview
LGCY-26/25 is a LGCY High-Pressure Diesel Compressor Unit. Published specifications include discharge pressure 2.5 MPa; air delivery 26 m³/min; diesel engine Yuchai560HP; outlet G2x1,G3/4x1; weight 6800 kg; dimensions 4700x2160x2650 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Genuine Kaishan equipment supplied through our authorized distribution channel, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Performance & capacity
| Discharge pressure (MPa) | 2.5 |
| Air delivery (m³/min) | 26 |
Engine & drive
| Engine power | Yuchai 560 HP |
Dimensions & weight
| Weight (kg) | 6800 |
| Dimensions (mm) | 4700x2160x2650 |
Other specifications
| Air outlet | G2x1,G3/4x1 |
Applications
- Water well drilling support
- Mining drilling
- Remote project sites
- Road construction
Recommended packages
What this unit powers
Portable off-grid air: LGCY covers 0.7-3.5 MPa and 5-45 m³/min — pick pressure by the hammer and flow by the rig's demand.
Pressure & flow matching rules
Match hammer pressure rating to the compressor's pressure band and add 10-15% flow margin.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the LGCY-26/25?
Water well drilling support, Mining drilling, Remote project sites, Road construction.
What drilling equipment does the LGCY-26/25 power?
This compressor supplies drilling air to DTH rigs and hammers — match the discharge pressure to the hammer rating and the air delivery to the hammer consumption plus 10-15% margin. Tell us your rig model and hammer size and we will confirm the pairing.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
