Kaishan Air Compressors/LGCY Diesel Mobile Air Compressor Series
SGCG-65/5WS

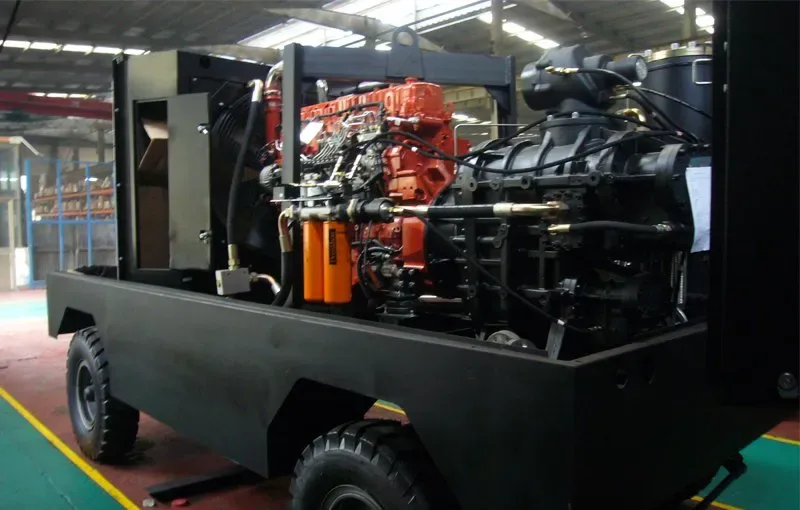

SGCG-65/5WS is a portable diesel screw air compressor from Kaishan's LGCG/SGCG single-stage compression series. It delivers 65.0 m³/min at a discharge pressure of 0.5 MPa, driven by a 600.0 HP Weichai engine, and weighs 8854 kg.
Model
SGCG-65/5WS
Tooling & air — Discharge pressure
0.5 MPa
Tooling & air — Air delivery
65.0 m³/min
Tooling & air — Supporting engine
Weichai 600 HP
Overview
SGCG-65/5WS is a portable diesel screw air compressor from Kaishan's LGCG/SGCG single-stage compression series. It delivers 65.0 m³/min at a discharge pressure of 0.5 MPa, driven by a 600.0 HP Weichai engine, and weighs 8854 kg.
Key highlights
- ✓SKY patented screw air end: proprietary rotor profile and heavy-duty design with SKY bearings, direct drive, energy-saving principle and innovative design.
- ✓Dedicated engine for strong power: matched with Yuchai, Cummins and other heavy-duty dedicated diesel engines, so the machine runs in its optimal combustion range across the whole operating envelope, giving higher reliability, stronger power and better fuel economy.
- ✓Multi-stage air filtration system: effectively prevents harmful dust particles in the environment from affecting the engine; the air path's precision filter element removes residual dust so the air end is not worn, and the safety core lets the machine keep filtering while the element is being serviced, ensuring safe operation.
- ✓High-efficiency cooling system: independent oil, water and air coolers with large-diameter fans, designed for cold and hot environments.
- ✓Three-stage oil-air separation system: reduces oil carryover from the air end, keeps the oil content of the delivered compressed air below 3 ppm, and clean compressed air benefits the safe operation of the equipment that uses it.
- ✓Low-temperature starting system (optional): a heater warms the engine coolant, and the heat exchanger warms the fuel in the tank so it can be pumped, burnt and supplied; the continuous heat transfer keeps coolant, engine oil and lubricating oil at working temperature, ensuring reliable starting in severe cold and high-altitude environments.
- ✓Remote start/stop, monitoring and positioning system (optional).
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Model | SGCG-65/5WS |
Tooling & air
| Discharge pressure | 0.5 MPa |
| Air delivery | 65.0 m³/min |
| Supporting engine | Weichai 600 HP |
| Discharge port | DN125 flange |
Dimensions & weight
| Weight | 8854 kg |
| Overall dimensions (L × W × H) | 4850 x 2200 x 2475 mm |
Applications
- Water well drilling support
- Mining drilling
- Remote project sites
- Road construction
Recommended packages
What this unit powers
Match a KSCY mobile air compressor to the hammer size and your hole plan — send us the hole diameter, depth and rock conditions and we confirm the exact pairing before quotation.
Pressure & flow matching rules
Match the DTH hammer class to your hole diameter (K3/K30C for 90-105 mm, K5/K50 for 135-165 mm, K8/K80 for 195-254 mm) — see the DTH hammer series page.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the SGCG-65/5WS?
Water well drilling support, Mining drilling, Remote project sites, Road construction.
What drilling equipment does the SGCG-65/5WS power?
This compressor supplies drilling air to DTH rigs and hammers — match the discharge pressure to the hammer rating and the air delivery to the hammer consumption plus 10-15% margin. Tell us your rig model and hammer size and we will confirm the pairing.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
