Truck-Mounted Drilling Rigs/Rotary Table Water Well Drilling Rigs

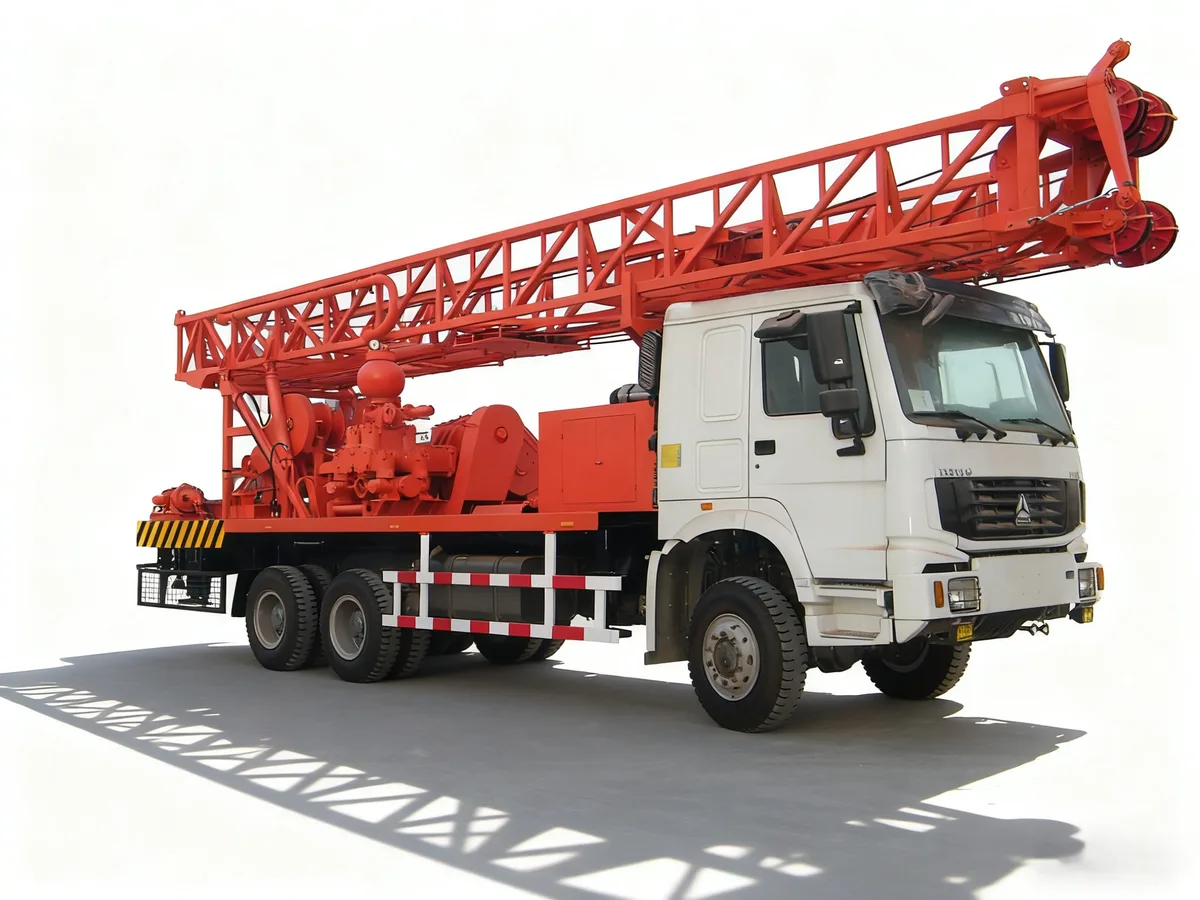

CZC-600
The CZC-600 is a truck-mounted rotary table water well drilling rig with a drilling depth of 600 m and a hole diameter of 50–2000 mm, a 50 t mast load capacity at 12 m or 15 m mast height, a 48 t hook load, a rotary-table torque of 17000 N·m at 0–236 rpm, a 144 kW diesel engine, an operating weight of 28000 kg, a mud pump delivering 1100 L/min at 5 MPa, and 6 m drill pipes.
Drilling capability — Drilling depth
600 m
Drilling capability — Hole diameter
50–2000 mm
Mast load capacity
50 t
Mast height
12 or 15 m
Overview
The CZC-600 is a truck-mounted rotary table water well drilling rig with a drilling depth of 600 m and a hole diameter of 50–2000 mm, a 50 t mast load capacity at 12 m or 15 m mast height, a 48 t hook load, a rotary-table torque of 17000 N·m at 0–236 rpm, a 144 kW diesel engine, an operating weight of 28000 kg, a mud pump delivering 1100 L/min at 5 MPa, and 6 m drill pipes.
Key highlights
- ✓50 t mast load at 12 m or 15 m mast height, 48 t hook load; 8 t reeving over 6 lines.
- ✓Rotary-table torque 17000 N·m at 0–236 rpm.
- ✓144 kW diesel engine with a mud pump flow of 1100 L/min at 5 MPa.
- ✓6×4 truck chassis; operating weight 28000 kg, 6 m drill pipe.
Applications: Deep water wells with a drilling depth of 600 m. · Geothermal wells. · Geological exploration. · Mine dewatering. · Engineering boreholes.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Drilling depth | 600 m |
| Hole diameter | 50–2000 mm |
Other specifications
| Mast load capacity | 50 t |
| Mast height | 12 or 15 m |
| Hook load | 48 t |
| Hook reeving | 8 t × 6 lines |
| Rotary table torque | 17000 N·m |
| Rotary table speed | 0–236 rpm |
| Engine power | 144 kW |
| Truck chassis | 6×4 |
| Mud pump | 1100 L/min at 5 MPa |
| Drill pipe length | 6 m |
Dimensions & weight
| Overall dimensions | 11500 × 2500 × 4300 mm |
| Operating weight | 28000 kg |
Applications
- Deep water wells
- Large-diameter boreholes
- Heavy drilling projects
Recommended packages
Air compressor match
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
DTH hammer & bits
Rotary table rigs use Kelly-bar drill strings, not DTH hammers. Add DTH tooling only for air-feed sections — our team confirms the conversion package.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the CZC-600?
Deep water wells, Large-diameter boreholes, Heavy drilling projects.
Which air compressor pairs with the CZC-600?
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
