Truck-Mounted Drilling Rigs/Rotary Table Water Well Drilling Rigs

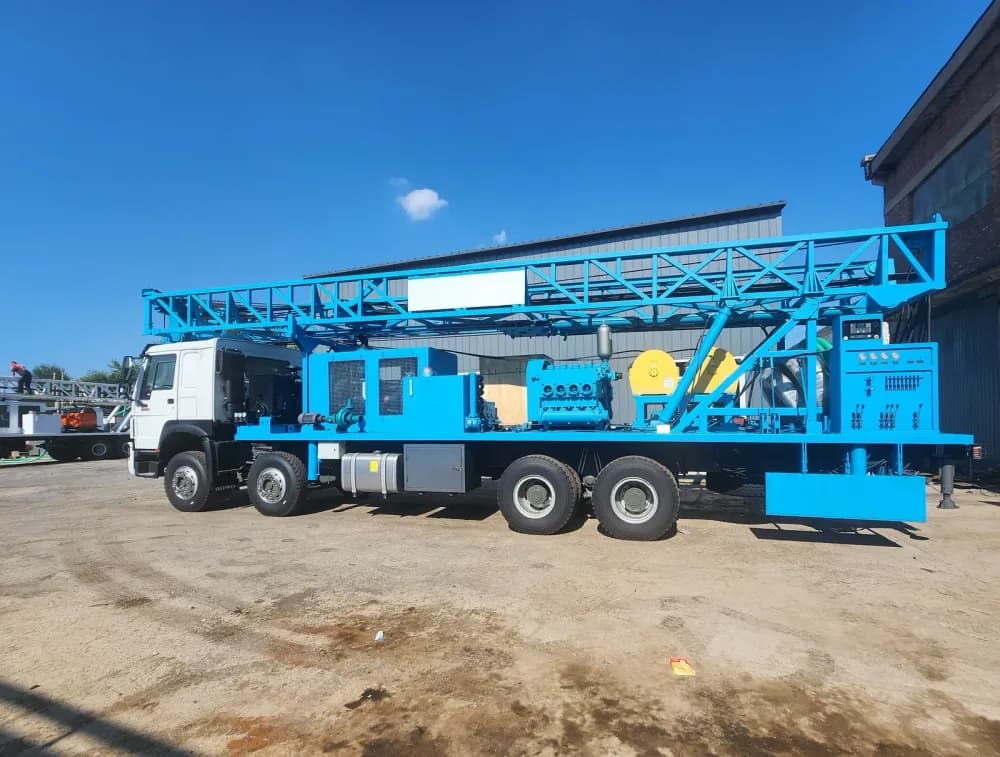

TZT-1000
The TZT-1000 is a truck-mounted (or trailer-mounted) rotary table drilling rig with a drilling depth of 1000 m and a hole diameter of 90–1800 mm, an 80 t mast load at 15 m mast height, a 9 t single-rope main hoist with 54 t hook load, a CT-1 rotary table with 32500–3500 N·m torque at 27–208 rpm, a Weichai 320 kW diesel engine, a BW1200/10 mud pump (1200 L/min at 10 MPa), a 7DS-100 gearbox, a STC-30KW alternator and an operating weight of 23500 kg.
Drilling depth
1000 m
Hole diameter
90–1800 mm
Mast load capacity
80 t
Mast height
15 m
Overview
The TZT-1000 is a truck-mounted (or trailer-mounted) rotary table drilling rig with a drilling depth of 1000 m and a hole diameter of 90–1800 mm, an 80 t mast load at 15 m mast height, a 9 t single-rope main hoist with 54 t hook load, a CT-1 rotary table with 32500–3500 N·m torque at 27–208 rpm, a Weichai 320 kW diesel engine, a BW1200/10 mud pump (1200 L/min at 10 MPa), a 7DS-100 gearbox, a STC-30KW alternator and an operating weight of 23500 kg.
Key highlights
- ✓80 t mast load at 15 m mast height with a 54 t hook load on a 9 t single-rope main hoist.
- ✓CT-1 rotary table with 32500–3500 N·m torque at 27–208 rpm.
- ✓Weichai 320 kW diesel engine with a BW1200/10 mud pump (1200 L/min at 10 MPa).
- ✓7DS-100 gearbox and STC-30KW alternator.
- ✓Chassis selectable as SinoTruck/Dongfeng 6×4 or trailer.
Applications: Deep water wells to 1000 m. · Geothermal wells and geological exploration. · Large-scale water supply projects.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Drilling depth | 1000 m |
| Hole diameter | 90–1800 mm |
| Mast load capacity | 80 t |
| Mast height | 15 m |
| Main hoist single-rope pull | 9 t |
| Hook load | 54 t |
| Rotary table | CT-1 |
| Rotary table torque | 32500–3500 N·m |
| Rotary table speed | 27–208 rpm |
| Gearbox | 7DS-100 |
| Engine | Weichai |
| Engine power | 320 kW |
| Mud pump | BW1200/10 |
| Mud pump flow | 1200 L/min |
| Mud pump pressure | 10 MPa |
| Alternator | STC-30KW, 30 kW |
| Chassis | SinoTruck or Dongfeng 6×4 truck, or trailer |
Dimensions & weight
| Overall dimensions | 15000 × 2500 × 4500 mm |
| Operating weight | 23500 kg |
Applications
- Deep water wells
- Large-diameter boreholes
- Heavy drilling projects
Recommended packages
Air compressor match
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
DTH hammer & bits
Rotary table rigs use Kelly-bar drill strings, not DTH hammers. Add DTH tooling only for air-feed sections — our team confirms the conversion package.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the TZT-1000?
Deep water wells, Large-diameter boreholes, Heavy drilling projects.
Which air compressor pairs with the TZT-1000?
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
