Truck-Mounted Drilling Rigs/Rotary Table Water Well Drilling Rigs

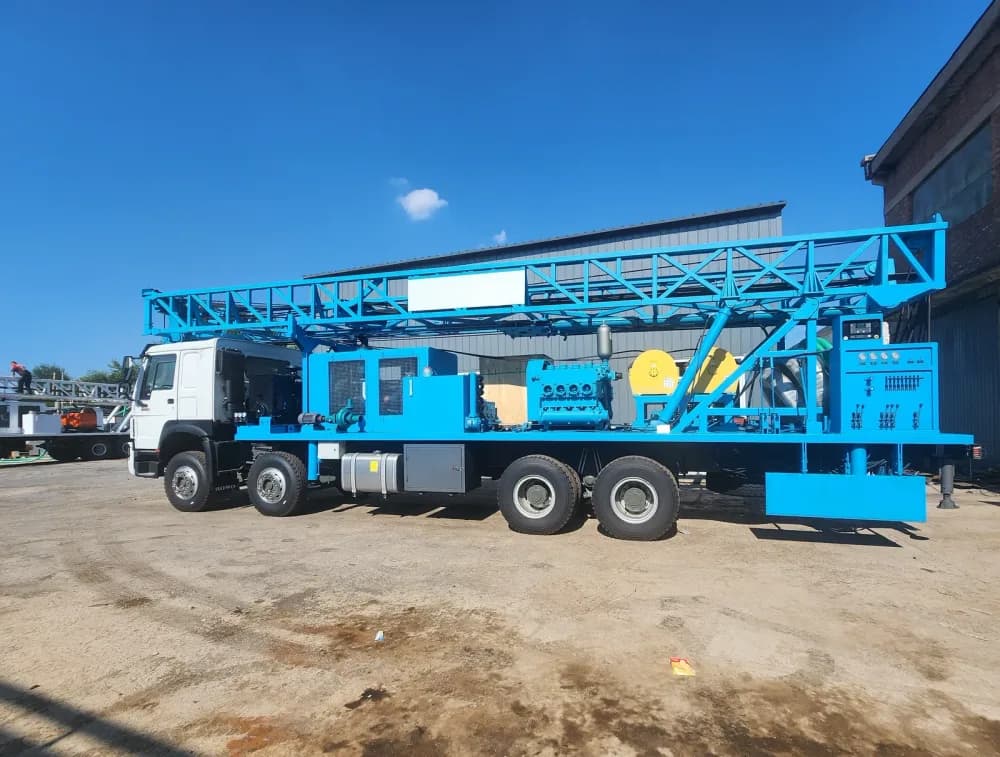

CZC-1500
The CZC-1500 is a truck-mounted rotary table water well drilling rig with a drilling depth of 1500 m and a hole diameter of 90–1800 mm, an 80 t mast load at 15 m mast height, a CT-1 rotary table with 36850–3589 N·m torque at 27–208 rpm, a Weichai 353 kW diesel engine, a BW1500 mud pump (1500 L/min at 12 MPa), a 12 t single-rope main hoist with 72 t hook load, a Sinotruk 8×4 chassis and an operating weight of 33500 kg.
Drilling depth
1500 m
Hole diameter
90–1800 mm
Mast load capacity
80 t
Mast height
15 m
Overview
The CZC-1500 is a truck-mounted rotary table water well drilling rig with a drilling depth of 1500 m and a hole diameter of 90–1800 mm, an 80 t mast load at 15 m mast height, a CT-1 rotary table with 36850–3589 N·m torque at 27–208 rpm, a Weichai 353 kW diesel engine, a BW1500 mud pump (1500 L/min at 12 MPa), a 12 t single-rope main hoist with 72 t hook load, a Sinotruk 8×4 chassis and an operating weight of 33500 kg.
Key highlights
- ✓80 t mast load at 15 m mast height with 72 t hook load on a 12 t single-rope main hoist.
- ✓CT-1 rotary table, 36850–3589 N·m torque at 27–208 rpm.
- ✓Weichai 353 kW diesel engine with a BW1500 mud pump at 1500 L/min and 12 MPa.
- ✓Sinotruk 8×4 truck chassis for deep-well site access.
Applications: Deep water wells to 1500 m. · Geothermal wells. · Geological exploration and large-scale water supply projects.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Drilling depth | 1500 m |
| Hole diameter | 90–1800 mm |
| Mast load capacity | 80 t |
| Mast height | 15 m |
| Main hoist single-rope pull | 12 t |
| Hook load | 72 t |
| Rotary table | CT-1 |
| Rotary table torque | 36850–3589 N·m |
| Rotary table speed | 27–208 rpm |
| Engine | Weichai |
| Engine power | 353 kW |
| Mud pump | BW1500 |
| Mud pump flow | 1500 L/min |
| Mud pump pressure | 12 MPa |
| Truck chassis | Sinotruk 8×4 |
Dimensions & weight
| Overall dimensions | 15000 × 2500 × 4500 mm |
| Operating weight | 33500 kg |
Applications
- Deep water wells
- Large-diameter boreholes
- Heavy drilling projects
Recommended packages
Air compressor match
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
DTH hammer & bits
Rotary table rigs use Kelly-bar drill strings, not DTH hammers. Add DTH tooling only for air-feed sections — our team confirms the conversion package.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the CZC-1500?
Deep water wells, Large-diameter boreholes, Heavy drilling projects.
Which air compressor pairs with the CZC-1500?
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
