Truck-Mounted Drilling Rigs/Rotary Table Water Well Drilling Rigs
CZC-450

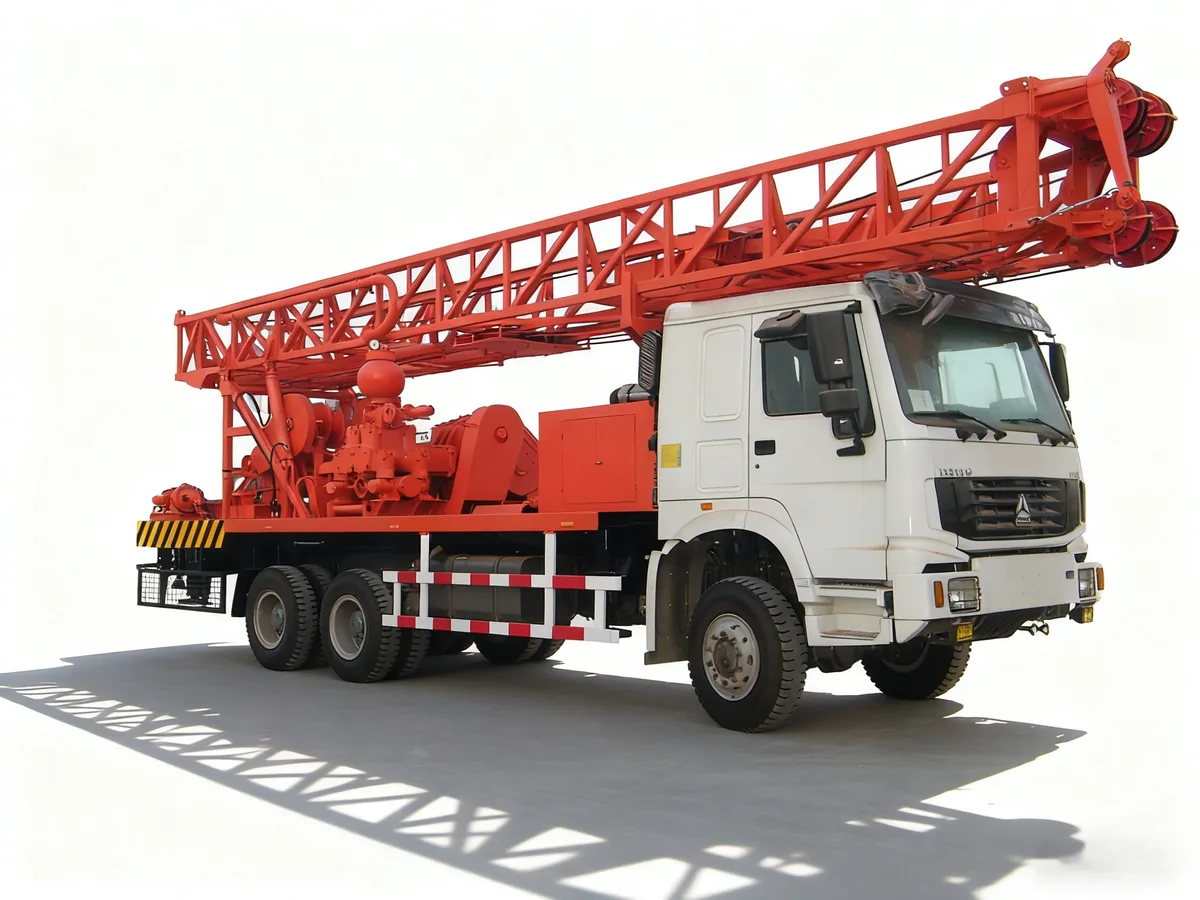

The CZC-450 is a truck- or trailer-mounted rotary table water well drilling rig with a drilling depth of 450 m and a hole diameter of 505 mm, a telescopic mast with a 17 m tower height and a 50 t mast load, a 33 t hook load, a 132 kW diesel engine, a BW850/5 mud pump, 6 m drill pipes and an operating weight of 29000 kg.
Drilling depth
450 m
Hole diameter
505 mm
Mast load capacity
50 t
Mast height
17 (telescopic) m
Overview
The CZC-450 is a truck- or trailer-mounted rotary table water well drilling rig with a drilling depth of 450 m and a hole diameter of 505 mm, a telescopic mast with a 17 m tower height and a 50 t mast load, a 33 t hook load, a 132 kW diesel engine, a BW850/5 mud pump, 6 m drill pipes and an operating weight of 29000 kg.
Key highlights
- ✓Telescopic mast with a 17 m tower height and a 50 t mast load, convenient for transport and rig-up.
- ✓CT-1 rotary table with 26–191 rpm (7 forward speeds and 1 reverse).
- ✓132 kW diesel engine with a BW850/5 mud pump.
- ✓33 t hook load with 6 m drill pipes.
- ✓Chassis selectable as a 6×4 truck or a trailer.
Applications: Deep water wells to 450 m. · Agricultural irrigation and urban and rural water supply. · Geological exploration.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Drilling depth | 450 m |
| Hole diameter | 505 mm |
| Mast load capacity | 50 t |
| Mast height | 17 (telescopic) m |
| Hook load | 33 t |
| Rotary table | CT-1 |
| Rotary table speed | 26–191 (7 forward, 1 reverse) rpm |
| Engine power | 132 kW |
| Mud pump | BW850/5 |
| Drill pipe length | 6 m |
| Chassis | 6×4 truck or trailer |
Dimensions & weight
| Overall dimensions | 15000 × 2500 × 4500 mm |
| Operating weight | 29000 kg |
Applications
- Deep water wells
- Large-diameter boreholes
- Heavy drilling projects
Recommended packages
Air compressor match
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
DTH hammer & bits
Rotary table rigs use Kelly-bar drill strings, not DTH hammers. Add DTH tooling only for air-feed sections — our team confirms the conversion package.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the CZC-450?
Deep water wells, Large-diameter boreholes, Heavy drilling projects.
Which air compressor pairs with the CZC-450?
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
