Truck-Mounted Drilling Rigs/Rotary Table Water Well Drilling Rigs
CZC-800

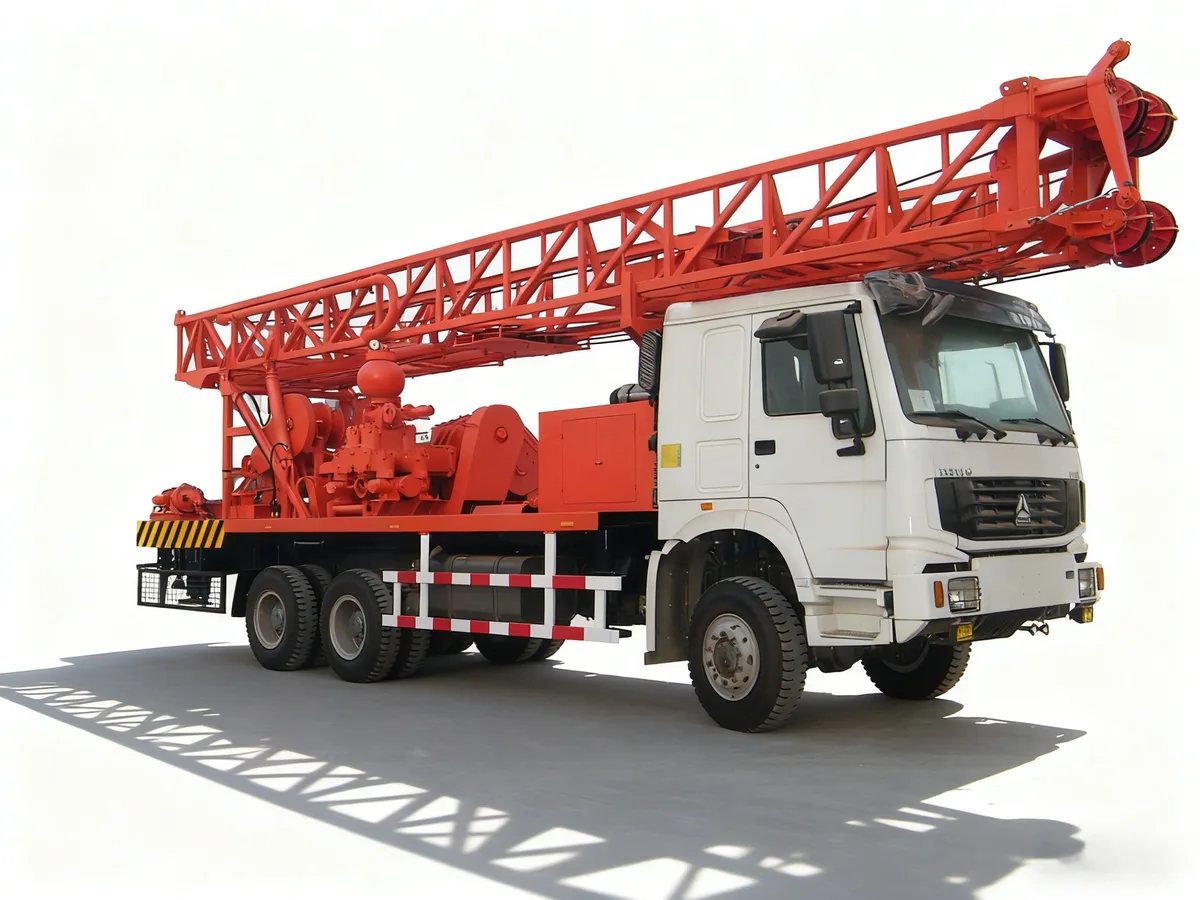

The CZC-800 is a truck-mounted rotary table water well drilling rig with a drilling depth of 800 m and a hole diameter of 90–2000 mm, a 60 t mast load at 11 m mast height, a 42 t hook load, a CT-1 rotary table with 35256–5361 N·m torque at 27–208 rpm, a 265 kW diesel engine, a mud pump rated 1200 L/min at 8 MPa, a SinoTruck 6×4 chassis and an operating weight of 32000 kg.
Drilling depth
800 m
Hole diameter
90–2000 mm
Mast load capacity
60 t
Mast height
11 m
Overview
The CZC-800 is a truck-mounted rotary table water well drilling rig with a drilling depth of 800 m and a hole diameter of 90–2000 mm, a 60 t mast load at 11 m mast height, a 42 t hook load, a CT-1 rotary table with 35256–5361 N·m torque at 27–208 rpm, a 265 kW diesel engine, a mud pump rated 1200 L/min at 8 MPa, a SinoTruck 6×4 chassis and an operating weight of 32000 kg.
Key highlights
- ✓60 t mast load at 11 m mast height with a 42 t hook load.
- ✓Wide 90–2000 mm hole diameter range for water wells and large-diameter jobs.
- ✓CT-1 rotary table, 35256–5361 N·m torque at 27–208 rpm (5 forward, 1 reverse).
- ✓265 kW diesel engine with a mud pump at 1200 L/min and 8 MPa.
- ✓SinoTruck 6×4 truck chassis.
Applications: Deep water wells to 800 m. · Large-diameter water wells and irrigation projects. · Geological exploration.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Drilling depth | 800 m |
| Hole diameter | 90–2000 mm |
| Mast load capacity | 60 t |
| Mast height | 11 m |
| Hook load | 42 t |
| Rotary table | CT-1 |
| Rotary table torque | 35256–5361 N·m |
| Rotary table speed | 27–208 (5 forward, 1 reverse) rpm |
| Engine power | 265 kW |
| Mud pump flow | 1200 L/min |
| Mud pump pressure | 8 MPa |
| Truck chassis | SinoTruck 6×4 |
Dimensions & weight
| Overall dimensions | 12000 × 2500 × 4500 mm |
| Operating weight | 32000 kg |
Applications
- Deep water wells
- Large-diameter boreholes
- Heavy drilling projects
Recommended packages
Air compressor match
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
DTH hammer & bits
Rotary table rigs use Kelly-bar drill strings, not DTH hammers. Add DTH tooling only for air-feed sections — our team confirms the conversion package.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the CZC-800?
Deep water wells, Large-diameter boreholes, Heavy drilling projects.
Which air compressor pairs with the CZC-800?
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
