Truck-Mounted Drilling Rigs/Rotary Table Water Well Drilling Rigs

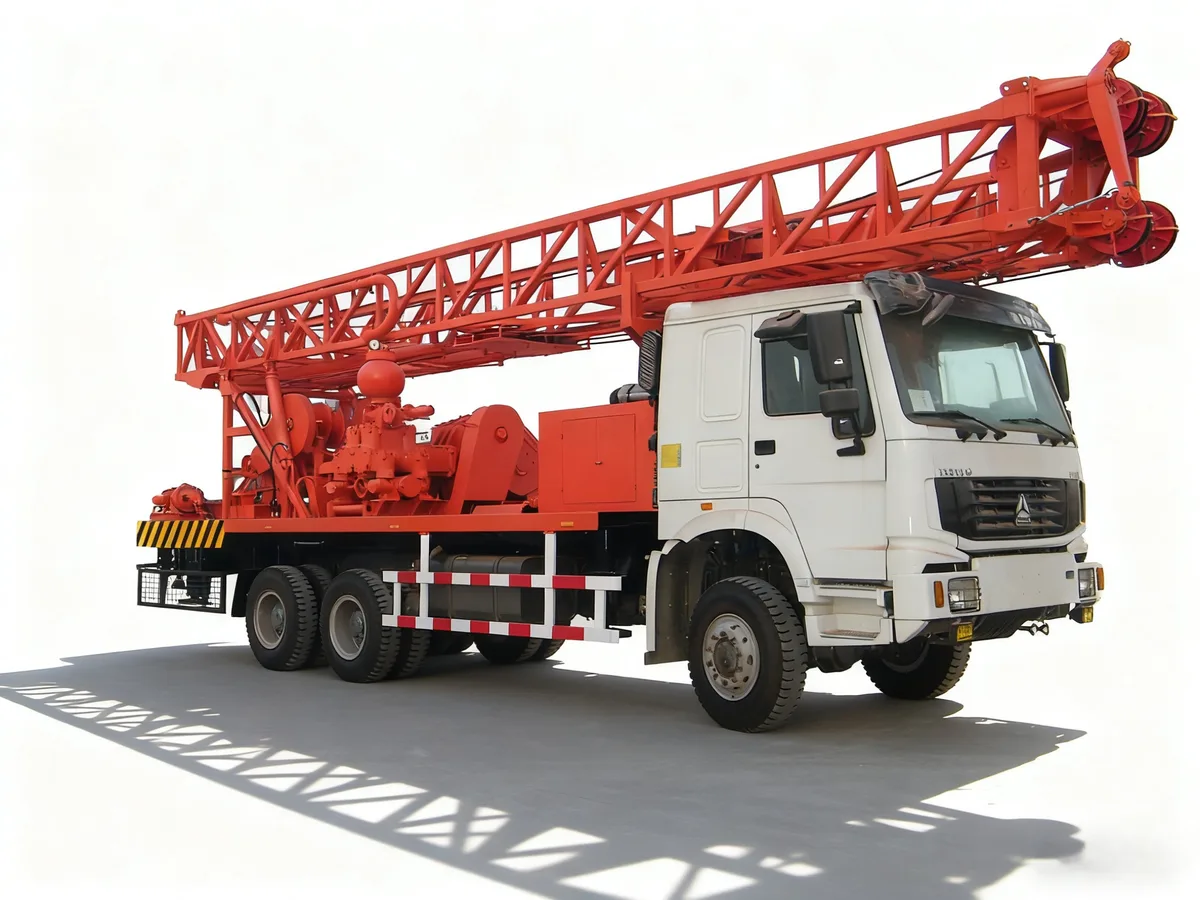

CZC-1200
The CZC-1200 is a truck-mounted rotary table water well drilling rig with a drilling depth of 1200–1500 m and a hole diameter of 50–2000 mm, a 60 t mast load capacity at 15 m mast height, a 60 t hook load, a rotary-table torque of 17000 N·m at 0–236 rpm, a 256 kW diesel engine, an operating weight of 32000 kg, and a mud pump delivering 1500 L/min at 12 MPa.
Drilling capability — Drilling depth
1200–1500 m
Drilling capability — Hole diameter
50–2000 mm
Mast load capacity
60 t
Mast height
15 m
Overview
The CZC-1200 is a truck-mounted rotary table water well drilling rig with a drilling depth of 1200–1500 m and a hole diameter of 50–2000 mm, a 60 t mast load capacity at 15 m mast height, a 60 t hook load, a rotary-table torque of 17000 N·m at 0–236 rpm, a 256 kW diesel engine, an operating weight of 32000 kg, and a mud pump delivering 1500 L/min at 12 MPa.
Key highlights
- ✓Heavy-duty truss-type mast: 60 t load, 15 m height, 60 t hook load; 10 t reeving over 6 lines.
- ✓Rotary-table torque 17000 N·m at 0–236 rpm.
- ✓256 kW diesel engine with a mud pump flow of 1500 L/min at 12 MPa.
- ✓Optional Sinotruk 6×4 or 8×4 truck chassis; operating weight 32000 kg.
Applications: Deep water wells with a drilling depth of 1200–1500 m. · Geothermal wells. · Geological exploration. · Large-scale water supply projects.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Drilling depth | 1200–1500 m |
| Hole diameter | 50–2000 mm |
Other specifications
| Mast load capacity | 60 t |
| Mast height | 15 m |
| Hook load | 60 t |
| Hook reeving | 10 t × 6 lines |
| Rotary table torque | 17000 N·m |
| Rotary table speed | 0–236 rpm |
| Engine power | 256 kW |
| Truck chassis | Sinotruk 6×4 or 8×4 |
| Mud pump | 1500 L/min at 12 MPa |
Dimensions & weight
| Overall dimensions | 14500 × 2500 × 4300 mm |
| Operating weight | 32000 kg |
Applications
- Deep water wells
- Large-diameter boreholes
- Heavy drilling projects
Recommended packages
Air compressor match
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
DTH hammer & bits
Rotary table rigs use Kelly-bar drill strings, not DTH hammers. Add DTH tooling only for air-feed sections — our team confirms the conversion package.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the CZC-1200?
Deep water wells, Large-diameter boreholes, Heavy drilling projects.
Which air compressor pairs with the CZC-1200?
Rotary table rigs drill with mud circulation — the mud pump is the key match (TZT-450 runs a BW600/30). Air is only needed if you add DTH tooling; confirm before ordering.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
