Truck-Mounted Drilling Rigs/Hydraulic Top Drive Drilling Rigs

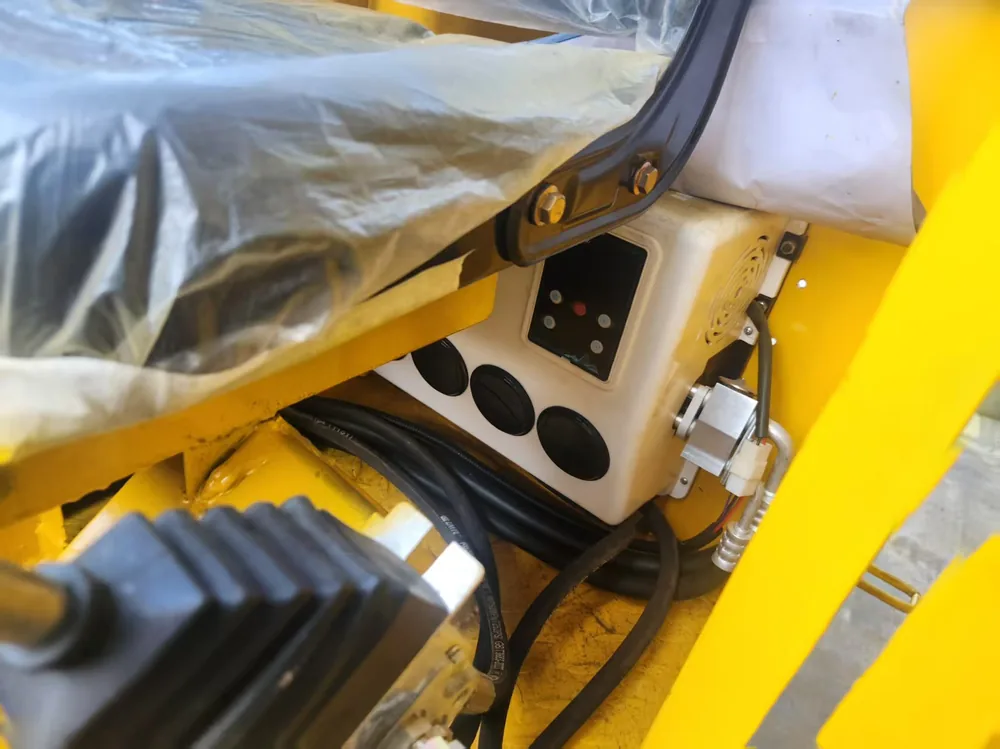

TEC-300K
The TEC-300K is a truck-mounted hydraulic top-drive water well drilling rig with a drilling depth of 300 m and a hole diameter of 400 mm, a 15 t mast load at 5 m mast height, pull-down 6 t and pull-up 20 t, a 13500 N·m power head at 0–90 rpm, a 132 kW diesel engine, an air compressor rated 18 m³/min at 1.8 MPa, a mud pump rated 450 L/min at 3 MPa, a crawler chassis and an operating weight of 13000 kg.
Drilling depth
300 m
Hole diameter
400 mm
Mast load capacity
15 t
Mast height
5 m
Overview
The TEC-300K is a truck-mounted hydraulic top-drive water well drilling rig with a drilling depth of 300 m and a hole diameter of 400 mm, a 15 t mast load at 5 m mast height, pull-down 6 t and pull-up 20 t, a 13500 N·m power head at 0–90 rpm, a 132 kW diesel engine, an air compressor rated 18 m³/min at 1.8 MPa, a mud pump rated 450 L/min at 3 MPa, a crawler chassis and an operating weight of 13000 kg.
Key highlights
- ✓15 t mast load at 5 m mast height, pull-down 6 t and pull-up 20 t.
- ✓Power-head torque 13500 N·m at 0–90 rpm.
- ✓132 kW diesel engine with an air compressor at 18 m³/min and 1.8 MPa for DTH hammer work.
- ✓Mud pump rated 450 L/min at 3 MPa.
- ✓Compact 7000 × 2300 × 3500 mm footprint at 13000 kg.
Applications: Water wells to 300 m. · Irrigation and village water supply. · DTH hammer drilling with a built-in air compressor.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Drilling depth | 300 m |
| Hole diameter | 400 mm |
| Mast load capacity | 15 t |
| Mast height | 5 m |
| Pull-down force | 6 t |
| Pull-up force | 20 t |
| Power head torque | 13500 N·m |
| Power head speed | 0–90 rpm |
| Engine power | 132 kW |
| Air compressor flow | 18 m³/min |
| Air compressor pressure | 1.8 MPa |
| Mud pump flow | 450 L/min |
| Mud pump pressure | 3 MPa |
| Chassis | Crawler |
Dimensions & weight
| Overall dimensions | 7000 × 2300 × 3500 mm |
| Operating weight | 13000 kg |
Applications
- Water well drilling
- DTH drilling
- Exploration
Recommended packages
Air compressor match
Hydraulic top drive rigs handle both mud circulation and DTH drilling. For DTH work, match a KSZJ/LGZJ compressor to the hammer pressure and flow.
DTH hammer & bits
For DTH work, match hammers to the hole diameter (up to 505 mm on the CDC-600K high-spec); mud work uses standard rotary bits.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the TEC-300K?
Water well drilling, DTH drilling, Exploration.
Which air compressor pairs with the TEC-300K?
Hydraulic top drive rigs handle both mud circulation and DTH drilling. For DTH work, match a KSZJ/LGZJ compressor to the hammer pressure and flow.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
