Truck-Mounted Drilling Rigs/Hydraulic Top Drive Drilling Rigs
CDC-600JYD

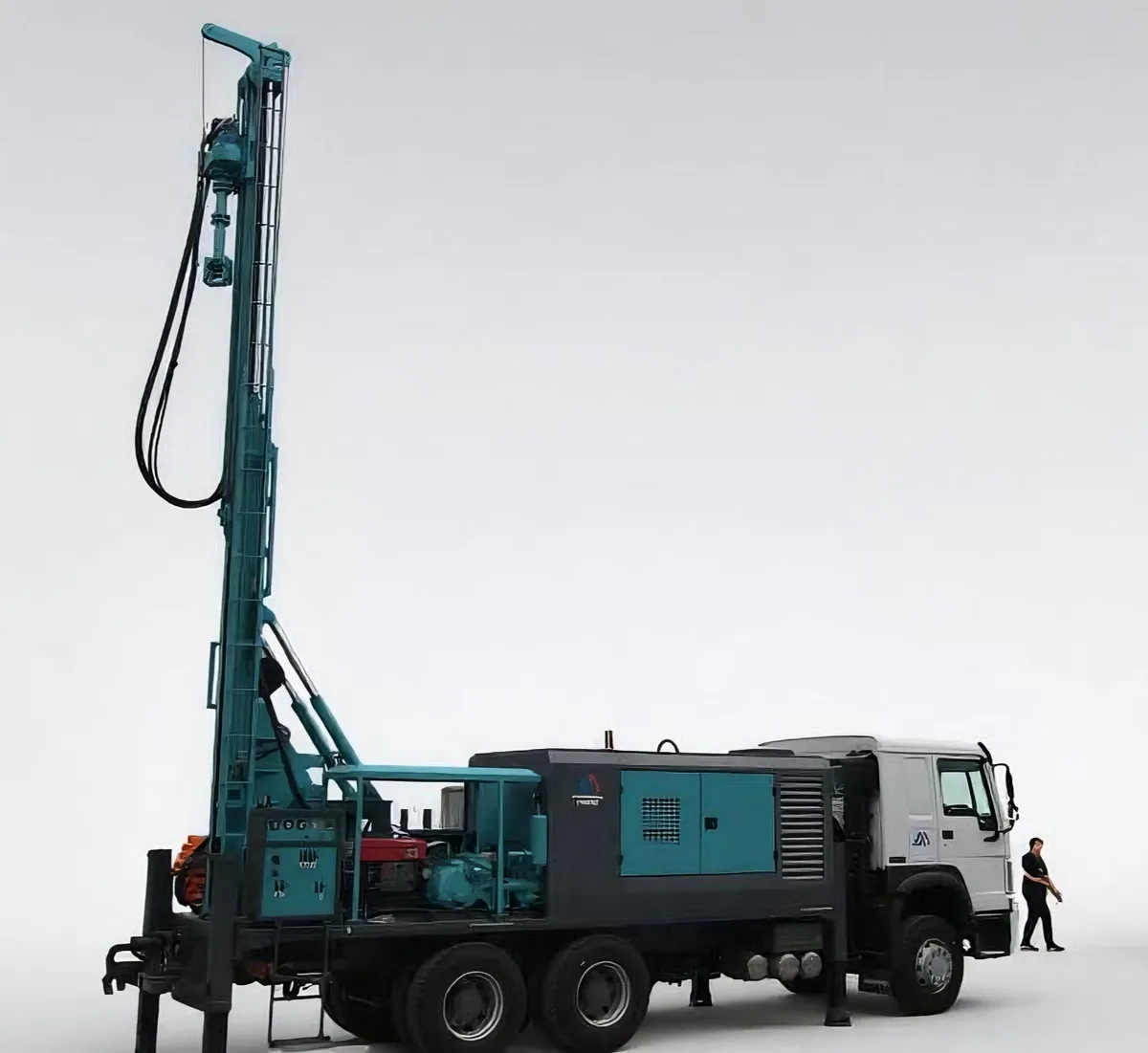

The CDC-600JYD is a truck-mounted hydraulic DTH (mud DTH hammer) water well drilling rig with a drilling depth of 600 m and a hole diameter of 100–1800 mm, a 50 t mast load capacity at 10 m mast height, a KYD-178 mud impactor (450 J at 7–20 Hz), dual BW1100/6 mud pumps with a combined flow of 2200 L/min at 6 MPa, a power-head torque of 32500–9234 N·m at 23–161 rpm, and an operating weight of 23500 kg.
Drilling capability — Drilling depth
600 m
Drilling capability — Hole diameter
100–1800 mm
Mast load capacity
50 t
Mast height
10 m
Overview
The CDC-600JYD is a truck-mounted hydraulic DTH (mud DTH hammer) water well drilling rig with a drilling depth of 600 m and a hole diameter of 100–1800 mm, a 50 t mast load capacity at 10 m mast height, a KYD-178 mud impactor (450 J at 7–20 Hz), dual BW1100/6 mud pumps with a combined flow of 2200 L/min at 6 MPa, a power-head torque of 32500–9234 N·m at 23–161 rpm, and an operating weight of 23500 kg.
Key highlights
- ✓Mud DTH hammer drilling with a KYD-178 impactor (450 J at 7–20 Hz) for efficient hard-rock drilling.
- ✓Dual BW1100/6 mud pumps, combined flow 2200 L/min at 6 MPa.
- ✓Power-head torque 32500–9234 N·m at 23–161 rpm.
- ✓152 kW diesel engine, pull-down 17 t and pull-up 35 t.
- ✓Sinotruk 6×4 400 HP chassis with an STC-30KW alternator; operating weight 23500 kg.
Applications: Deep water wells with a drilling depth of 600 m. · Geothermal wells and geological exploration. · Hard rock and complex formations.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Drilling depth | 600 m |
| Hole diameter | 100–1800 mm |
Other specifications
| Mast load capacity | 50 t |
| Mast height | 10 m |
| Pull-down force | 17 t |
| Pull-up force | 35 t |
| Power head torque | 32500–9234 N·m |
| Power head speed | 23–161 rpm |
| Mud DTH hammer | KYD-178, 450 J at 7–20 Hz |
| Engine power | 152 kW |
| Truck chassis | Sinotruk 6×4, 400 HP |
| Alternator | STC-30KW |
| Mud pump | 2 × BW1100/6, combined 2200 L/min at 6 MPa |
Dimensions & weight
| Overall dimensions | 12000 × 2500 × 4500 mm |
| Operating weight | 23500 kg |
Applications
- Water well drilling
- DTH drilling
- Exploration
Recommended packages
Air compressor match
Mechanical power head rigs drill with mud circulation (e.g. TEC-600J runs a BW1100/6 mud pump). Match the pump to depth and hole diameter rather than an air package.
DTH hammer & bits
Mud rotary method — drill pipes and bits match the power head torque (up to 29 000 N·m on TEC-J series). DTH conversion available on request.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the CDC-600JYD?
Water well drilling, DTH drilling, Exploration.
Which air compressor pairs with the CDC-600JYD?
Mechanical power head rigs drill with mud circulation (e.g. TEC-600J runs a BW1100/6 mud pump). Match the pump to depth and hole diameter rather than an air package.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
