Truck-Mounted Drilling Rigs/Hydraulic Top Drive Drilling Rigs

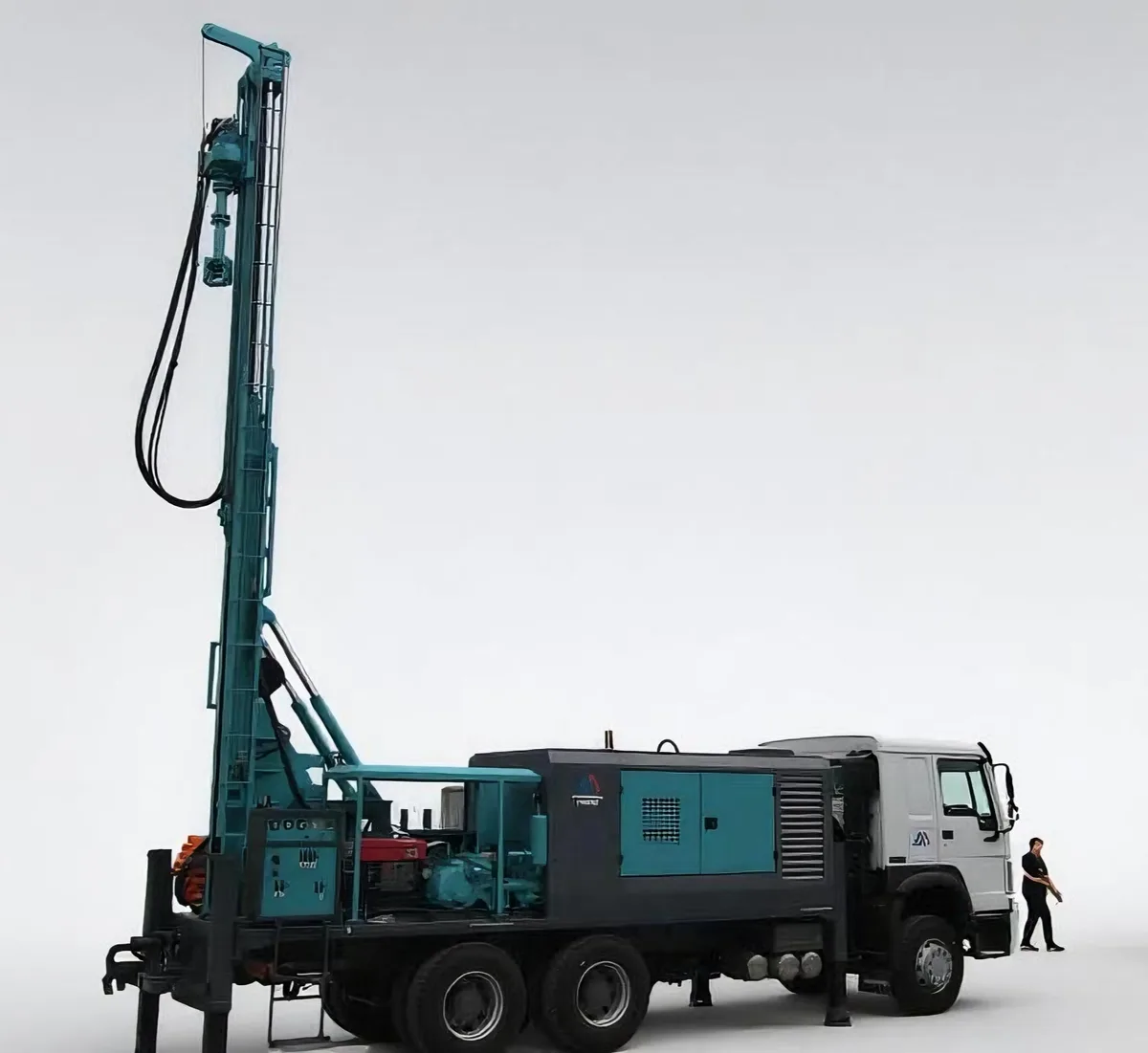

CDC-600K
The CDC-600K is a truck-mounted hydraulic top-drive water well drilling rig with a drilling depth of 600 m, offered in three published configurations — Entry, Standard and High-spec — with hole diameters of 268, 350 and 505 mm, mast loads of 20, 35 and 50 t, power-head torque of 8500, 11500 and 15500 N·m, and 132, 132 and 165 kW (Cummins) diesel engines, on a 6×4 truck chassis.
Configurations
Entry / Standard / High-spec; multi-value rows below are listed in this order
Drilling capability — Drilling depth
600 m
Drilling capability — Hole diameter
268 (Entry) / 350 (Standard) / 505 (High-spec) mm
Mast load capacity
20 / 35 / 50 t
Overview
The CDC-600K is a truck-mounted hydraulic top-drive water well drilling rig with a drilling depth of 600 m, offered in three published configurations — Entry, Standard and High-spec — with hole diameters of 268, 350 and 505 mm, mast loads of 20, 35 and 50 t, power-head torque of 8500, 11500 and 15500 N·m, and 132, 132 and 165 kW (Cummins) diesel engines, on a 6×4 truck chassis.
Key highlights
- ✓Three published configurations (Entry / Standard / High-spec) cover 268, 350 and 505 mm hole diameters.
- ✓Mast load 20 / 35 / 50 t with mast height 6 / 8 / 9 m and pull-up 20 / 30 / 35 t.
- ✓Power-head torque 8500 / 11500 / 15500 N·m with 132 / 132 / 165 kW (Cummins) diesel engines.
- ✓Air compressor 25–31 m³/min at 2.3–2.5 MPa and BW450–BW1200 mud pumps.
- ✓6×4 truck chassis, operating weight 19000–29000 kg.
Applications: Water well drilling.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Configurations | Entry / Standard / High-spec; multi-value rows below are listed in this order |
Drilling capability
| Drilling depth | 600 m |
| Hole diameter | 268 (Entry) / 350 (Standard) / 505 (High-spec) mm |
Other specifications
| Mast load capacity | 20 / 35 / 50 t |
| Mast height | 6 / 8 / 9 m |
| Pull-down force | 7 / 15 / 15 t |
| Pull-up force | 20 / 30 / 35 t |
| Power head torque | 8500 / 11500 / 15500 N·m |
| Engine power | 132 / 132 / 165 (Cummins) kW |
| Truck chassis | 6×4 |
| Air compressor | 25–31 m³/min at 2.3–2.5 MPa |
| Mud pump | BW450–BW1200 |
Dimensions & weight
| Overall dimensions | 7500–11500 × 2500 × 3200–3800 mm |
| Operating weight | 19000–29000 kg |
Applications
- Water well drilling
- DTH drilling
- Exploration
Recommended packages
Air compressor match
Hydraulic top drive rigs handle both mud circulation and DTH drilling. For DTH work, match a KSZJ/LGZJ compressor to the hammer pressure and flow.
DTH hammer & bits
For DTH work, match hammers to the hole diameter (up to 505 mm on the CDC-600K high-spec); mud work uses standard rotary bits.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the CDC-600K?
Water well drilling, DTH drilling, Exploration.
Which air compressor pairs with the CDC-600K?
Hydraulic top drive rigs handle both mud circulation and DTH drilling. For DTH work, match a KSZJ/LGZJ compressor to the hammer pressure and flow.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
