KG500GF

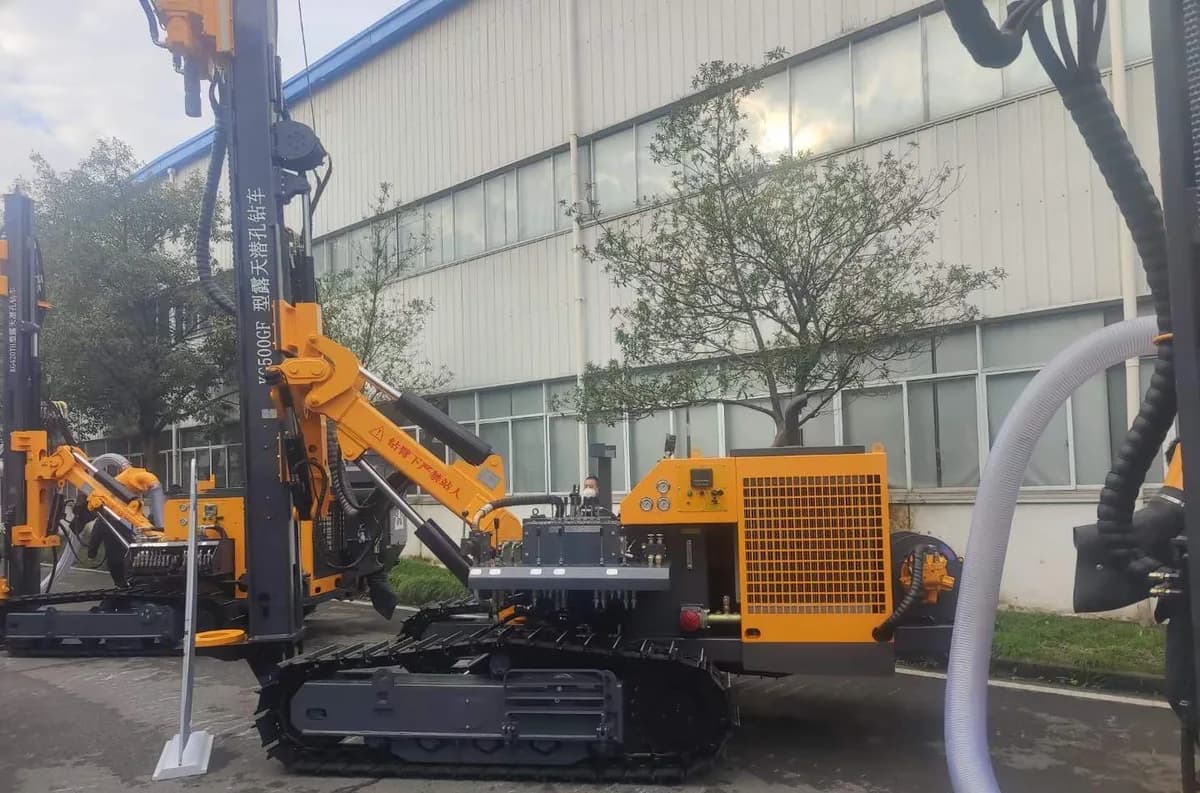

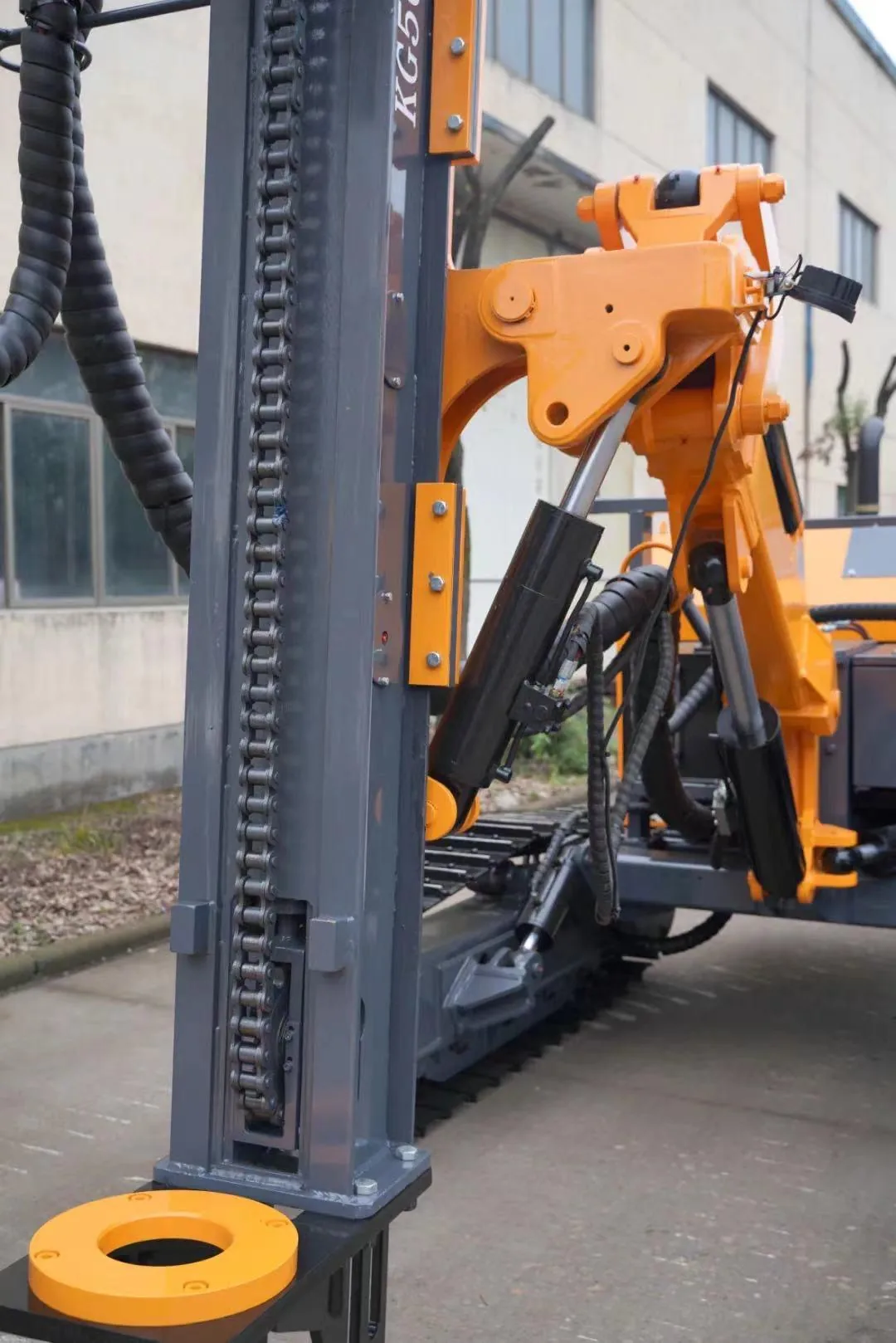

The KG500GF photovoltaic drilling rig is a product specially designed for photovoltaic foundation pile holes. It is equipped with an 86 kW engine, an efficient desert-air filter, and the maximum hole diameter can reach 500 mm. The hydraulic system adopts a high-pressure cast iron pump, widened and thickened walking track plates, a 28A roller chain for lifting and a box-type large-section steel guide rail to ensure sufficient strength; it can push 4 metres in one stroke. The gyrator is equipped with four sets of hydraulic rotary motors and adopts high-modulus straight-tooth, large-reduction-ratio transmission to provide a rotary torque of up to 12000 N·m for the drilling rig. It is suitable for the construction of foundation pile holes with large aperture. The KG500GF photovoltaic drilling rig can be equipped with a 1-ton frame winch for feed (optional), convenient for hoisting the drill bit, drilling tools and the impact device. When used on large slopes, an 8-ton frame winch for the rig (optional) can be selected to ensure sufficient traction.
Model of drill rig
KG500GF
Dimensions & weight — Weight of complete machine
7500 kg
Dimensions & weight — Overall dimensions (L × W × H)
6680 x 2450 x 2710 mm
Drilling capability — Drilling hardness
F = 6-20
Overview
The KG500GF photovoltaic drilling rig is a product specially designed for photovoltaic foundation pile holes. It is equipped with an 86 kW engine, an efficient desert-air filter, and the maximum hole diameter can reach 500 mm. The hydraulic system adopts a high-pressure cast iron pump, widened and thickened walking track plates, a 28A roller chain for lifting and a box-type large-section steel guide rail to ensure sufficient strength; it can push 4 metres in one stroke. The gyrator is equipped with four sets of hydraulic rotary motors and adopts high-modulus straight-tooth, large-reduction-ratio transmission to provide a rotary torque of up to 12000 N·m for the drilling rig. It is suitable for the construction of foundation pile holes with large aperture. The KG500GF photovoltaic drilling rig can be equipped with a 1-ton frame winch for feed (optional), convenient for hoisting the drill bit, drilling tools and the impact device. When used on large slopes, an 8-ton frame winch for the rig (optional) can be selected to ensure sufficient traction.
Key highlights
- ✓86 kW engine with an efficient desert-air filter; maximum hole diameter up to 500 mm.
- ✓High-pressure cast iron pump, widened and thickened track plates, 28A roller chain and box-type large-section steel guide rail.
- ✓One-stroke feed of 4 metres.
- ✓Four hydraulic rotary motors with high-modulus straight-tooth, large-reduction-ratio transmission provide up to 12000 N·m rotary torque.
- ✓Optional 1-ton frame winch for feed eases hoisting of bits, tools and the impact device.
- ✓Optional 8-ton frame winch for the rig gives sufficient traction on large slopes.
Applications: Photovoltaic foundation pile holes, with hole diameter φ185-500 mm. · Rock of hardness F = 6-20. · Large-aperture foundation pile hole construction and large-slope sites (optional 8-ton rig winch). · Sites that pair the rig with a portable air compressor: the catalog recommends KSCY310/22, KSCY750/20-800/17T and LGZJY31/25-35/18.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Model of drill rig | KG500GF |
Dimensions & weight
| Weight of complete machine | 7500 kg |
| Overall dimensions (L × W × H) | 6680 x 2450 x 2710 mm |
Drilling capability
| Drilling hardness | F = 6-20 |
| Drilling diameter | φ185-500 mm |
| Rotary speed | 0-80 rpm |
| Rotary torque (max) | ≥12000 N·m |
| Lifting force | 25 kN |
| Method of feed | Motor and roller chain |
| Feed stroke | 4275 mm |
| Travelling speed | 0-3 km/h |
| Climbing capacity | ≤25° |
| Ground clearance | 440 mm |
| Tilt angle of beam | 165° |
| Swing angle of beam | left 50°, right 50°, total 100° |
| Pitch angle of drill boom | down 50°, up 25°, total 75° |
| Swing angle of drill boom | left 30°, right 30°, total 60° |
| Leveling angle of track | ±10° |
| Compensation length of beam | 1200 mm |
Engine & drive
| Working air pressure | 1-2.4 MPa |
| Supporting power | Yuchai DKC9G0, 86 kW / 2200 r/min |
| DTH hammer | 6-12 in (standard configuration 8 in) |
| Drilling rod | φ102 x 1500 mm |
| Air consumption | 15-45 m³/min |

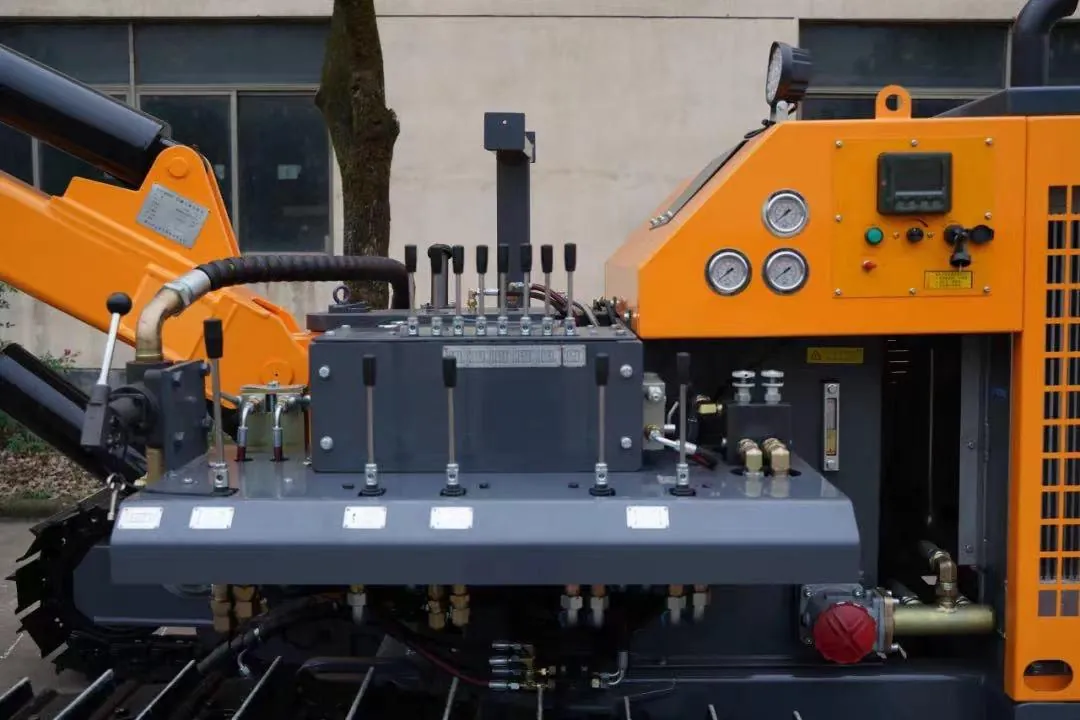

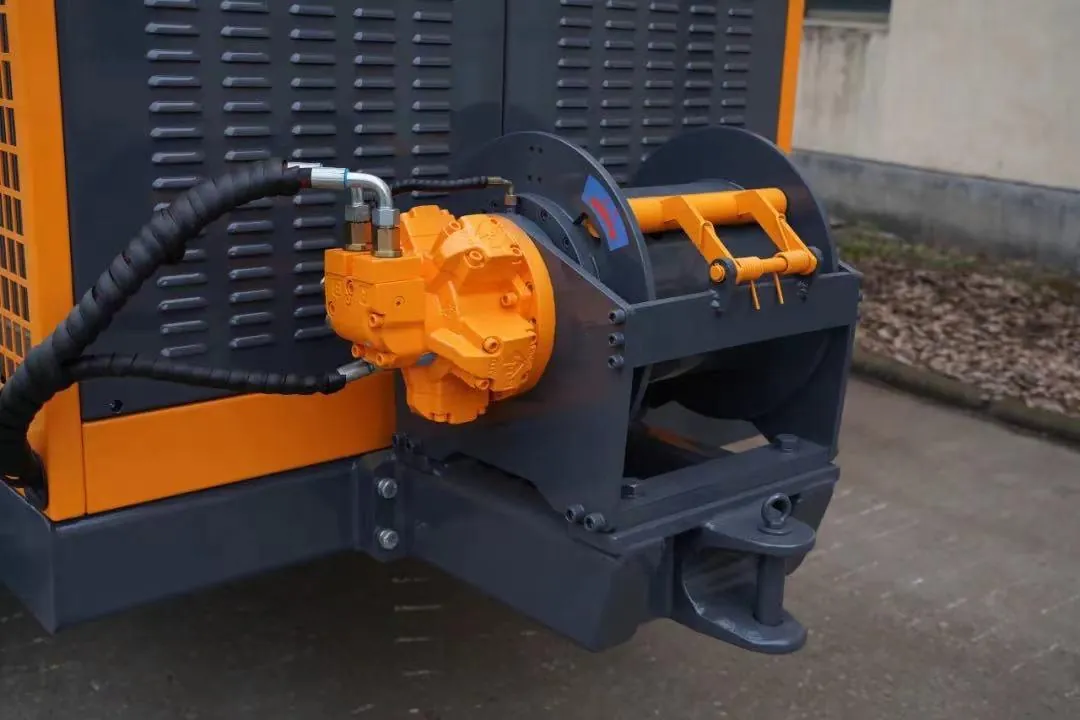

| Frame winch for feed (optional) | 1 t |
| Frame winch for rig (optional) | 8 t |
